Samson Concert 288 All-In-One Dual-Channel Wireless System | H-Band, 470 to 518 MHz

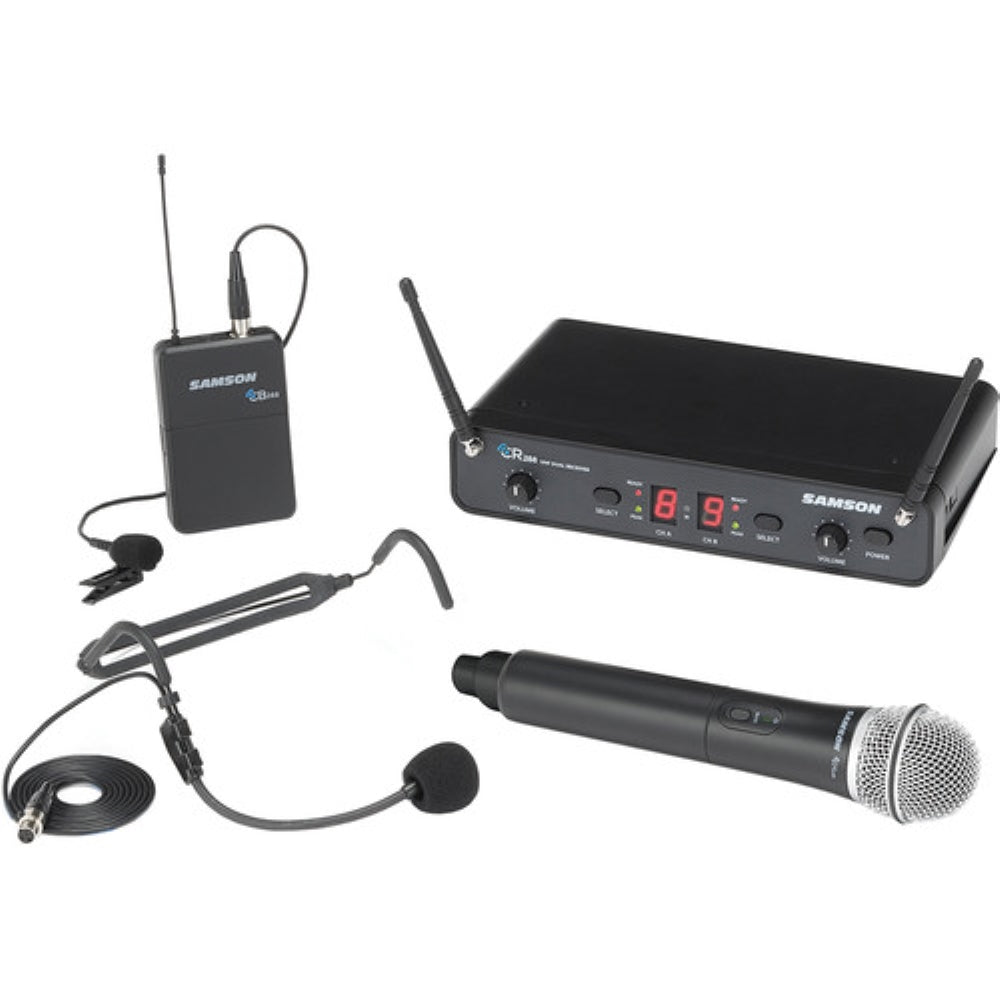

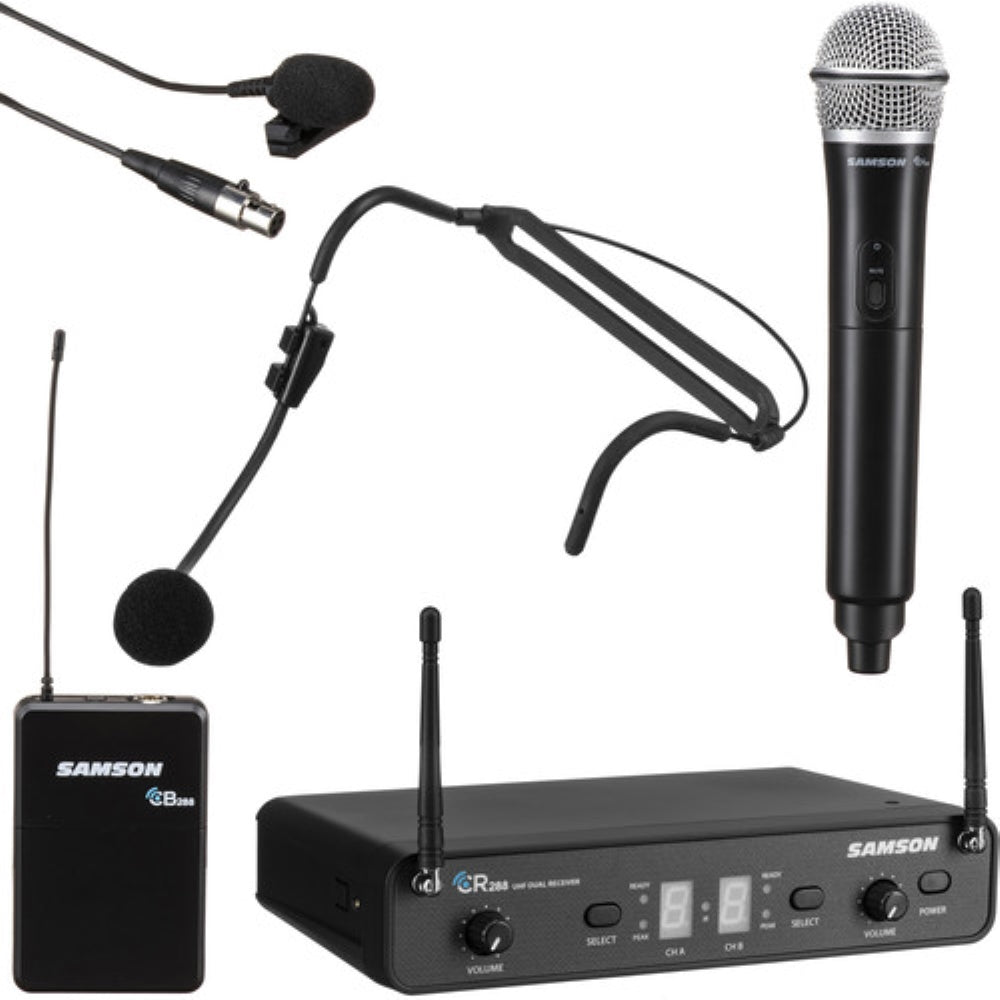

The Samson Concert 288 All-In-One Dual-Channel Wireless System is the perfect choice for any scenario that necessitates two wireless microphones. It boasts user-friendly functionality with 16 channels available per receiver, easily set via the infrared transmitter channel, allowing for quick deployment right out of the box for vocal performances, presentations, Q&A sessions, religious services, and more. The system includes a CH288 handheld transmitter, a CB288 beltpack transmitter, an HS5 headset microphone, and an LM5 lavalier microphone, providing exceptional versatility for dual-user applications, especially in duet performances, audience engagement, and interviews. Additionally, it comes with an AC adapter, rack ears, and a 1/4" cable.

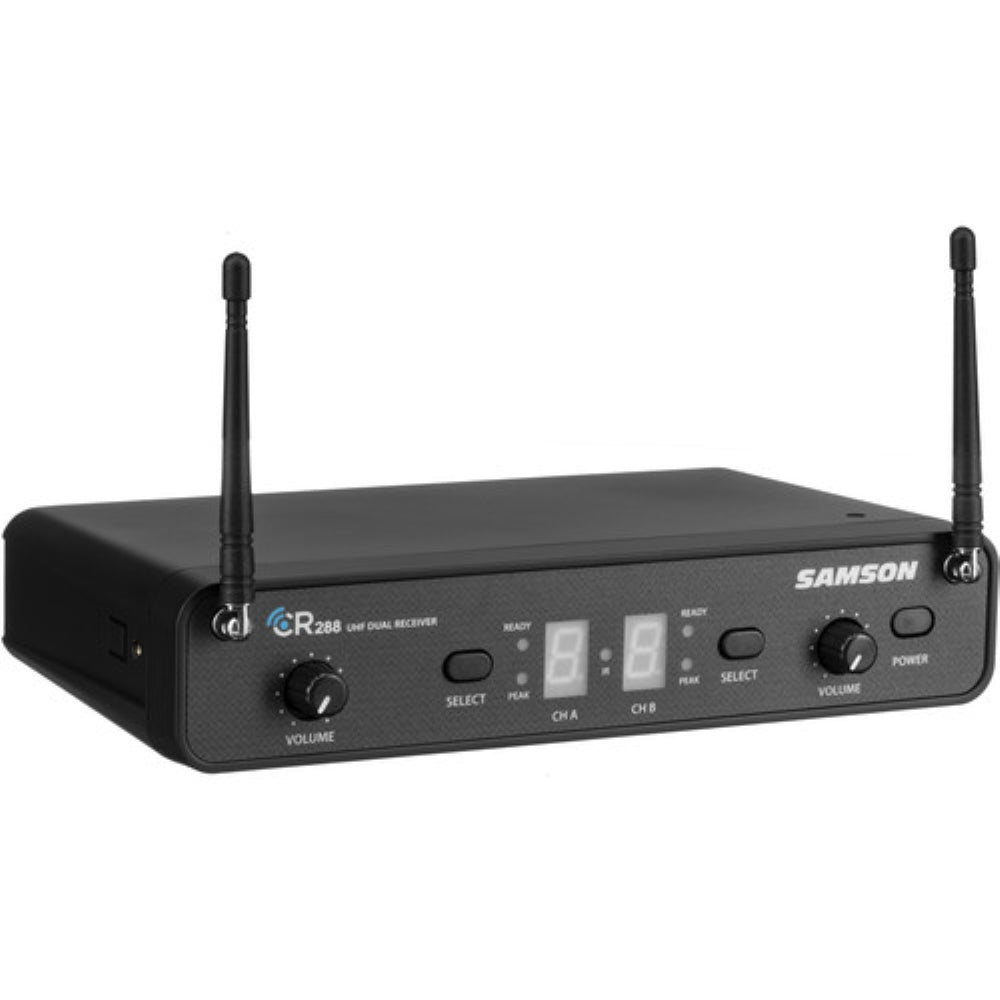

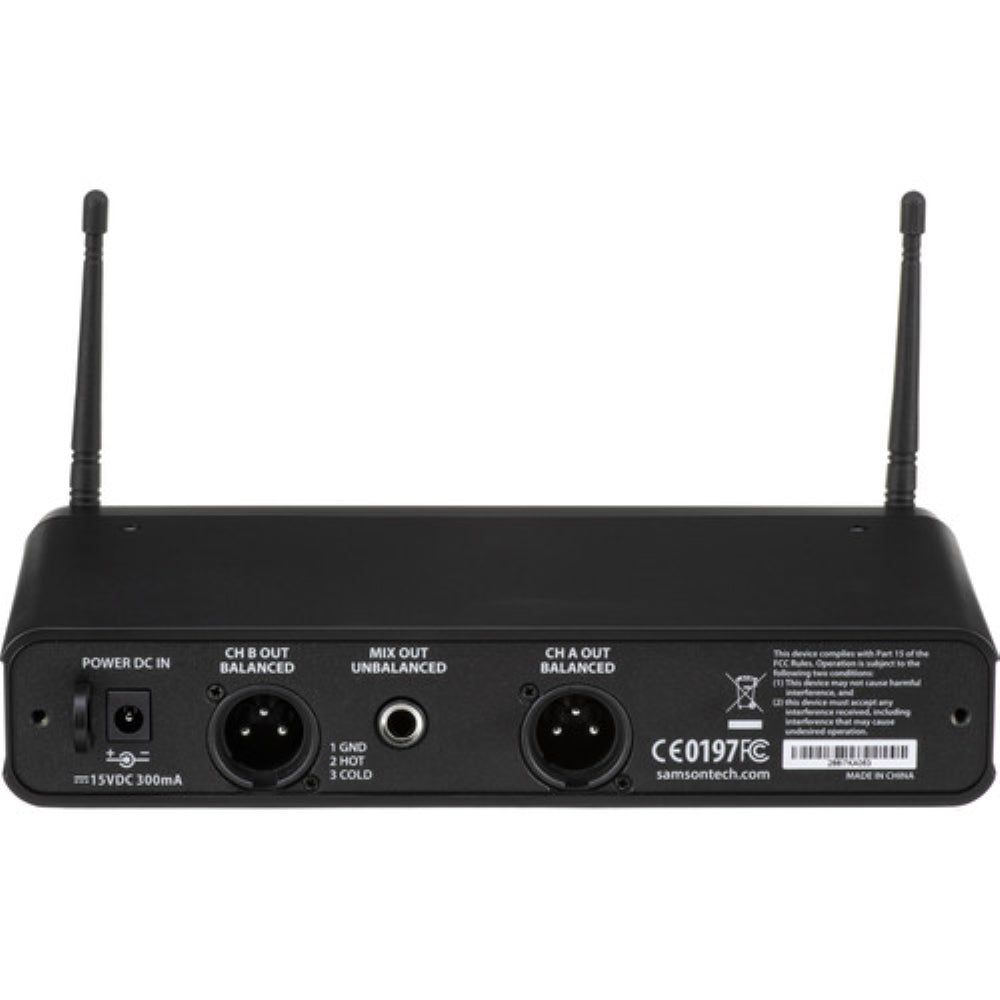

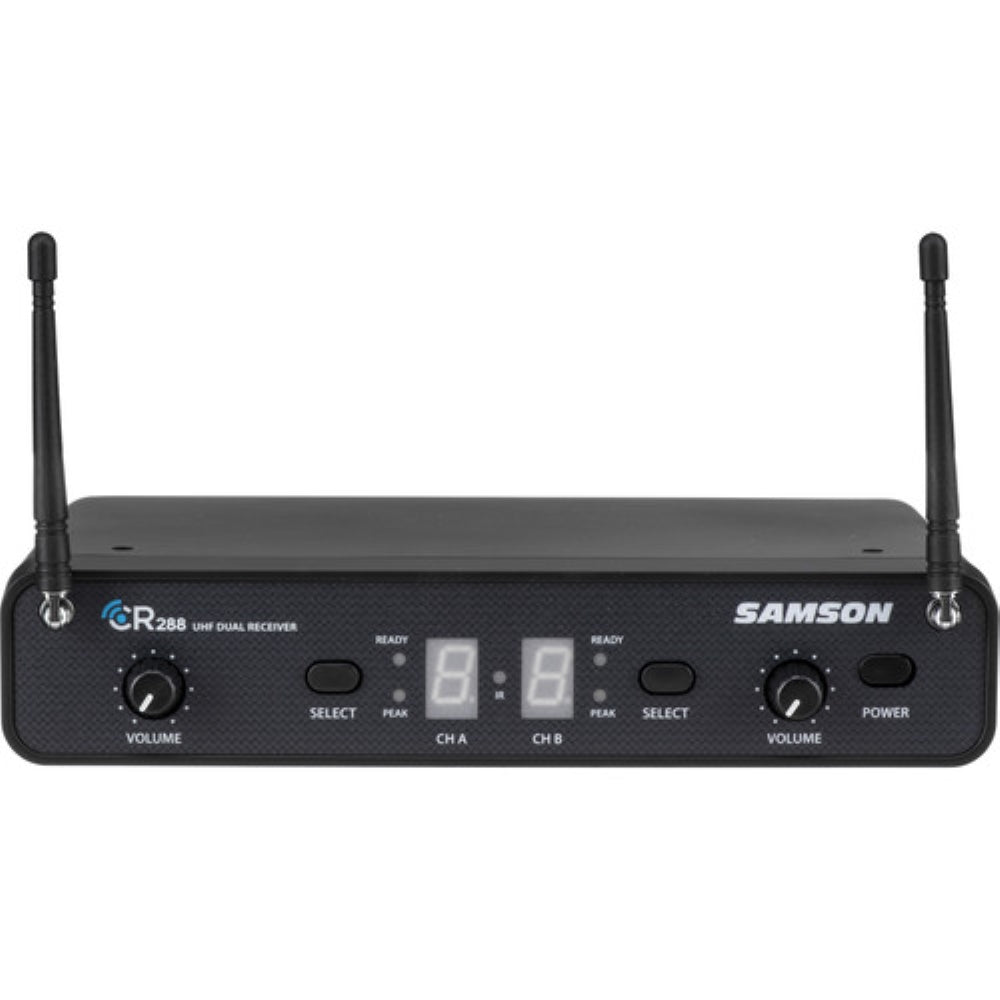

The CR288 wireless receiver features multiple frequency selections to ensure interference-free operation, along with individual volume controls for each channel. It is designed with dual balanced XLR outputs for directing signals to separate mixer channels, and a 1/4" unbalanced mix output for merging signals into a single output channel.

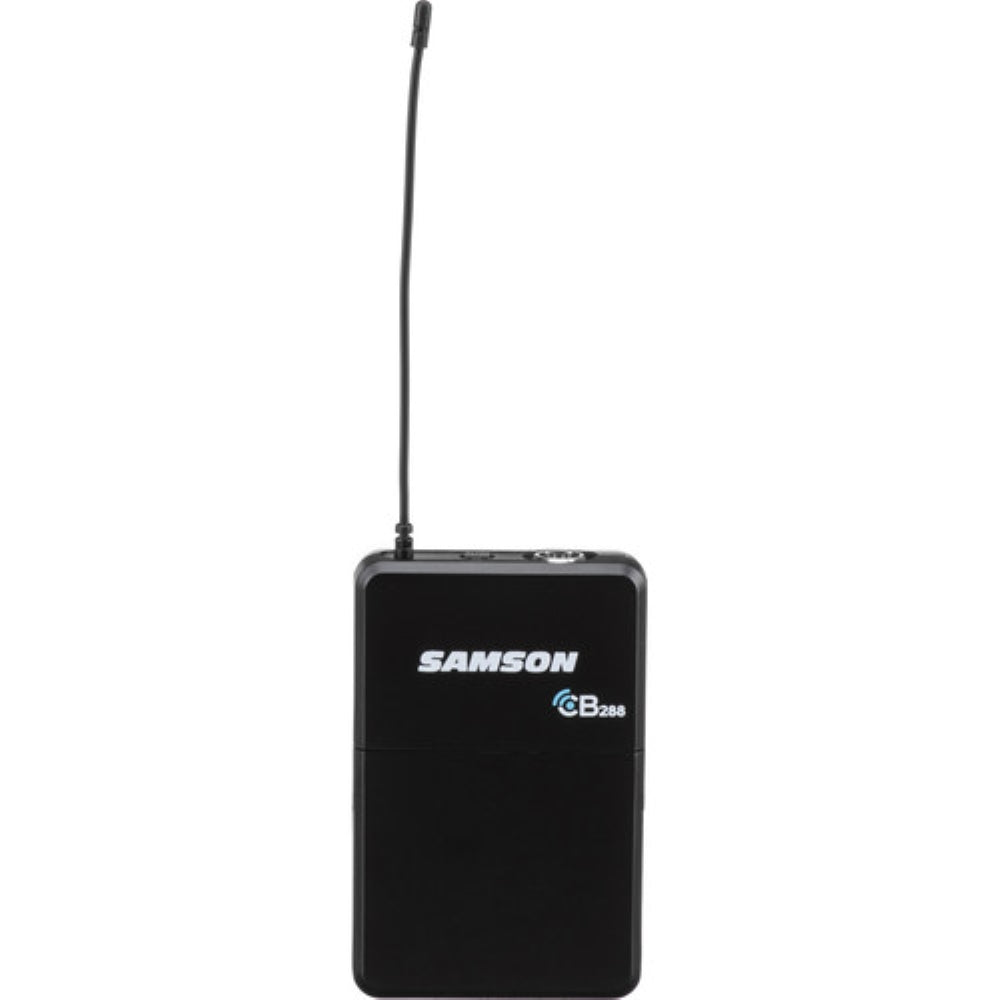

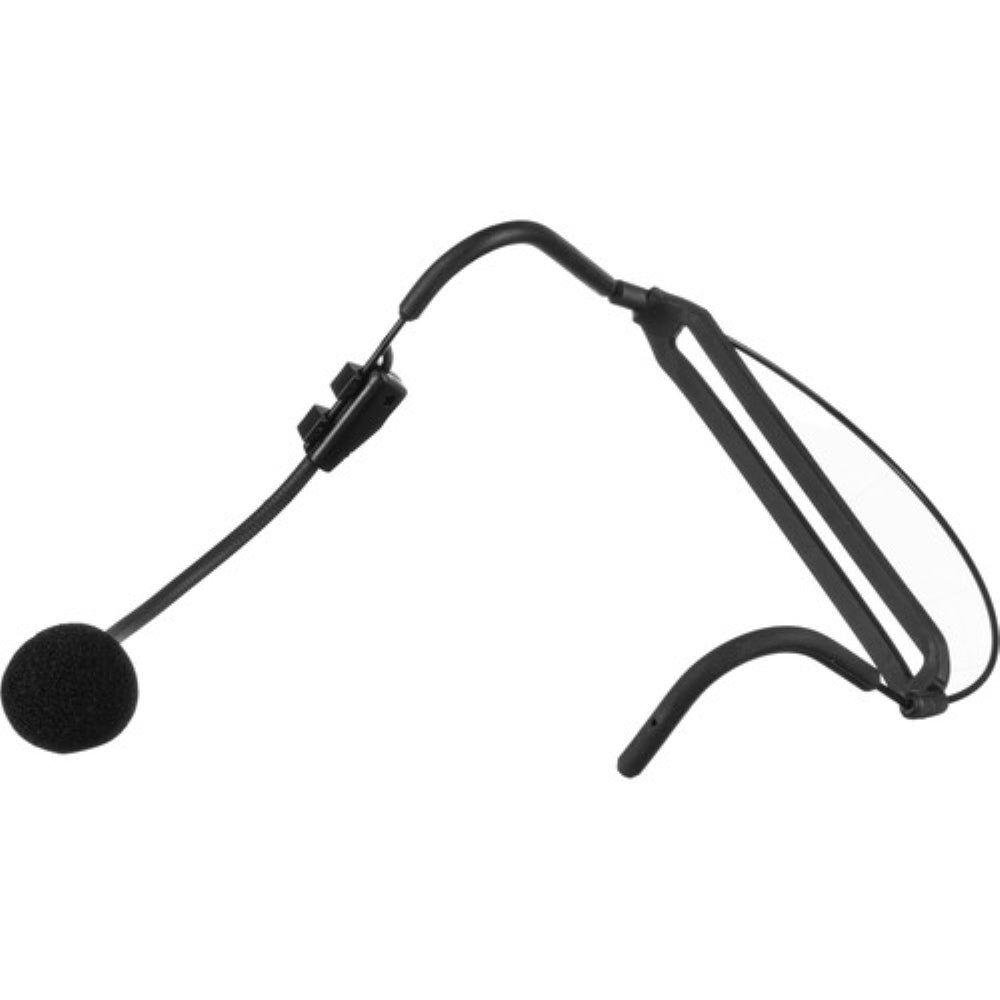

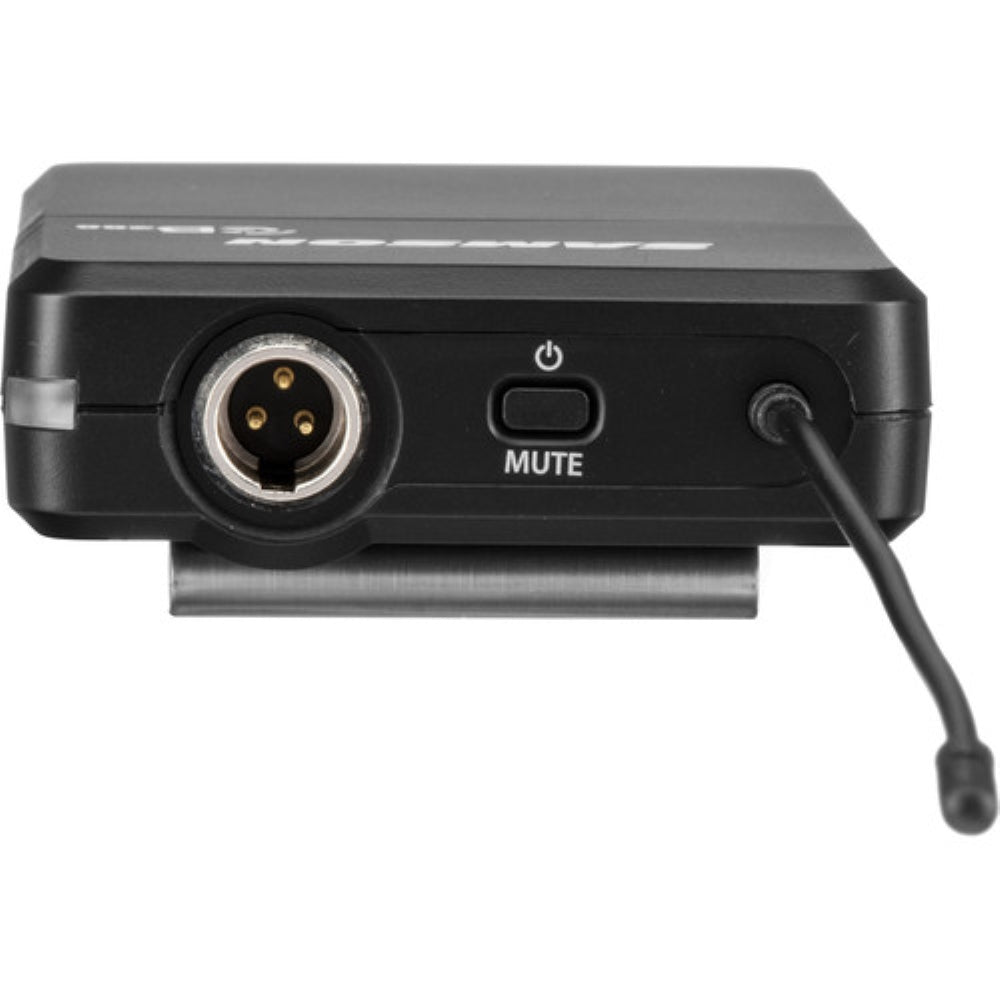

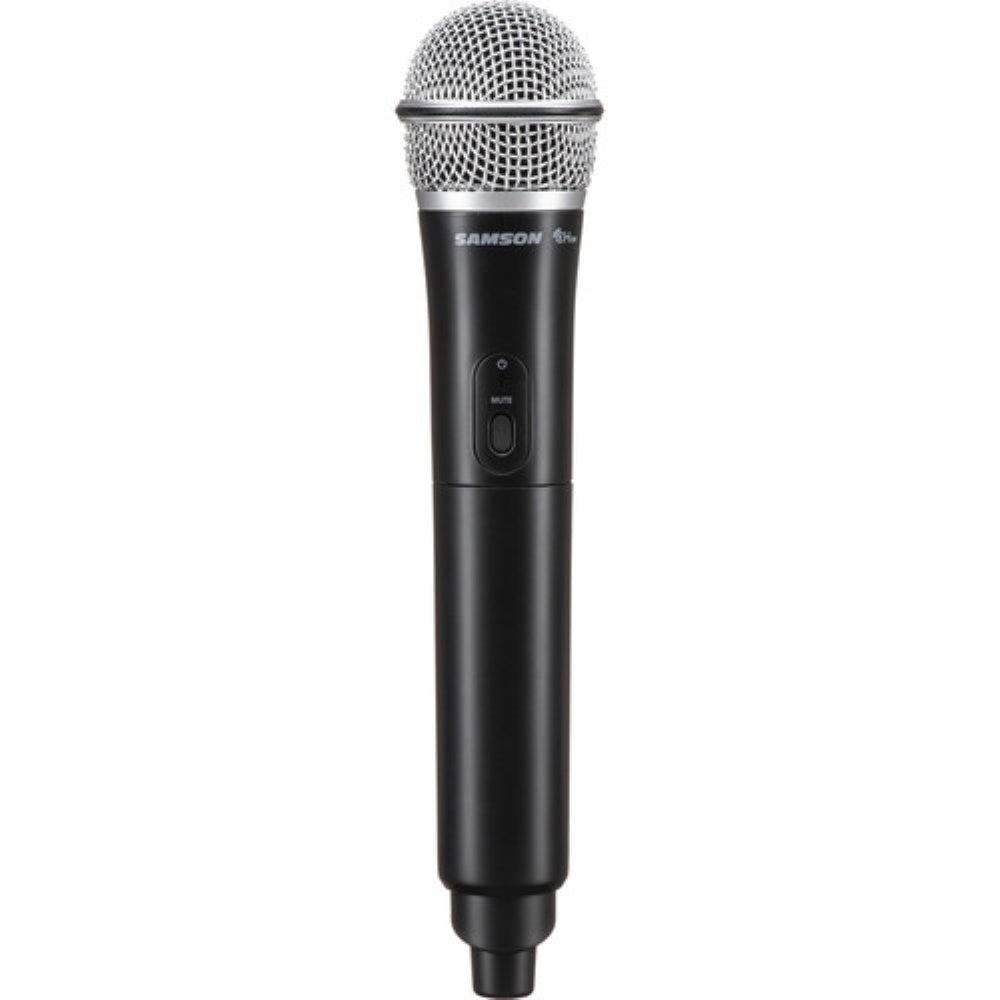

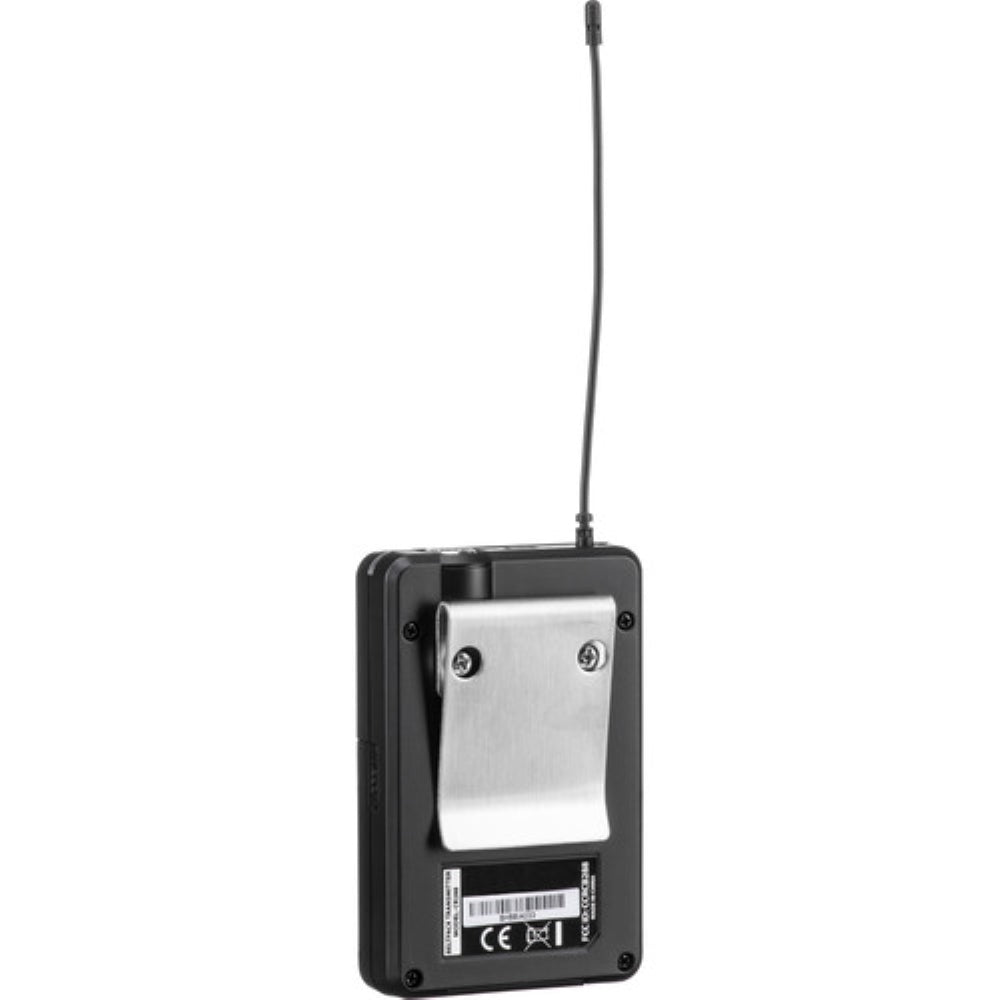

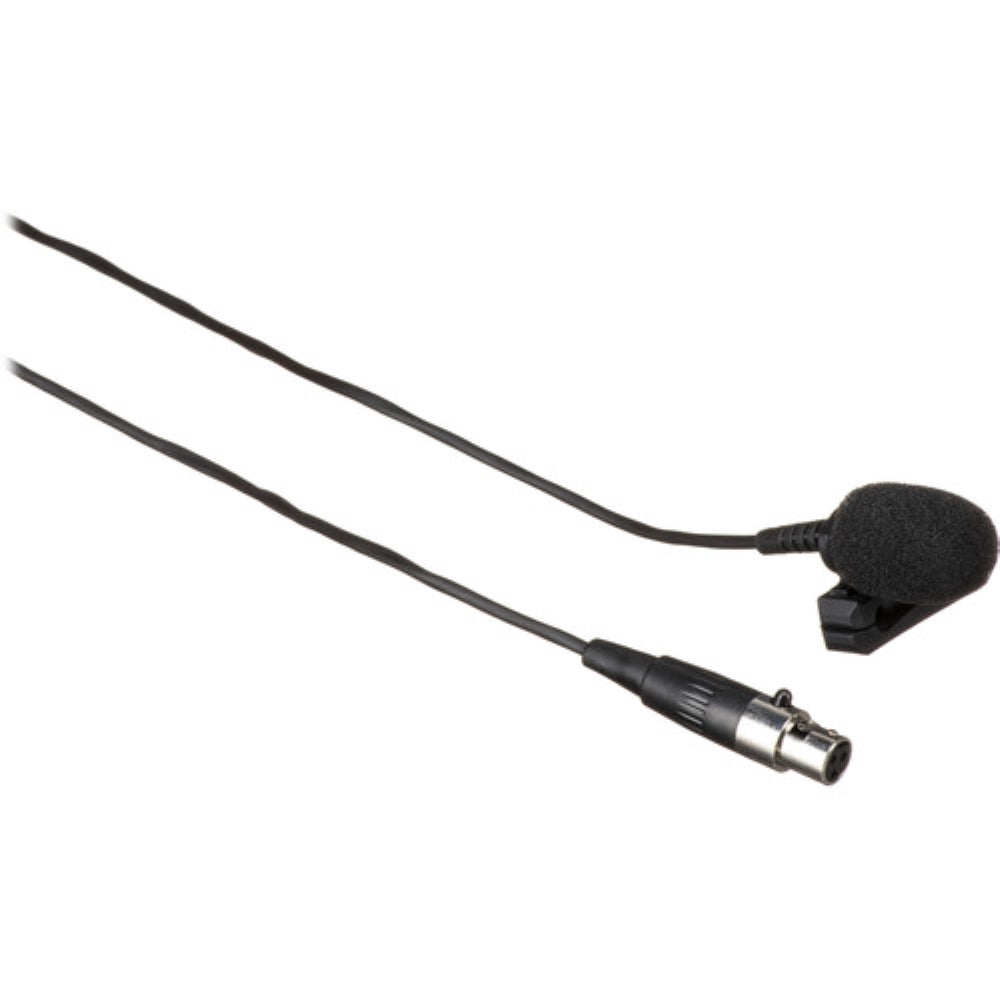

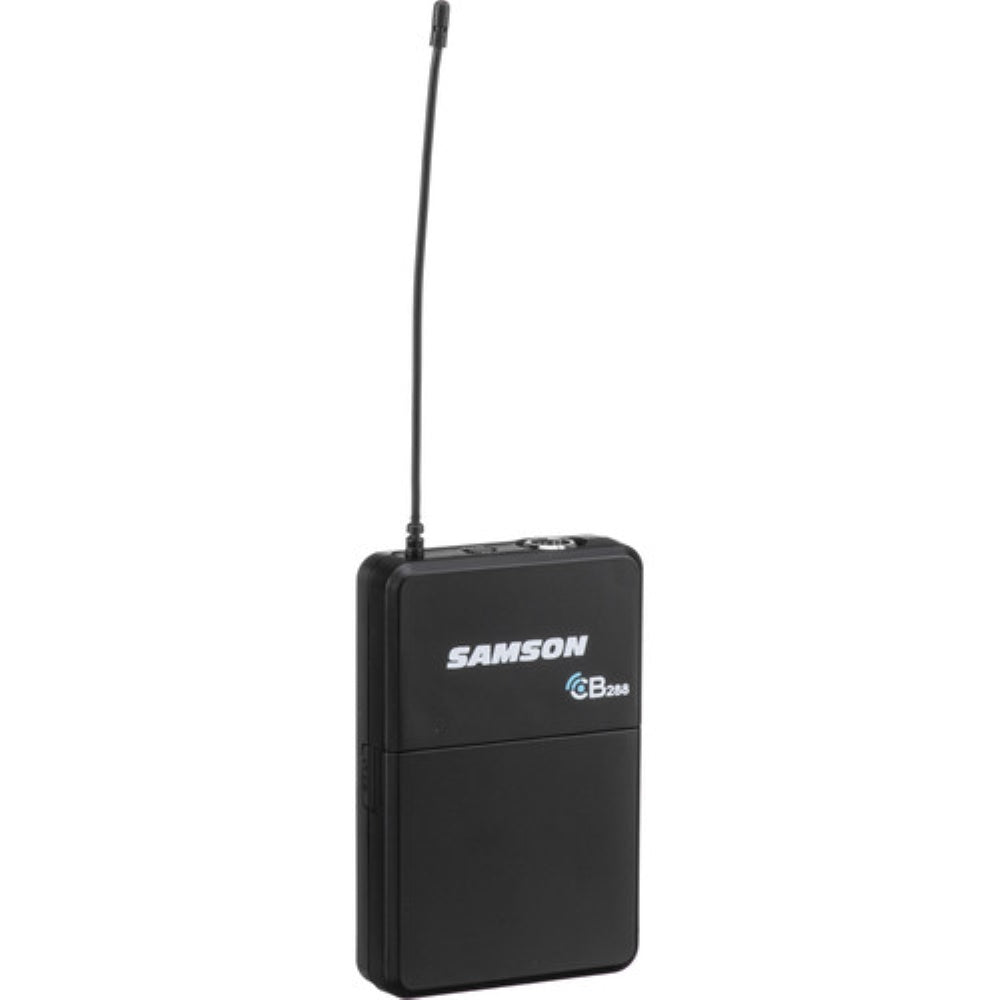

Moreover, both the Q6 dynamic handheld transmitter and the CB288 beltpack transmitter deliver up to eight hours of battery life using two AA batteries, with an operational range of up to 300 feet. The LM5 lavalier and HS5 headset microphones, equipped with locking mini-XLR (P3) connectors, ensure clear and natural sound reproduction. In conclusion, the Concert 288 All-In-One Wireless System from Samson alleviates concerns associated with wireless technology, providing straightforward setup, reliable performance, and superior sound quality, making it the ideal high-performance UHF wireless solution for your event.
System |
|
---|---|
Wireless Technology | Analog UHF |
Diversity | Yes, True Diversity |
RF Frequency Band | H: 470 to 518 MHz |
Number of RF Channel Frequencies | 16 |
Max Operating Range | 300' / 91.4 m |
Max Transmitters per Band | 2 |
Dynamic Range | 100 dBA |
Encryption | No |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No |
Receiver |
|
---|---|
Receiver Type | 1x Tabletop/Rack-Mountable |
Mounting Options | Rackmount (with Included Hardware, 1 U Half-Rack) |
Antenna | 2x Fixed External (Front-Mount) |
Number of Audio Channels | 2 |
Audio I/O | 2x XLR 3-Pin Balanced Output 1x 1/4" TRS Unbalanced Output |
Network I/O | No |
Word Clock I/O | No |
USB/Lightning Connectivity | No |
Gain Range | 38 dB |
Frequency Response | 50 Hz to 15 kHz |
Display | Alphanumeric LED |
Power Requirements | AC/DC Power Adapter |
Transmitters |
|
---|---|
Included Transmitters | 1x Handheld 1x Bodypack |
RF Output Power | 10 mW |
Antenna | Internal (Handheld) Fixed External (Bodypack) |
Input Level | Microphone |
Audio I/O | 1x TA3F/Mini-XLR 3-Pin Female Input (on Bodypack Transmitter) |
Bias/Plug-In & Phantom Power | Bias/Plug-In Power is Unspecified by Manufacturer No Phantom Support |
USB I/O | No |
Muting | Mute Switch |
Auto-Level/Gain | No |
Sync Method | IR |
Display | Single-LED Indicators Only |
Microphones |
|
---|---|
Microphone Type | 1x Handheld 1x Headset |
Polar Pattern | Cardioid (Handheld, Headset) Omnidirectional (Lavalier) |
Output Connector | 1x TA3F/Mini-XLR 3-Pin Female (on Lavalier & Headset) |
Color | Black |
Power |
|
---|---|
Transmitter Battery Type | 2x AA |
Transmitter Battery Life | 8 Hours |
Input Power | 15 VDC at 300 mA |
Physical |
|
---|---|
Environmental Resistance | No |
Dimensions | Receiver: 4.9 x 1.7 x 8.2" / 124.5 x 43.2 x 208.3 mm Bodypack Transmitter: 2.4 x 3.7 x 0.7" / 61 x 94 x 17.8 mm Handheld Transmitter: 10.2 x 2.1" / 260 x 54 mm |
Weight | Receiver: 15.9 oz / 450 g Handheld Transmitter: 7.7 oz / 218 g Bodypack Transmitter: 0.2 lb / 93 g |
