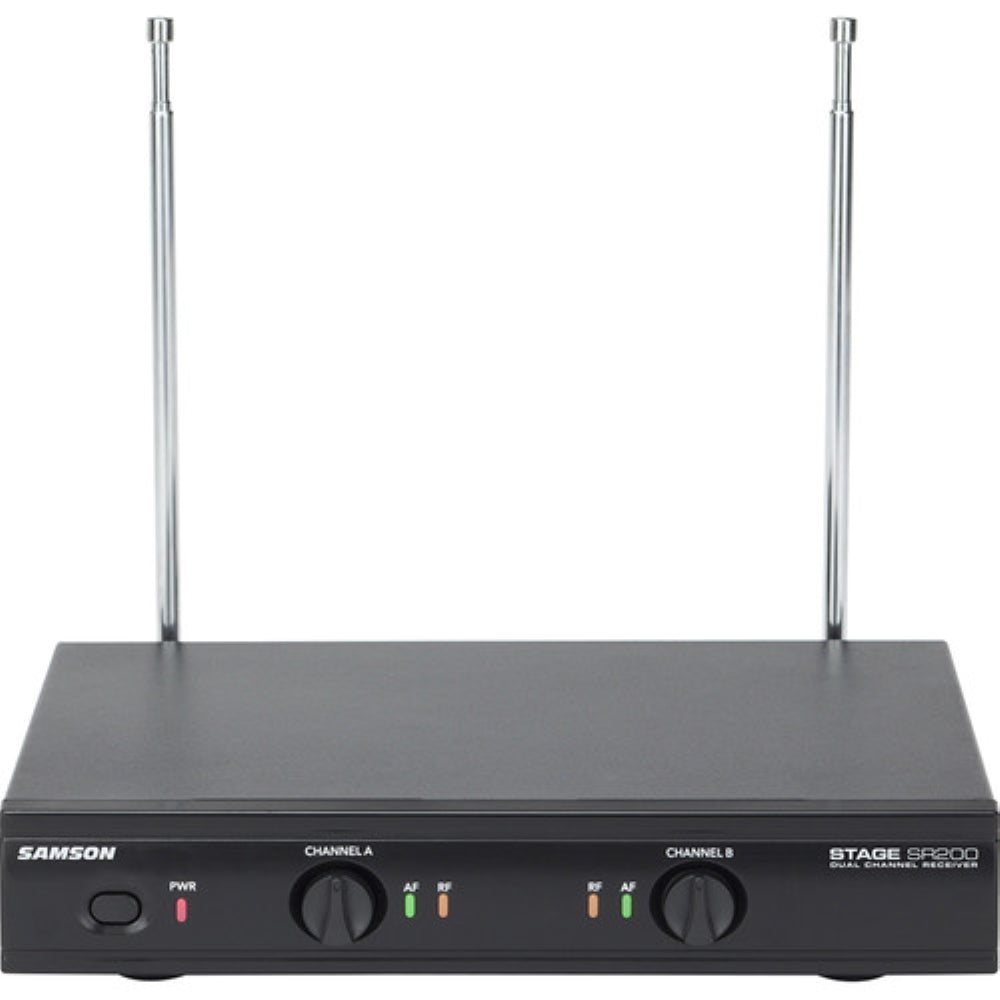

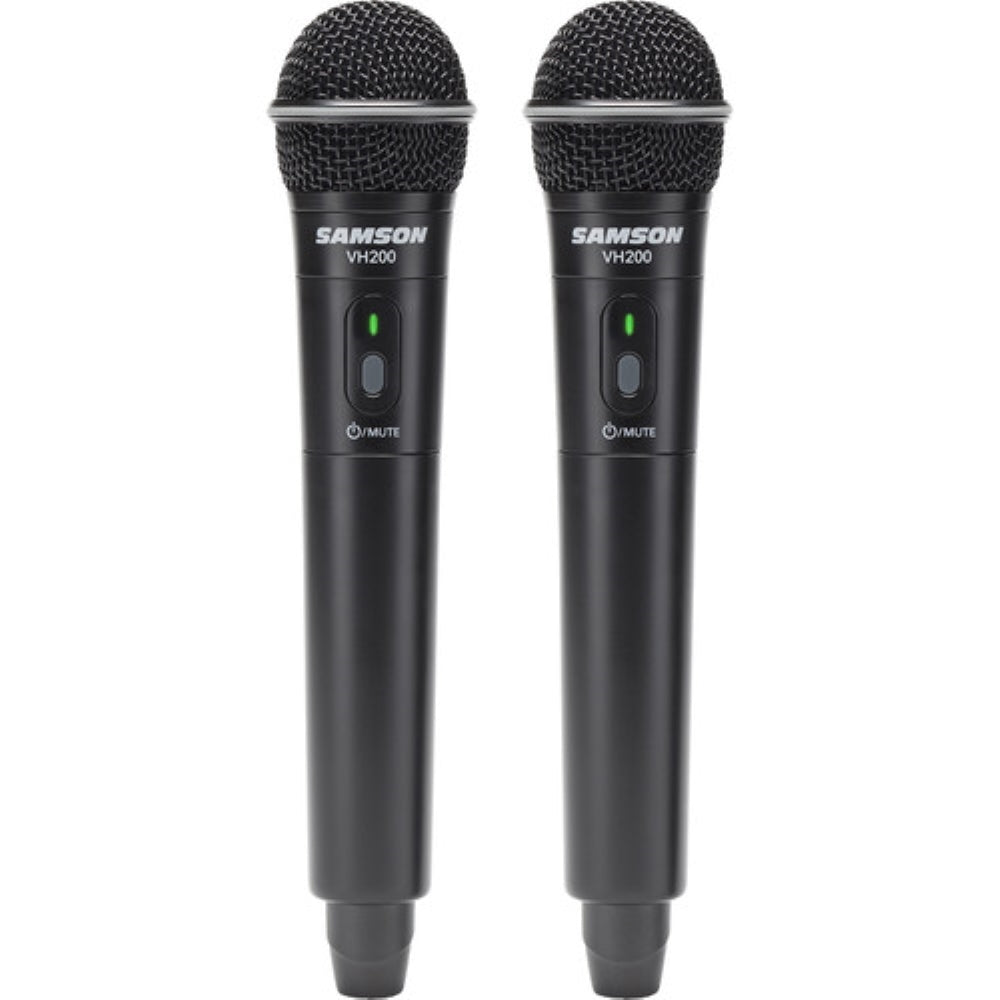

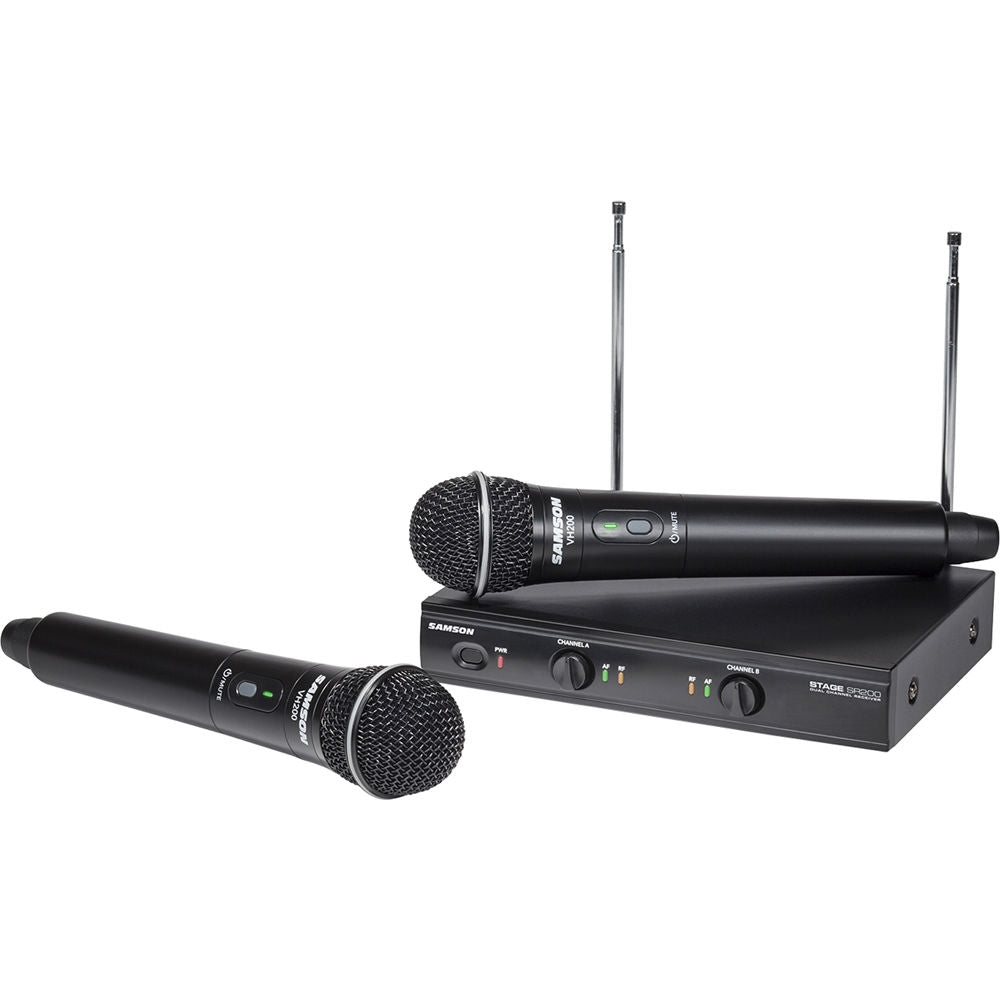

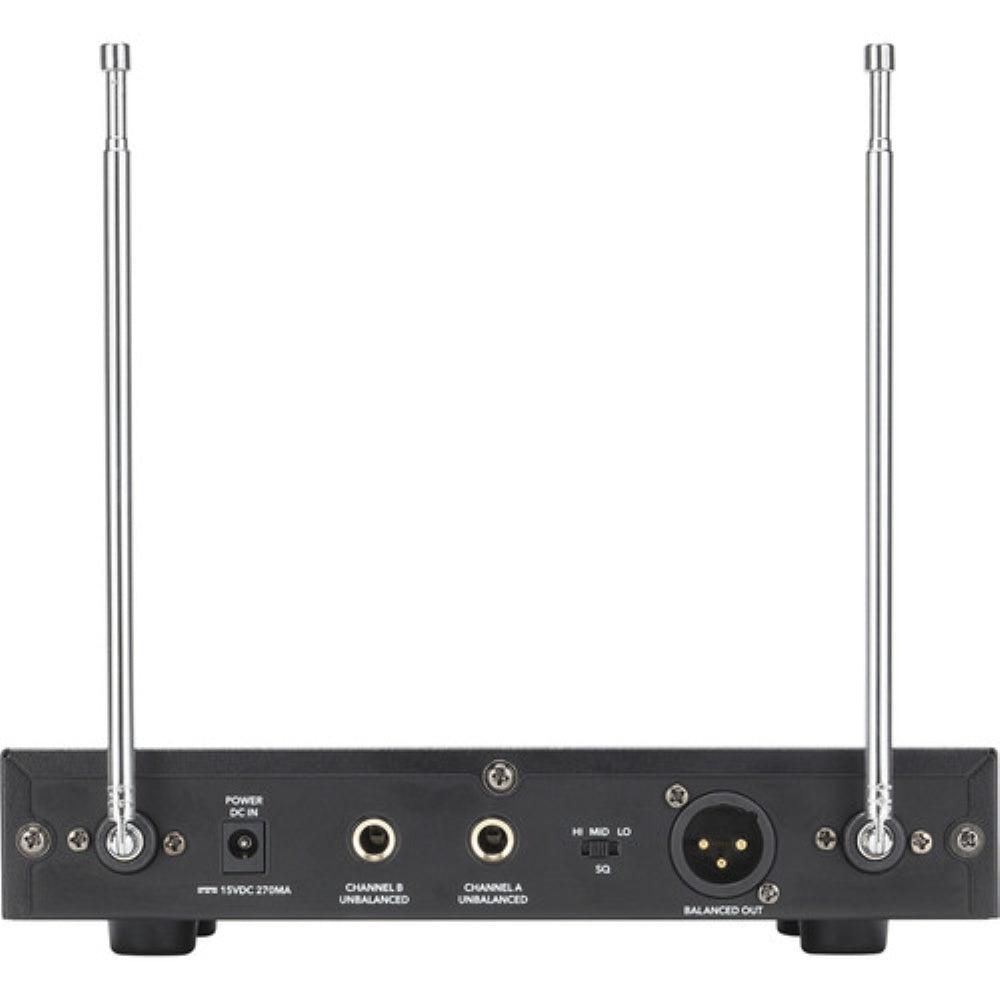

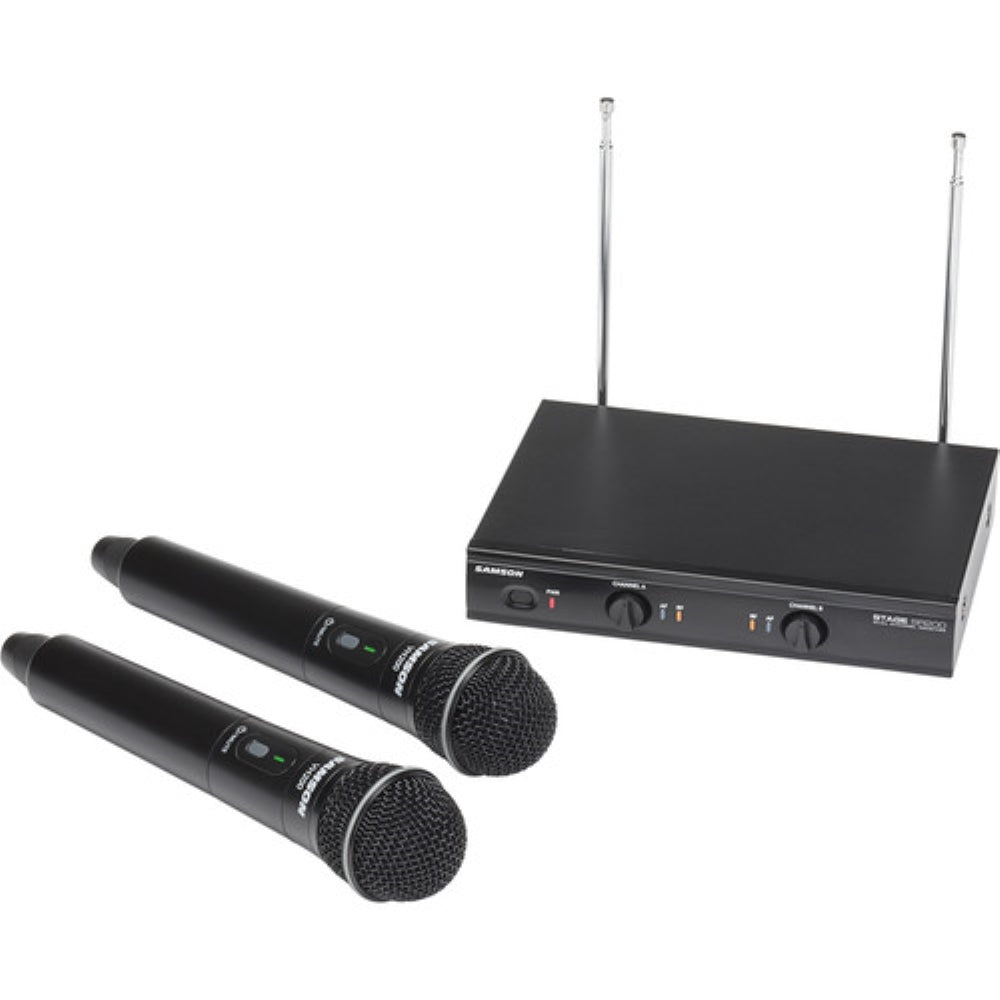

The channel A Stage 200 from Samson is a dual-channel VHF wireless microphone system that provides two handheld dynamic microphones, which transmit to a single rugged metal receiver. The two handheld transmitters feature a Samson Q6 cardioid mic element that provide crisp, clear sound and reliable VHF wireless performance for live presentations, education, karaoke, houses of worship, and other dual-performer applications. The receiver features two 1/4" outputs on the back panel as well as a balanced XLR mix output. A front-panel volume control for each channel allows you to find the right blend for each performer. The VHF fixed frequency operation provides instant setup. Simply plug in the receiver and turn on the transmitters. In addition, the VHF operation provides both transmitters with a long battery life of up to 12 hours via two AA batteries (not included), and there is a 200' operating range (line-of-sight) that provides ample freedom for any presenter or performer duo.
System |
|
|---|---|
| Wireless Technology | Analog VHF |
| Number of RF Channel Frequencies | 2 |
| Included Transmitters | 2x Handheld |
| Diversity | Non-Diversity |
| RF Frequency Band | A: 182.1 to 200.9 MHz |
| RF Bandwidth | 18.8 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 200' / 61 m |
| Max Transmitters per Band | 1 |
| Built-In Recorder | No |
| Timecode Support | No |
| Dynamic Range | 100 dB |
| Encryption | No |
| Deviation | ±30 kHz |
| Modulation | FM |
Receiver |
|
|---|---|
| Receiver Type | Tabletop |
| Mounting Options | Tabletop (with Included Hardware) |
| Antenna | 2x External, Fixed |
| Number of Audio Channels | 2 |
| Audio I/O | 1x XLR 3-Pin Male Balanced Output 2x 1/4" TRS Unbalanced Output |
| Audio Output Level | 0 to -12 dB |
| Frequency Response | 80 Hz to 15 kHz |
| Network I/O | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity | No |
| RF Output Power | 25 mW |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 100 to 240 VDC at 0.4 A (Included) |
| DC Input Power | 15 VDC at 800mA |
| Display & Indicators | 5x LED (AF Level, Power, RF Level) |
| Dimensions | 8.2 x 1.4 x 5.7" / 208.3 x 35.6 x 144.8 mm |
| Weight | 1.3 lb / 0.6 kg |
Transmitter |
|
|---|---|
| Transmitter Type | Handheld |
| RF Output Power | 25 mW |
| Audio I/O | No |
| Pad | No |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Sync Method | IR |
| Antenna | 1x Internal |
| Power Requirements | Battery |
| Battery Type | 2x AA |
| Approx. Battery Life | 12 Hours |
| USB/Lightning I/O | No |
| Display & Indicators | 1x LED (Mute, Power) |
Microphone |
|
|---|---|
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Unidirectional |
| Dynamic Range | No |
| Length | 10" / 254.0 mm |
| Diameter | 2.2" / 55.9 mm |
| Weight | 0.49 lb / 0.22 kg |
