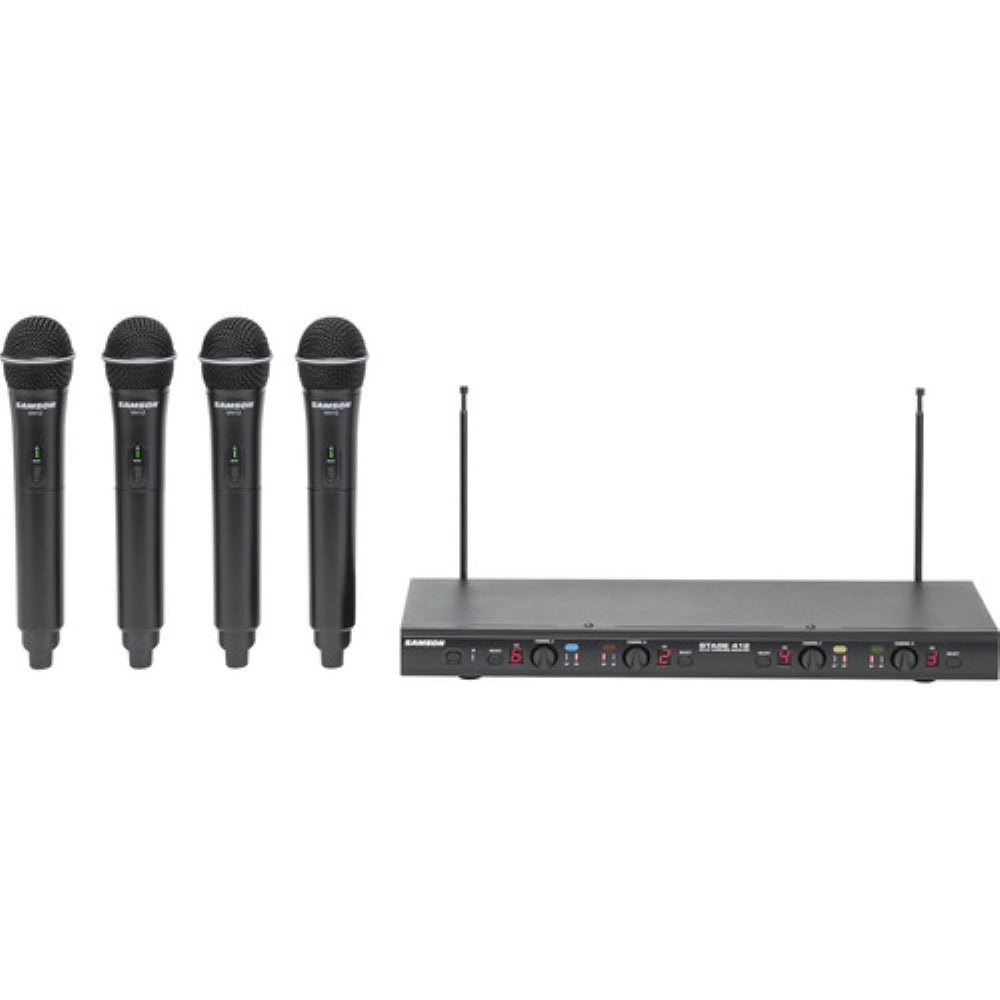

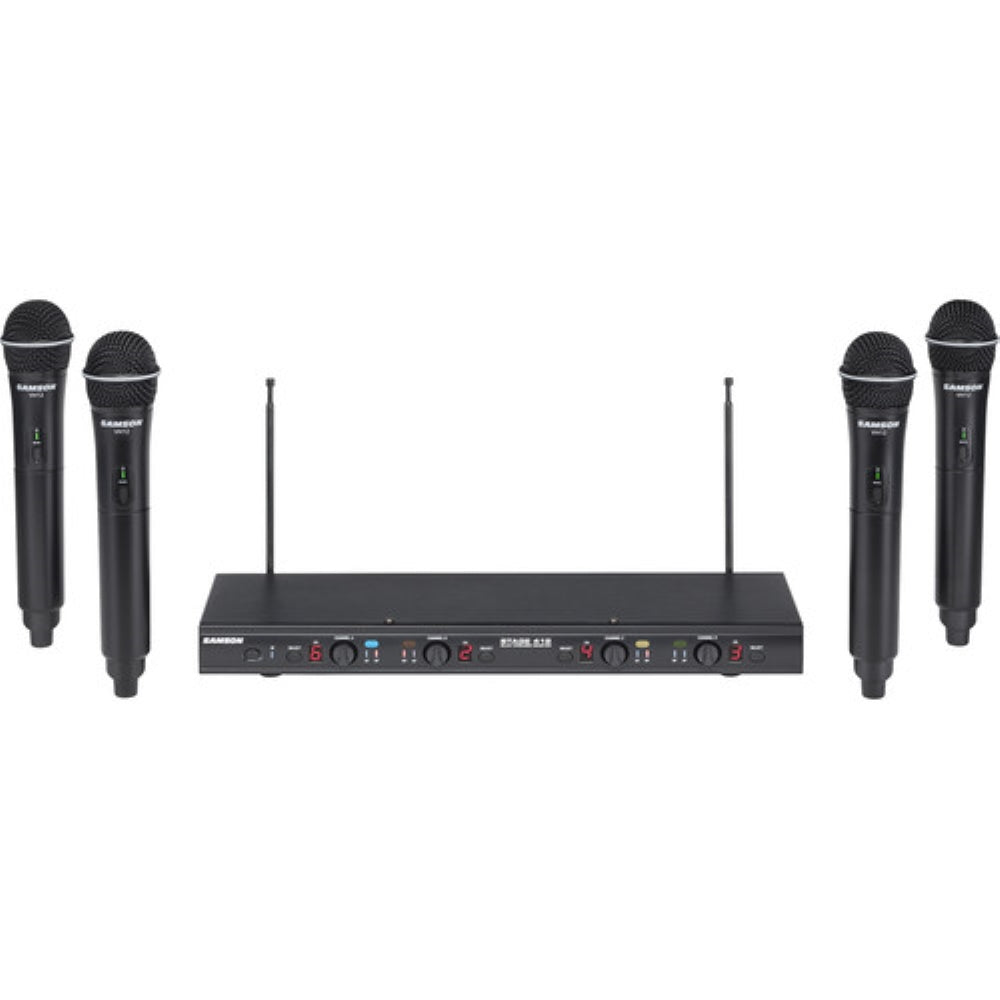

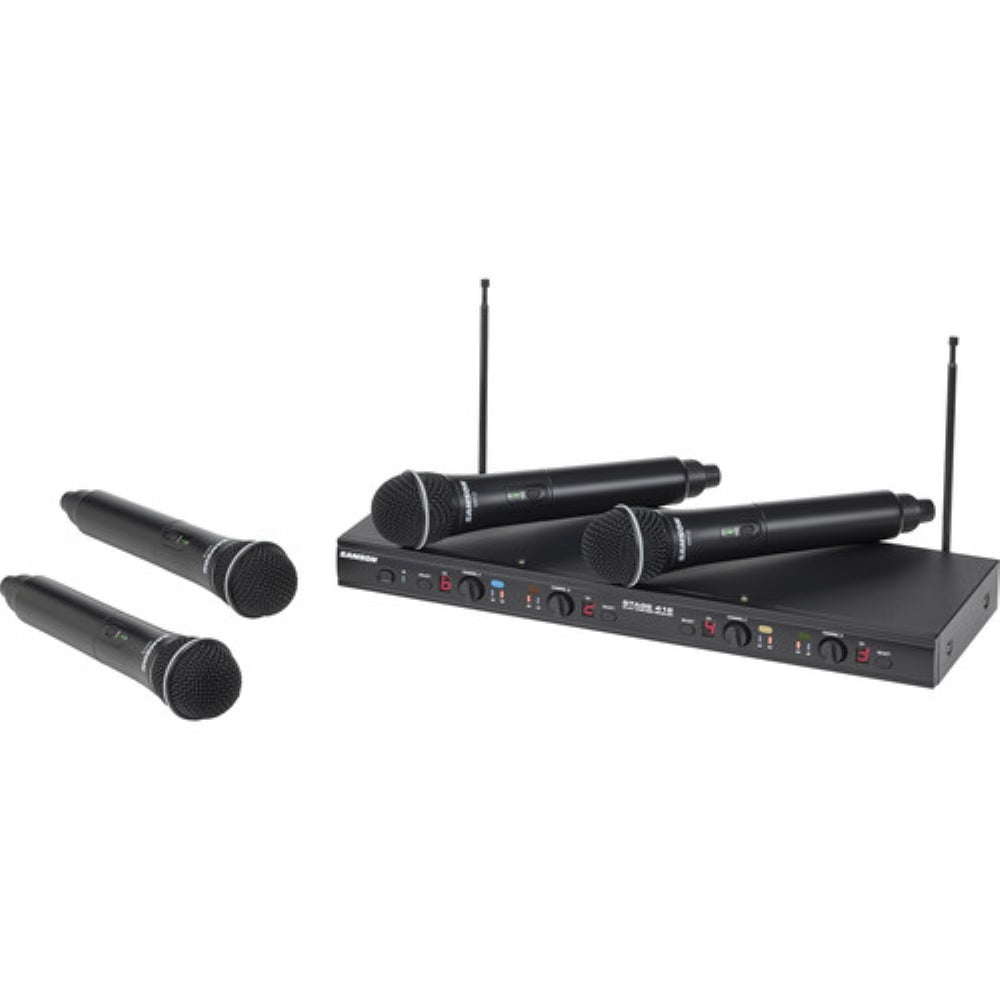

The Samson Stage 412 Frequency-Agile Quad-Channel Handheld VHF Wireless System is a sophisticated wireless microphone setup featuring four cardioid handheld dynamic Samson Q6 microphones that connect to a single durable metal receiver. This system is designed to deliver clear and precise audio along with dependable VHF wireless performance, making it suitable for various settings such as presentations, places of worship, educational environments, karaoke, and more, accommodating up to four users. The frequency-agile configuration of the Stage 412 provides four channels, each with six operating frequencies. Furthermore, the system's IR sync capability enables users to wirelessly align each transmitter with the receiver's operating frequency. Each transmitter boasts a 200-foot operational range and can function for up to 10 hours using two AA batteries (not included), with an AC adapter provided.

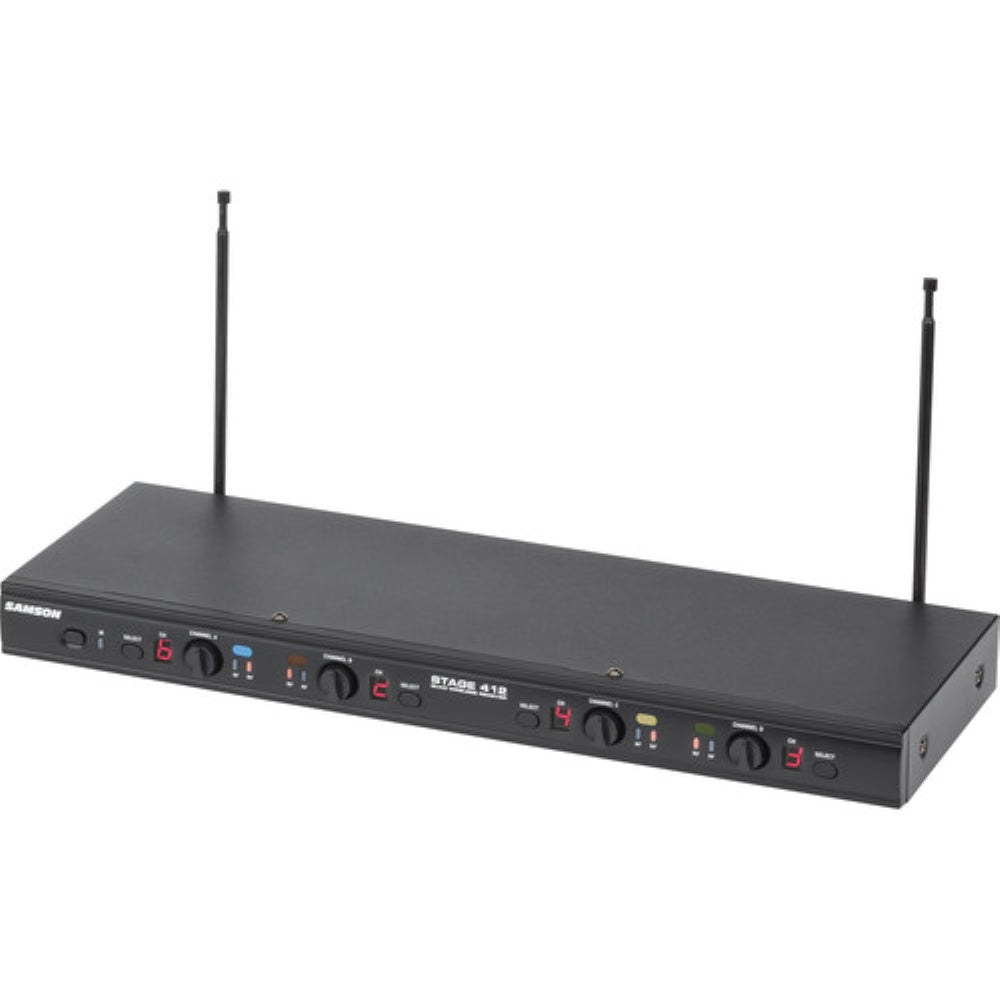

- Rugged metal receiver chassis
- Six operating frequencies per channel
- IR sync wirelessly matches receiver and transmitter frequency

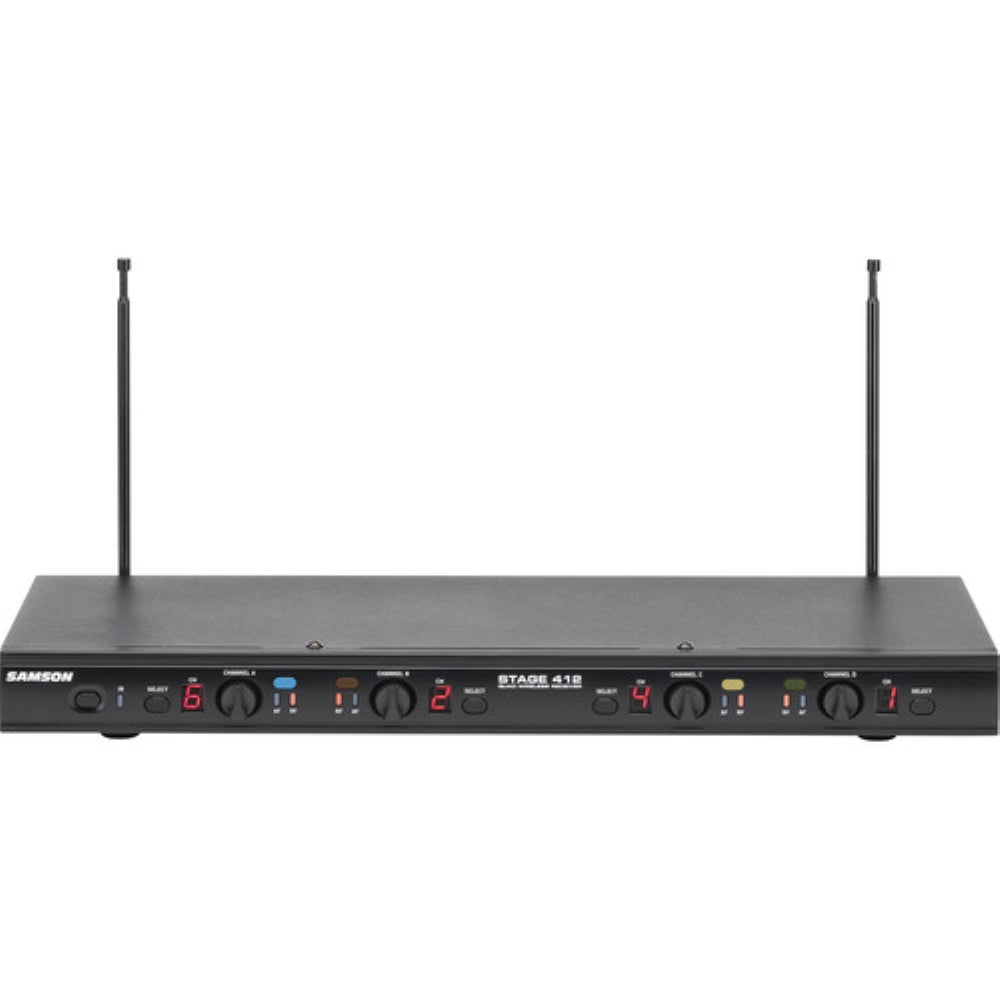

- Dedicated volume controls for each channel

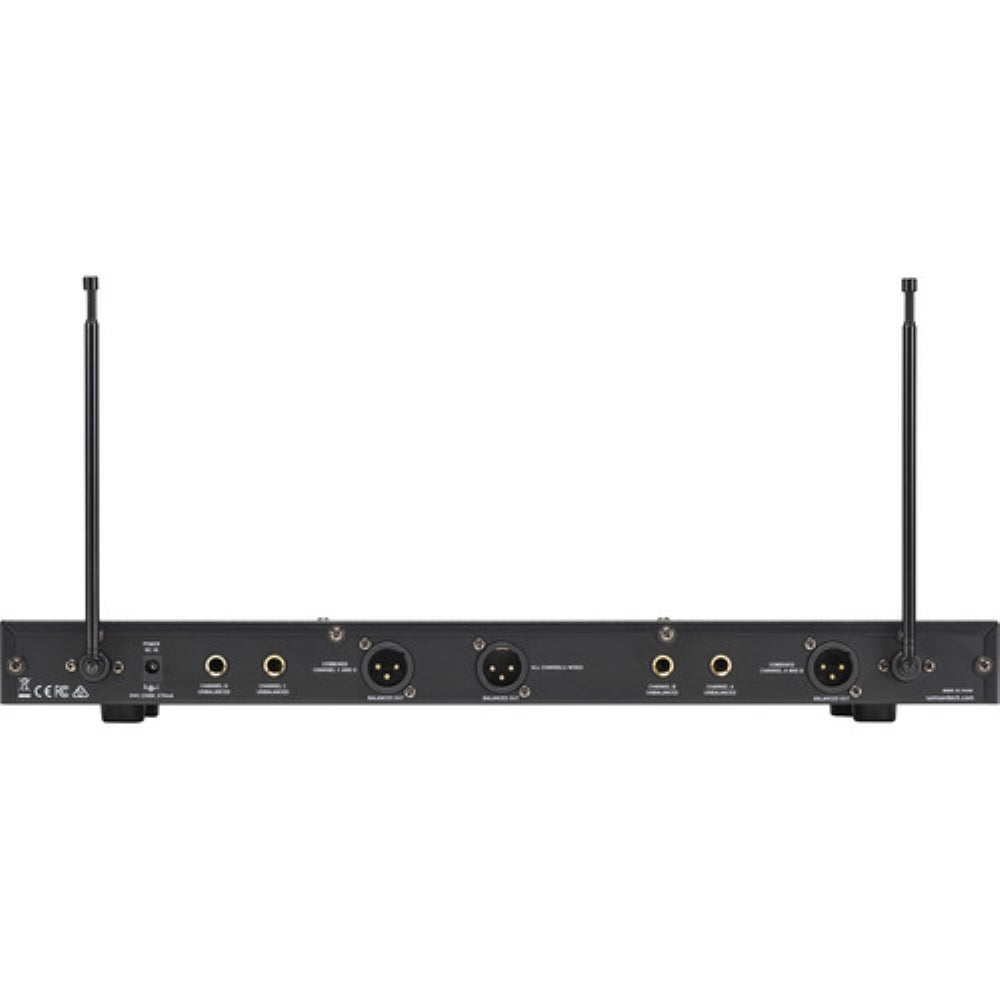

- Four 1/4" independent channel outputs
- Three balanced XLR mixed outputs
- 200' operating range (line-of-sight)

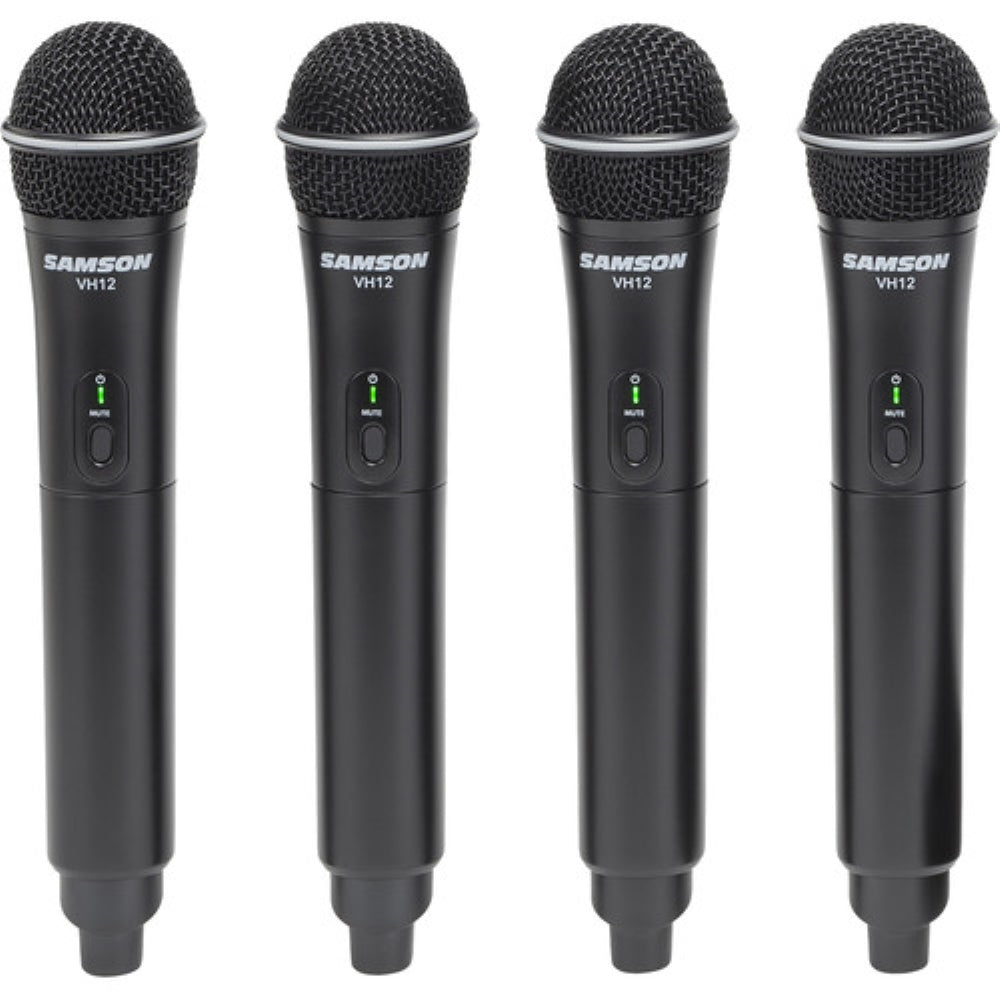

- Four handheld transmitters with Samson Q6 Dynamic microphone capsules
- Each transmitter offers up to 10 hours of operation via two AA batteries (not included)
System |
|
---|---|
Wireless Technology | Analog VHF |
Diversity | Non-Diversity |
RF Frequency Band | 173 to 198 MHz |
Number of RF Channel Frequencies | 24 |
Max Operating Range | 196.9' / 60 m |
Max Transmitters per Band | 1 |
Encryption | No |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No |
Receiver |
|
---|---|
Receiver Type | 1x Tabletop |
Mounting Options | No |
Antenna | 2x Fixed External (Rear-Mount) |
Number of Audio Channels | 2 |
Audio I/O | 3x XLR 3-Pin Balanced Output 2x 1/4" TS Unbalanced Output |
Network I/O | No |
USB/Lightning Connectivity | No |
Display | Alphanumeric LED |
Power Requirements | AC/DC Power Adapter |
Transmitters |
|
---|---|
Included Transmitters | 4x Handheld |
RF Output Power | 10 mW |
Antenna | Internal |
Input Level | Microphone |
Audio I/O | No |
Bias/Plug-In & Phantom Power | N/A - Fixed-Capsule Handheld Transmitter |
USB I/O | No |
Muting | Off/On Switch |
Auto-Level/Gain | No |
Sync Method | IR |
Display | Single-LED Indicators Only |
Microphones |
|
---|---|
Microphone Type | 4x Handheld |
Polar Pattern | Cardioid |
Color | Black |
Power |
|
---|---|
Transmitter Battery Type | 2x AA (Not Included) |
AC/DC Power Adapter | Included |
