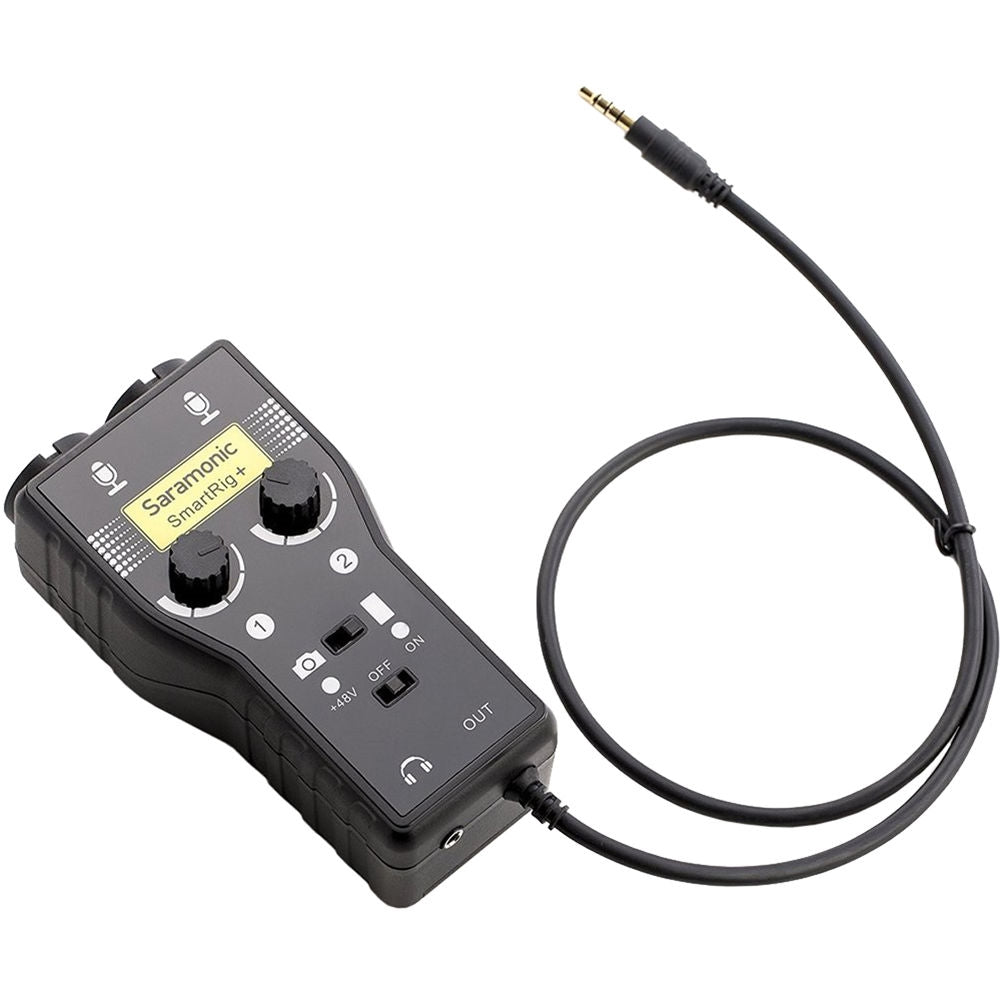

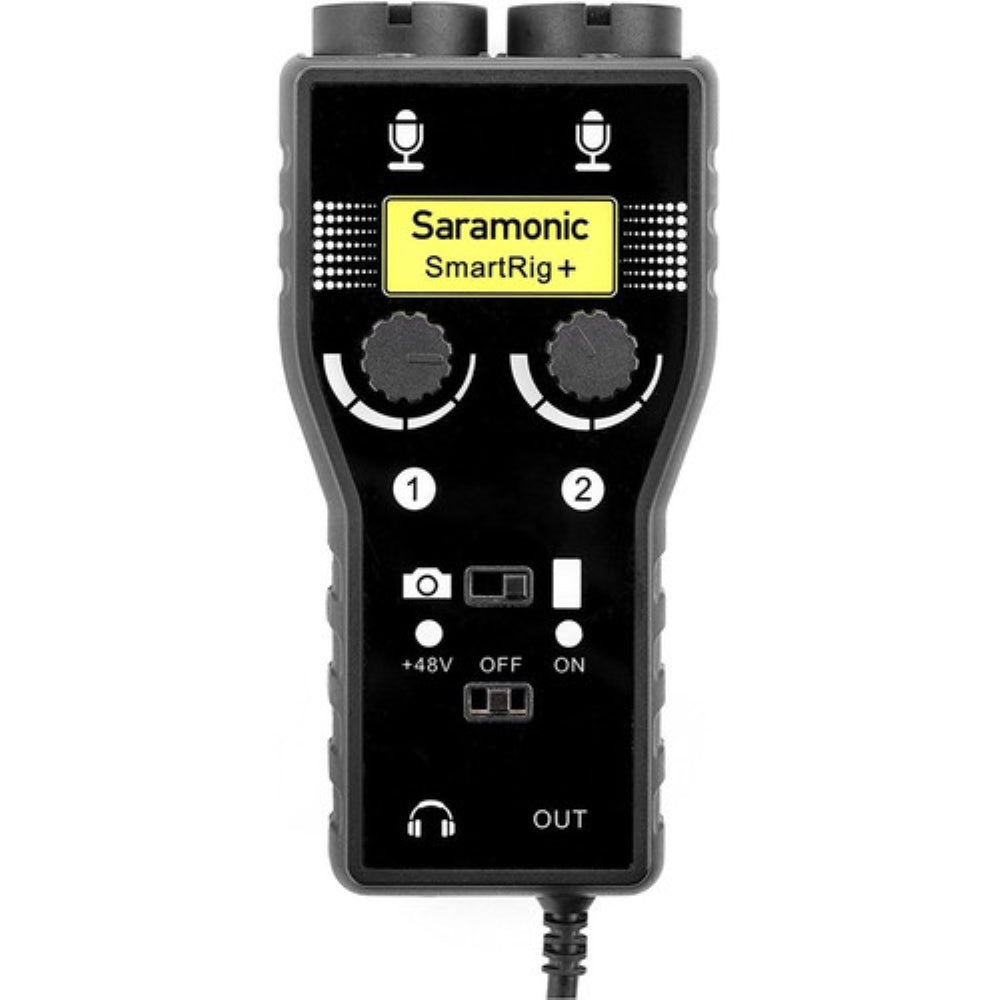

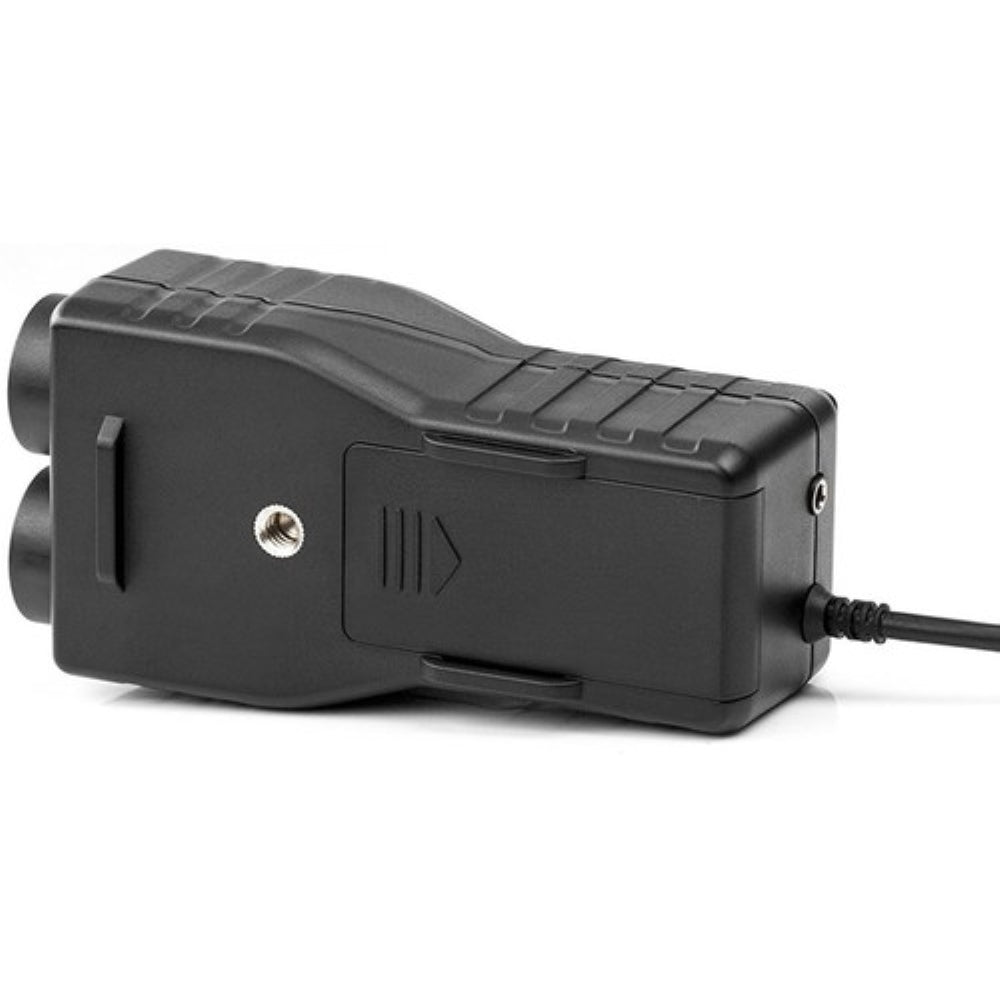

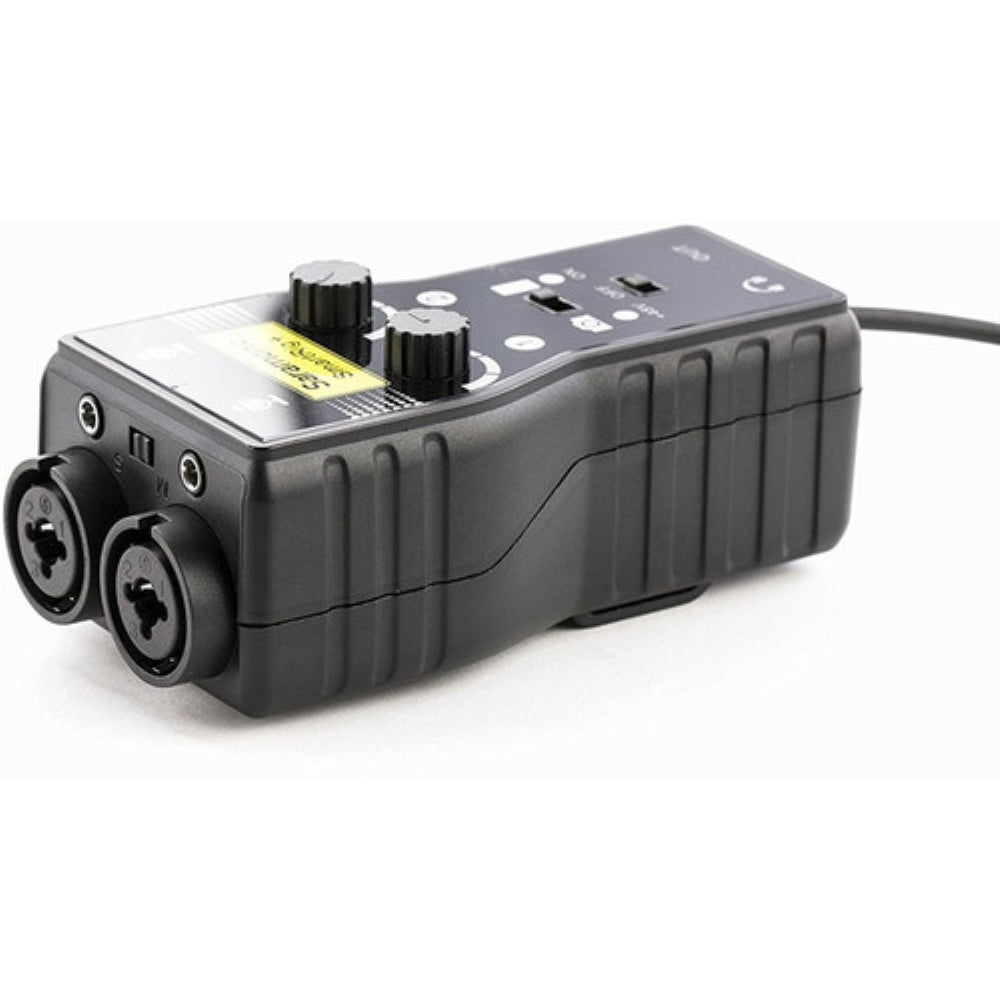

Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer
Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer serves as a portable interface designed for microphones and guitars, enabling the recording of professional-grade audio. This device simplifies the recording process by facilitating the connection of professional microphones and guitars, as well as other instruments, to smartphones, tablets, DSLR cameras, or video cameras. With its two independent channels, users can connect and manage gain levels for multiple microphones or guitars simultaneously. Additionally, the interface is equipped with three types of inputs to support various configurations: two combo XLR / 1/4" inputs and two 1/8" jack inputs for connecting any instrument or microphone. It also provides the option to switch between mono and stereo output modes as required.
- Outputs to a standard 1/8" cable for use with smartphones, cameras, and other devices
- Provides 48V phantom power for microphones
- 3.5mm headphone output for real-time sound monitoring
- Two gain control thumbwheels make it easy to set precise levels
- Powered by one 9V battery
Audio & MIDI Interface |
|
|---|---|
| Display | 1x Monochrome LCD |
| Channels of I/O | 2 Input / 1 Output |
| Number of Analog Outputs | 1 |
| Number of Microphone Inputs | 2 Preamps |
| Built-In Microphone | No |
| Input Level Adjustment | 2x Knob |
Signal Processing |
|
|---|---|
| Pad | No |
| Gain/Trim Range | +23 dBu |
| High-Pass Filter | No |
Connectivity |
|
|---|---|
| Analog Audio I/O | 2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 2x 1/8" / 3.5 mm TRS Line Input 1x 1/8" / 3.5 mm TRRS Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Phantom Power | 48 V (on 2 Channels) |
| Phantom Power Current | 13 mA |
| Digital Audio I/O | No |
| Host Connection | 1/8" / 3.5 mm TRRS |
Performance |
|
|---|---|
| Frequency Response | 20 Hz to 20 kHz |
| Maximum Output Level | 2 Vrms |
| SNR | 80 dB (-30 dBu Input, 1 kHz) |
| THD | < 0.01% (-30 dBu Input, 1 kHz) |
Compatibility |
|
|---|---|
| OS Compatibility | Android iOS *As of April, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | No |
| Mobile Device Compatibility | iPhone iPad iPod Touch Android Smartphone |
Power |
|
|---|---|
| Power Requirements | Battery |
| Battery Type | 1x 9V |
Physical |
|
|---|---|
| Dimensions | 4.7 x 1.6 x 1.6" / 120 x 40 x 40 mm |
| Weight | 4.6 oz / 130.0 g |
