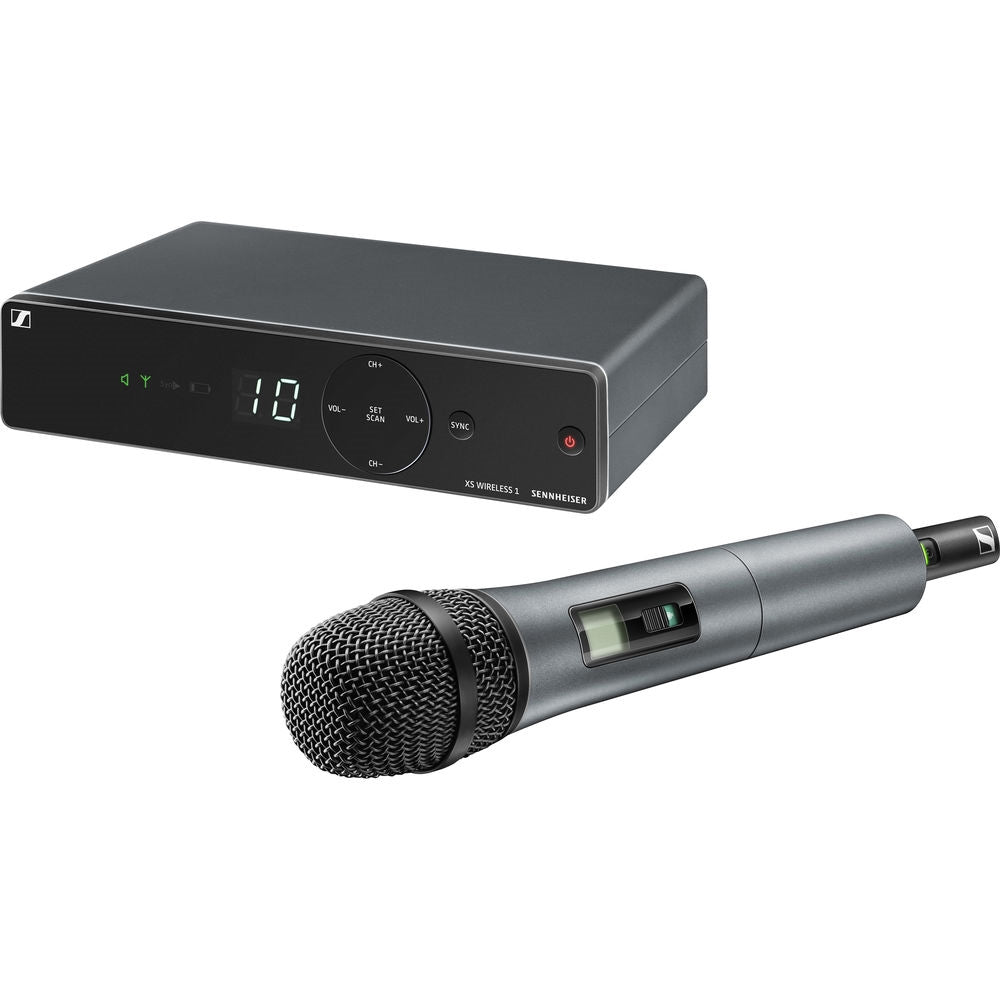

The XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

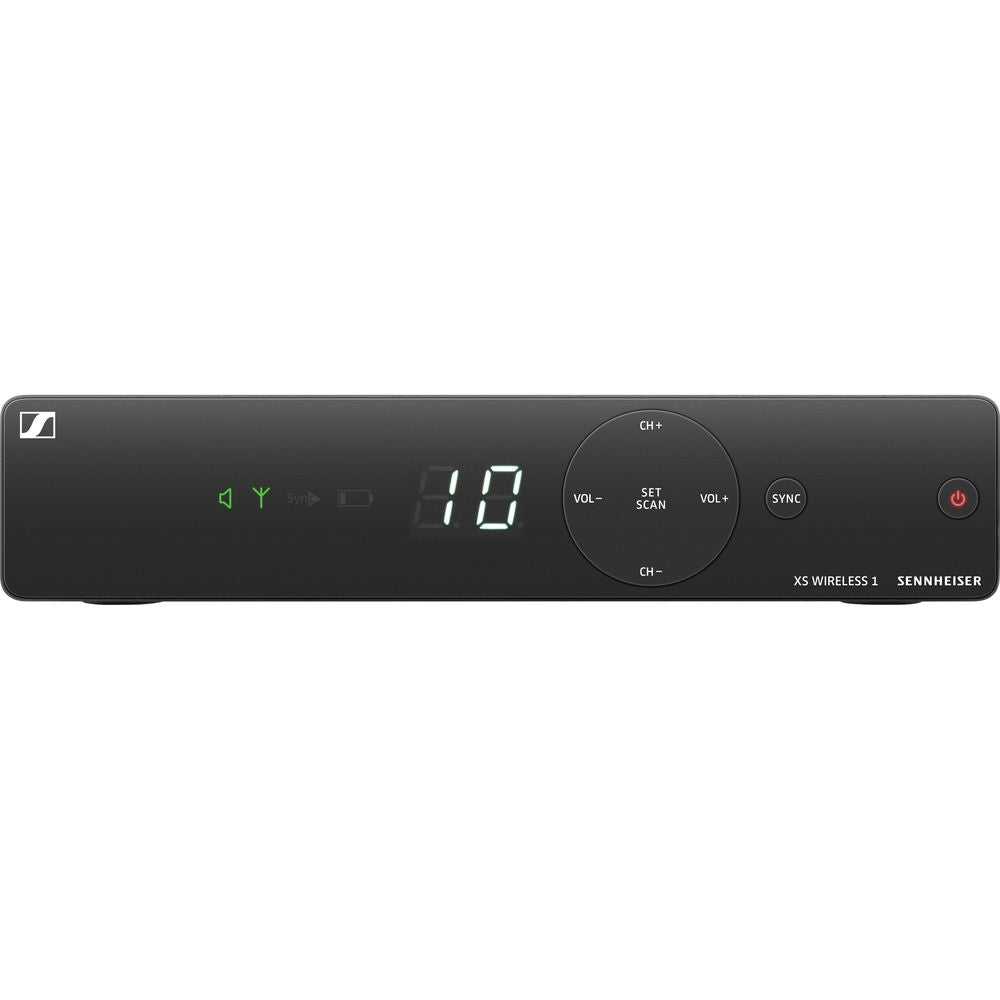

Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas | A: 548 to 572 MHz
The EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas from Sennheiser is a 2-channel analog UHF wireless receiver. It can be used for singers and presenters when paired with an XS wireless 1 series handheld transmitter and microphone capsule (sold separately). The dual-channel receiver is designed with ease of use in mind and is well suited for DJ, church, and school applications. Each receiver channel is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter is also included.
- Antenna-switching 2-channel diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels

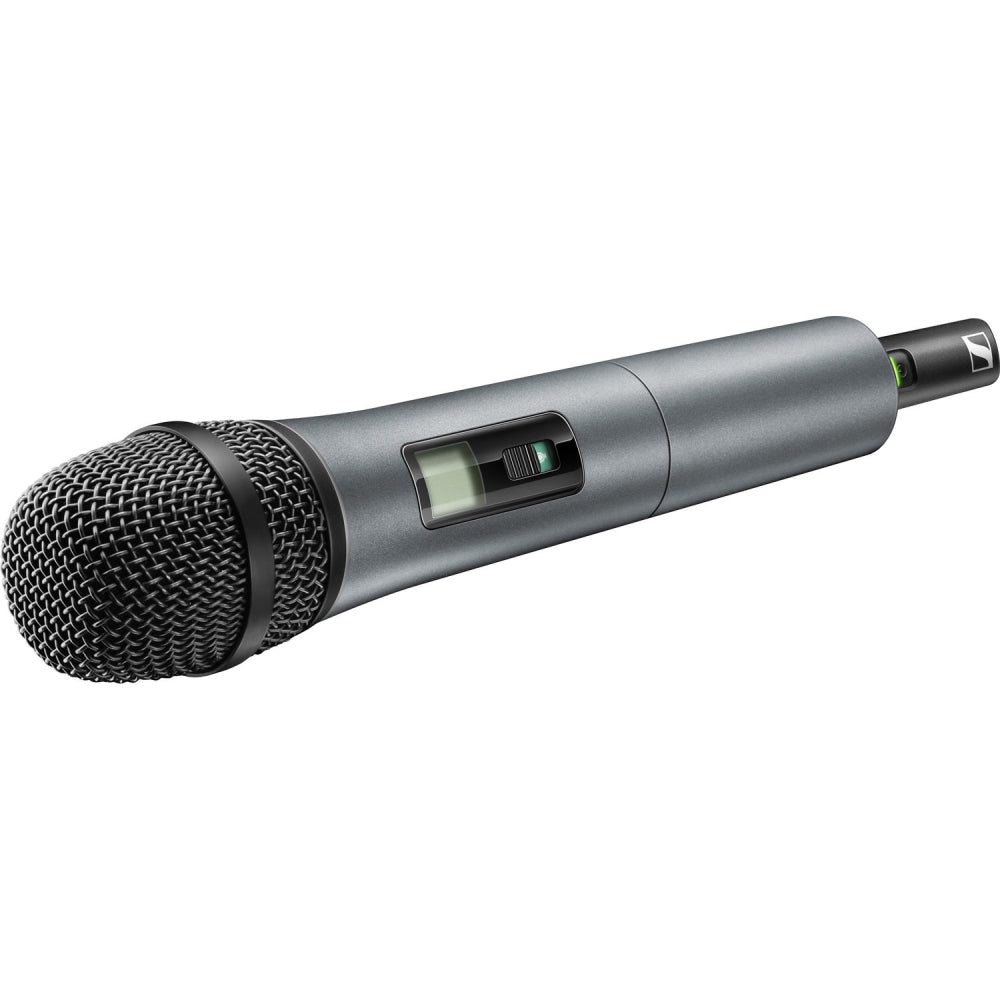

Sennheiser SKM 825-XSW-A Handheld Transmitter with e825 Capsule | A: 548 to 572 MHz
The SKM 825-XSW-A Handheld Transmitter from Sennheiser is a wireless microphone equipped with an e825 Dynamic Cardioid Capsule. It is designed to be paired with the EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and can be used to capture audio for singers, presenters, and live sound applications. Featuring automatic frequency management, the transmitter offers up to 10 compatible channels in a stable UHF band. This transmitter is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with an easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the SKM 825-XSW-A Handheld Transmitter lets you do your thing and not worry about channel selection.
Great Performance and Price
The SKM XSW transmitter lets you concentrate on your talent—and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
Live Sound
The transmitter yields an open, natural sound. No lengthy set up—just go!
Reliable Transmission
On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are designed to withstand even the toughest stress in everyday on-stage use.
Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
The Sennheiser MZQ1 is a microphone holder specifically sized to accommodate the SKM100, 300 and 500 handheld wireless microphone transmitters. The MZQ1 will mount to any standard microphone stand.
System |
|
---|---|
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 80 |
Included Transmitters | 1x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | A: 548 to 572 MHz |
RF Bandwidth | Up to 24 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 100' / 30.5 m |
Max Transmitters per Band | 10 |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No |
Encryption | No |
Modulation | Wideband FM |
Receiver |
|
---|---|
Receiver Type | Tabletop |
Antenna | 2x Internal |
Number of Audio Channels | 1 |
Audio I/O | 1x XLR 3-Pin Male Balanced Mic/Line Output 1x 1/4" TS Unbalanced Mic/Line Output |
Gain Range | 45 dB (5 dB Steps) |
Audio Output Level | XLR Output: +12 dB (Balanced) 1/4" Output: +6 dB (Unbalanced) |
Frequency Response | 50 Hz to 16 kHz -3 dB |
Network I/O | No |
USB/Lightning Connectivity | No |
RF Principle | Double Superheterodyne |
Squelch | Adjustable, 3 to 28 dBmV |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
Display & Indicators | 1x LCD (Channel, Frequency) |
Housing | ABS |
Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
Weight | 12 oz / 340 g |
Transmitter |
|
---|---|
Transmitter Type | Handheld |
RF Output Power | 10 mW |
Audio I/O | No |
Pad | No |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | 0 to -30 dB (10 dB Steps) |
Signal Processing | No |
Frequency Response | 80 Hz to 14 kHz |
Sync Method | 2.4 GHz QPSK |
Antenna | Internal |
Power Requirements | Battery |
Battery Type | 2x AA (Included) |
Approx. Battery Life | 10 Hours |
USB/Lightning I/O | No |
Display & Indicators | 1x LCD (Battery Status, Channel, Power) |
Housing | ABS |
Dimensions | 10.2 x 2" / 260 x 50 mm |
Weight | 8.6 oz / 245 g |
Microphone |
|
---|---|
Microphone Type | Handheld |
Color | Black |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 80 Hz to 14 kHz |
SNR | 103 dB A-Weighted |
THD | < 0.9% |
Sensitivity | 1.5 mV/Pa |
Length | 10.2" / 260 mm |
Diameter | 2.0" / 50 mm |
Weight | 8.6 oz / 245 g |
