Sennheiser XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone | A: 548 to 572 MHz
Sennheiser XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone | A: 548 to 572 MHz
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States

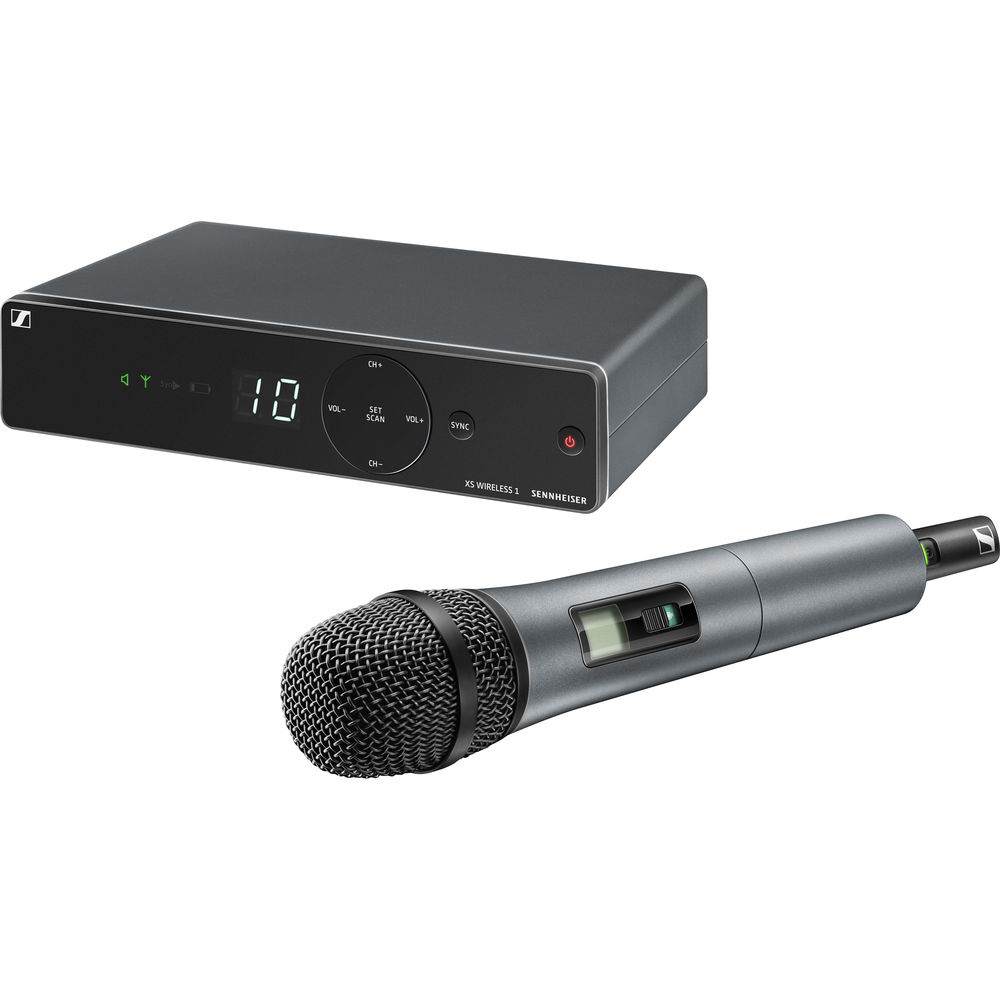

The XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
- Featuring Sennheiser's renowned evolution microphone capsule e835
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception
System |
|
|---|---|
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Included Transmitters | 1x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | Up to 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100' / 30.5 m |
| Max Transmitters per Band | 10 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
| Encryption | No |
| Modulation | Wideband FM |
Receiver |
|
|---|---|
| Receiver Type | Tabletop |
| Antenna | 2x Internal |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Male Balanced Mic/Line Output 1x 1/4" TS Unbalanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Output: +12 dB (Balanced) 1/4" Output: +6 dB (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| Network I/O | No |
| USB/Lightning Connectivity | No |
| RF Principle | Double Superheterodyne |
| Squelch | Adjustable, 3 to 28 dBmV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 1x LCD (Channel, Frequency) |
| Housing | ABS |
| Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
| Weight | 12 oz / 340 g |
Transmitter |
|
|---|---|
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | No |
| Pad | No |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | 0 to -30 dB (10 dB Steps) |
| Signal Processing | No |
| Frequency Response | 80 Hz to 14 kHz |
| Sync Method | 2.4 GHz QPSK |
| Antenna | Internal |
| Power Requirements | Battery |
| Battery Type | 2x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning I/O | No |
| Display & Indicators | 1x LCD (Battery Status, Channel, Power) |
| Housing | ABS |
| Dimensions | 10.2 x 2" / 260 x 50 mm |
| Weight | 8.6 oz / 245 g |
Microphone |
|
|---|---|
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 80 Hz to 14 kHz |
| SNR | 103 dB A-Weighted |
| THD | < 0.9% |
| Sensitivity | 1.5 mV/Pa |
| Length | 10.2" / 260 mm |
| Diameter | 2.0" / 50 mm |
| Weight | 8.6 oz / 245 g |
