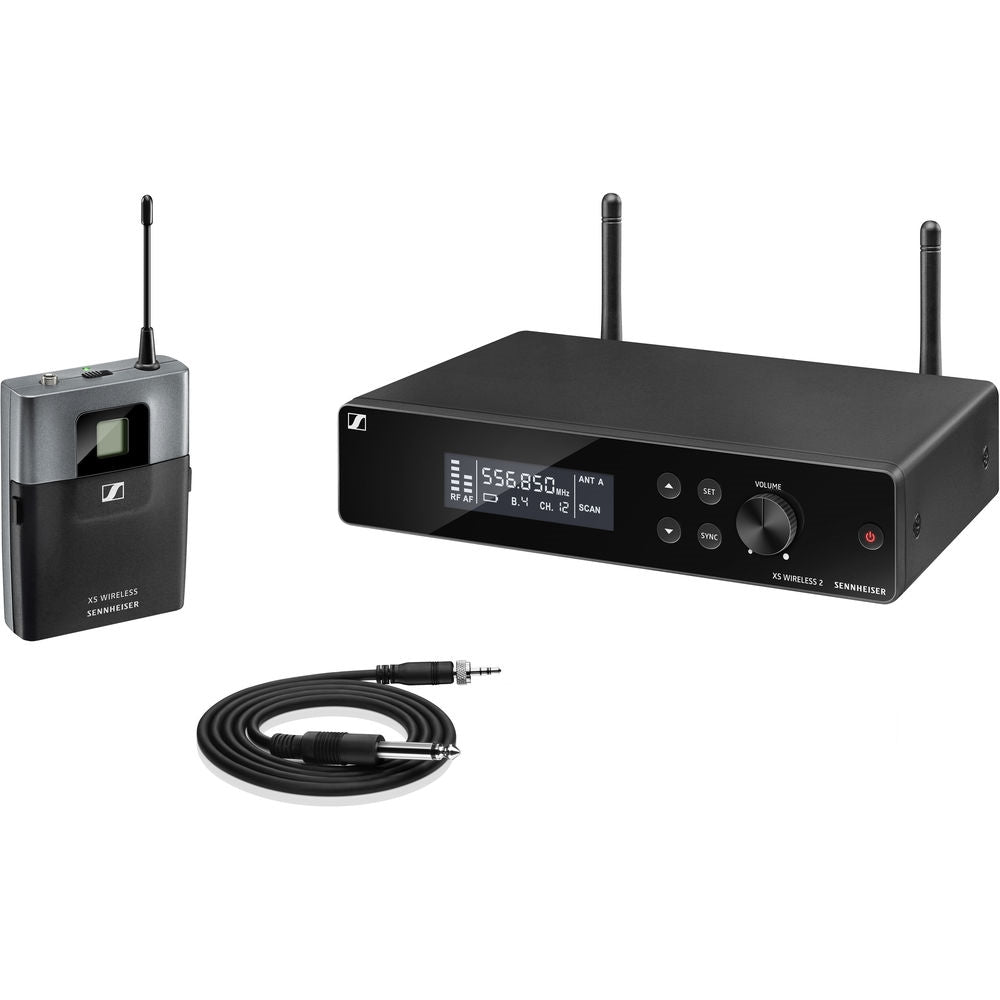

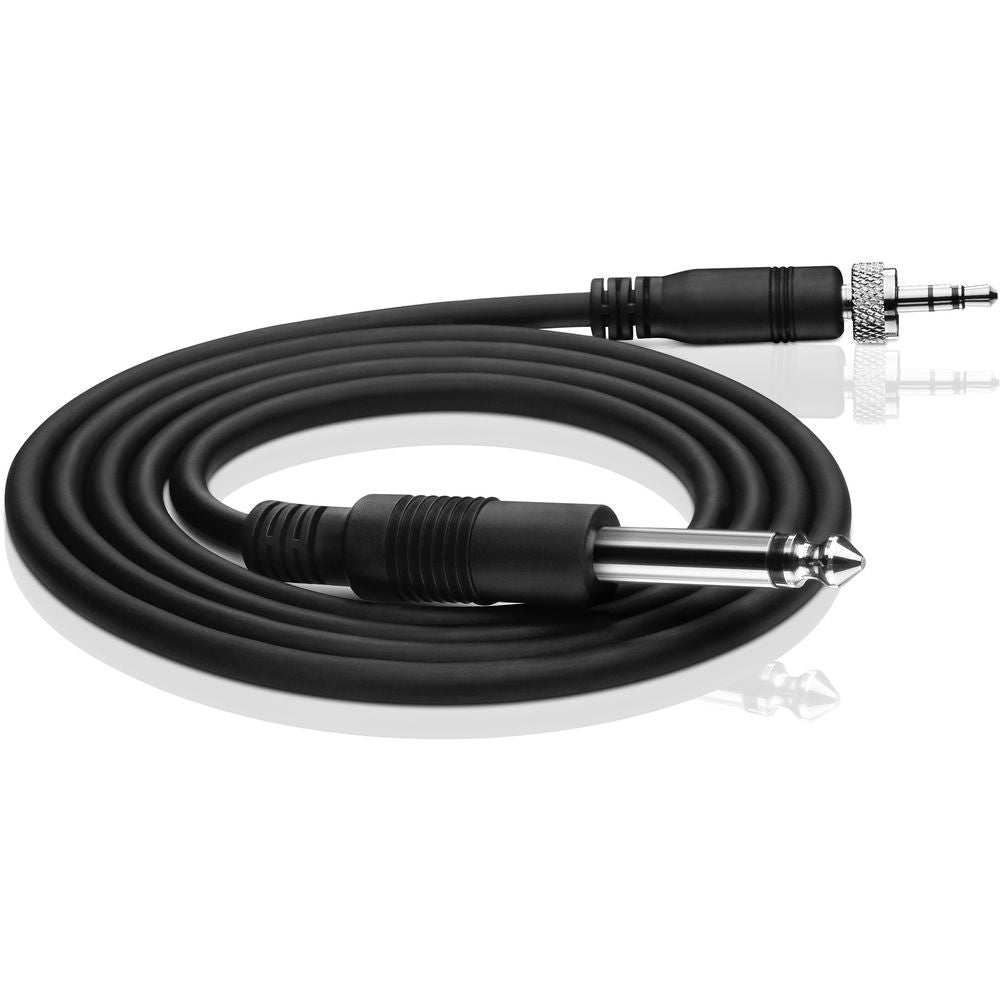

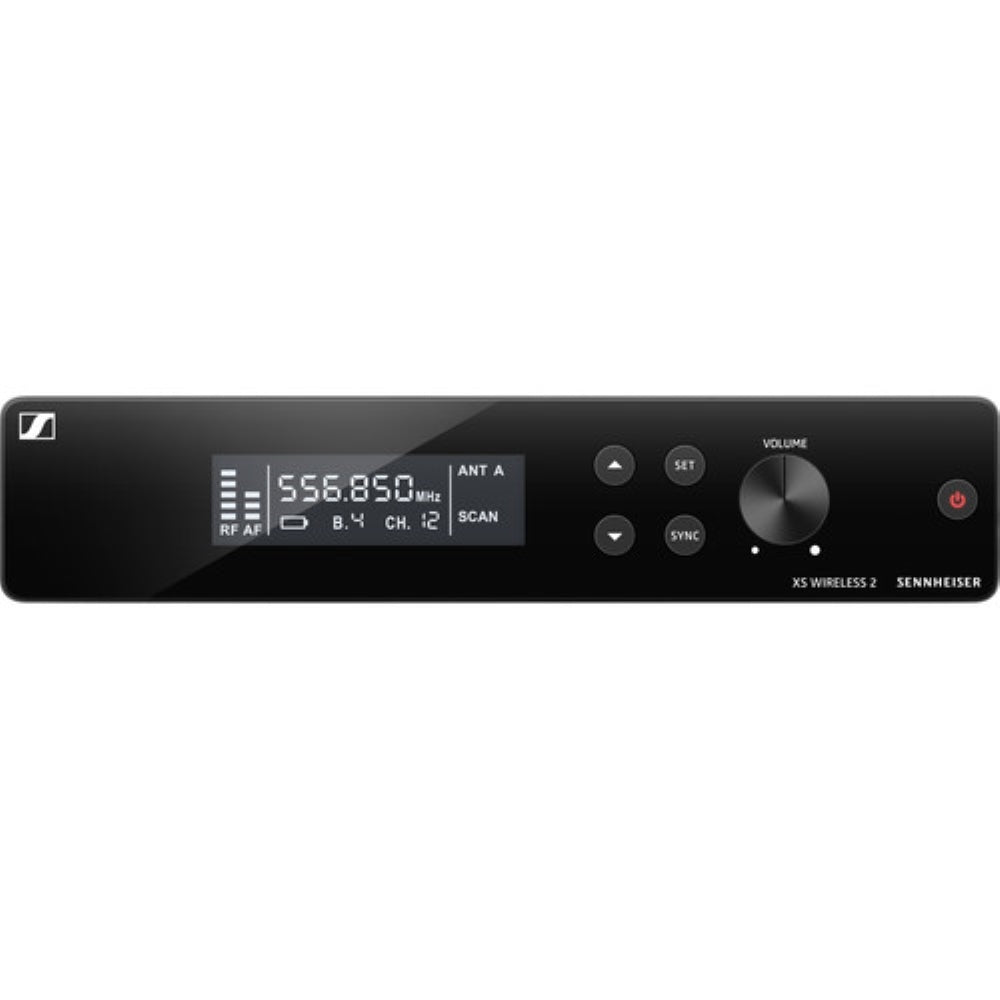

The XSW2-CI1 Wireless 2 Instrument System from Sennheiser features a true diversity receiver, a compact bodypack transmitter, and a robust instrument cable with a 1/4" jack. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for electric bass, guitar, and keyboard instruments for live-sound applications. The unit is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. The system offers an intuitive LCD display, two external antennas, a compact bodypack transmitter, and an instrument cable. Additionally, built with a metal receiver housing, the system also includes a rackmount kit, power supply, carry pouch, and two AA batteries.
- True diversity receiver with metal housing

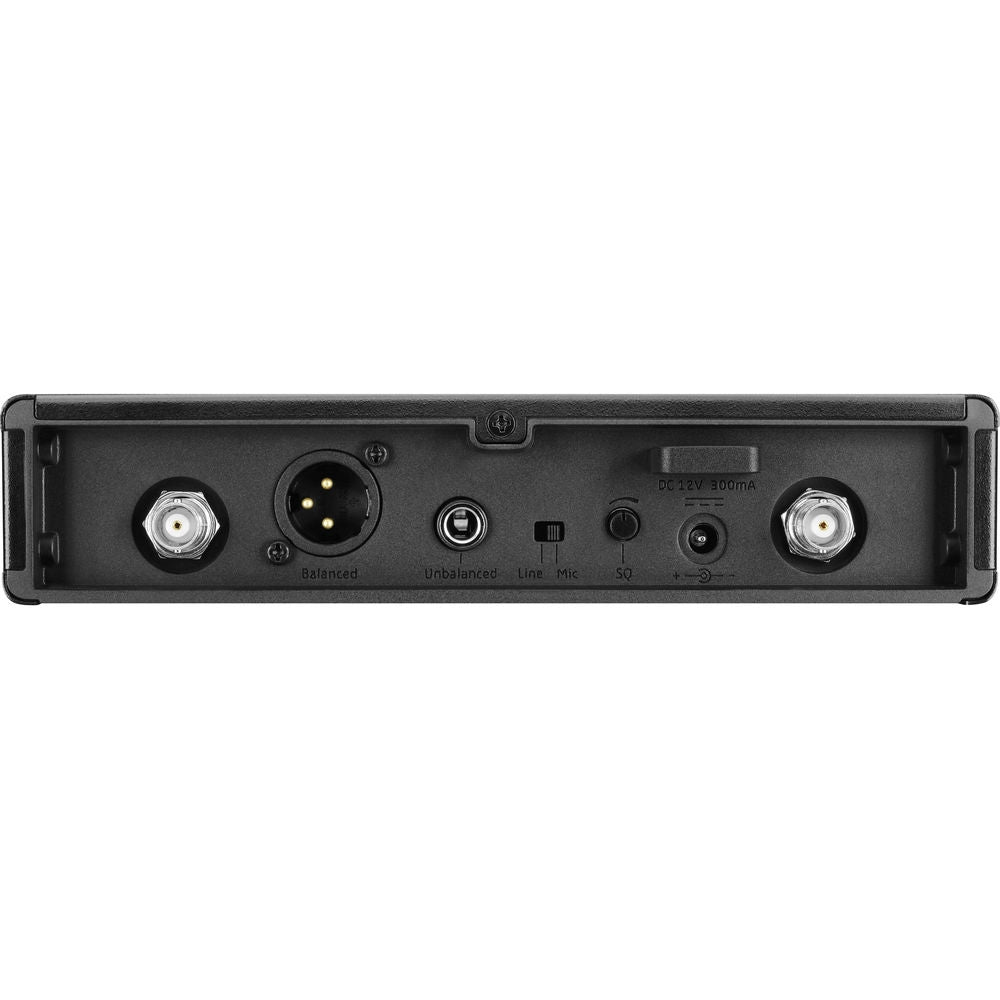

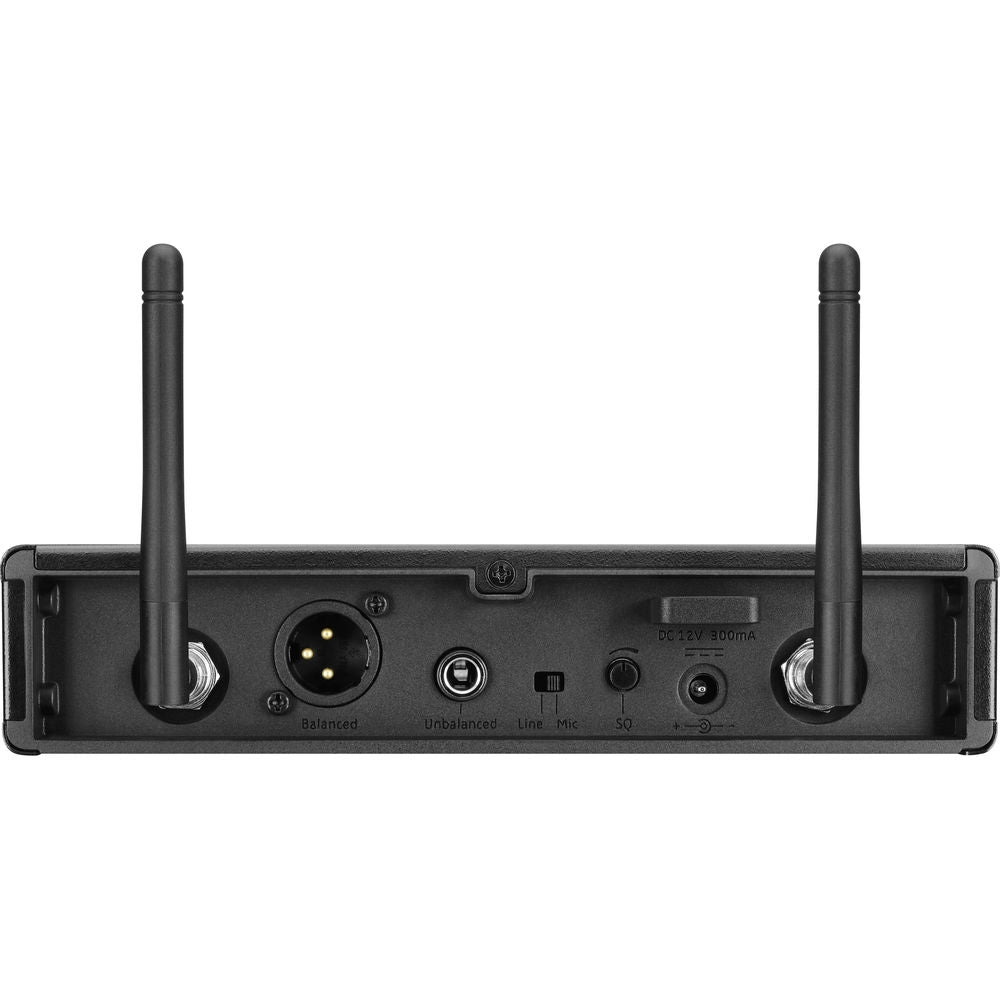

- External antennas
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
System |
|
|---|---|
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) |
| Storage | -4 to 158°F (-20 to 70°C) |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

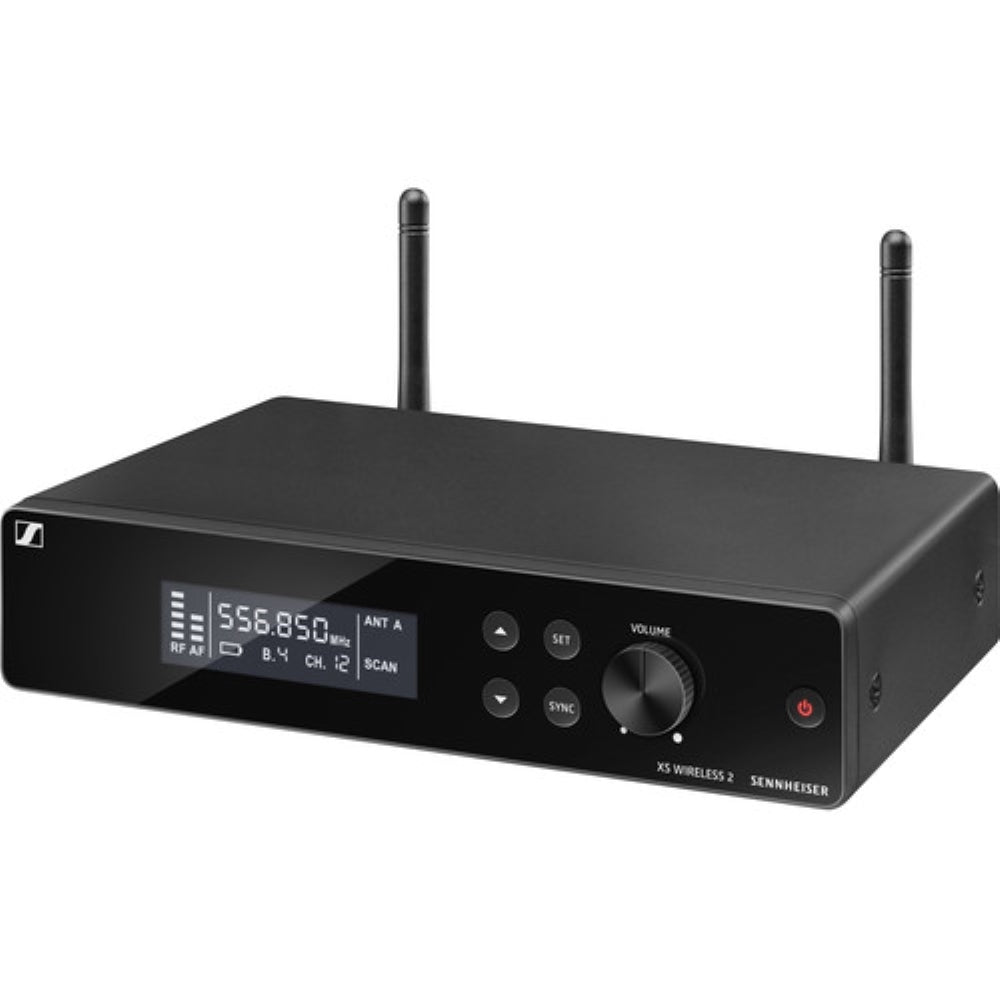

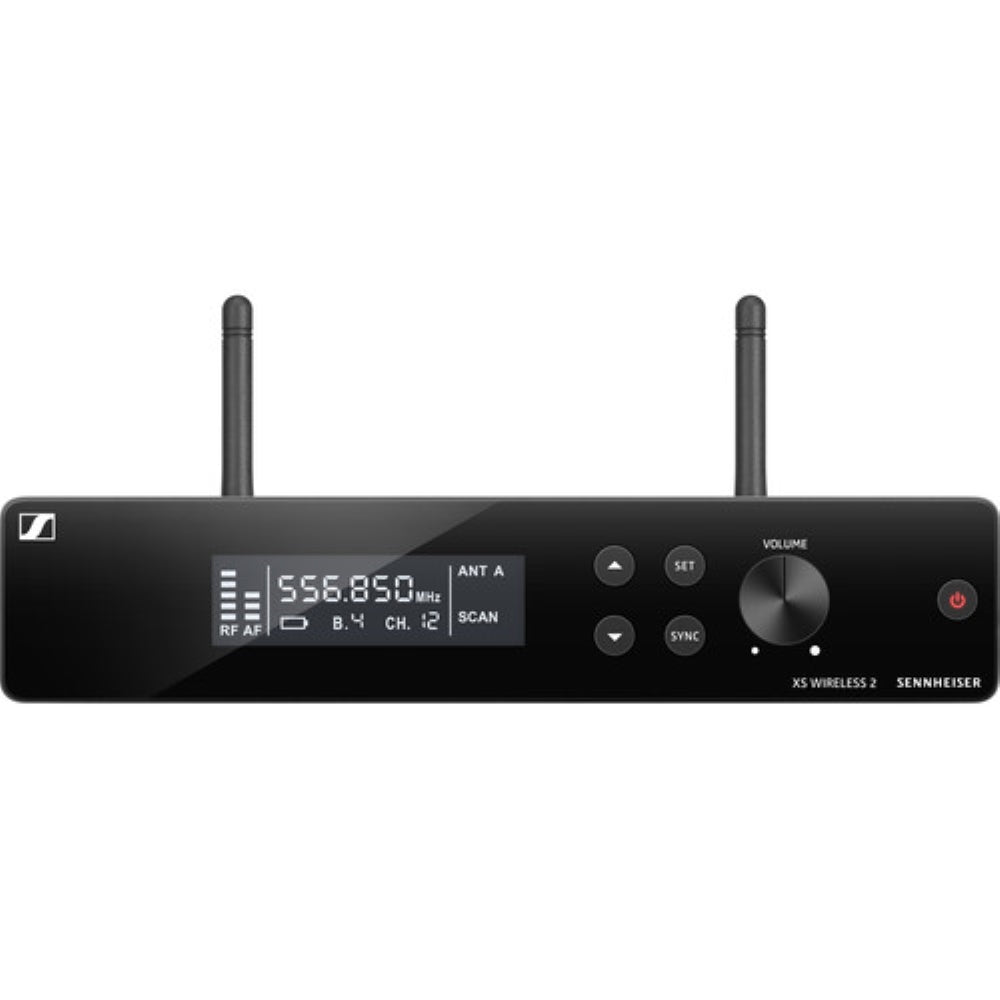

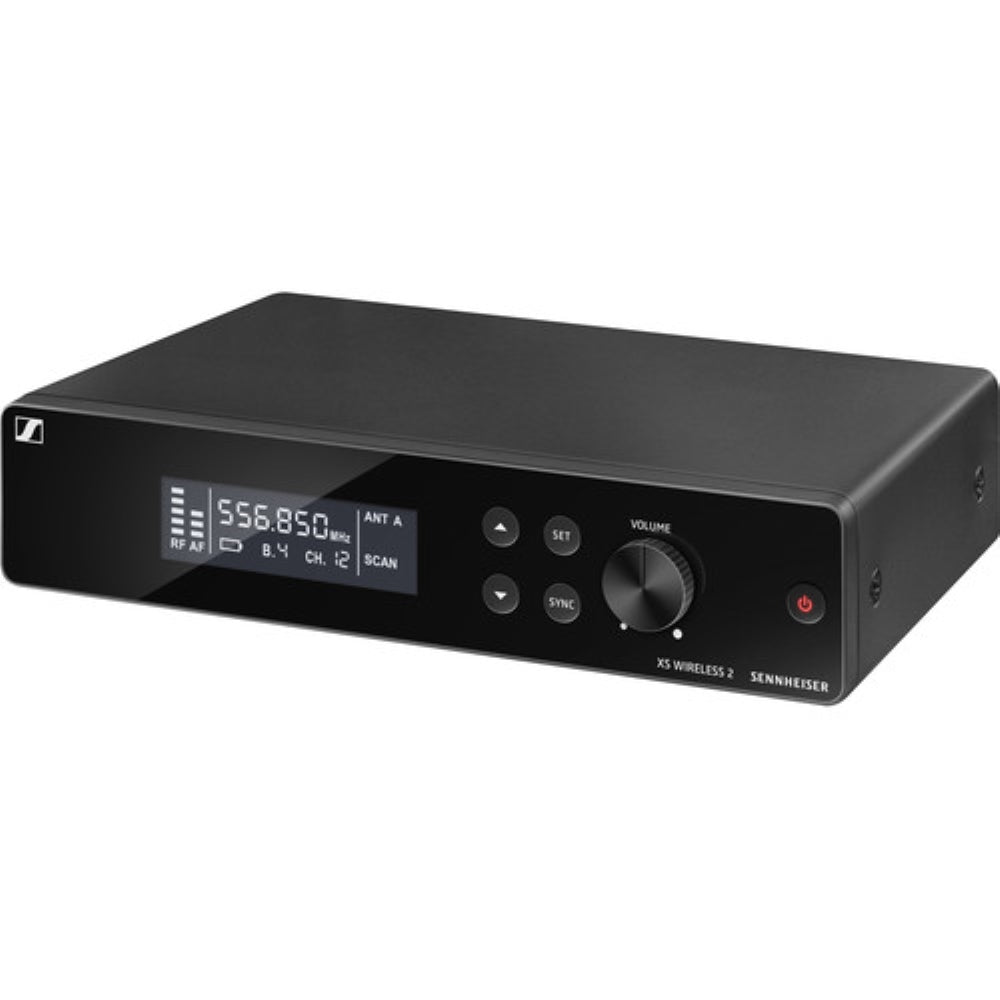

Receiver |
|
|---|---|
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA rms S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal, 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 12 oz (340 g) |

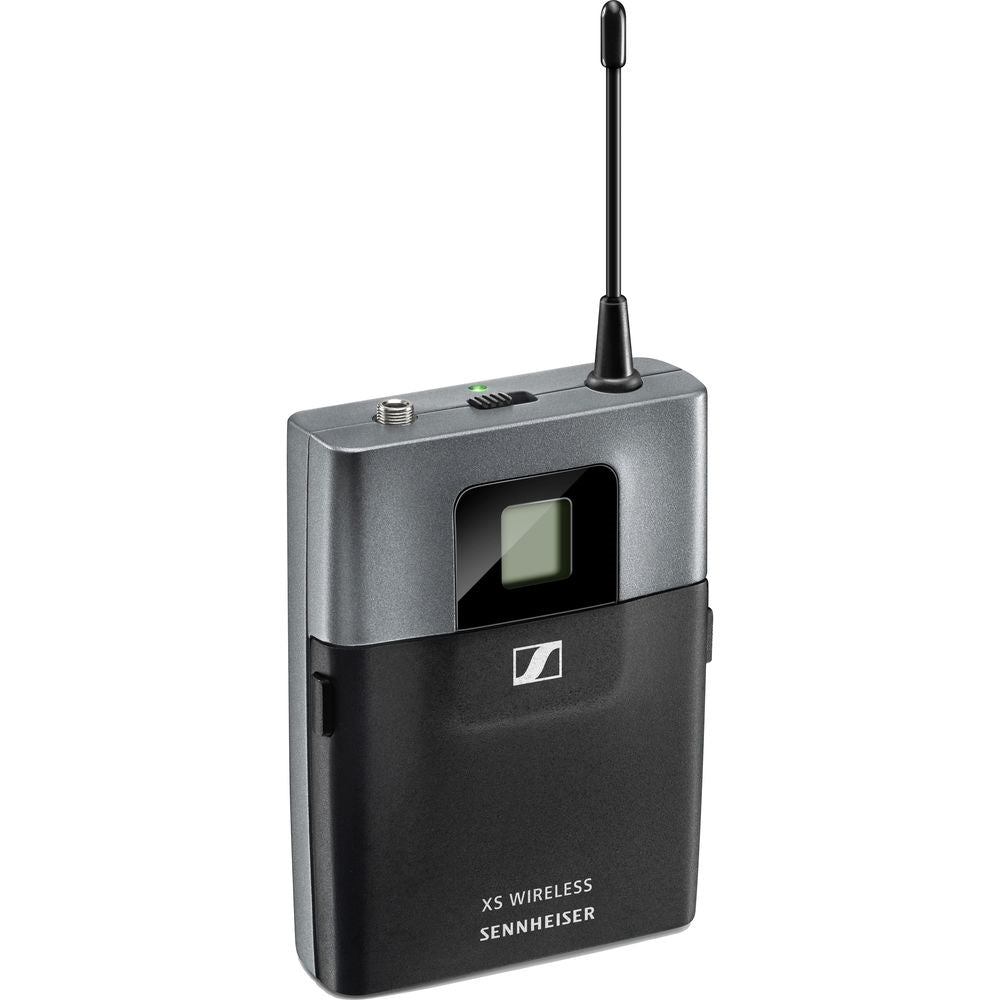

Bodypack Transmitter |
|
|---|---|
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) |
| Weight | 3.4 oz (95 g) |
