Enhance your auditory experience and improve your performance with the Sennheiser XSW IEM SET, a comprehensive starter kit designed for wireless in-ear monitoring, specifically tailored for musicians during rehearsals or live performances in venues such as clubs or places of worship. This system offers the acclaimed Sennheiser audio quality and dependable wireless connectivity, all within an accessible, user-friendly package that is ready to use immediately. Customize your own stereo mix with features such as EQ, limiter, panning, and Focus mode, allowing you to hear yourself distinctly alongside your bandmates while enjoying the freedom to move around the stage.

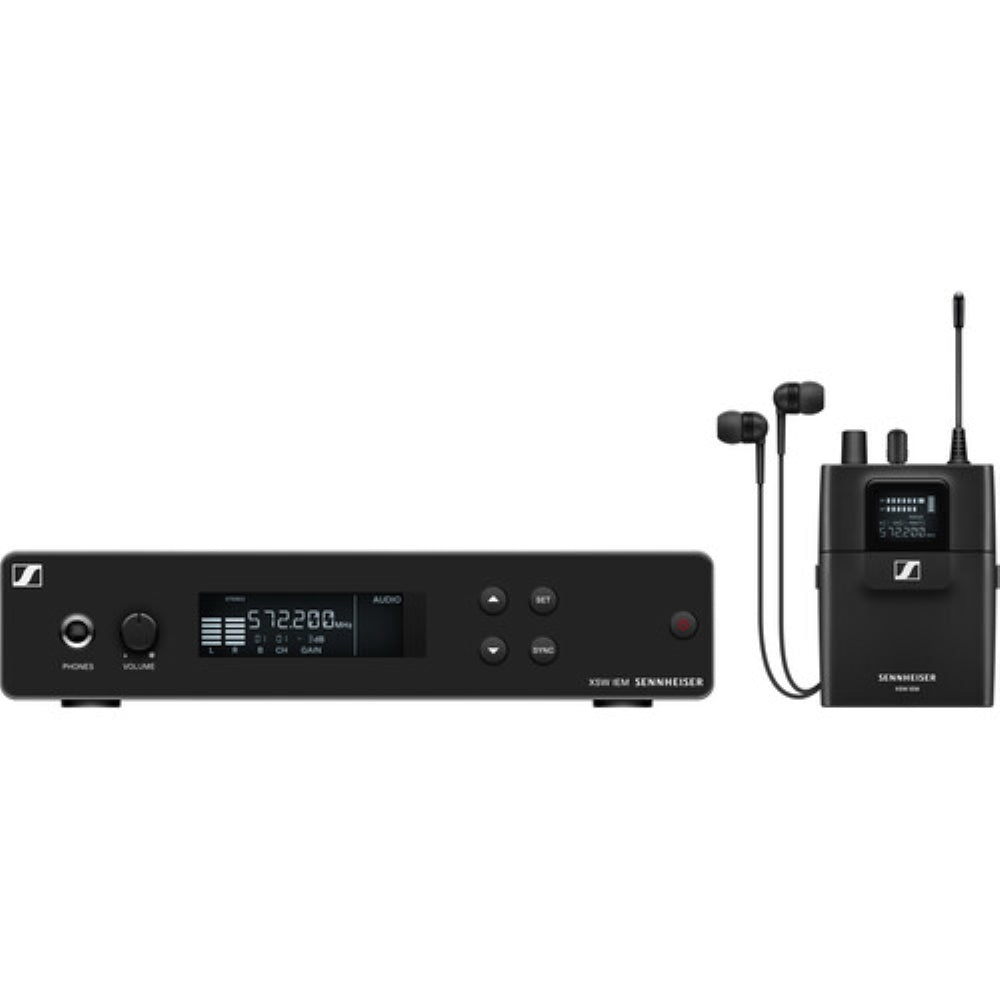

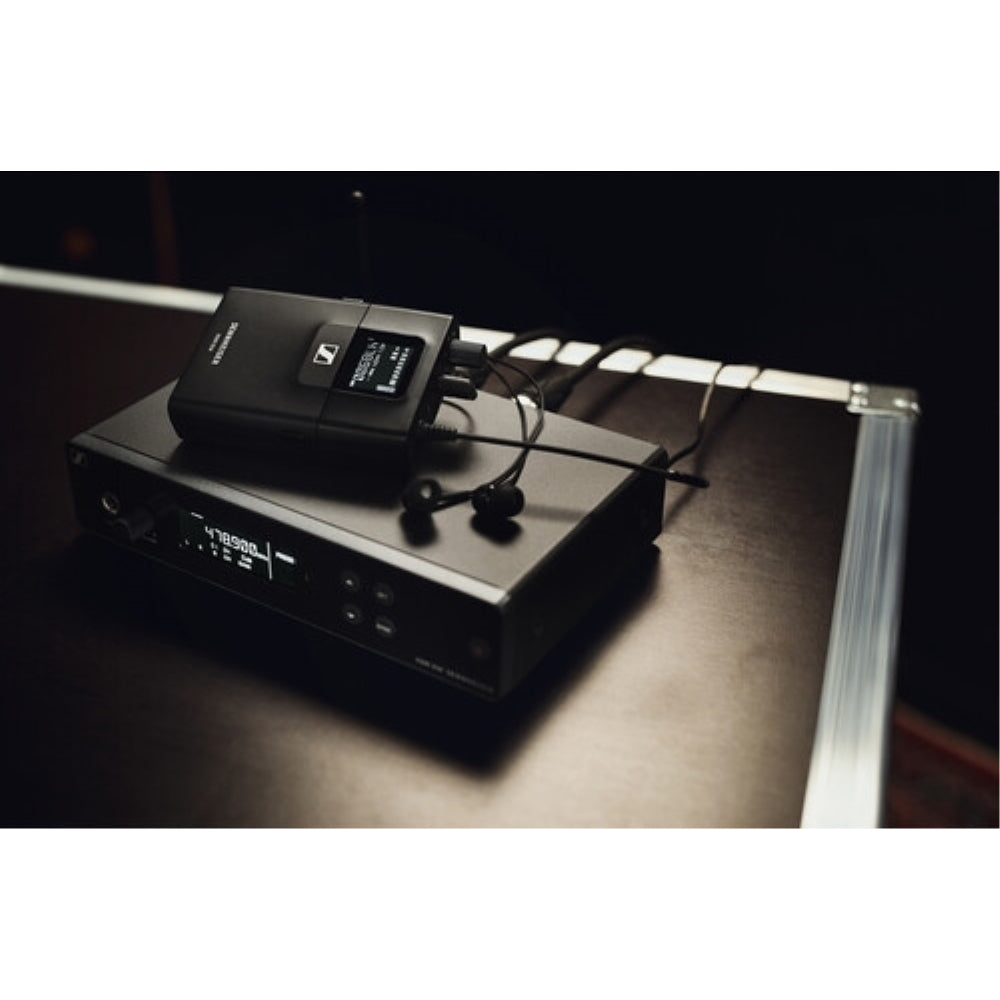

The comprehensive XSW IEM SET comprises the XSW IEM SR stereo transmitter, the XSW IEM EK stereo receiver, IE 4 in-ear headphones, an external power supply, and a rackmount kit. This system offers a continuous operation time of up to 6 hours when powered by two AA batteries in the receiver, with a transmission range of up to 330 feet. The transmitter is capable of sending signals to an unlimited number of receivers, which can be purchased separately. Additionally, it allows for the simultaneous operation of up to 12 transmitters within the same frequency band.
Your Easy Entry into Personal Wireless Monitoring

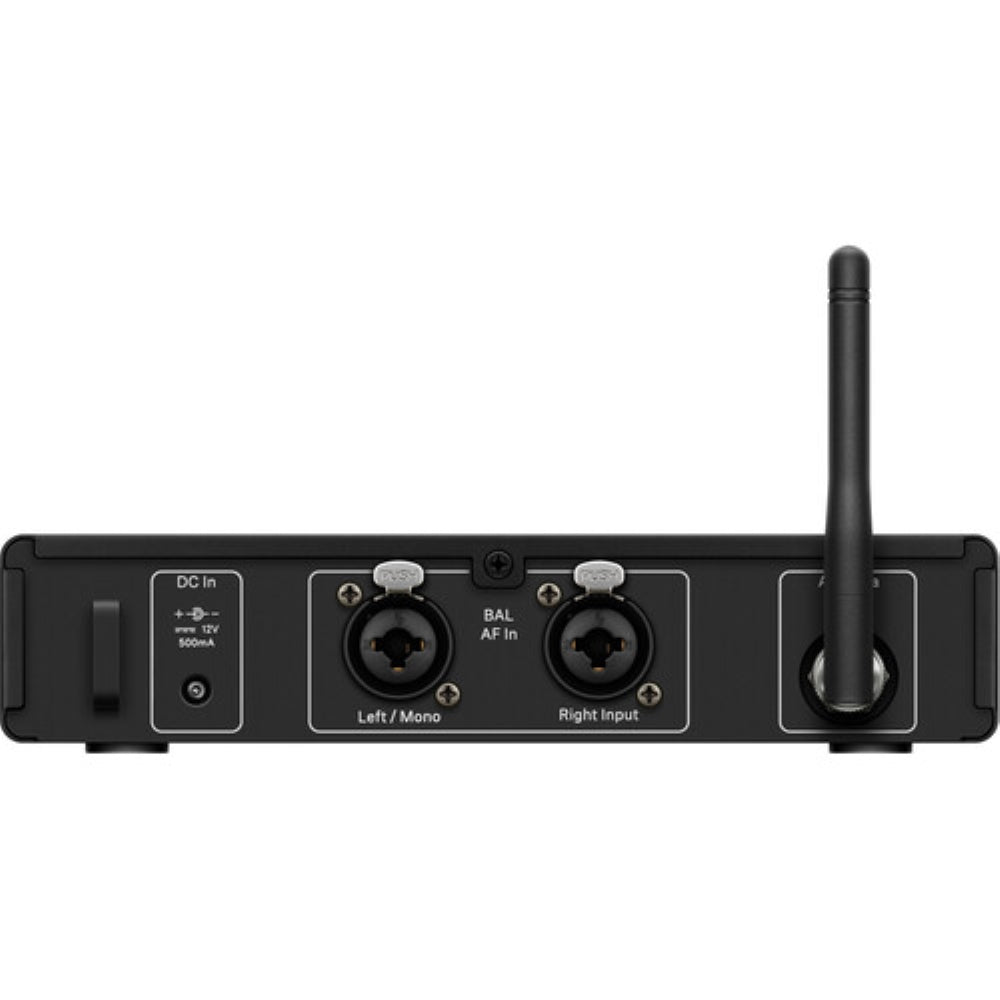

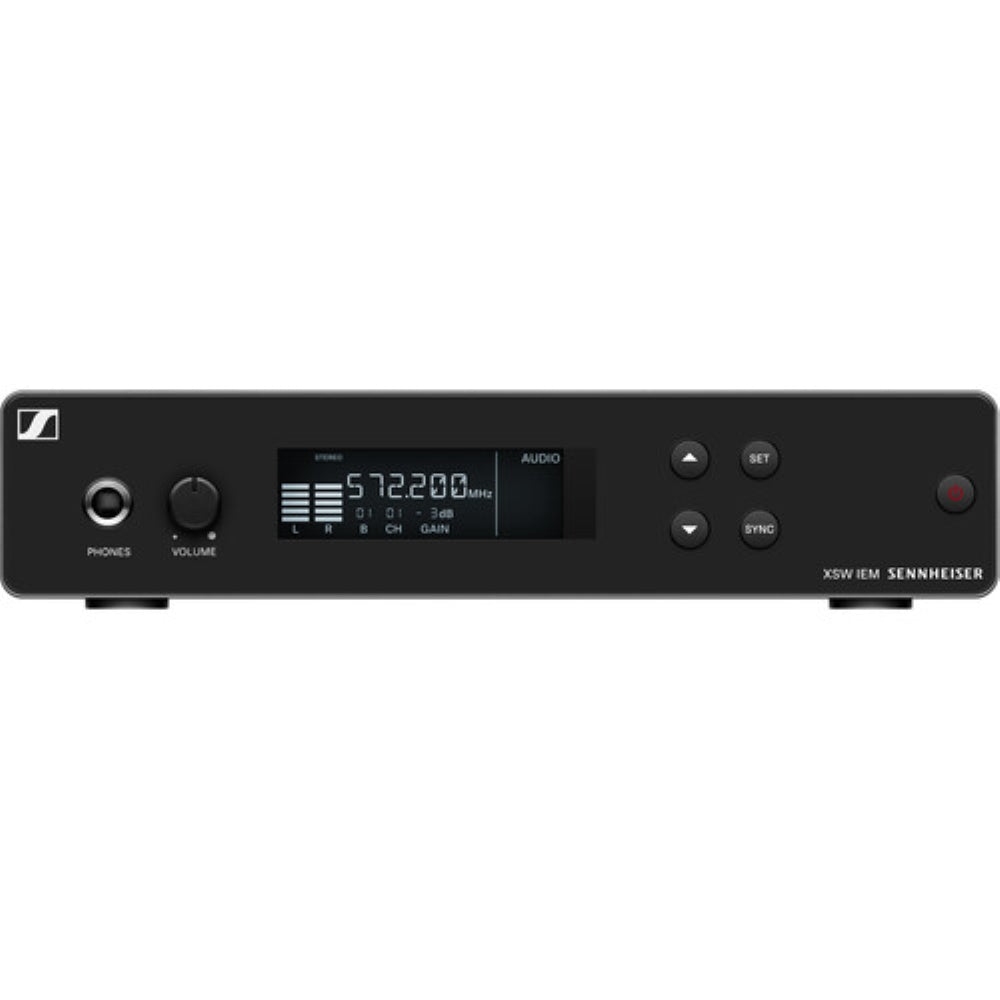

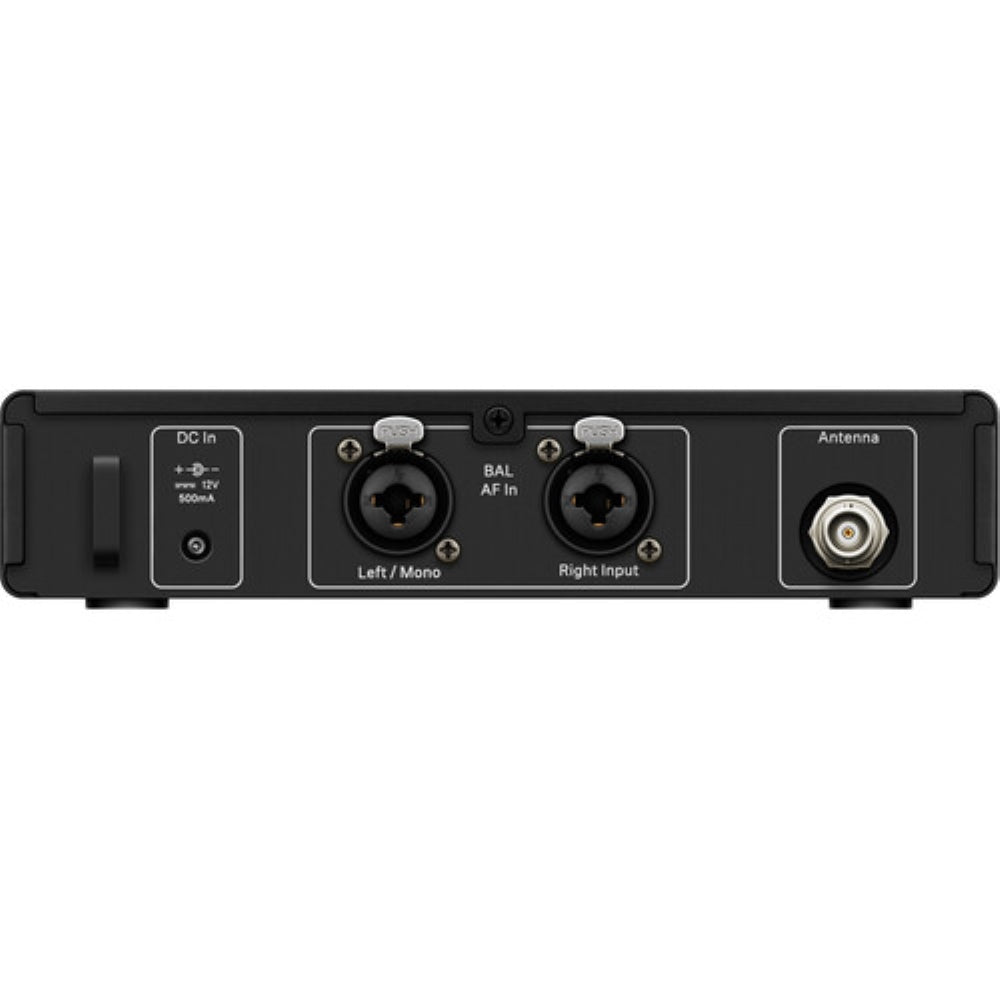

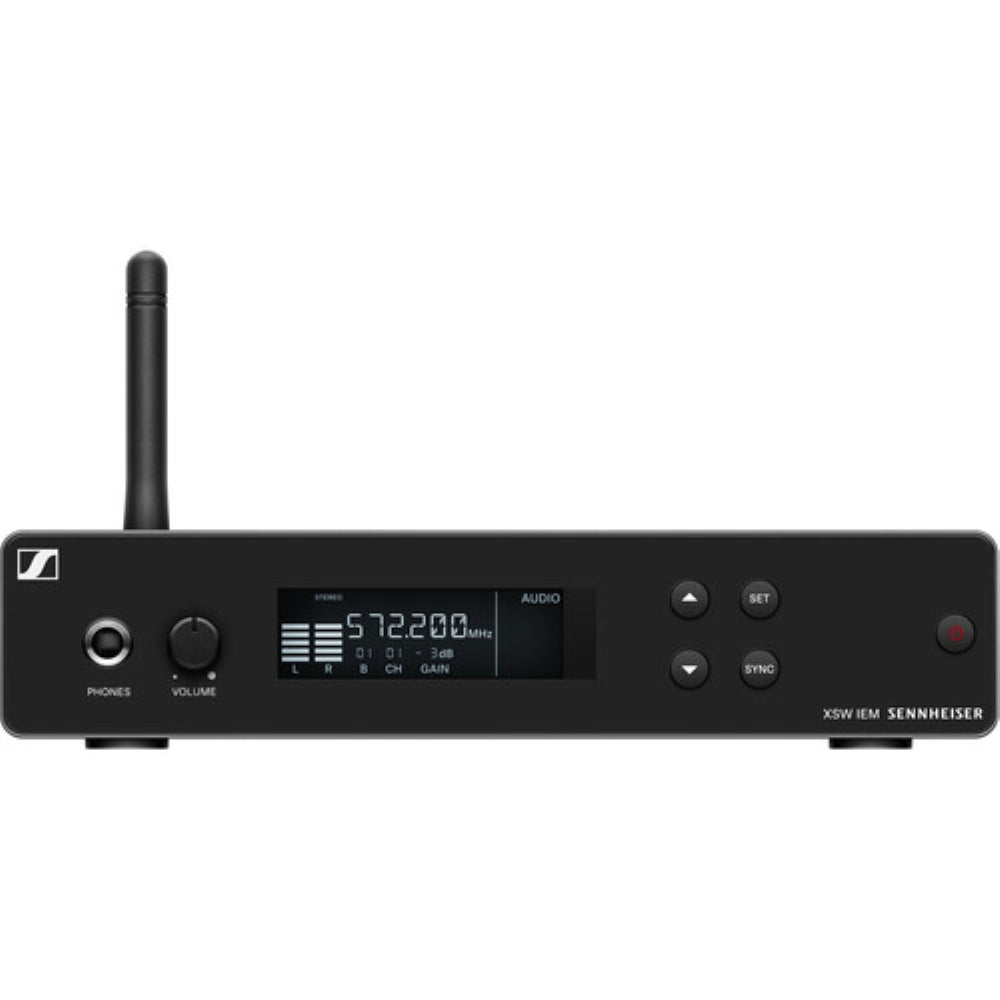

The robust XSW IEM SR stereo transmitter is constructed with a metal casing, making it suitable for prolonged use in smaller venues. It can function as part of a rack-mounted system or as a standalone unit on a tabletop. Featuring two combo XLR-1/4" inputs, it allows for the simultaneous transmission of either a stereo signal or two distinct mono audio sources via 1/4" or XLR connections. The front panel is equipped with a backlit LCD screen, facilitating straightforward setups even in low-light environments. Additionally, users can monitor their in-ear mix through the headphone output located on the front. Adjusting gain, selecting mono or stereo modes, configuring input sensitivity, or changing frequency channels can be accomplished in mere seconds due to the intuitive menu design.

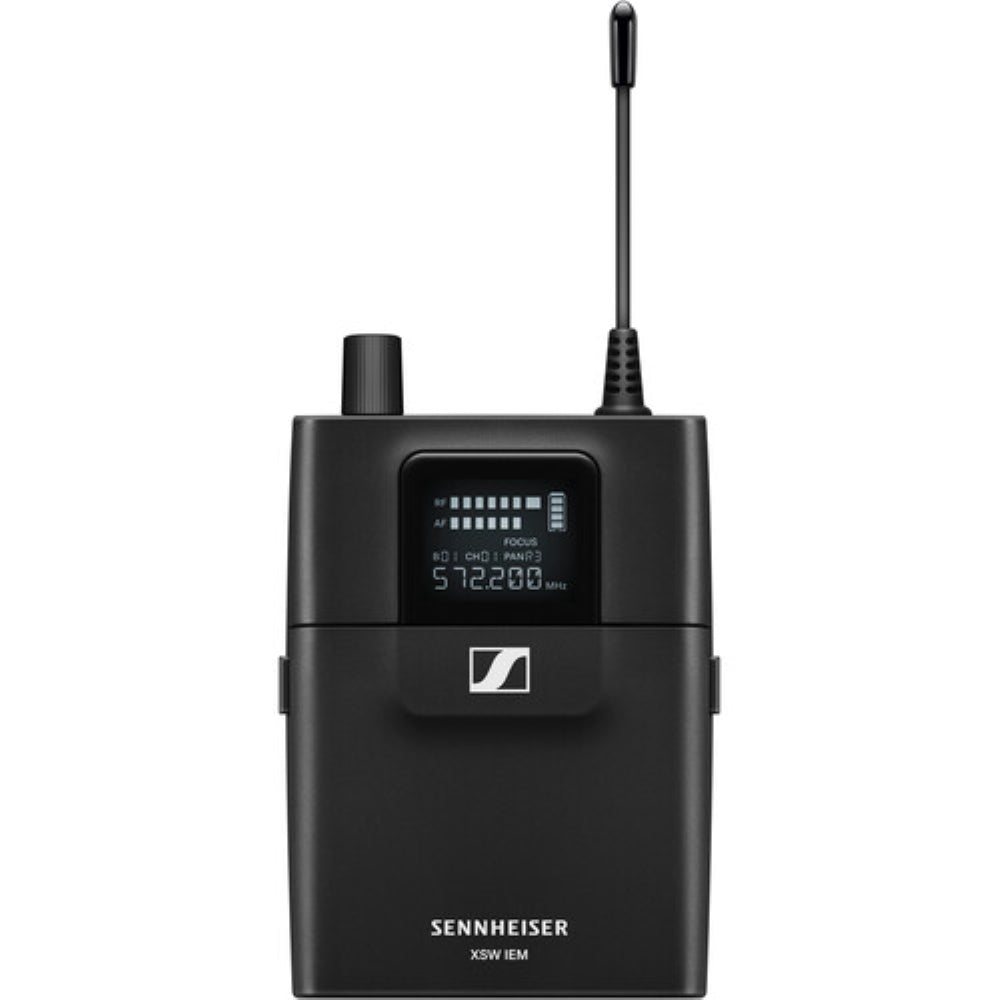

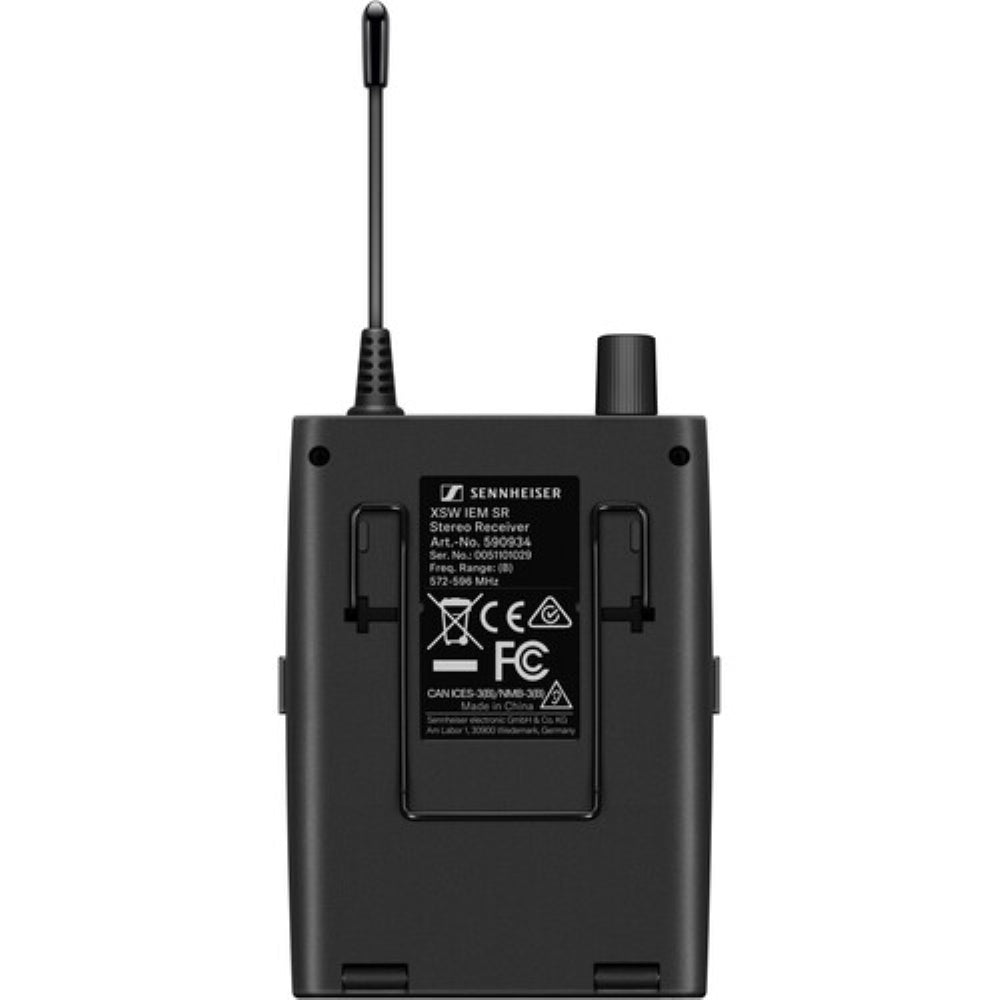

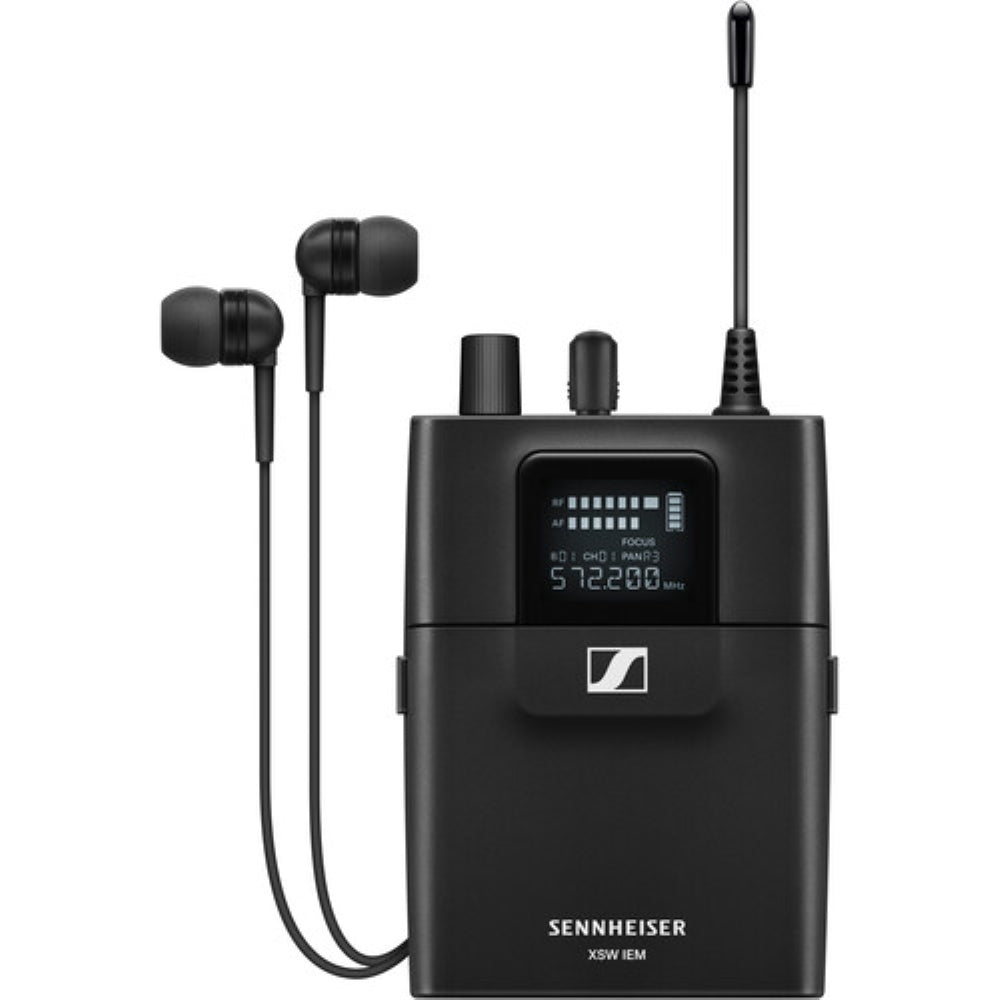

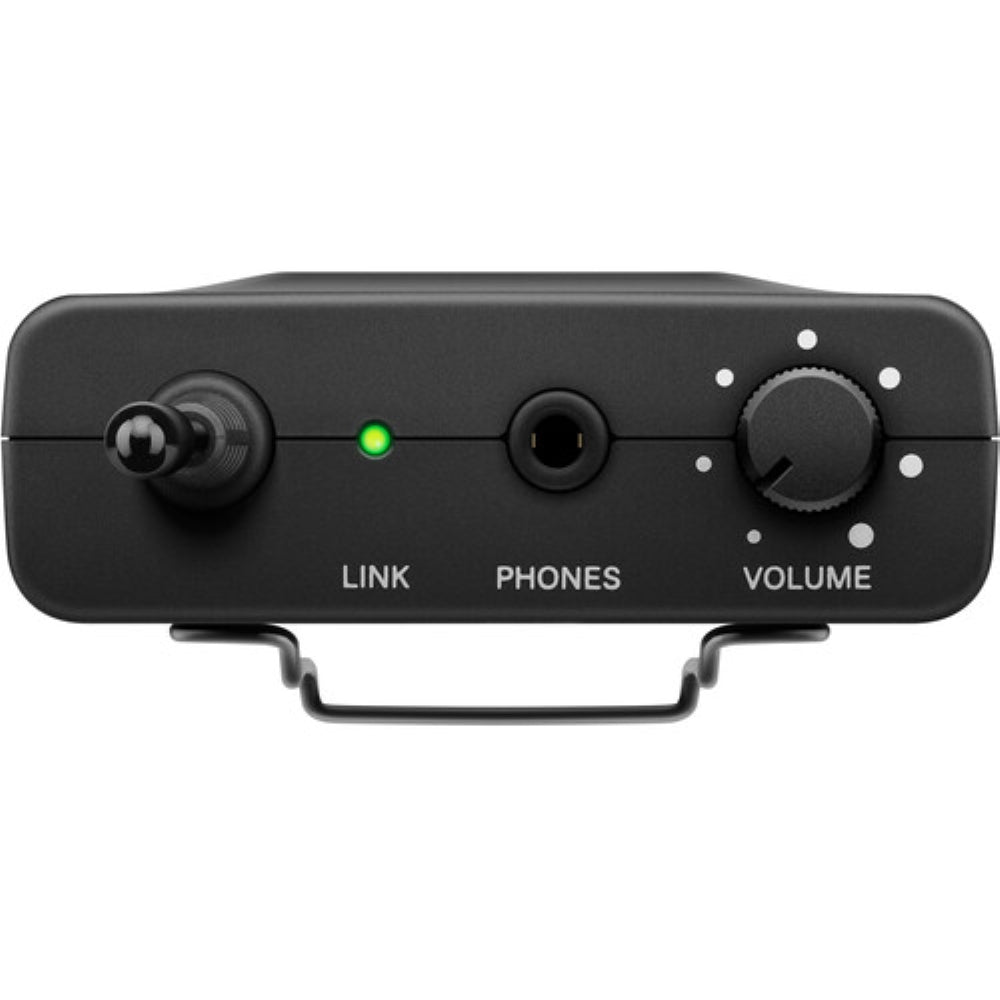

The lightweight XSW IEM EK stereo bodypack receiver conveniently clips onto clothing or a belt, making it easy to hide and comfortable for performers to wear. It features a standard 3.5mm jack for connecting the included IE 4 earphones or any optional earphones of your preference. An LED indicator on the top provides immediate visibility of battery and link status, while the front LCD panel allows for precise adjustments to your personal mix, including balance, Focus modes, EQ, and Limiter settings.

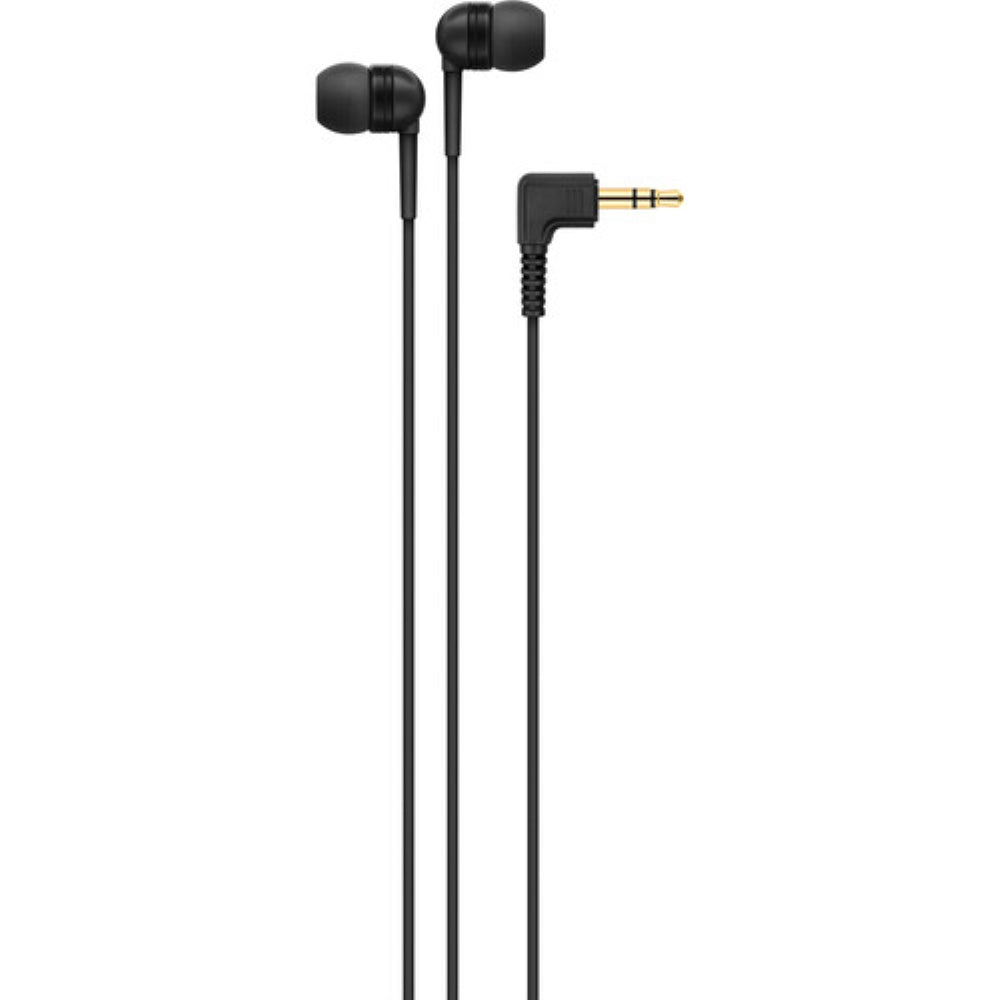

The IE 4 earphones deliver precise audio reproduction with an extensive dynamic range and enhanced bass response. They come with interchangeable ear sleeves designed to ensure a comfortable fit.
Full Control over Your Mix with Flexible Audio Modes
Musicians utilizing the bodypack receiver have the ability to customize their personal audio mix through Mono, Stereo, and Focus Mode settings. The intuitive controls allow for adjustments in volume and panning of both left and right signals, enabling them to achieve an optimal balance. For instance, a vocalist may increase the vocal feed for better self-monitoring, while the band might prefer a stronger instrumental mix to maintain their rhythm.
Additionally, performers can activate the Focus mode, which combines the left and right signals, allowing them to emphasize certain sounds in the foreground while relegating others to the background.
The device also features advanced capabilities, including an equalizer that offers a 10 dB boost at 13 kHz with a high shelf, enhancing clarity and brightness. Furthermore, the built-in Limiter safeguards hearing by restricting the output volume at the receiver to -10 dB.
Reliable Wireless Performance
The stereo transmitter features 960 frequencies and comprises 8 banks, each containing 12 pre-aligned and pre-calculated frequencies. This design facilitates the automatic identification of a clear wireless channel in your vicinity, ensuring dependable transmission over a distance of up to 330 feet. Operating within the UHF frequency range, the system is resistant to interference from cell phones and Wi-Fi, which often affect 2.4 GHz systems. Additionally, the infrared sensors enable the rapid synchronization of multiple receivers to a single transmitter with just a press of a button.
Features at a Glance
- Complete starter set for in-ear monitoring
- Reliable, easy-to-manage wireless connection in the professional UHF range
- Full control over you personal mix with flexible Mono, Stereo, and Focus modes
- Advanced features like EQ and limiter
- 960 frequencies organized in 8 banks
- Easy frequency presets or detailed manual control
- Infrared sensor to easily sync multiple receivers to one transmitter
- LCD screens with clearly arranged menu
- Two combo XLR-1/4" jack inputs on transmitter
- Headphone jack on transmitter
- Detachable antena on transmitter
- 3.5mm jack output with adjustable volume on receiver
- Pair of IE 4 in-ear headphones

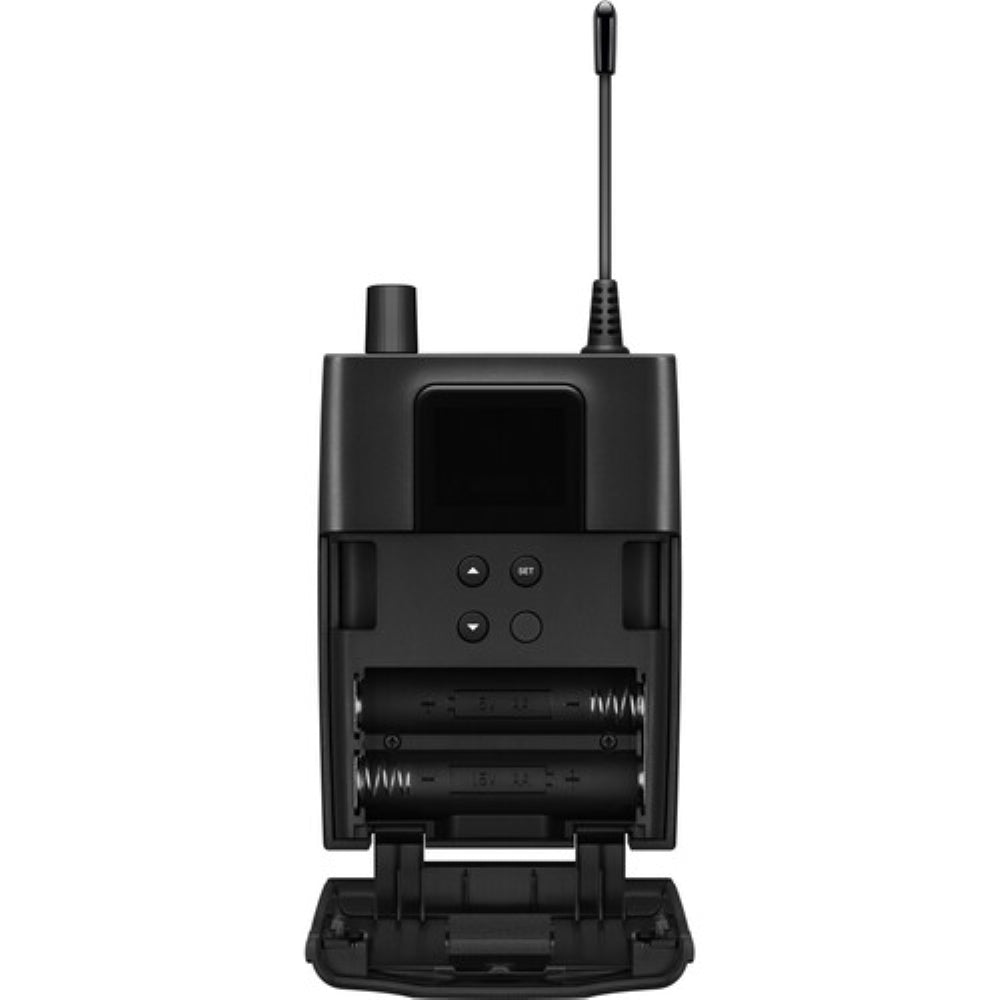

- Receiver operates up to 6 hours on 2 AA batteries
- Operate up to 12 transmitters simultaneously in the same frequency band
- Reliable transmission up to 300'
- Max 4 single transmitters stacked without a proper combiner
- Set includes rackmount kit, antenna, and external power supply
Transmitter |
|
---|---|
Frequency Band | A: 476 to 500 MHz |
Wireless Technology | Analog, UHF |
Modulation | FM Stereo |
Transmitting RF Power | 30 mW |
Number of RF Channels | 960 |
Switching Bandwidth | 24 MHz |
Frequency Step Size | 25 kHz |
Frequency Banks | 8 Banks with 12 Aligned and Precalculated Frequencies Each |
Frequency Scanning | Manual |
Max Transmitters per Band | 12 |
Max Operating Range | 330' / 100 m (Line of Sight) |
Nominal/Peak Deviation | ±15 kHz / ±24 kHz |
Antenna Output | BNC Socket, 50 Ohms |
Frequency Response | 45 Hz to 15 kHz |
Inputs | L + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced |
Output | 1/4" / 6.3 mm TRS, Headphones Out |
Total Harmonic Distortion (THD) | <0.9% |
Signal-to-Noise Ratio | ≥88 dB, at Nominal Load and Peak Deviation |
Power Input Rating | +12 VDC |
Current Consumption | Approximately 400 mA |
Housing | Metal |
Temperature Range | 32 to 104°F / 0 to 40°C |
Dimensions | Approximately 7.9 x 5 x 1.7" / 200 x 128 x 42 mm |
Weight | Approximately 24.7 oz / 700 g |
Receiver |
|
---|---|
Modulation | Wideband, Stereo FM |
Frequency Band | A: 476 to 500 MHz |
Switching Bandwidth | Up to 24 MHz |
Sync Method | IR |
Nominal/Peak Deviation | ±15 kHz / ±24 kHz |
Squelch | 10 µV, Fixed |
Signal-to-Noise Ratio | ≥88 dB, 1 mV, Peak Deviation |
Total Harmonic Distortion (THD) | ≤ 1% |
Output Level | 2 x 1.25 Veff at 16 Ohms |
Equalization | High Boost EQ: +10 dB at 13 kHz |
Limiter | -10 dB |
Frequency Response | 45 Hz to 15 kHz |
Crosstalk | Typically 45 dB (50 Hz to 10 kHz) |
Power Supply | 2 x AA Batteries, 1.5 V |
Nominal Voltage | 3 V |
Housing | Plastic |
Operating Time | Approximately 6 Hours, Depending on Volume Level |
Temperature Range | 32 to 104°F / 0 to 40°C |
Dimensions | 3.7 x 2.8 x 1" / 95 x 70 x 26 mm |
Weight | 3.9 oz / 110 g, Including Batteries |
Earphones |
|
---|---|
Transducer | Dynamic |
Frequency Response | 40 Hz to 20 kHz |
SPL | 106 dB, (1 kHz, 1 mW) |
Nominal Impedance | 6 Ohms |
Cable Length | 4.6' / 1.4 m |
Connector | 1/8" / 3.5 mm TRS, Stereo, Gold-Plated |
Temperature Range | 23 to 122°F / -5 to 50°C |
