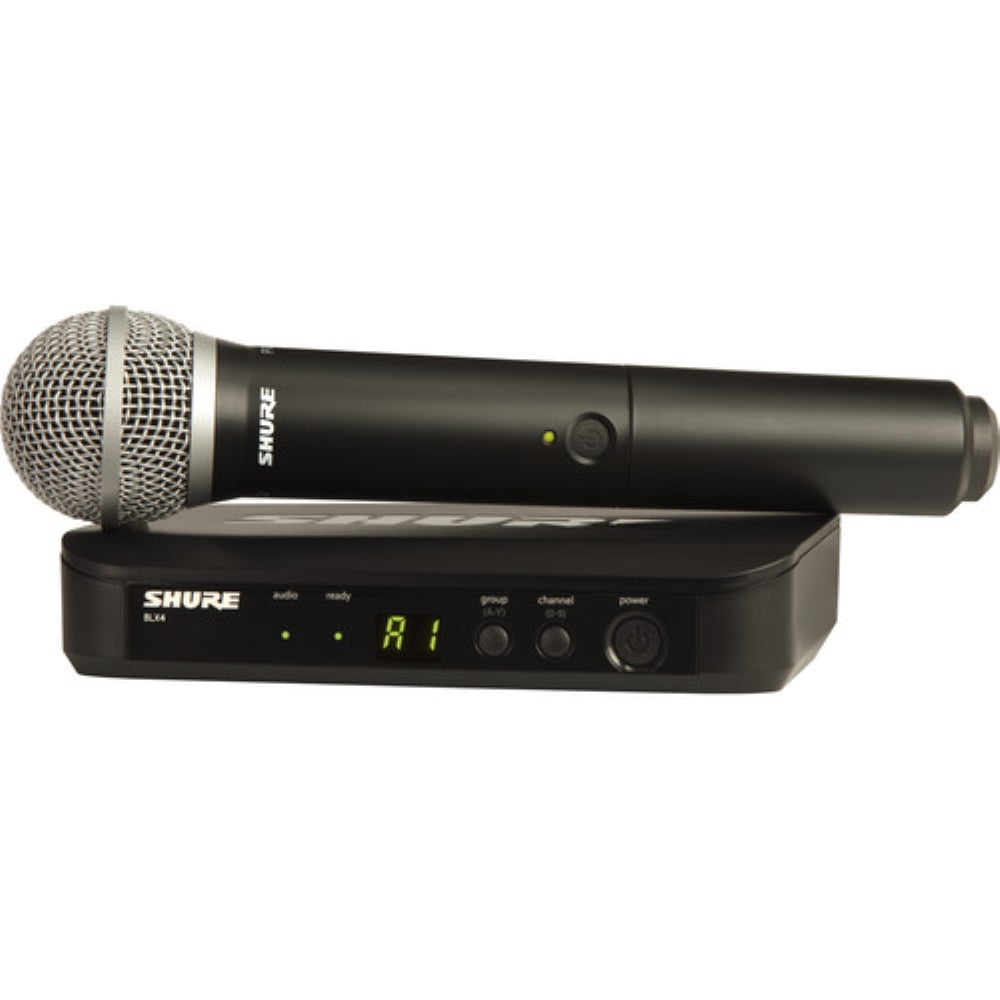

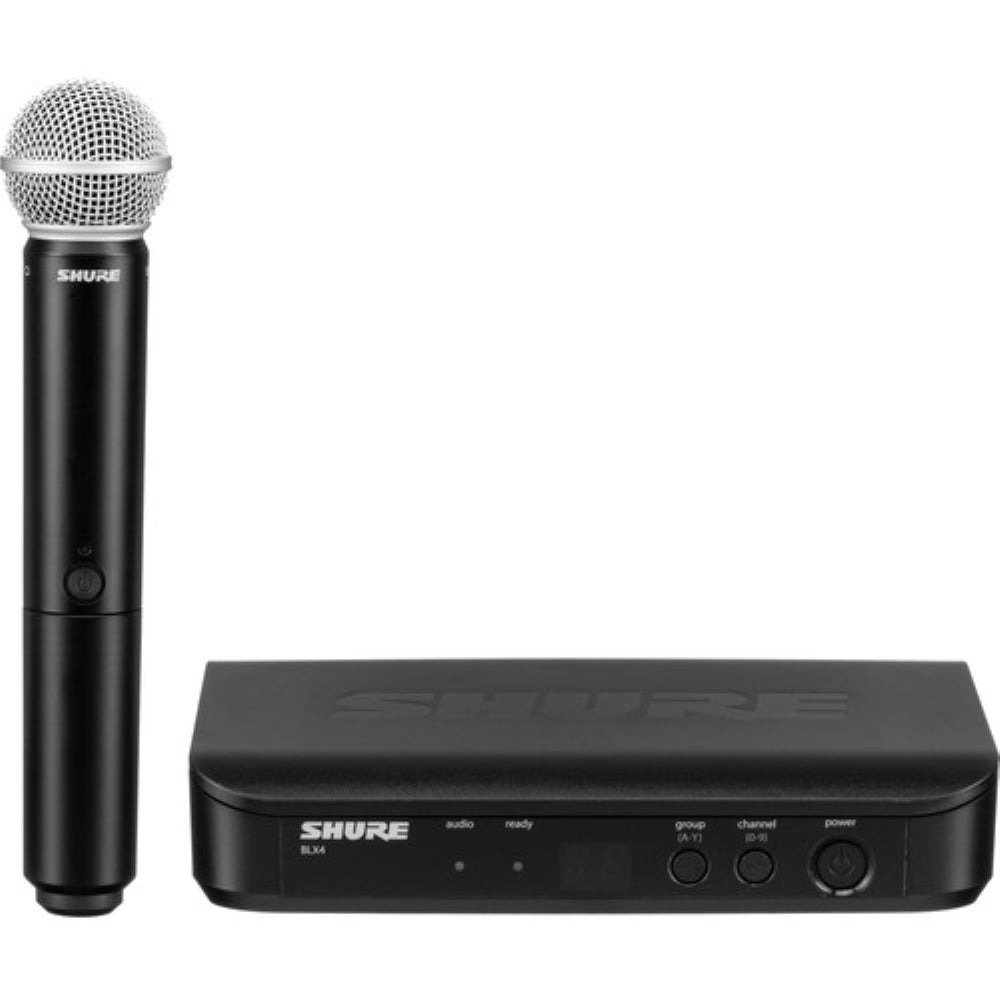

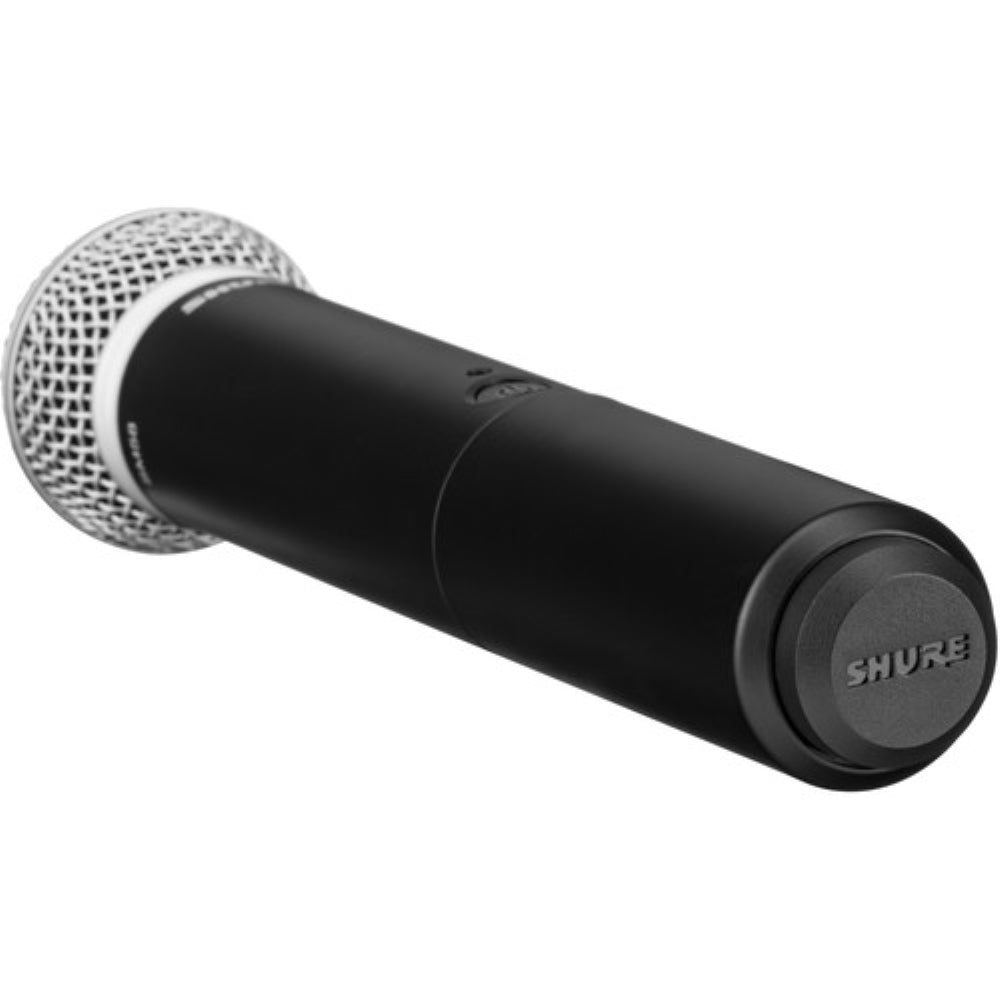

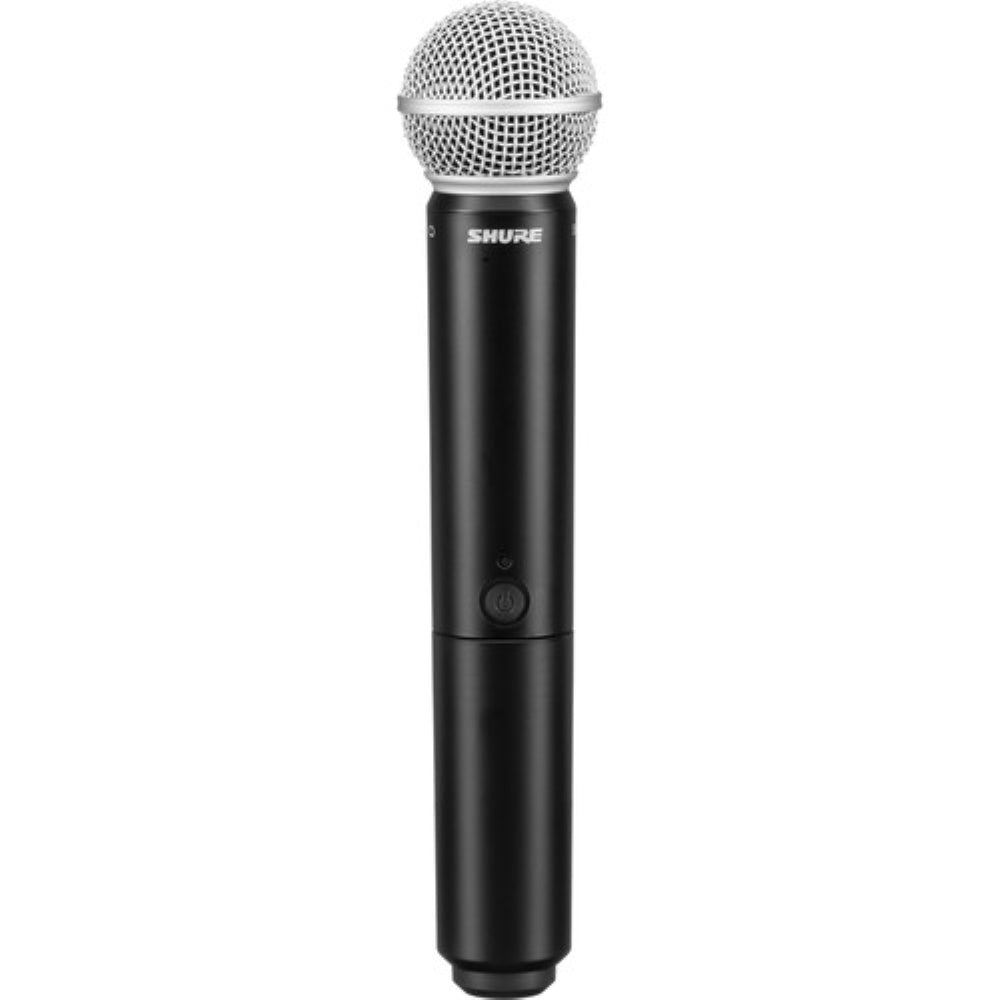

The Shure BLX2/PG58 is a handheld wireless microphone transmitter compatible with BLX Series receivers. It comes equipped with an integrated PG58 dynamic capsule optimized for vocals and speech. The capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech. With a lightweight, ergonomic design, the BLX2/PG58 is comfortable to hold. It provides up to 14 hours of continuous use with the two included AA batteries, at a range up to 300'. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off power button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.
PG58 Mic Capsule Optimized for Vocals and Speech
The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.
Lightweight Handheld Transmitter

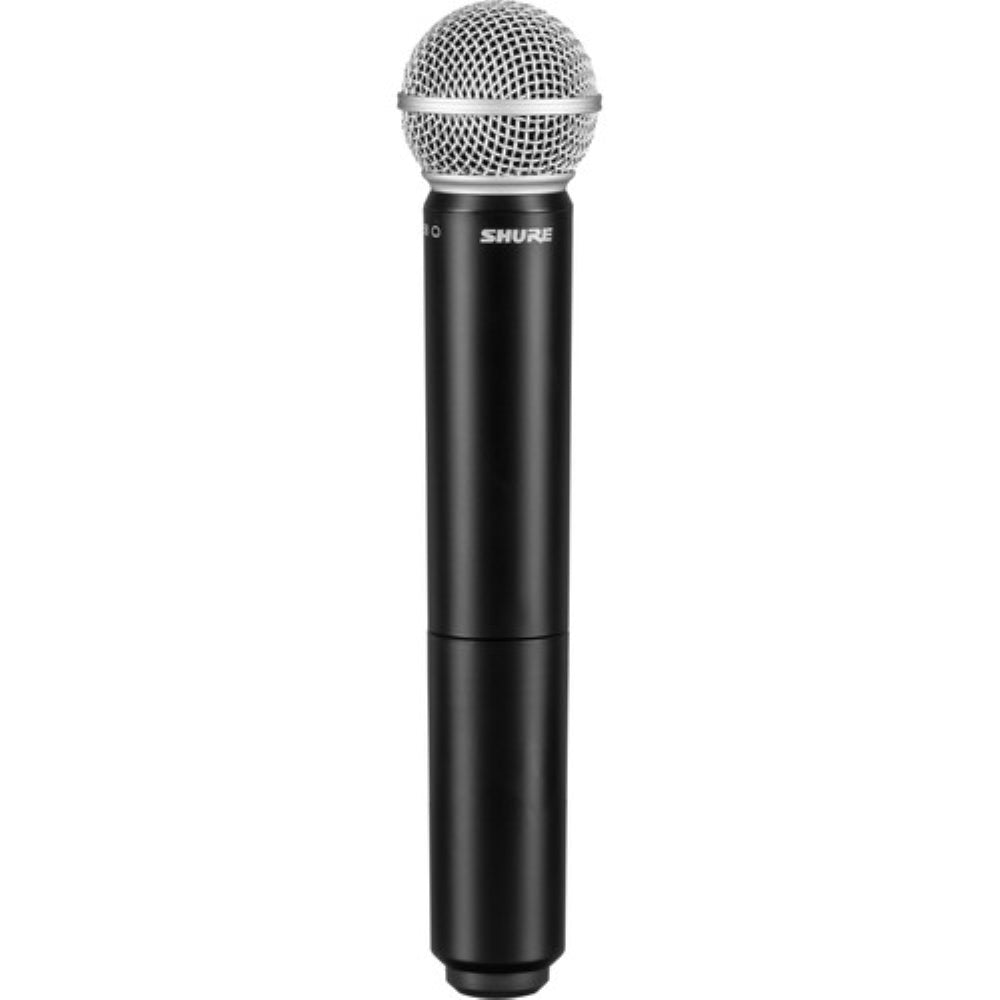

The durable BLX2 handheld transmitter offers a lightweight, ergonomic design, and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.
Easy-to-Use Tabletop Receiver for Quality Audio

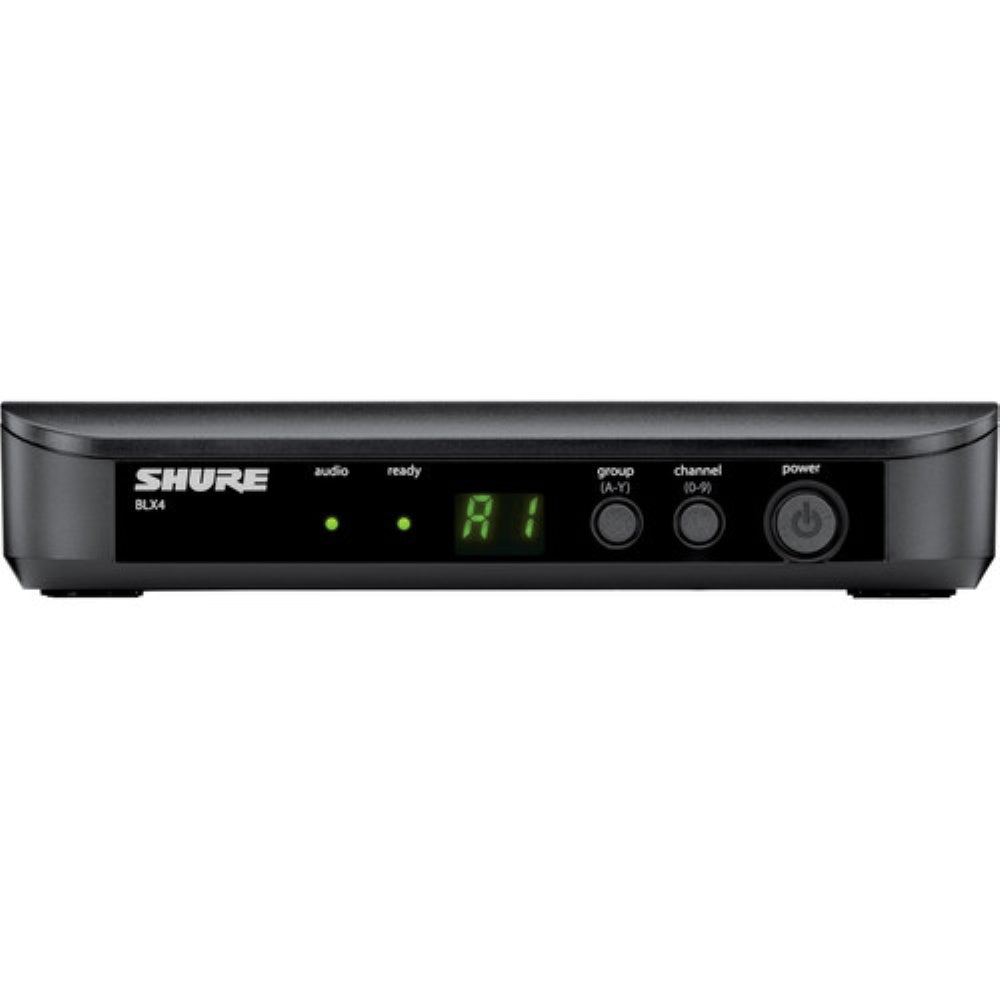

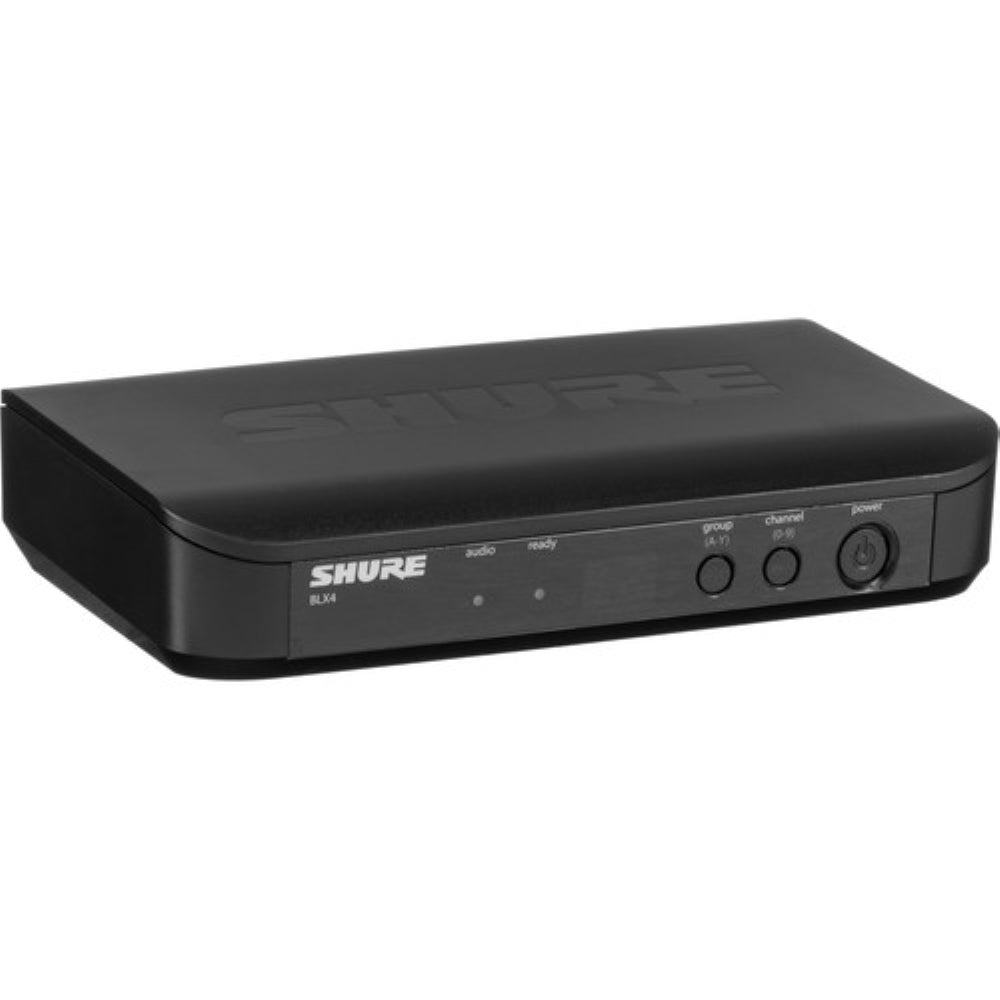

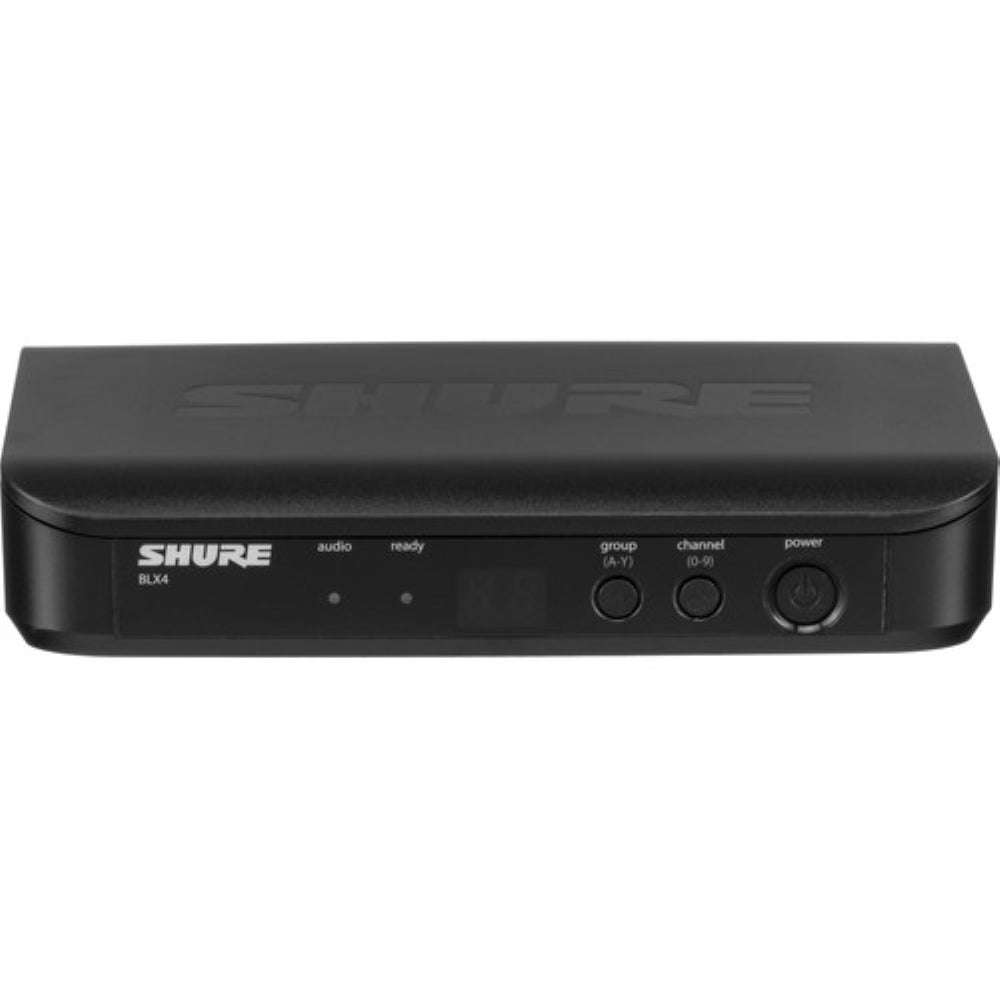

The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your Needs
Shure offers a BLX1 bodypack transmitter compatible with a variety of lavalier, instrument, and headset microphone options to adapt your BLX system as your needs evolve.
- The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
- The PGA31 is a comfortable, durable headset microphone for active performance.
- Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
- The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
System |
|
---|---|
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 123 |
Included Transmitters | 1x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | H10: 542 to 572 MHz |
RF Bandwidth | 24 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 300' / 91.4 m (Line of Sight) |
Max Transmitters per Band | 12 |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No |
Dynamic Range | 100 dBA |
Encryption | No |
Receiver |
|
---|---|
Receiver Type | Tabletop |
Antenna | 2x Internal |
Number of Audio Channels | 1 |
Built-In Microphone | No |

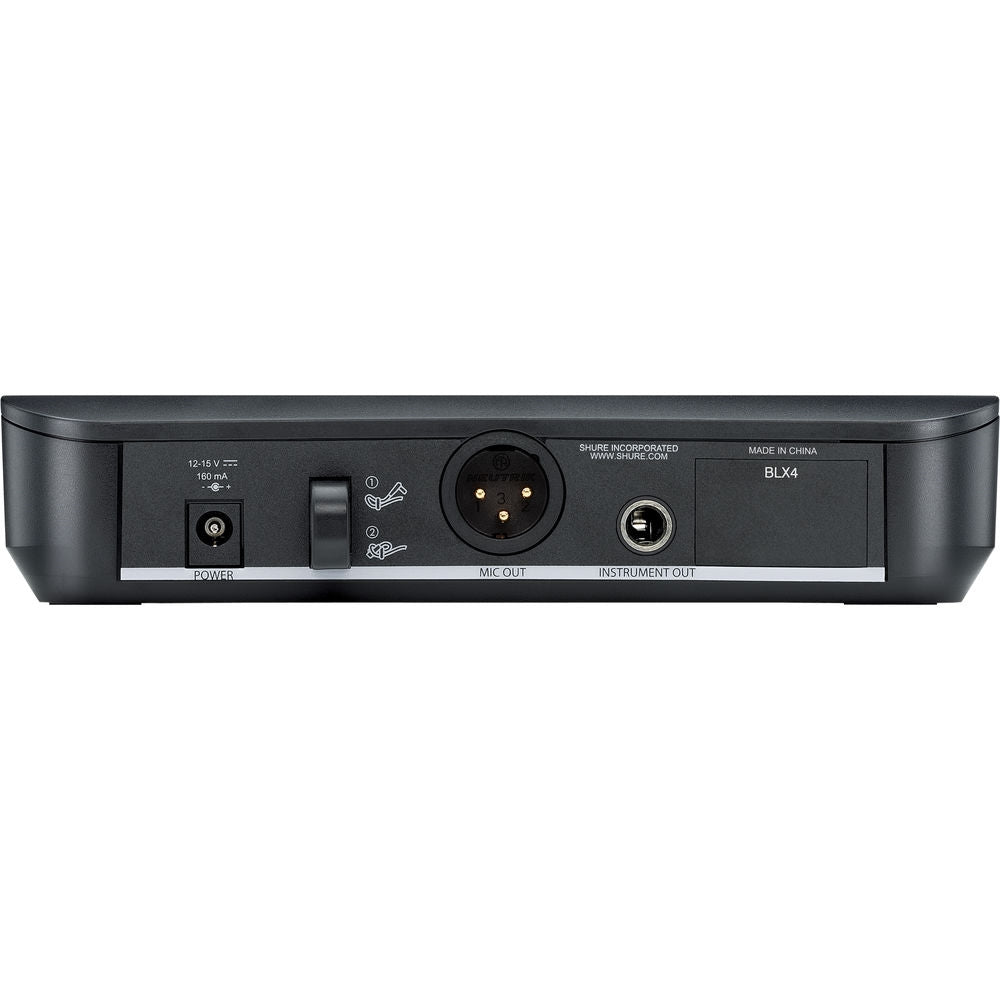

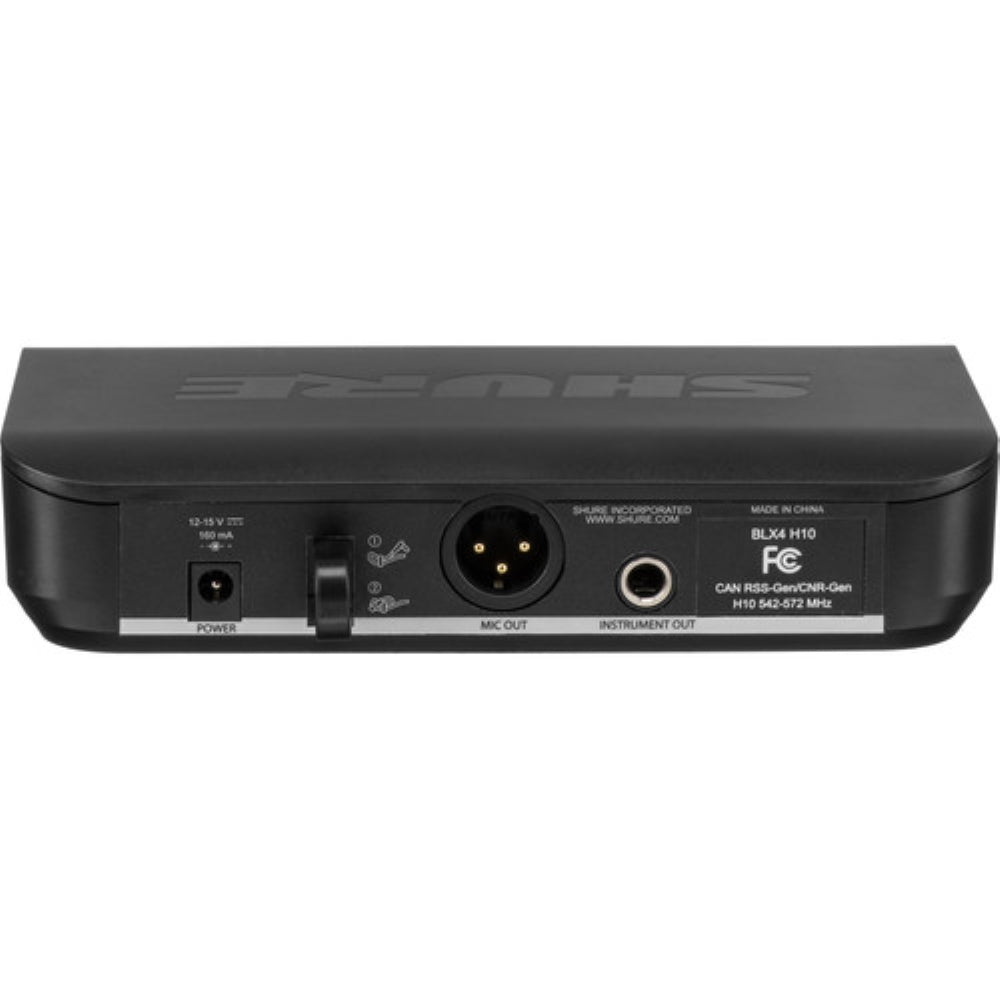

Audio I/O | 1x XLR 3-Pin Male Balanced Output 1x 1/4" TS Female Unbalanced Output |
Audio Output Level | XLR Output: -27 dBV (Mic Level) 1/4" Output: -13 dBV (Instrument Level) |
Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
USB Class-Compliant | No USB Connectivity |
Impedance | XLR Output: 200 Ohms 1/4" Output: 50 Ohms |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Center-Positive (Included) |
Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 to 15 VDC at 160mA |
Display & Indicators | 1x Multi-Segment LED (Channel, Group) 2x LED (AF Level, Sync) |
Housing | ABS |
Operating Temperature | 0 to 135°F / -17 to 57°C |
Dimensions | 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm |
Weight | 8.5 oz / 241 g |
Transmitter |
|
---|---|
Transmitter Type | Handheld |
RF Output Power | 10 mW |
Built-In Microphone | No |
Audio I/O | No |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | -20 to -10 dB |
Sync Method | Manual |
Antenna | 1x Internal (Handheld) |
Power Requirements | Battery |
Battery Type | 2x AA (Included) |
Approx. Battery Life | 14 Hours (Alkaline) |
Display & Indicators | 1x Multi-Segment LED (Channel, Group) 1x LED (Battery Status, Power) |
Housing | ABS |
Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
Weight | 7.7 oz / 218 g (without Batteries) |
Microphone |
|
---|---|
Microphone Type | Handheld Capsule |
Color | Silver |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 50 Hz to 16 kHz |
Sensitivity | -55 dBV/Pa at 1 kHz |
