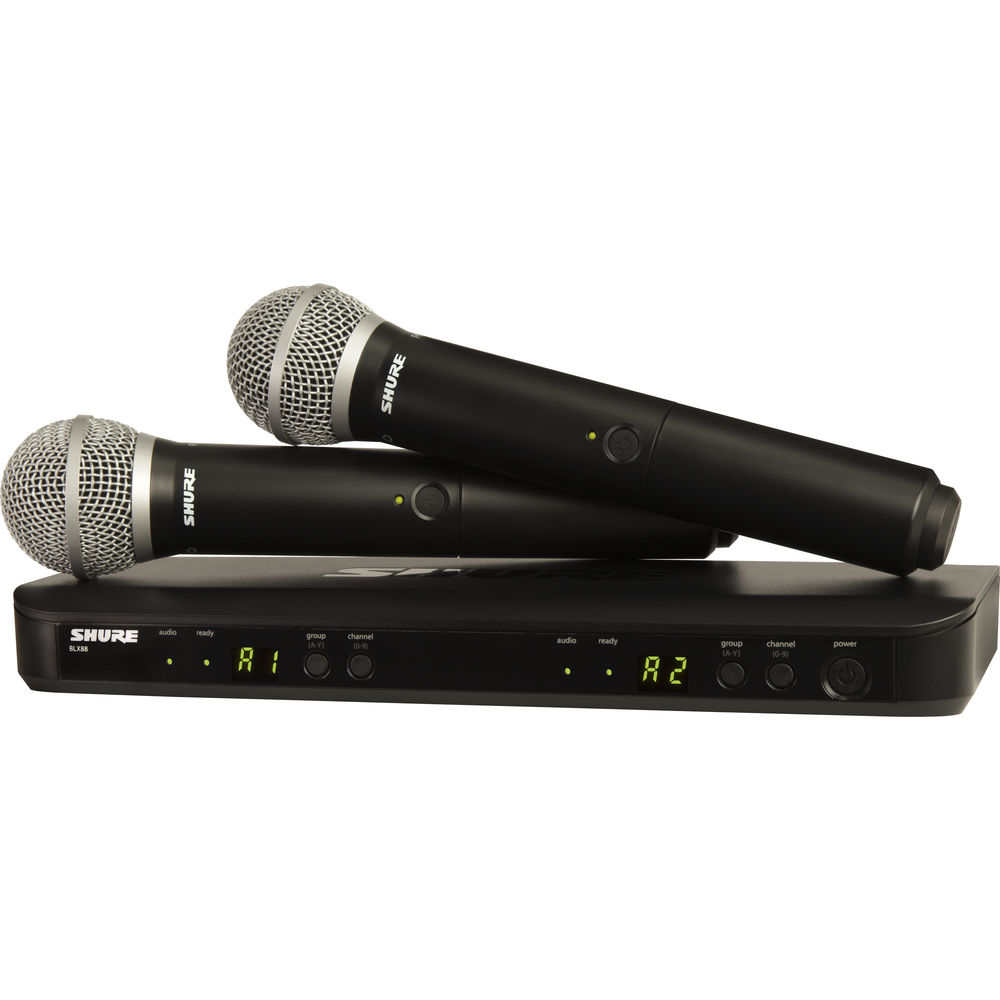

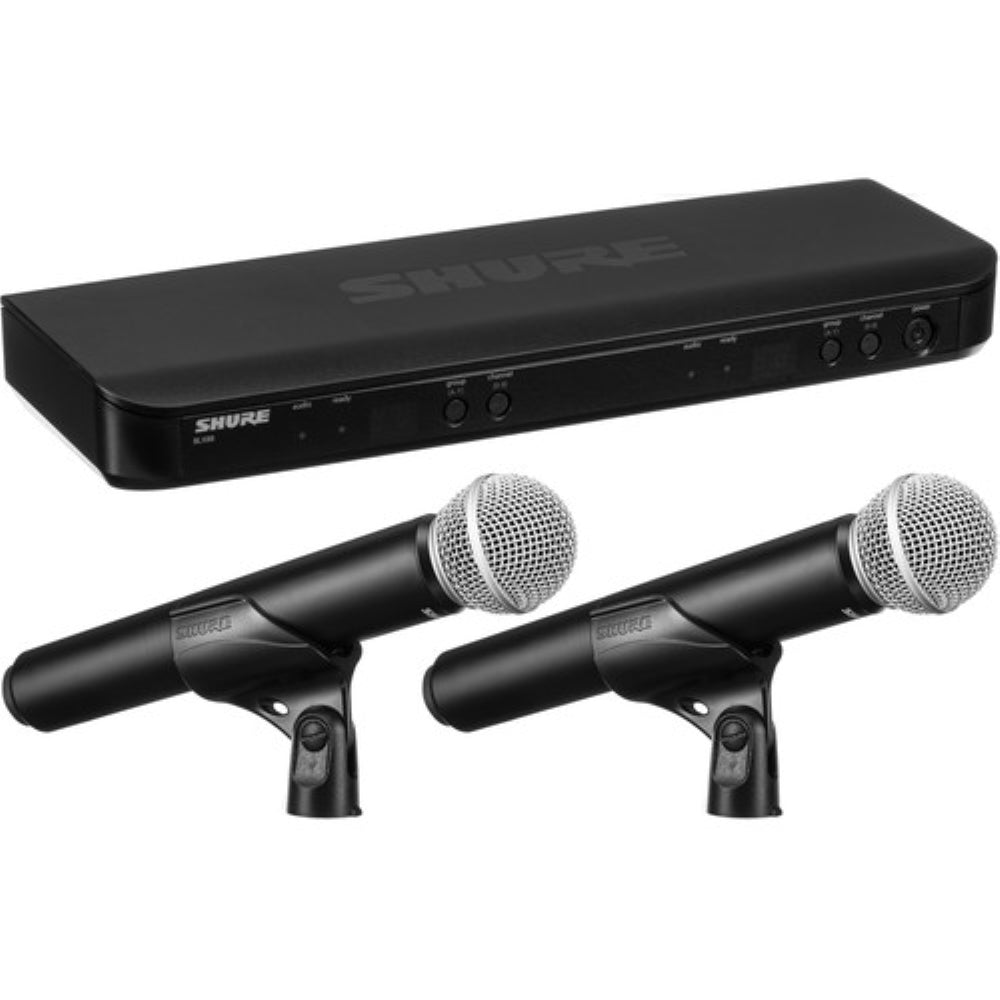

Designed for two presenters, teachers, or lecturers, the Shure BLX288/PG58 is a budget-friendly wireless handheld microphone system that delivers excellent sound, effortless setup, and consistent performance. The compact and lightweight BLX88 dual-channel tabletop receiver with internal antennas is perfect for portable use. The BLX288/PG58 comes with two handheld transmitters that have an integrated PG58 dynamic cardioid microphone capsule. The receiver has a one-touch QuickScan feature to swiftly search 123 frequencies and find a clear RF channel if there's any interference. The system is powered by four AA batteries, providing up to 14 hours of continuous use and a range of up to 300'. Each frequency band allows for simultaneous operation of up to 12 mic channels. This efficient system is perfect for live performances and events in small venues, wedding halls, and places of worship, as well as conference, educational, and corporate facilities.
PG58 Mic Capsules Optimized for Vocals and Speech

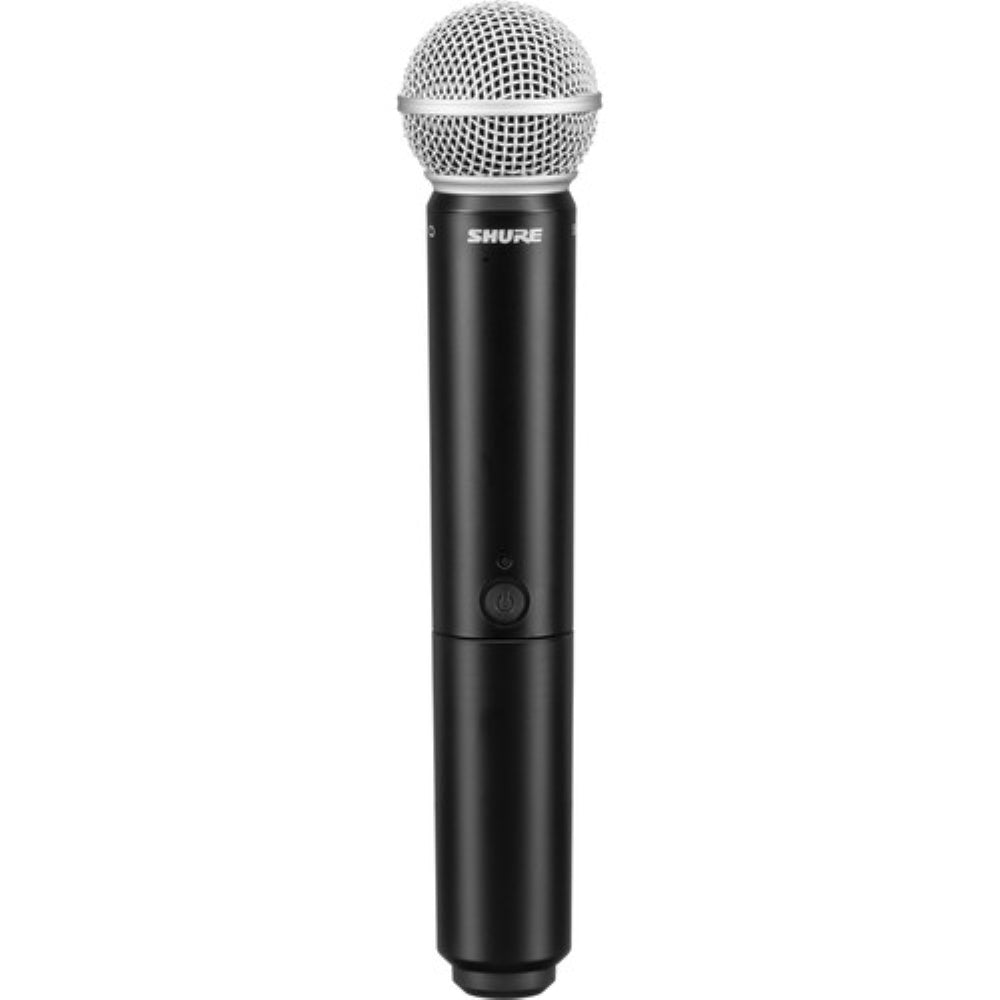

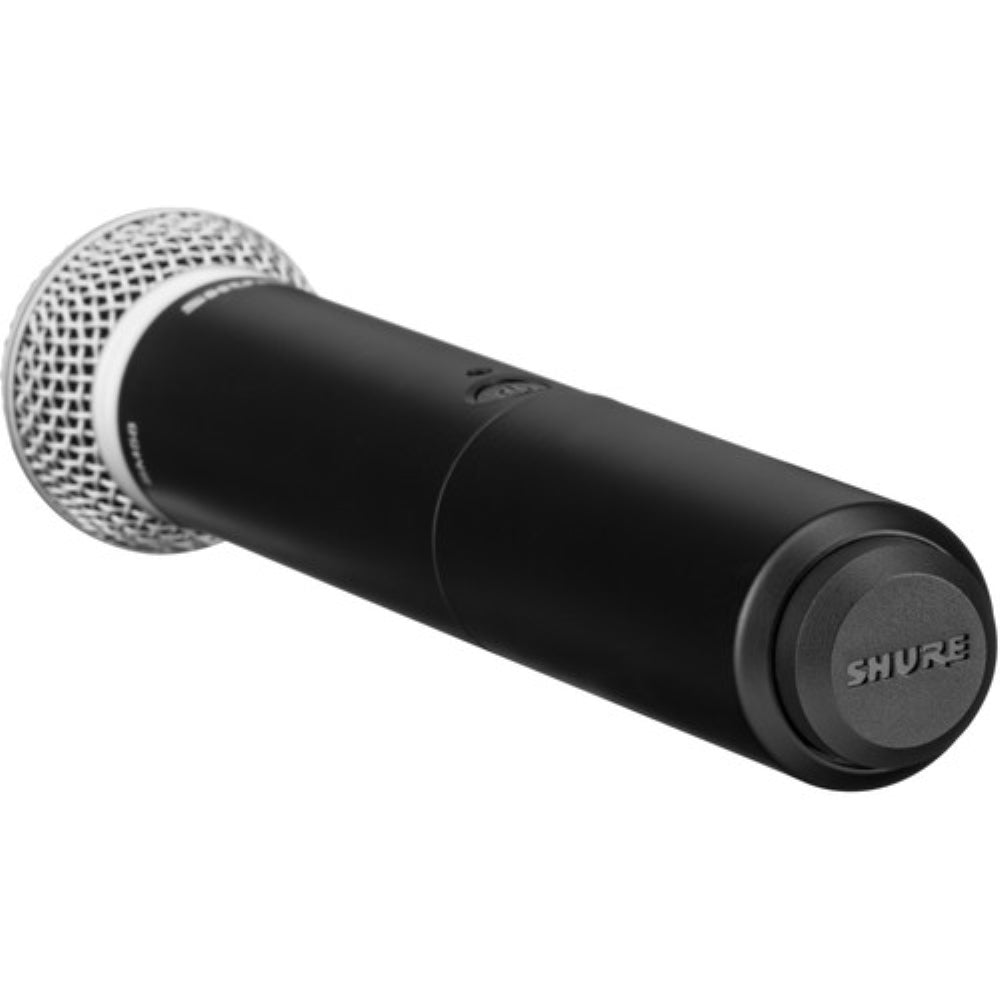

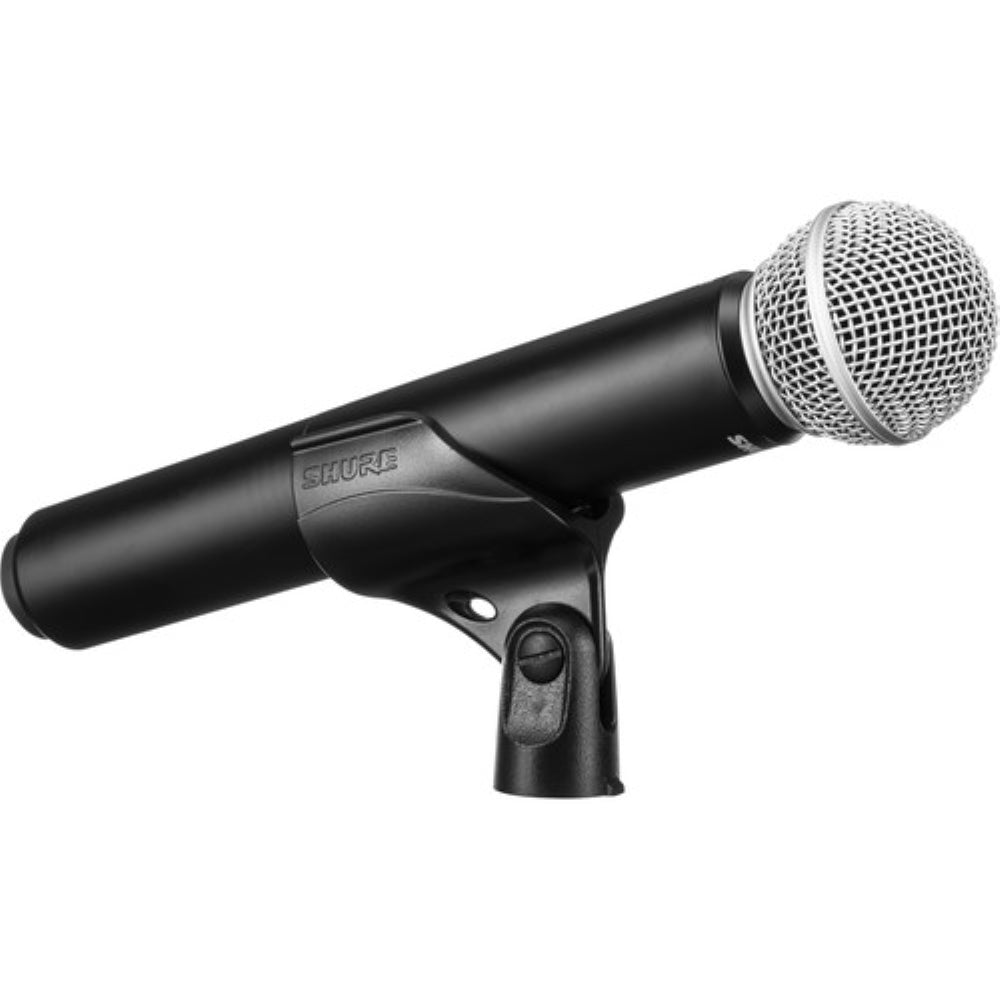

The PG58 dynamic capsules feature a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filters reduce plosives for clear and intelligible speech.
Easy-to-Use Dual-Channel Tabletop Receiver for Quality Audio

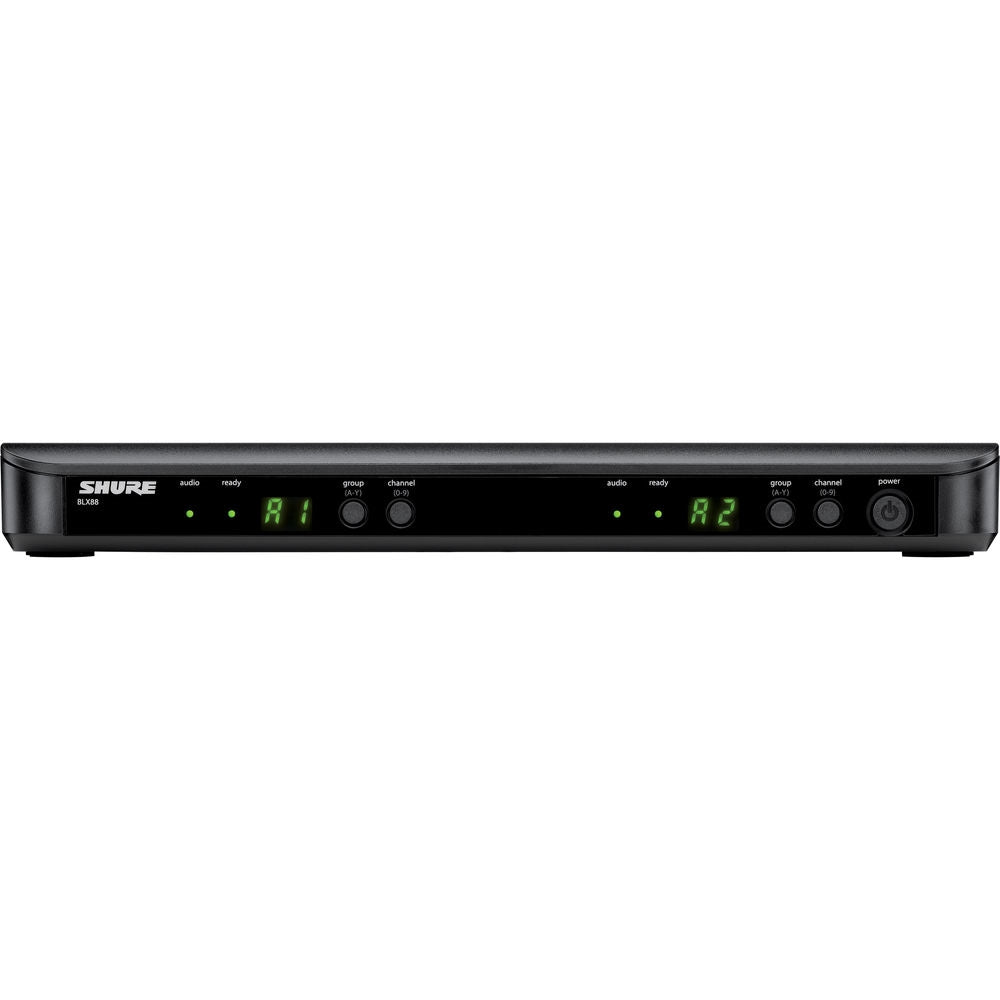

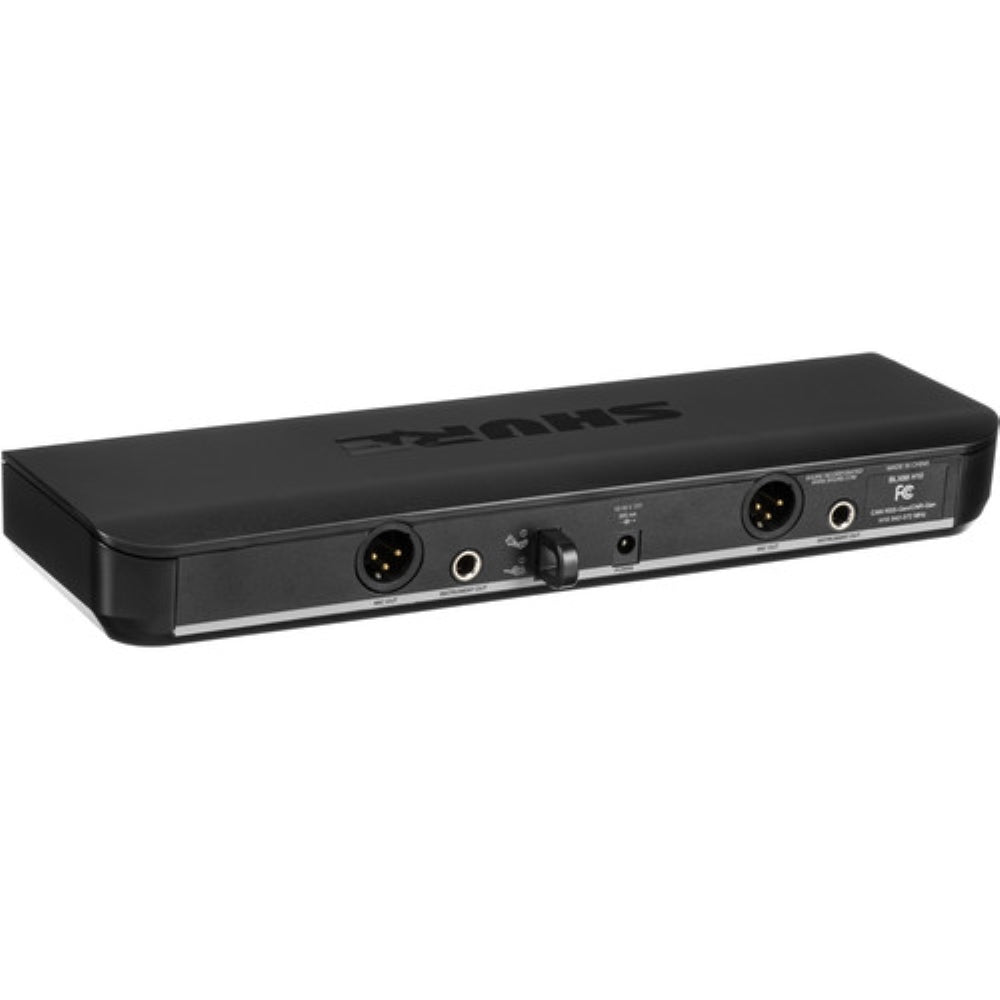

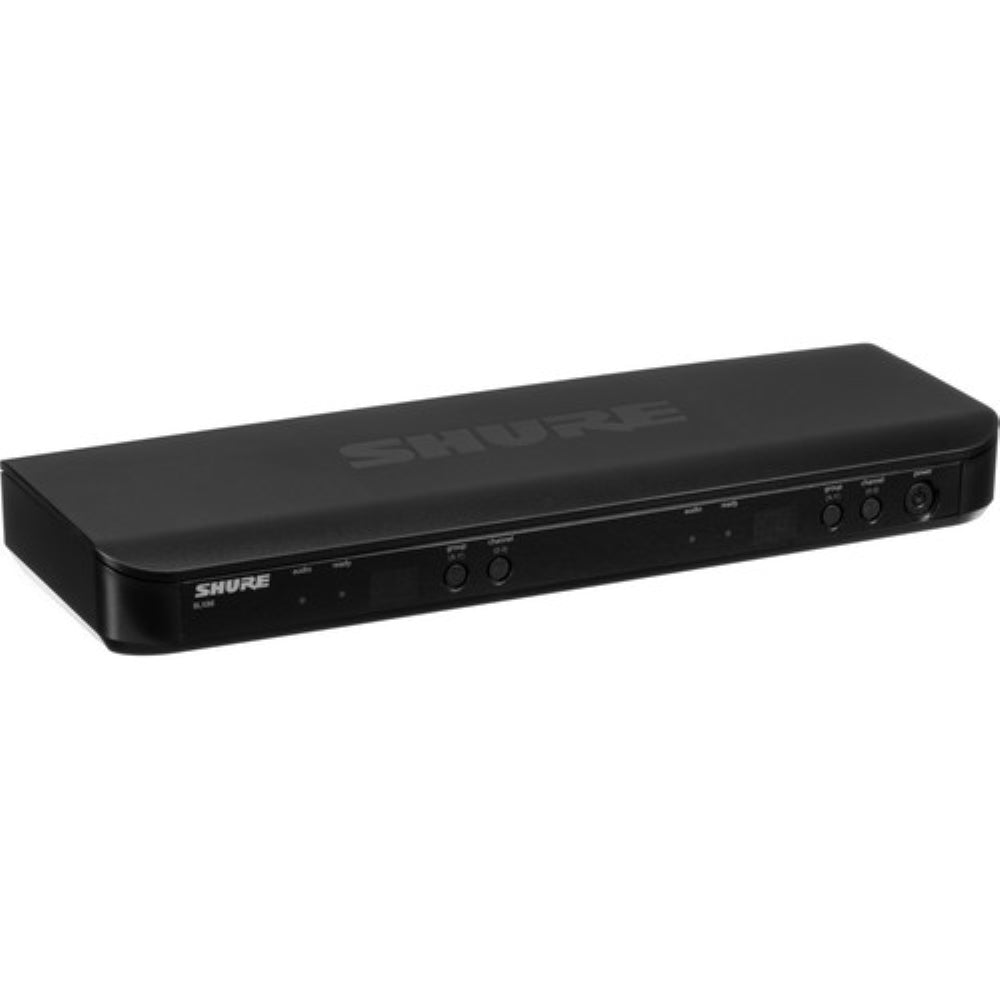

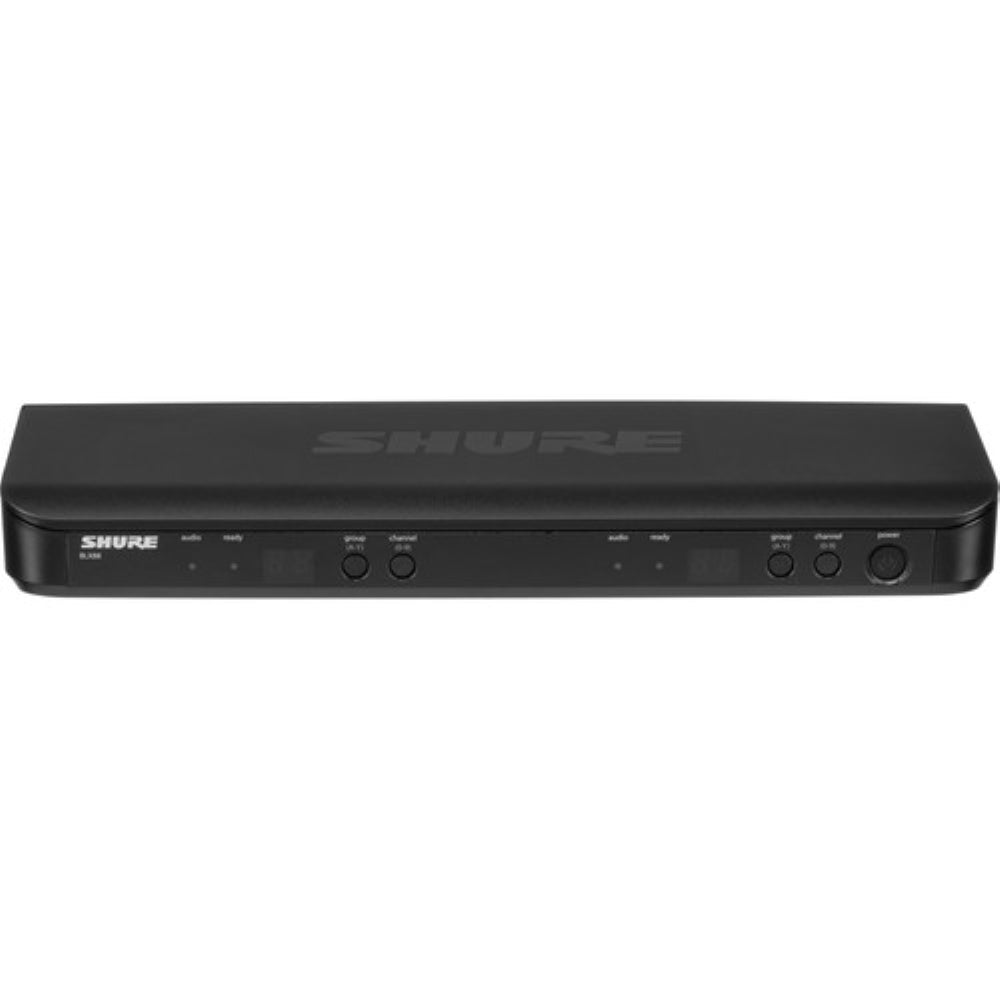

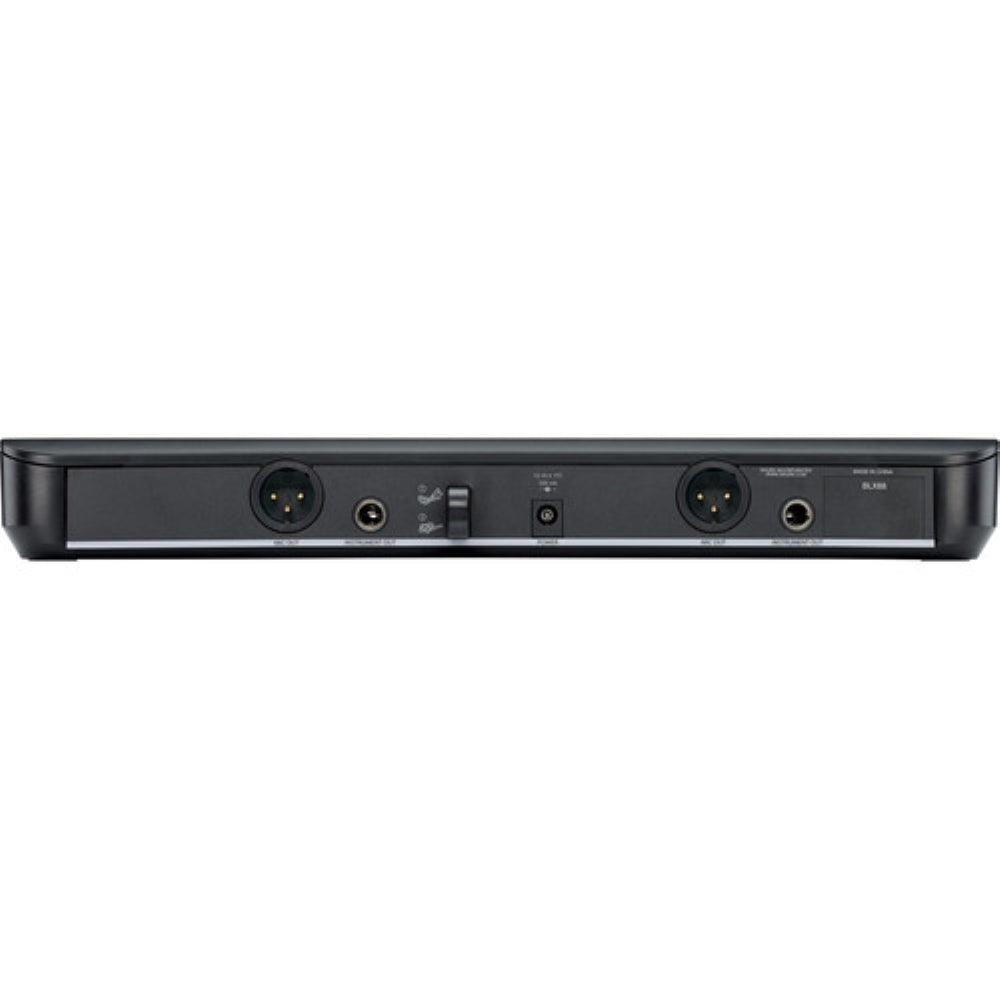

The BLX88 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. Two LED displays show group and channel settings, while four LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers two 1/4" and two XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your Needs
Shure offers a BLX1 bodypack transmitter compatible with a variety of lavalier, instrument, and headset microphone options to adapt your BLX system as your needs evolve.
- The discrete MX153 sub-miniature earset mic and the CVL lavalier mic both provides exceptional clarity in spoken word applications.
- The PGA31 is a comfortable, durable headset microphone for active performance.
- Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
- The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
System |
|
---|---|
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 123 |
Included Transmitters | 2x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | H10: 542 to 572 MHz |
RF Bandwidth | 24 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 300' / 91.4 m (Line of Sight) |
Max Transmitters per Band | 12 |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No |
Dynamic Range | 100 dBA |
Encryption | No |
Receiver |
|
---|---|
Receiver Type | Tabletop |
Mounting Options | Tabletop (with Included Hardware) |
Antenna | 2x Internal |
Number of Audio Channels | 2 |
Built-In Microphone | No |
Audio I/O | 2x XLR 3-Pin Male Balanced Output 2x 1/4" TS Female Unbalanced Output |
Audio Output Level | XLR Outputs: -27 dBV (Mic Level) 1/4" Outputs: -13 dBV (Instrument Level) |
Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
Network I/O | No |
USB/Lightning Connectivity | No |
USB Class-Compliant | No USB Connectivity |
Impedance | XLR Outputs: 200 Ohms 1/4" Outputs: 50 Ohms |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Center-Positive (Included) |
Input Power | 100 to 240 VAC, 50 / 60 Hz |
Display & Indicators | 2x Multi-Segment LED (Channel, Group) 4x LED (AF Level, Sync) |
Housing | ABS |
Dimensions | 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm |
Weight | 15.1 oz / 429 g |
Transmitter |
|
---|---|
Transmitter Type | Handheld |
RF Output Power | 10 mW |
Built-In Microphone | No |
Audio I/O | No |
Pad | No |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | -20 to -10 dB |
Sync Method | Manual |
Antenna | 1x Internal (Handheld) |
Power Requirements | Battery |
Battery Type | 2x AA (Included) |
Approx. Battery Life | 14 Hours (Alkaline) |
USB/Lightning I/O | No |
Display & Indicators | 1x Multi-Segment LED (Channel, Group) 1x LED (Battery Status, Power) |
Housing | ABS |
Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
Weight | 7.7 oz / 218 g (without Batteries) |
Microphone |
|
---|---|
Microphone Type | Handheld Capsule |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 50 Hz to 16 kHz |
Sensitivity | -55 dBV/Pa at 1 kHz |
