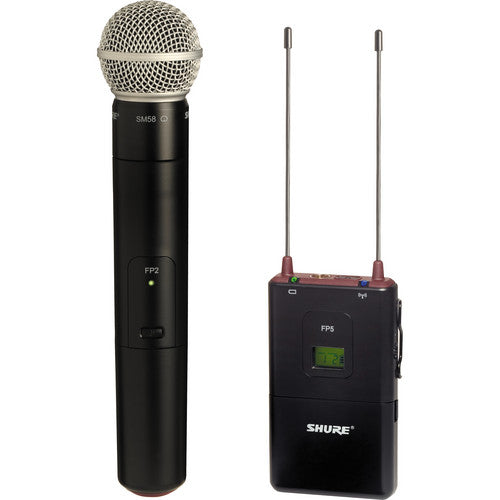

The Shure FP25/SM58 Camera-Mount Wireless Cardioid Handheld Microphone System is an easy-to-use system designed to provide videographers and mobile journalists with quality audio, dependable performance, and extended shooting time for projects ranging from YouTube and wedding videos to corporate spots and interviews. The FP25/SM58 features an FP2 handheld transmitter/microphone with an SM58 cardioid capsule for red-carpet-style interviews in noisy environments. The capsule on the mic is interchangeable, so, for example if you'd prefer a more forgiving pickup pattern for interviews with several people, you can substitute it with a VP68 omnidirectional capsule (available separately). Also included is an FP5 camera-mount receiver that connects to your DSLR/mirrorless camera or recording device via either the included 3.5mm or XLR output cables. The rugged, yet lightweight components run on two AA batteries for up to 11 hours and feature simplified operation, saving you time in the field. With a single button press, the receiver's Automatic Frequency Selection function does the work of finding a clean frequency for you, and then syncs to the transmitter with a second press on the infrared button. That's it, you're good to go—no menu diving required.
Features
- Wireless portability for the freedom to go wherever the job requires
- Transmitter is equipped with the legendary SM58 dynamic cardioid mic capsule
- The transmitter is compatible with all Shure wireless capsules
- Shure proprietary Audio Reference Companding for high-quality audio without “pumping” artifacts
- Automatic frequency selection locates an open frequency at the touch of a button
- Automatic transmitter setup instantly syncs the transmitter to the receiver's frequency
- Two diversity antennas for consistent reception of signal transmission at a range up to 98’
- 24 MHz bandwidth with 960 frequencies available for a clean transmission at your location
- Up to 12 compatible wireless mics may be used on set at once
- -10 dB pad for loud speaking or other high SPL applications
- Receiver’s output-level control adjustable for camera/mixer
- Transmitter can be locked to prevent accidental changes during performances
- Receiver's output cables include the TA3F-to-3.5mm dual-mono audio cable and the TA3F-to-XLR-M audio cable
- All FP components are compatible with SLX wireless systems
- For hands-free interviews, you can add a WL183 omnidirectional lavalier microphone and FP1 bodypack transmitter to your system
- Also available is the FP3 plug-on transmitter, which allows you to turn any dynamic mic into a wireless mic
System |
|
---|---|
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 960 |
Included Transmitters | 1x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | G5: 494 to 518 MHz |
RF Bandwidth | 24 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 328.1' / 100 m (Line of Sight) |
Max Transmitters per Band | 12 |
Dynamic Range | >100 dBA |
Pilot Tone | 32.768 kHz |
Receiver |
|
---|---|
Receiver Type | Camera-Mount |
Mounting Options | Shoe-Mount (with Included Hardware) |
Antenna | 2x External, Fixed |
Number of Audio Channels | 1 |
Audio I/O | 1x TA3/Mini XLR 3-Pin Female Balanced Mic Output |
Audio Output Level | -5 dBV |
Frequency Response | 45 Hz to 15 kHz |
Impedance | XLR Output: 200 Ohms |
Power Requirements | Battery |
Battery Type | 2x AA (Included) |
Approx. Battery Life | 12 Hours (Alkaline) |
Display & Indicators | 1x LCD (Battery Status, Channel, Group) |
Housing | Plastic |
Operating Temperature | 0 to 135°F / -17 to 57°C |
Dimensions | 2.5 x 4.3 x 0.7" / 64 x 108 x 19 mm |
Weight | 2.9 oz / 81 g |
Transmitter |
|
---|---|
Transmitter Type | Handheld |
RF Output Power | 30 mW |
Audio I/O | No |
Pad | 10 dB |
Gain Range | -8 +2 dB |
Sync Method | IR |
Antenna | 1x Internal, Fixed |
Power Requirements | Battery |
Battery Type | 2x AA (Included) |
Approx. Battery Life | 11 Hours (Alkaline) |
Display & Indicators | 1x LED (Battery Status, Sync) |
Housing | Plastic |
Dimensions | 2 x 10" / 51 x 254 mm |
Weight | 10.2 oz / 290 g |
Microphone |
|
---|---|
Microphone Type | Handheld Capsule |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 50 Hz to 17 kHz |
