Shure GLXD16+ Dual-Band Wireless Guitar Pedal System | Z3: 2.4, 5.8 GHz
Shure GLXD16+ Dual-Band Wireless Guitar Pedal System | Z3: 2.4, 5.8 GHz
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States

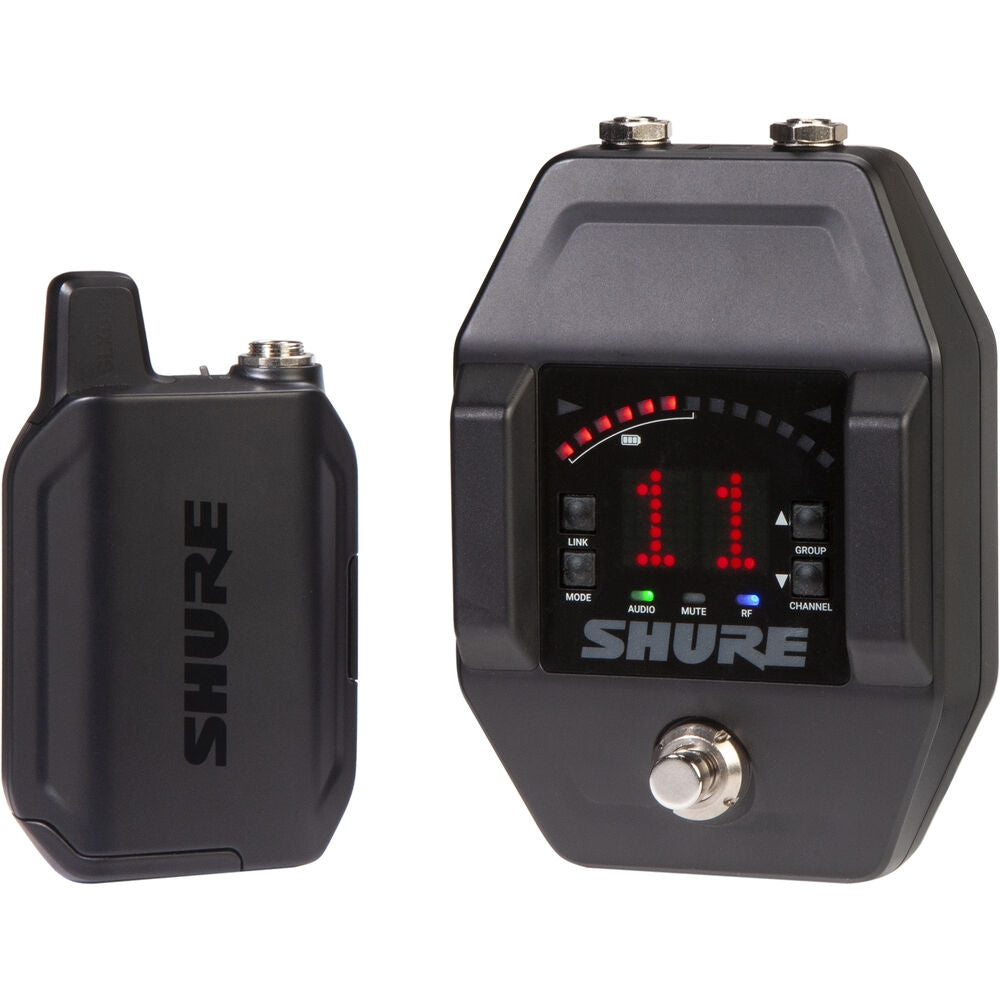

The Shure GLXD16+ is a digital wireless guitar system that offers reliable performance and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your application at a typical range of up to 100' indoors and 65' outside.

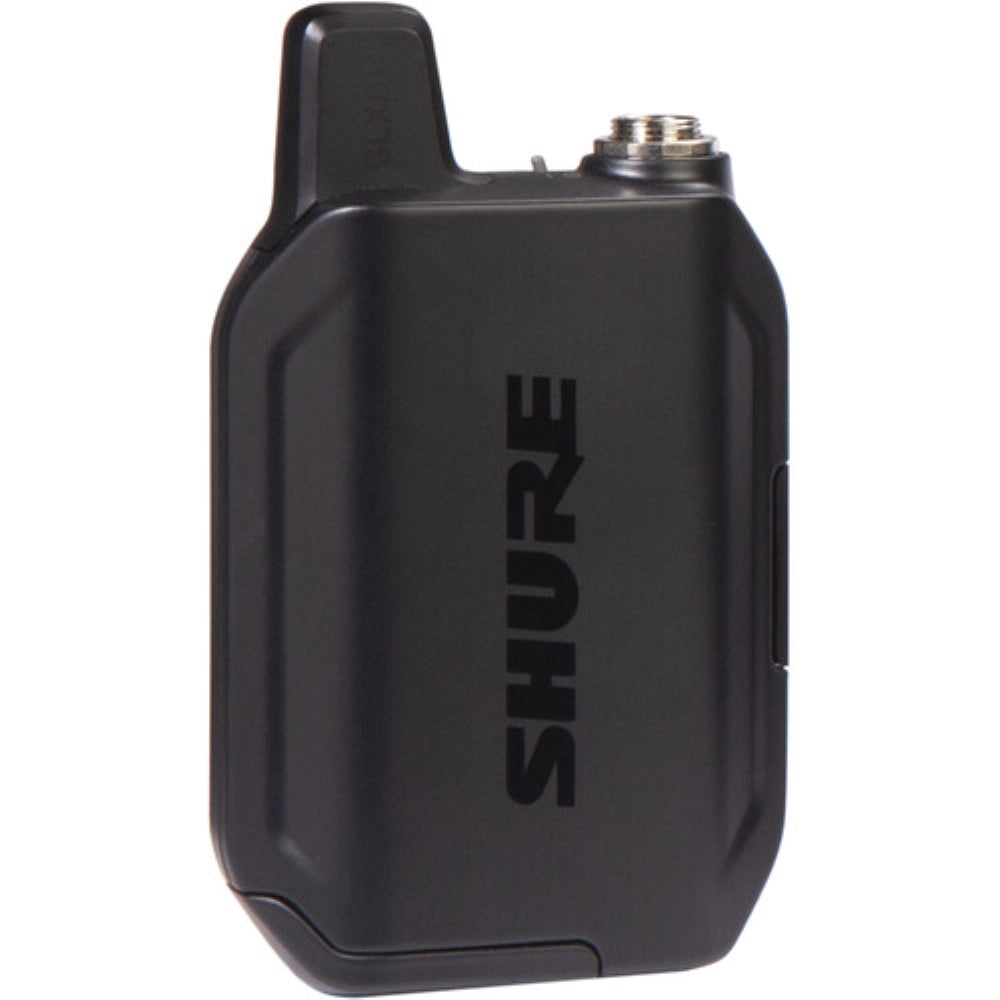

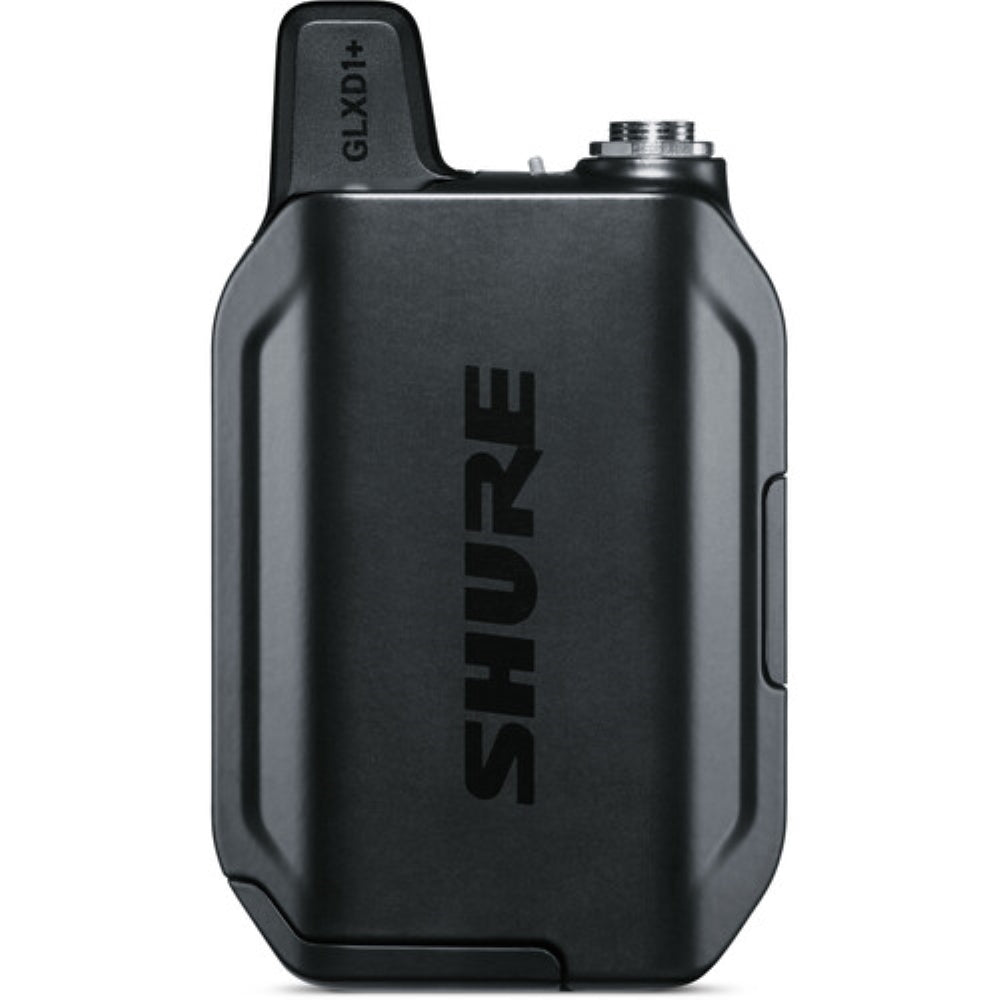

This version of the GLXD16+ is configured with a bodypack transmitter and the WA305 guitar cable, a 3' instrument cable with a 4-pin mini connector (TA4F) on one end and a gold-plated Neutrik 1/4" TS connector on the other. The rugged, metal chassis on the GLXD1+ transmitter offers an ergonomic design and a comfortable fit with a convenient on/off switch that can be operated by feel. The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components. The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal.
System |
|
|---|---|
| Wireless Technology | Digital 2.4/5.8 GHz |
| Diversity | Yes, True Diversity |
| RF Frequency Band | Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz |
| Max Operating Range | 100' / 30.5 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Dynamic Range | 120 dBA |
| Latency | 4.5 to 8 ms |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver |
|
|---|---|
| Receiver Type | 1x Pedalboard |
| Mounting Options | No |
| Antenna | 2x Fixed External (Top-Mount) |
| Number of Audio Channels | 1 |

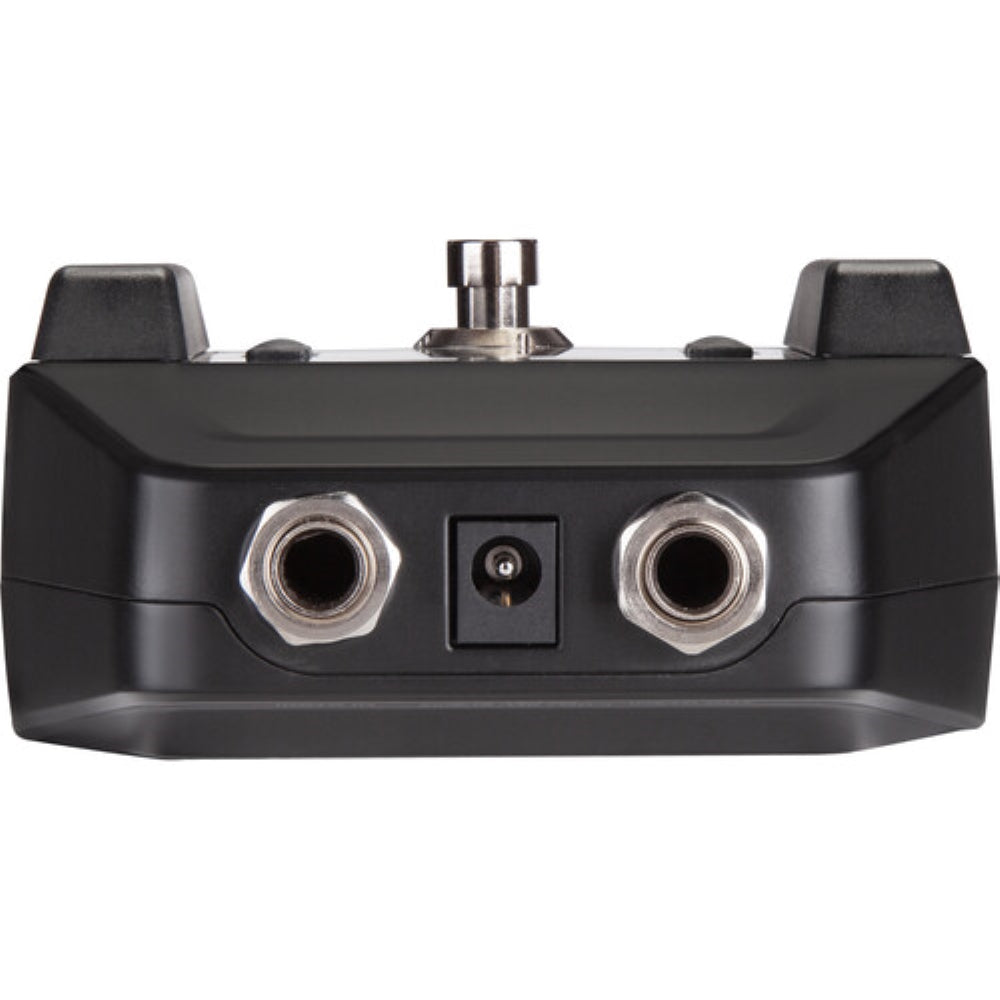

| Audio I/O | 1x 1/4" TS Instrument Input 1x 1/4" TRS Balanced Line Output |
| USB/Lightning Connectivity | 1x USB-C Female (Firmware Update) |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| Display | Alphanumeric LED |
| Power Requirements | AC/DC Power Adapter |
Transmitters |
|
|---|---|
| Included Transmitters | 1x Bodypack |
| RF Output Power | 10 mW |
| Antenna | Internal |
| Input Level | Microphone / Instrument |

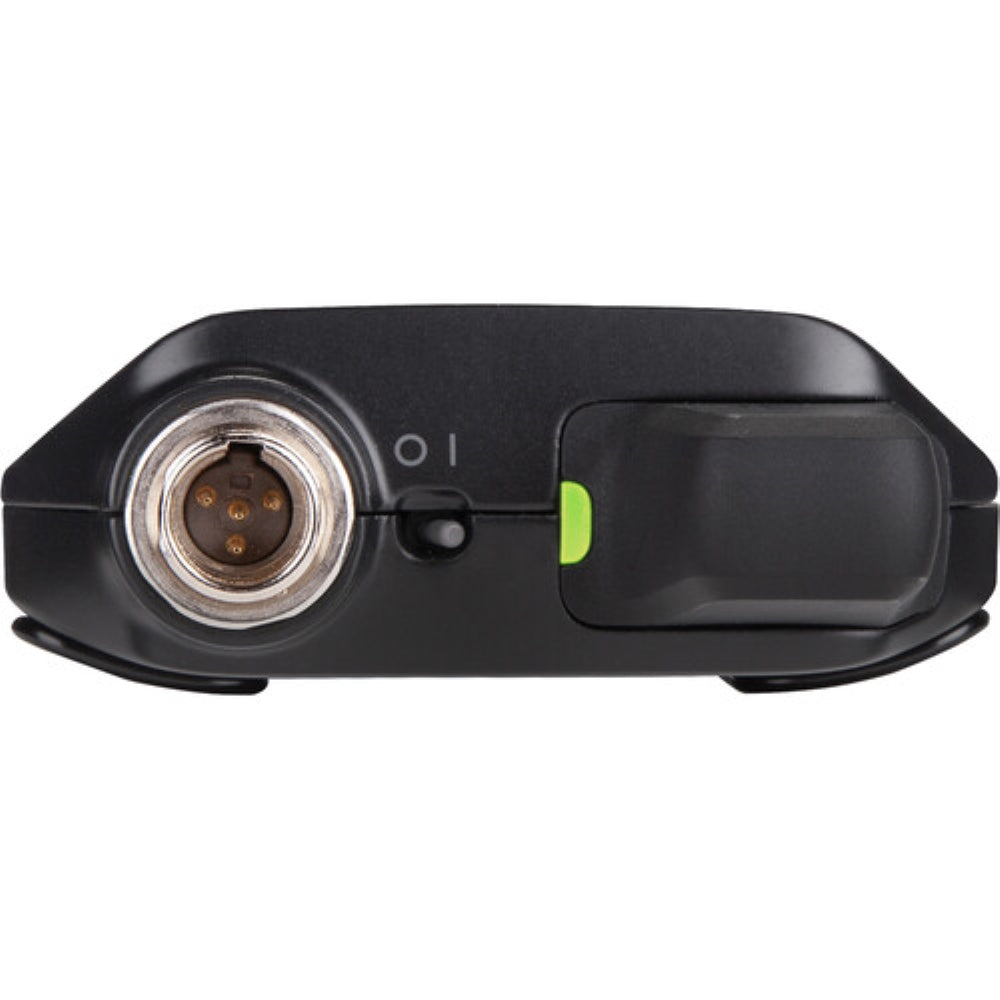

| Audio I/O | 1x TA4M/Mini-XLR 4-Pin Male Input |
| USB I/O | 1x USB-C (Charging) |
| Muting | Off/On Switch |
| Gain Range | -20 to +40 dB (1 dB Steps) |
| Sync Method | Proprietary |
| Display | Single-LED Indicators Only |
Microphone |
|
|---|---|
| Microphone Type | No Microphone Included |
| Intended Sound Sources | Electric Guitar, Electric Bass |
Power |
|
|---|---|
| Transmitter Battery Type | 1x Shure SB904 - 2420 mAh (Included) |
| Transmitter Battery Life | 12 Hours (Lithium Rechargeable) |
| Battery Charging Time | .25 to 3 Hours |
| Included Charging Case | No |
| AC/DC Power Adapter | 9 to 15 VDC at 400 mA (Included) |
| Input Power | 100 to 240 VAC, 60 / 50 Hz |
Physical |
|
|---|---|
| Environmental Resistance | No |
| Housing | Aluminum (Receiver) Metal (Transmitter) |
| Dimensions | Receiver: 3.7 x 1.9 x 5.4" / 95 x 48 x 138 mm Transmitter: 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm |
| Weight | Receiver: 19.8 oz / 560 g Transmitter: 5.4 oz / 153.1 g (without Batteries) |
