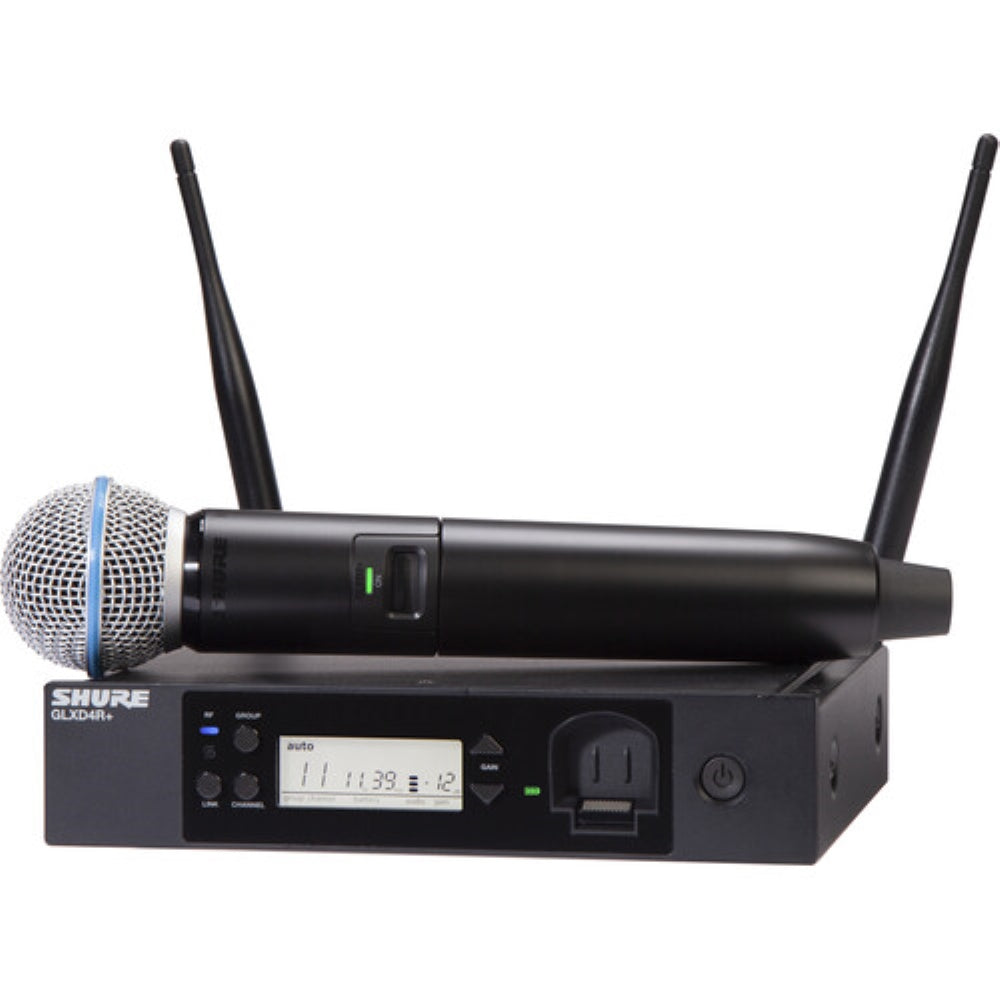

Shure GLXD24R+ Dual-Band Wireless Vocal Rack System with BETA 58A Microphone | Z3: 2.4, 5.8 GHz

The Shure GLXD24R+ is a digital wireless handheld microphone system that offers reliability and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your presentations, performances, conferences, and events at a typical distance of up to 100' indoors and 65' outside.

Handheld Transmitter with SM58 Mic

• This version of the GLXD24+ is configured with a handheld transmitter equipped with the legendary SM58 microphone.


• Relied on by live engineers and singers worldwide, the rugged mic's dynamic capsule is pneumatically shockmounted to resist handling noise,


• The cardioid polar pattern focuses audio capture on the vocalist, helping to reduce feedback issues when sound reinforcement equipment is used.


• Built into the SM58 is a pop filter, which helps control wind and breath noise without requiring an external pop screen.


• A steel-mesh grille protects wear, abuse, and the challenging conditions of live events.

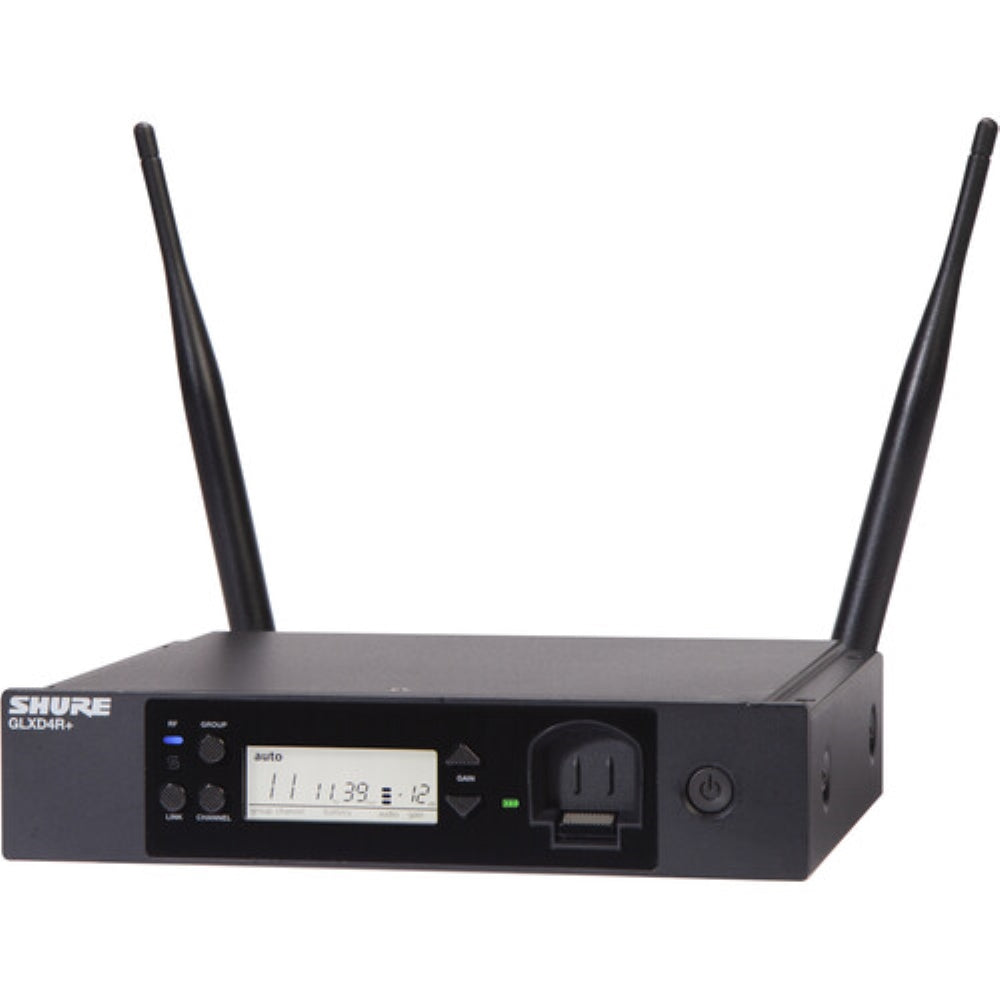

Half-Rack Receiver

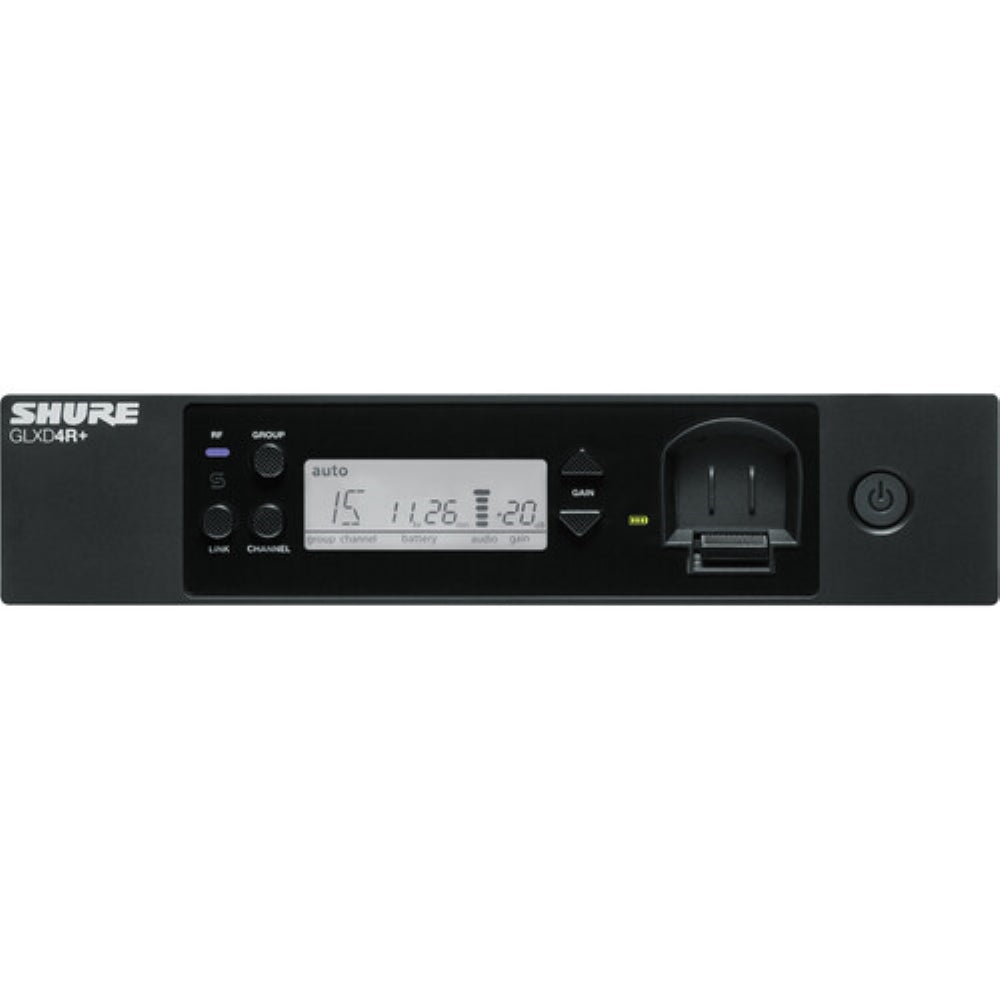

• This configuration includes a metal half-rack receiver with front-panel charging for the SB904 battery and an easy-to-read display that shows pertinent information.


• The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components.


• The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal.

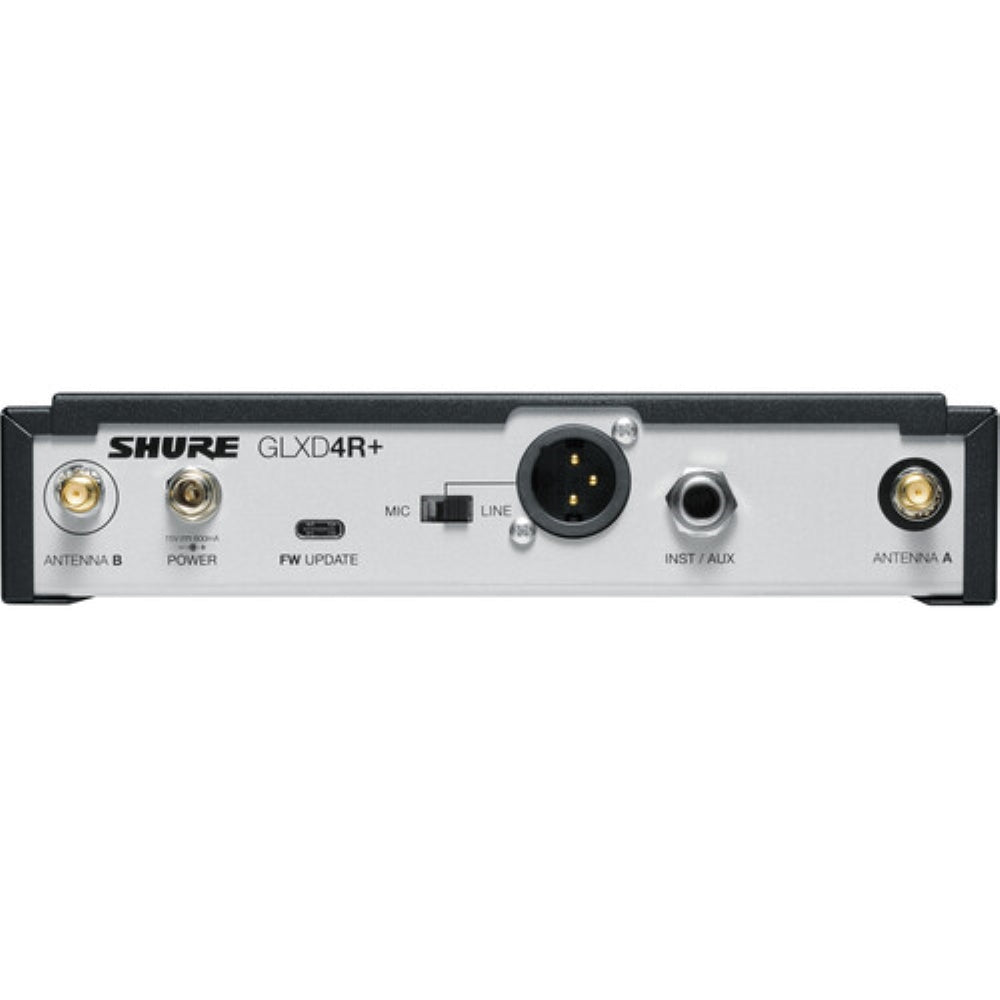

• The rear panel provides a balanced XLR output switchable between mic and line levels along with a balanced 1/4" Inst/Aux output.



Reliable Dual-Band Technology

• GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.


• The previous GLX-D only worked in the 2.4 GHz range, which offers 83.5 MHz of bandwidth. By expanding into the 5.8 GHz range, the GLX-D+ provides an additional 125 MHz worth of potential open frequencies for available channels, helping to minimize dropouts and enhance reliability.


• The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.


• In addition to the main transmission frequency, the GLX-D+ is constantly monitoring 2 extra "backup frequencies”; if the system detects interference, it will switch to one of the backups automatically without the user even knowing.


• Besides the additional spectrum, there are other benefits to in operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range is home for Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers, and more. Operating in this range means competing with these devices for the same space.



Intelligent Battery Rechargeability

• The GLXD2+ handheld transmitter runs on an intelligent SB904 rechargeable lithium-ion battery (included).


• The battery provides up to 12 hours of continuous use on a full charge.


• The transmitter automatically powers off after approximately 1 hour to conserve battery life if the signal from a linked receiver is not detected.


• The SB904 battery can be recharged in the GLXDR4+ receiver's charging bay (located on the front panel). The charging bay can also be used to recharge a spare battery while the transmitter is in use.


• Alternately, the SB904 can be recharged while in the handheld transmitter with a USB charging cable.


• Just a 15-minute quick charge provides 1.5 hours of use.


• The SB904's remaining battery life is displayed in hours and minutes from the receiver's front panel.



Expandable to 11 Mic Channels

• GLX-D+ receivers typically allow you to run up to 4 mics simultaneously in the same space without using remote antennas and a frequency manager. Under ideal conditions, up to 8 systems can be used this way.


• This GLXDR+ half-rack receiver includes removable antennas, allowing you to mount the antennas on the front panel for improved reception (cables and hardware included) and expand the system to accommodate more microphone channels.


• If you're only using two or three receivers at once, consider adding the UA221DB-RSMA kit, which includes two passive antenna splitters to route the RF signals from a single pair of antennas to all the receivers. Using only two antennas for all the receivers helps to avoid intermodulation problems for better reception.


• If you need four or more microphone channels, consider adding the GLXD+FM Frequency Manager, which allows up to 11 mics to operate simultaneously (16 under highly optimal conditions) making it ideal for installations with multiple wireless systems.


• To maximize signal reception and reliability, consider adding a pair of PA805DB-RSMA Dual-Band Passive Directional Antennas, which offer improved filtering of interference and deliver a 24 dB front-to-back rejection ratio of off-axis signals to improve reception by up to 8 dB.



Add Functionality to Your System

Shure offers a variety of headset, instrument, and handheld microphone options to adapt your GLX-D+ system as your needs evolve.

Vocalists/Presenters

• The GLXD2+ handheld transmitter is also available with the BETA 58A supercardioid dynamic or the BETA 87A supercardioid condenser microphone capsules.



Presenters

• The GLXD1+ bodypack transmitter features a durable metal chassis and can accommodate a wide variety of lavalier, headset, and instrument mics or cables.


• The WL185 lavalier microphone delivers natural vocal reproduction for presenters, performers, clergy, and lecturers working in high-volume environments.


• The WL93 omnidirectional lavalier mic offers consistent pickup, even when the performer turns away from the mic.


• The discreet MX153 miniature earset mic provides exceptional clarity in spoken word applications.


• Shure offers several headset options. Choose a PGA31 headset for everyday applications, or try the SM31 Fitness or SM35 Performance models for more active presentations.



Guitarists

• The WA302, WA304, and WA305 guitar cables let you connect the bodypack transmitter to a guitar or bass.



Instrumentalists

• The WB98H/C flexible gooseneck instrument microphone attaches to brass, woodwind, and percussion instruments and connects to the bodypack transmitter.
