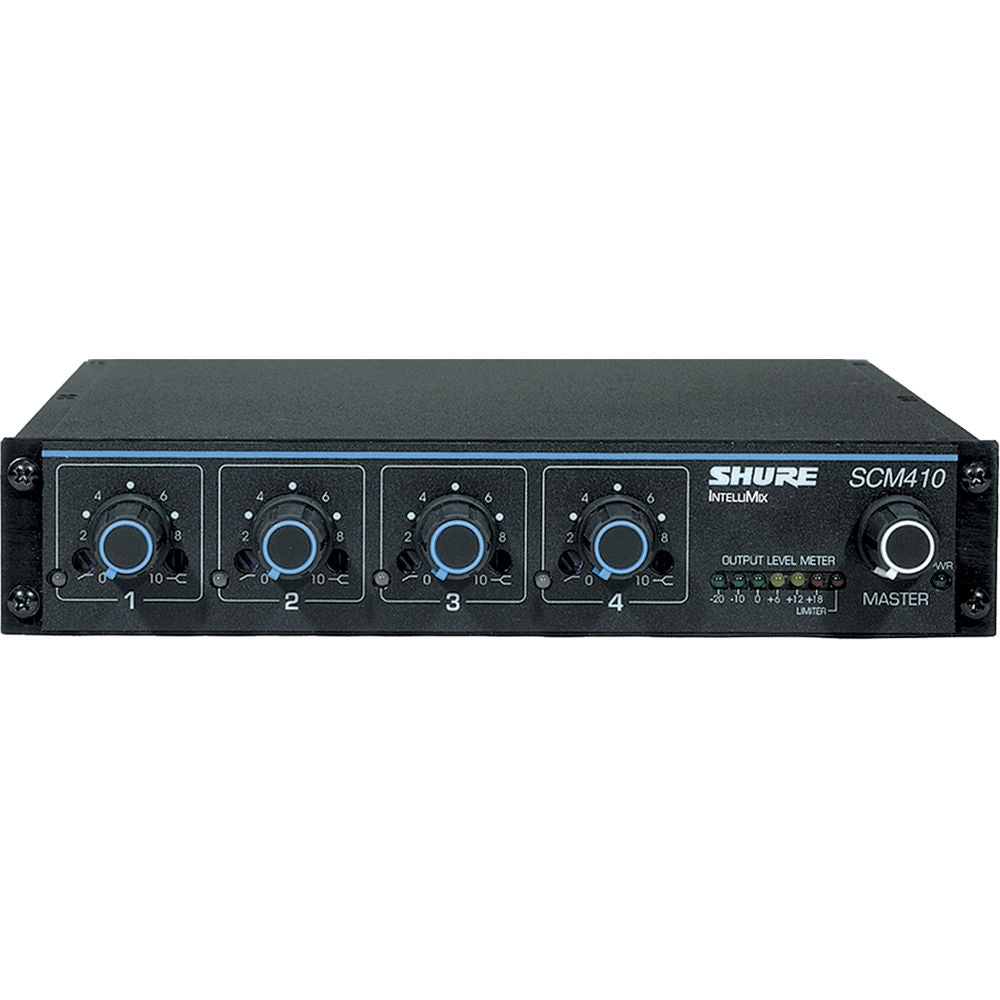

Shure SCM410 4 Channel Automatic Mixer
The Shure SCM410 is a four-channel automatic mixer specifically engineered for recording, sound reinforcement, and broadcasting applications. This mixer accommodates signals from both dynamic and condenser microphones of various types. On the rear panel, there are four balanced 3-pin XLR female inputs for microphones, along with a single balanced XLR output that can handle either mic or line level signals. Each channel is equipped with an adjustable equalizer for signal shaping, and 12VDC phantom power is provided for condenser microphones.
Shure's proprietary IntelliMix technology integrates features that facilitate smooth, noise-free automation and channel switching. The MaxBus functionality regulates the number of channels that can be activated for a single audio source. This allows one speaker to automatically engage one channel, while other channels may still capture the signal. The Noise Adaptive Threshold is an automatically adjusting noise level threshold that differentiates between ambient noise and sudden sounds like speech. The Last Mic Lock-On feature ensures that the most recently activated microphone remains open, thereby maintaining a continuous natural ambiance and enabling silent, seamless channel transitions.
- 4-Channel mic mixer for recording, sound reinforcement, and broadcast
- Accepts signals from dynamic and condenser microphones

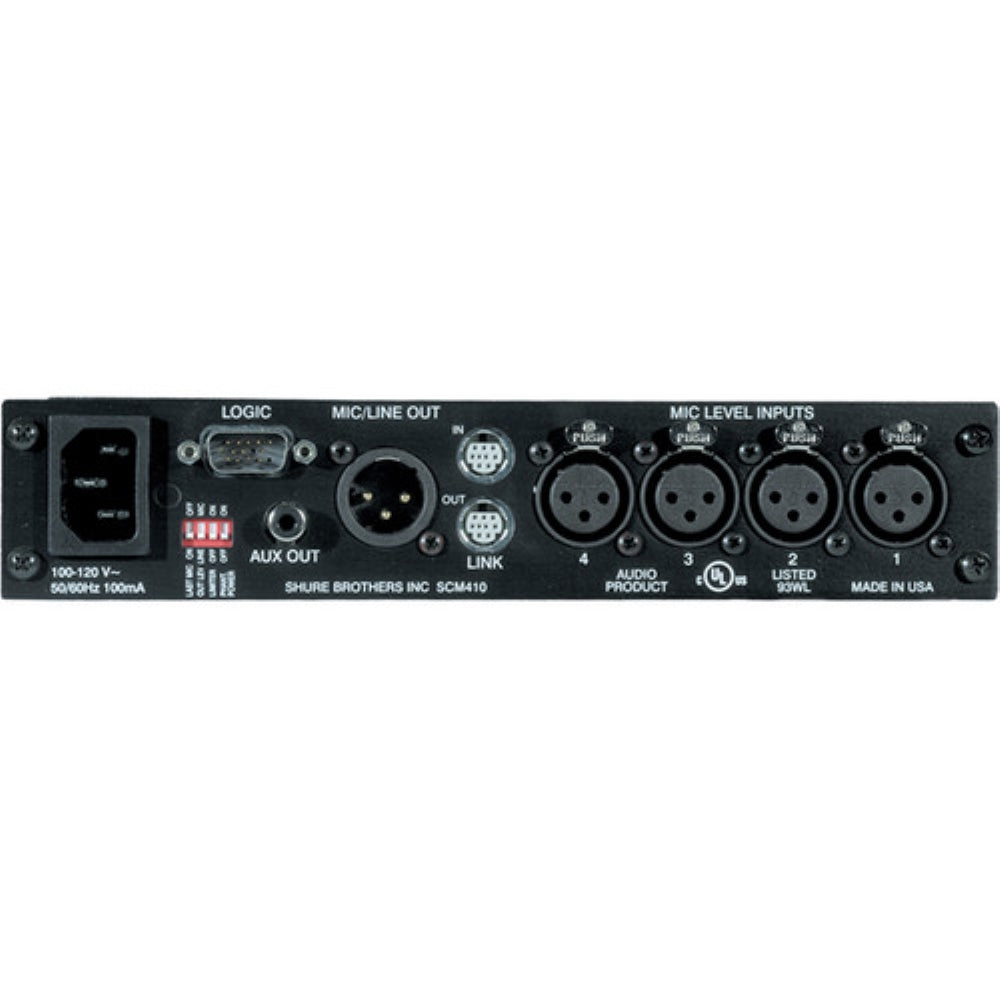

- 4 Balanced 3-pin XLR female microphone inputs and 1 balanced XLR output upon rear panel
- Adjustable EQ signal contouring and 12VDC phantom power upon each channel
- IntelliMix technology for noiseless automation and channel switches
- MaxBus feature controls channels activated for 1 sound source
- Noise Adaptive Threshold auto-adjusting noise level technology to distinguish background noise from speech
- Last Mic Lock-On function keeps most recently activated microphone open
- Multi-pin Logic connection provides Mute, Gate and Override remote control options
Live Studio Mixers |
|
---|---|
Inputs | 4 - XLR 3-pin Female mic level only |
Output | 1 - XLR 3-pin Male mic/line switchable |
Monitor/Headphone Out | No |
ALT I/O | AUX Output - 1 Phono unbalanced |
Link Input/Output | 9-pin serial |
Impedance | Input: Mic - 19-600 ohm, 1.4k ohm actual, -14dBV clipping Output: Line - .5k ohm, 300 ohm actual, +24dBV clipping Mic - .600 ohm, 3 ohm, -18dBV clipping Aux - .10k ohm, 1.5k ohm, +14dBV clipping |
Gain | Low-impedance mic input 150 ohms: Line - 80dB Mic - 40dB Aux - 68dB |
Hum & Noise | 150 ohm source; through 22Hz - 22kHz filter: Equivalent Input Hum and Noise: -123dBV max., -125dBV typical |
Frequency Response | Rated @ 1kHz, channel controls centered: 50Hz to 20kHz +2dB; -3dB corner @ 25Hz |
Distortion | < 0.1% @ +4 dBu output level, 50Hz to 20kHz |
Metering | 7-segment peak LED meter |
Control Voltage Out | No |
Phantom Power | 12 VDC |
Operating Temperature | Operating: -7 to 49 degrees C (20 to 120 degrees F) Storage: -29 to 74 degrees C (-20 to 165 degrees F) |
Power | 100-120 Vac rated nominal, 50/60 Hz, 100mA (max.) |
Dimensions | 1.73 x 8.62 x 10.51" (44 x 219 x 267mm) HxWxD |
Weight | 3.86 lbs (1.75kg) |
