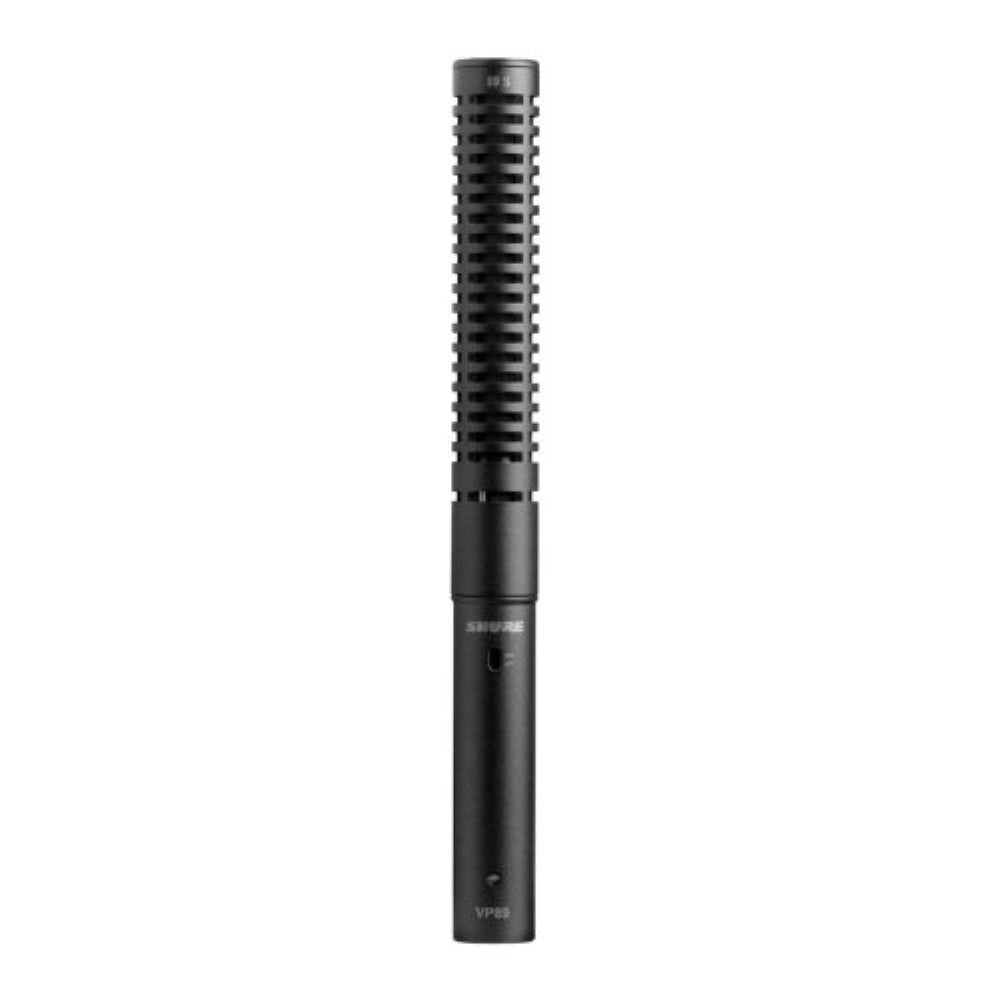

Shure VP89S Modular Short Shotgun Microphone

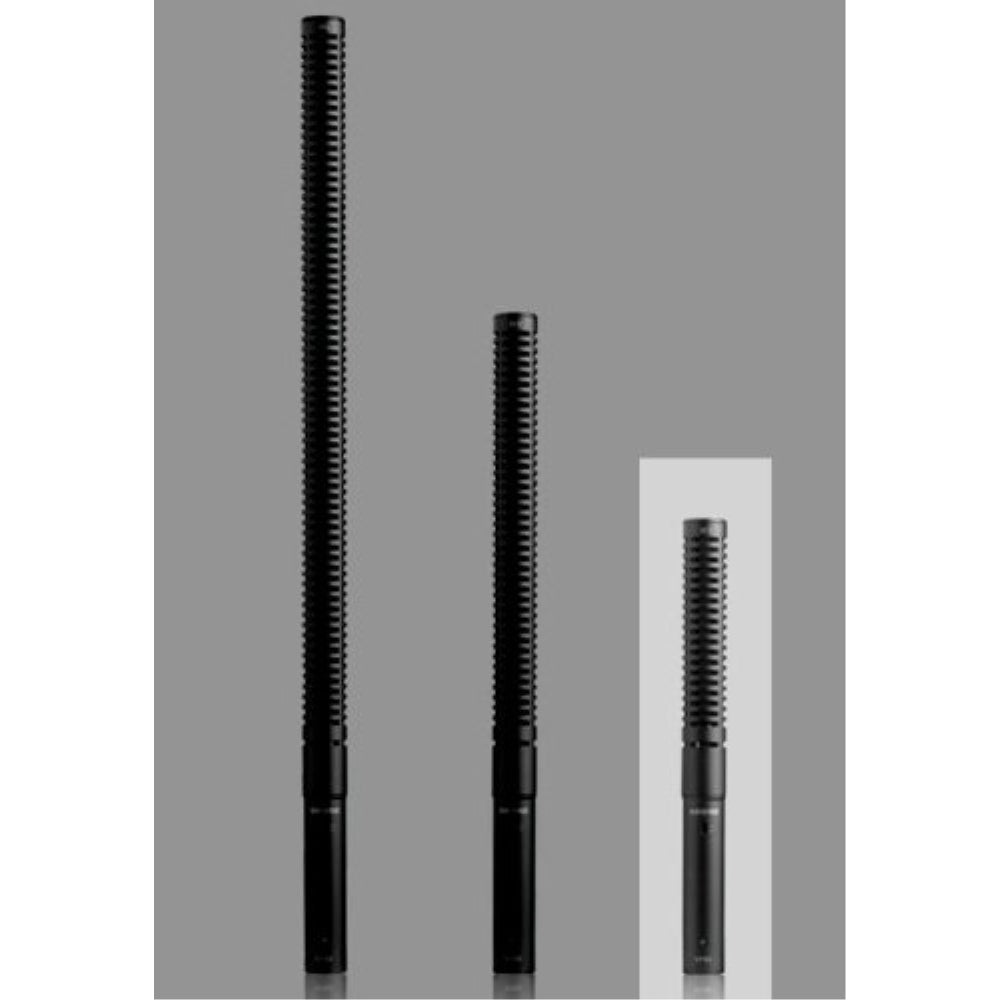

Designed as a modular system that supports interchangeable capsules to accommodate a range of indoor and outdoor recording scenarios, the Shure VP89S short shotgun microphone delivers a wide 70° acceptance angle for more off-axis pickup than the medium VP89M and the long VP89L. Lightweight and rugged, the VP89S provides reliable operation and low susceptibility to hum, GSM, and radio-frequency interference. The phantom-powered preamp features a switchable low-cut filter to attenuate problematic bass frequencies such as rumble and a standard XLR 3-pin output for straightforward connectivity. Outfitted with a Class-A, discrete, transformerless preamplifier, the VP89S delivers a clean and quick transient response with minimal harmonic/intermodulation distortion and no crossover distortion. Long and medium-sized capsule barrels are available separately to suit various recording needs, rejection angles, and frequency responses.
- Features a narrow 70° acceptance angle and wide target aperture for greater degree of ambience—ideal for audience response, talk shows, live concerts, indie films, and documentaries
- Modular design allows optimal performance in a wide variety of production settings
- Class-A, discrete, transformerless preamplifier provides transparent, extremely fast transient response with no crossover distortion and minimal harmonic and intermodulation distortion
- Premier production microphone crafted with Shure quality, ruggedness, and reliability
- Designed for extremely low susceptibility to radiated and conducted hum, GSM, and radio-frequency interference (RFI)
- Excellent common mode rejection
- Low self-noise and high output level
- 65 Hz to 20 kHz frequency response
- Switchable low-cut filter (12 dB/octave at 200 Hz) for controlling rumble and overwhelming bass frequencies
- Lightweight, compact design accommodates prolonged operation, minimizing operator fatigue attributed to many shotgun microphones
- Aircraft-grade aluminum alloy construction resists wear and abuse
- Operates over a wide range of temperatures and humidity
- Requires 11 to 52 VDC phantom power
- Balanced XLR 3-pin output connector
- Supplied windscreen reduces light wind noise
- Compatible with an array of Rycote Softie windshields, windshield kits, and suspension mounts
Microphone |
|
|---|---|
| Sound Field | Mono |
| Element Type | Electret Condenser |
| Polar Pattern | Hypercardioid / Lobar |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | No |
| High-Pass Filter | 200 Hz, 12 dB/Octave |
| Filter & EQ | Low-Cut Filter: 200 Hz, 12 dB/Octave |
| On-Mic Controls | Low Cut/HPF |
Performance |
|
|---|---|
| Frequency Response | 65 Hz to 20 kHz |
| Maximum SPL | 132 dB (1 kHz, 1% THD, 2.5-Kilohm Load) 128.5 dB (1 kHz, 1% THD, 1-Kilohm Load) |
| Off-Axis Rejection | 4 dB at 60° 25 dB at 120° >15 dB at 180° |
| Sensitivity | -33.5 dBV/Pa (at 1 kHz) |
| Dynamic Range | 117 dB (1 kHz, 2.5-Kilohm Load) 113.5 dB (1 kHz, 1-Kilohm Load) |
| Equivalent Noise Level | 15 dB (A-Weighted) |
Connectivity |
|
|---|---|
| Analog Output | 1x XLR 3-Pin Male |
Power |
|
|---|---|
| Power Sources | Phantom Power |
| Operating Voltage | 11 to 52 V (Phantom Power) |
Physical |
|
|---|---|
| Color | Gray |
| Dimensions | ø: 0.88 x L: 4.02" / ø: 22.35 x L: 102.11 mm (Preamp) ø: 0.81 x L: 5.41" / ø: 20.7 x L: 137.41 mm (Capsule) |
| Weight | 4.1 oz / 116.23 g |
