SmallRig Articulating Arm | 9.5"
SmallRig Articulating Arm | 9.5"
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States

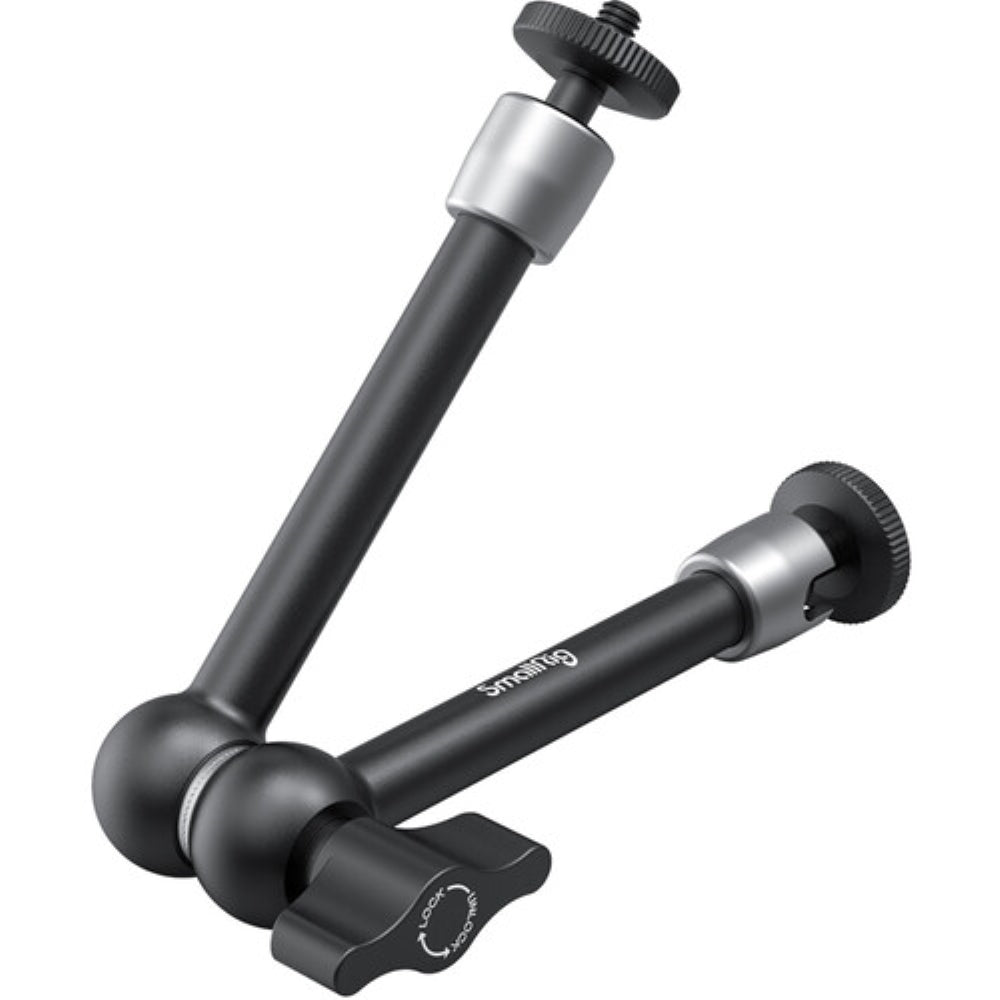

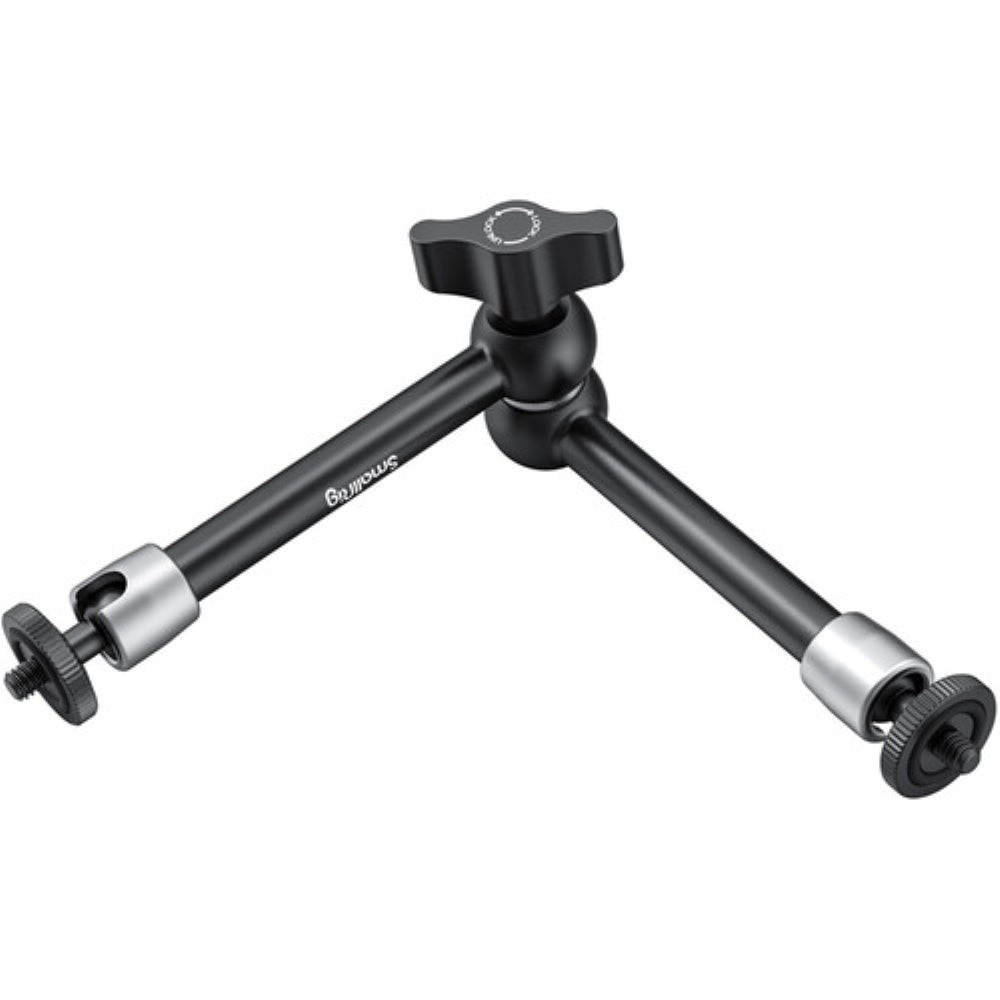

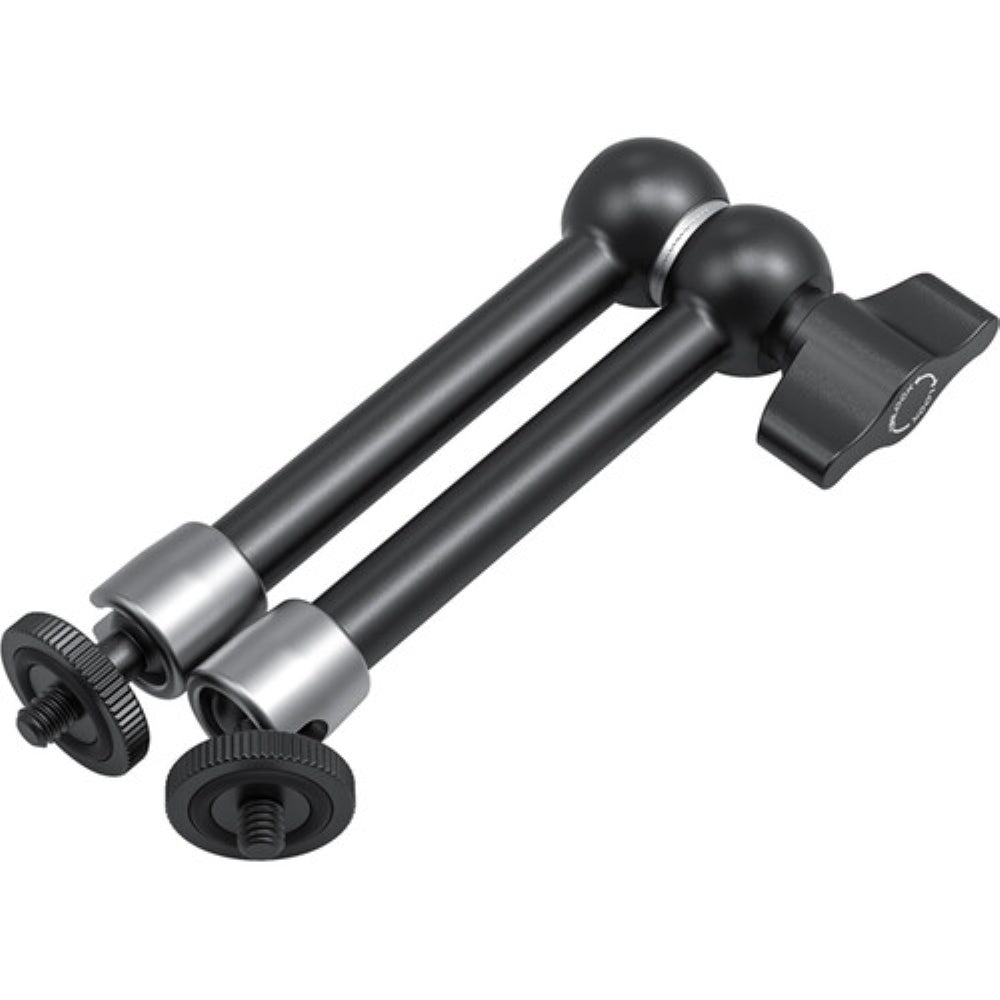

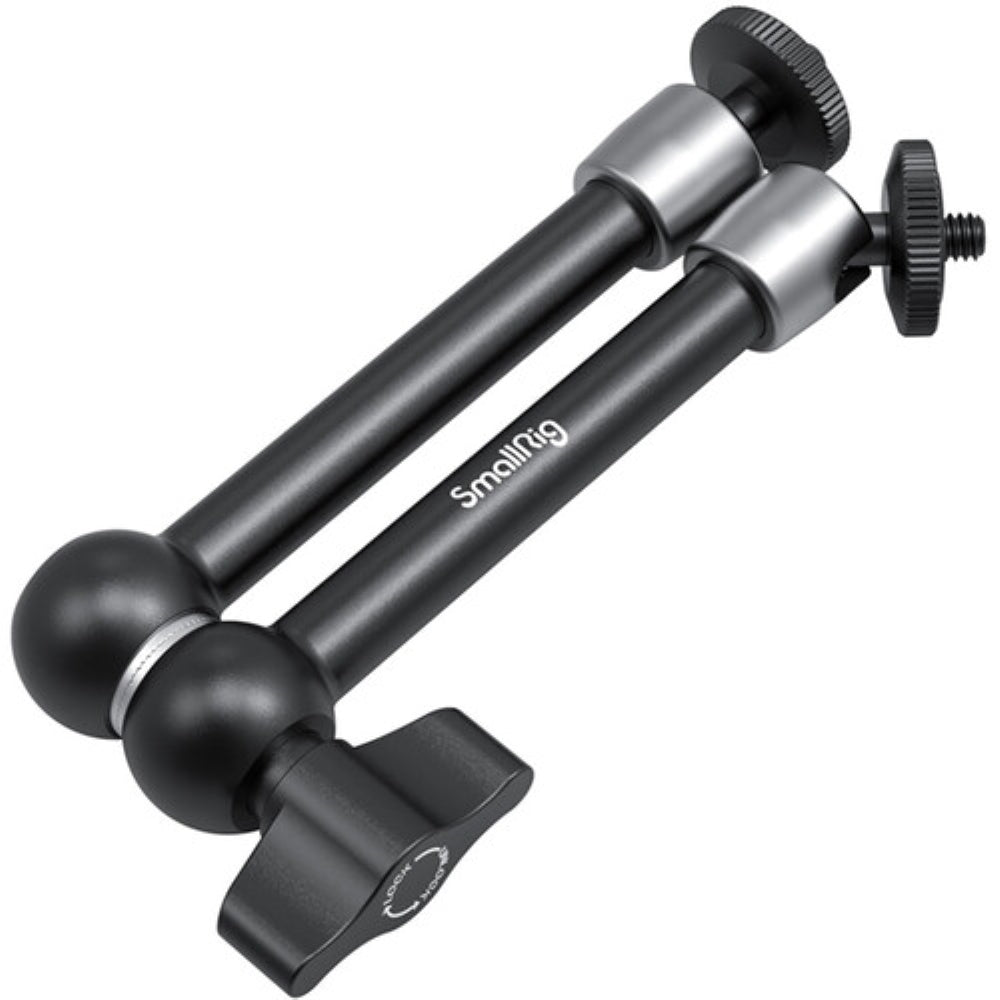

Mount a monitor, light, or accessory onto your camera rig at almost any angle with this 9.5" long Articulating Rosette Arm from SmallRig. The aluminum and stainless steel arm features 1/4"-20 screws on either end. Both ball heads and the center joint are secured using a large center locking lever, and the sections connect by a 360° rotating center rosette joint.
The arm has a safe, recommended load capacity of 3.3 lb. Each screw mount features a tightening thumbscrew for easy accessory mounting, and they feature rubber padding to protect your gear and to further tighten the screws.
Compatibility
- Cages and accessories with 1/4"-20 thread mounts
Also compatible with but not limited to:
- SmallRig NATO Rail 1973
- SmallRig 15mm Rod 1182
- SmallRig Quick Release Rod Clamp 1976
SmallRig 2066B |
|
---|---|
Load Capacity | 3.3 lb / 1.5 kg |
Top Mount | 1/4"-20 Male |
Bottom Mount | 1/4"-20 Male |
Points of Articulation | 3 |
Material of Construction | Aluminum, Steel |

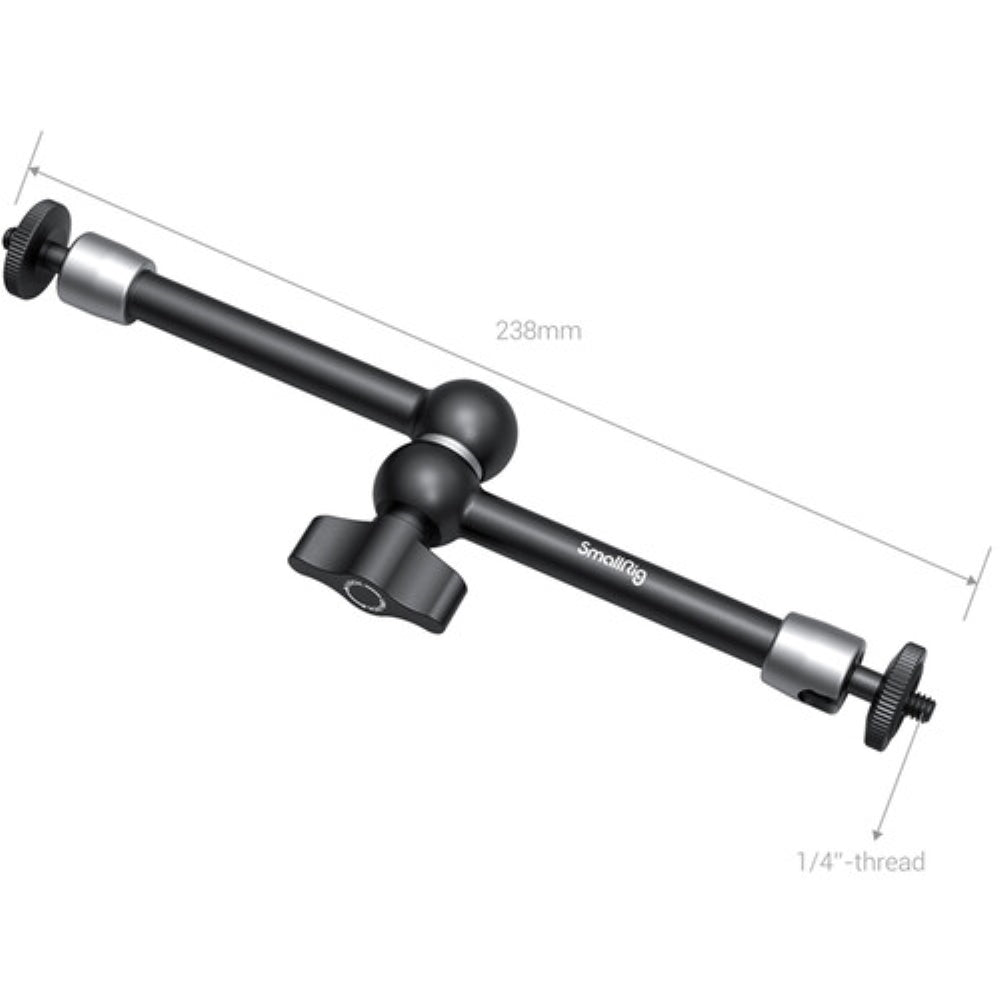

Maximum Length | 9.5" / 24.1 cm |
Width | 1.0" / 25 mm |
Depth | 2.4" / 60 mm |
Weight | 7.5 oz / 213 g |
