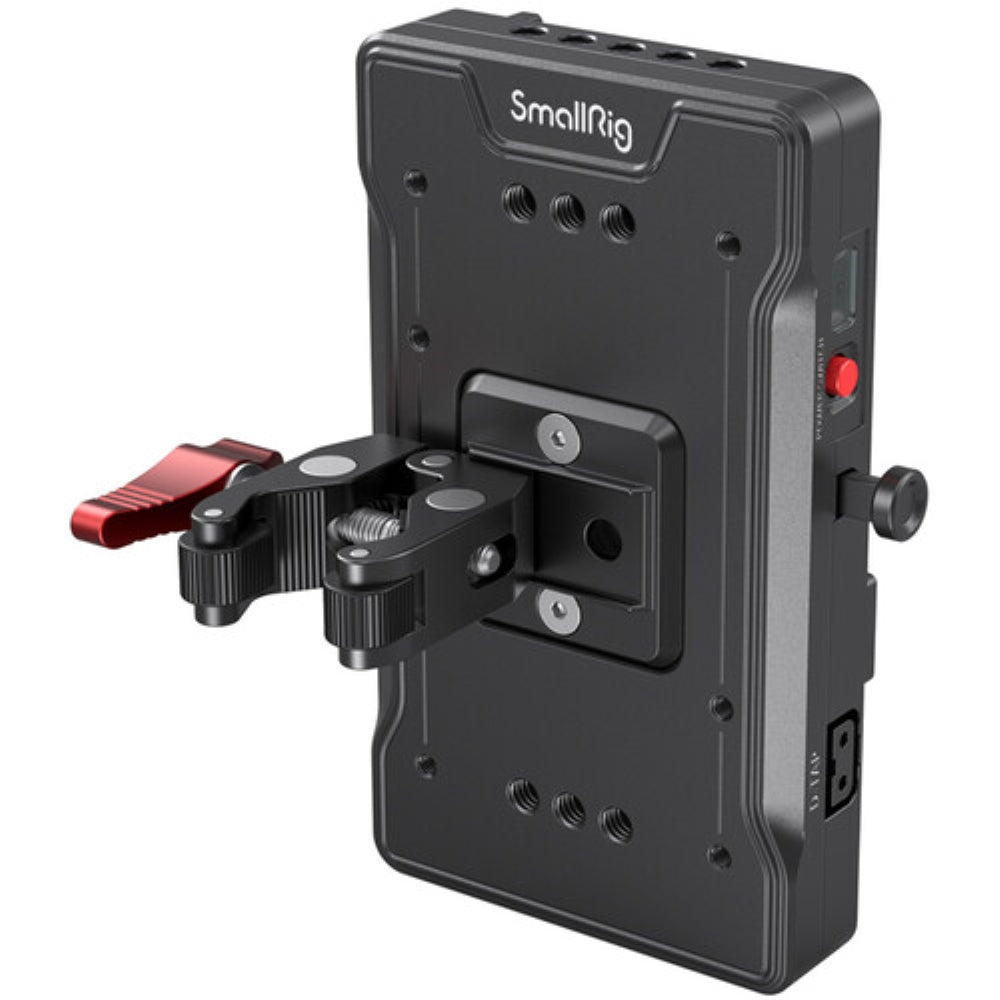

SmallRig V-Mount Battery Adapter Plate with Crab-Shaped Clamp

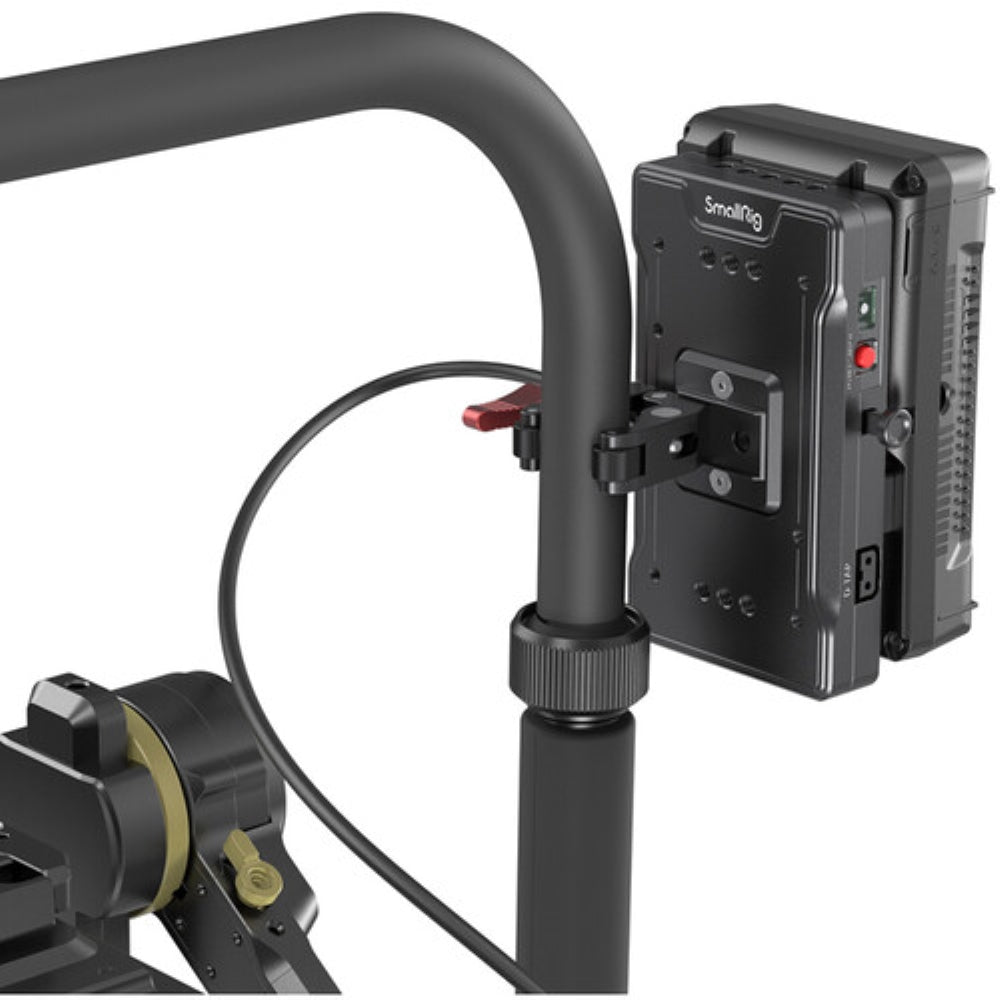

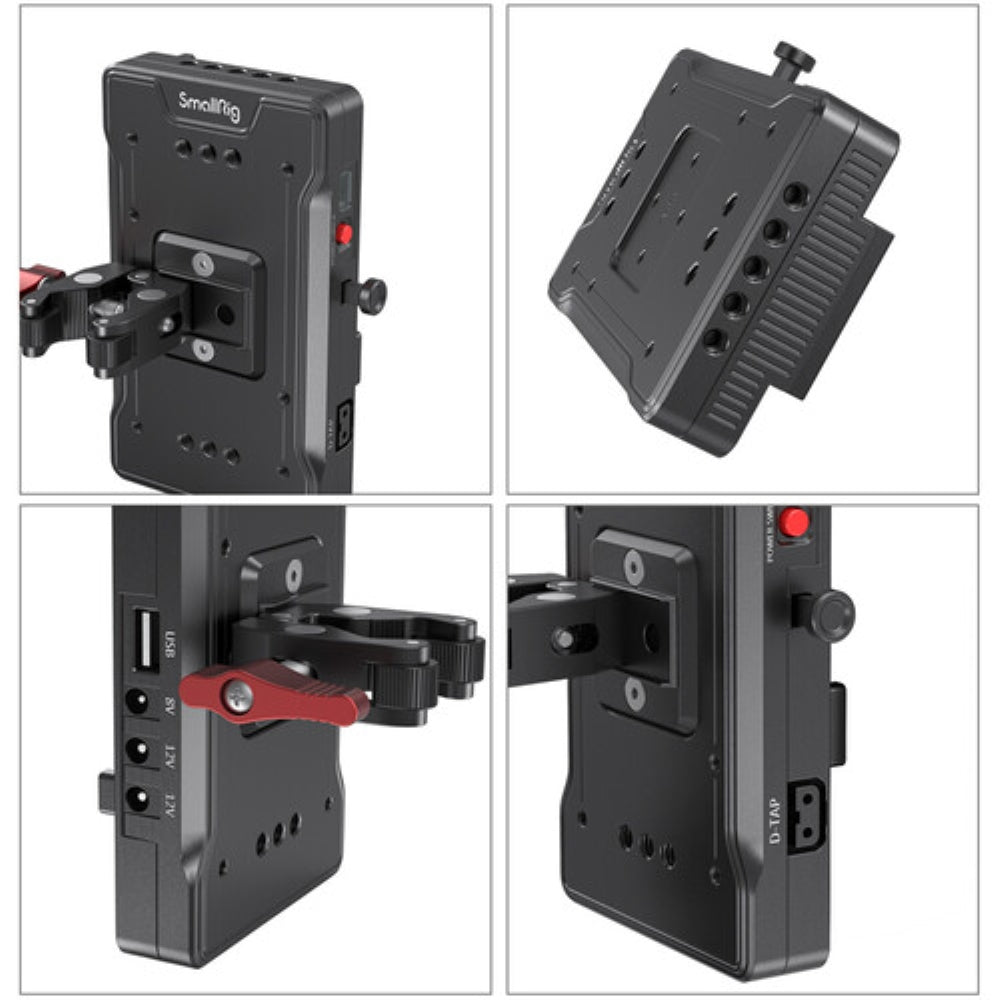

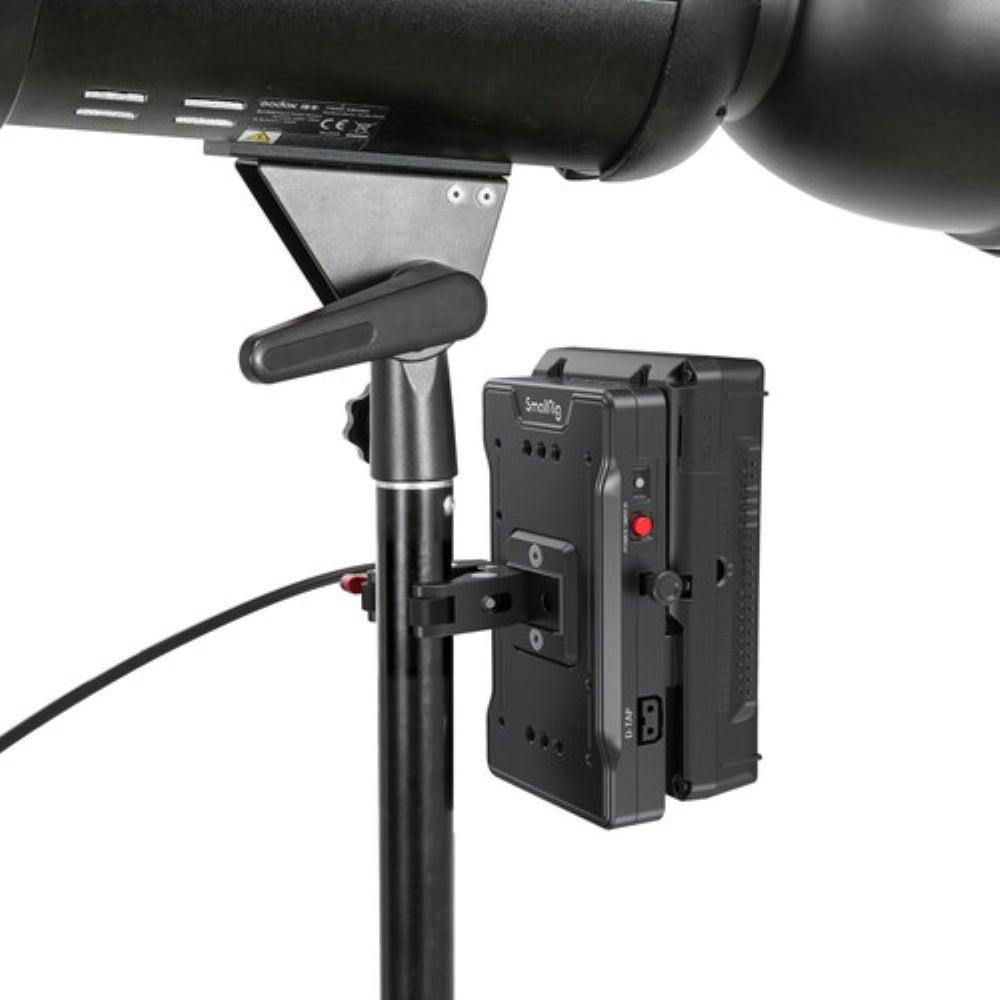

Power your camera and a variety of accessories from a single high-capacity V-mount battery with the V-Mount Battery Adapter Plate with Crab-Shaped Clamp from SmallRig. The battery plate provides a V-mount plate for a single V-mount battery and one 14.8V D-Tap output, one 5V/2A USB output, one 8 VDC barrel output, and two 12 VDC barrel outputs around the sides of the plate. The durable aluminum plate features multiple 1/4"-20 threads on the back to mount it onto a variety of arms, cages, clamps, slides, or rigs. The attached crab-shaped clamp allows you to clamp-mount the plate onto rods measuring 15 to 30mm in diameter. The plate also features a power button on the side, so you can quickly cut the power from the battery.
Power |
|
---|---|
Battery Capacity | 20,000 mAh |
Power Input | D-Tap: 11 to 16.8 VDC at 5 A USB-C: VDC at 2.4 A |
Maximum Load | 65 W |
Power Output | D-Tap: 14.8 VDC at 5 A USB-A: VDC USB-C: VDC DC Jack: 8 VDC at 3 A DC Jack: 12 VDC at 3 A |
General |
|
---|---|
Camera Power Method | Connector |
Inputs/Outputs | 1x D-Tap 1x USB-A 1x USB-C 3x DC Jack |
Plate Front / Battery Mount | V-Mount |
Plate Rear Mount | 1/4"-20 Female |
Number of Battery Bays | 1 |
Accessory Mounting | 1/4"-20 Female |
Material of Construction | Aluminum |
Dimensions | 6.3 x 3.7 x 3.7" / 16 x 9.5 x 9.3 cm |
Weight | 14.6 oz / 413 g |
