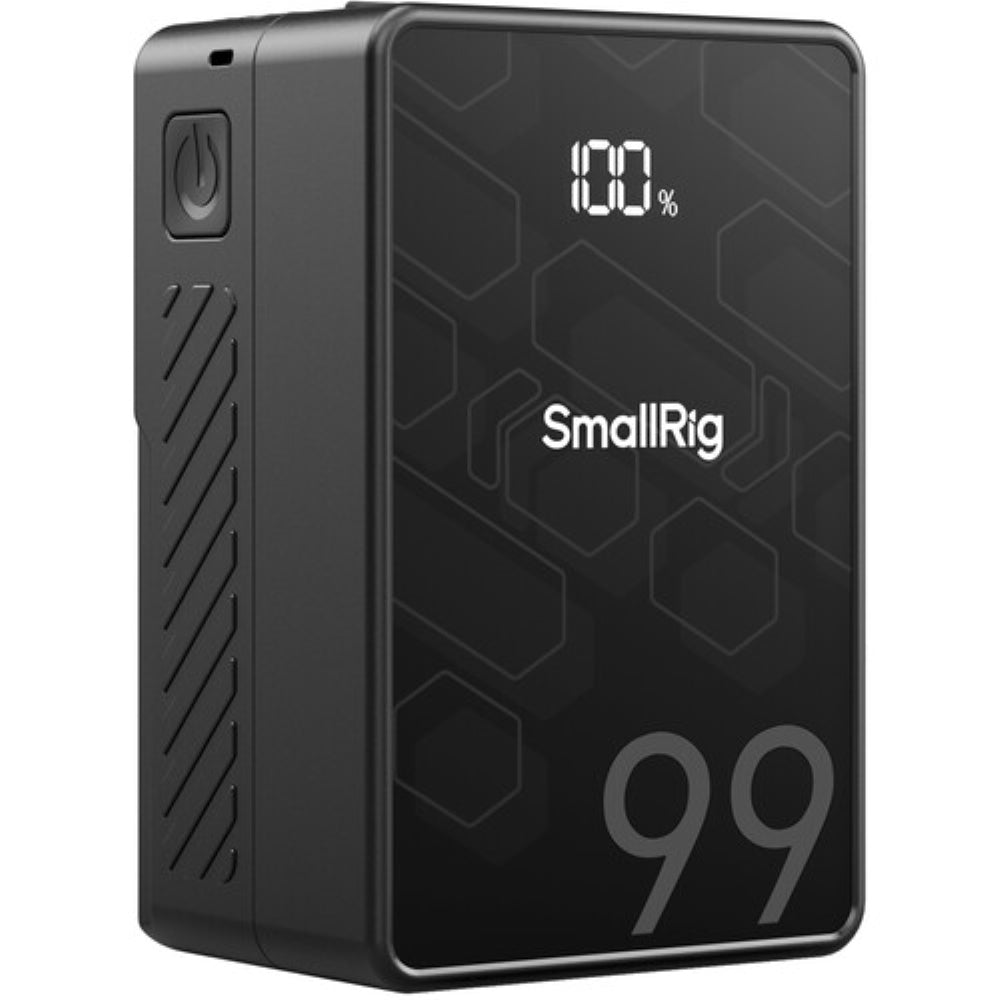

SmallRig VB99 SE Mini V-Mount Battery | 6800mAh

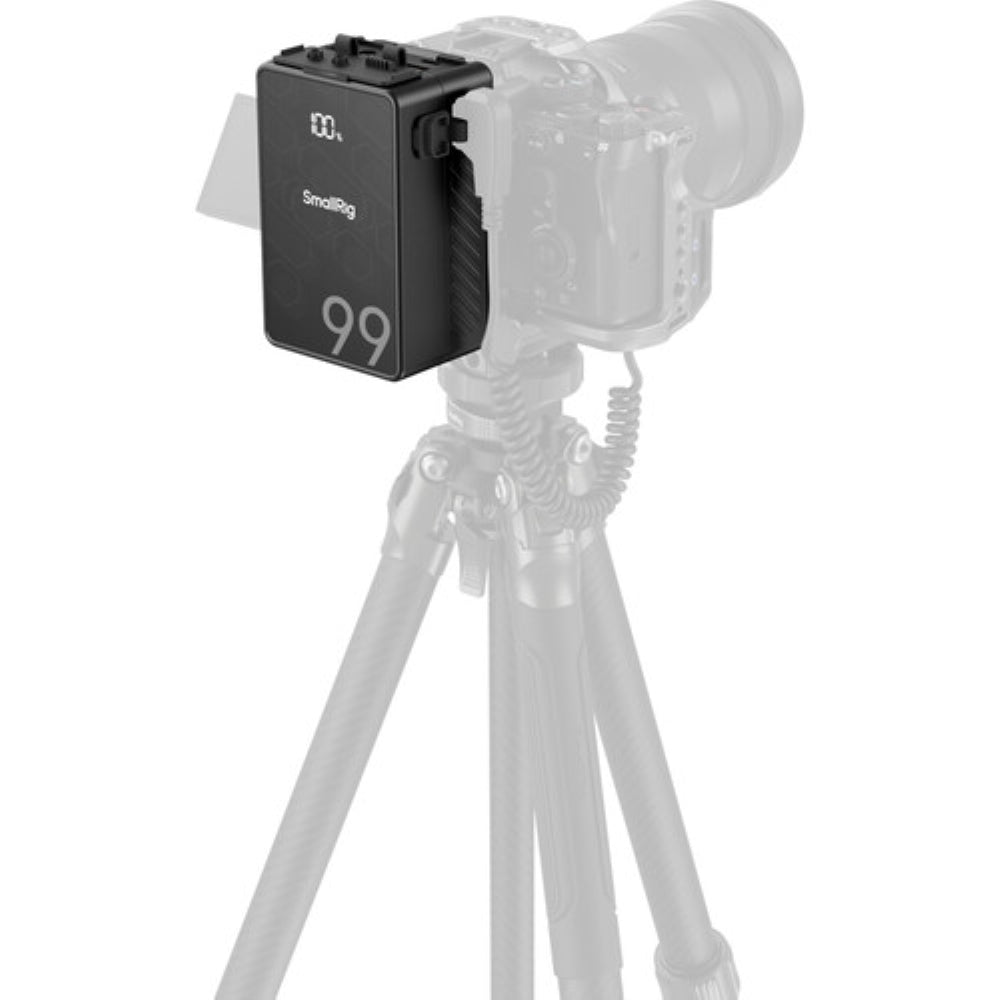

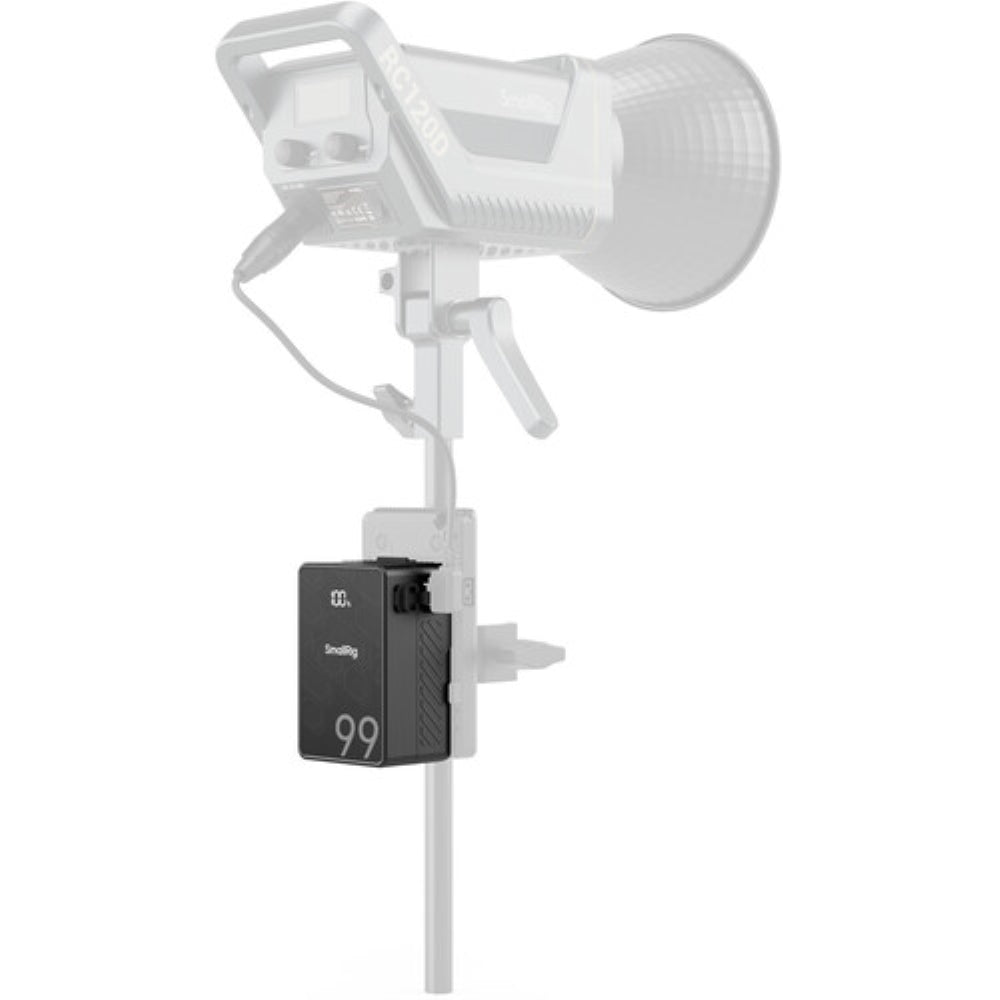

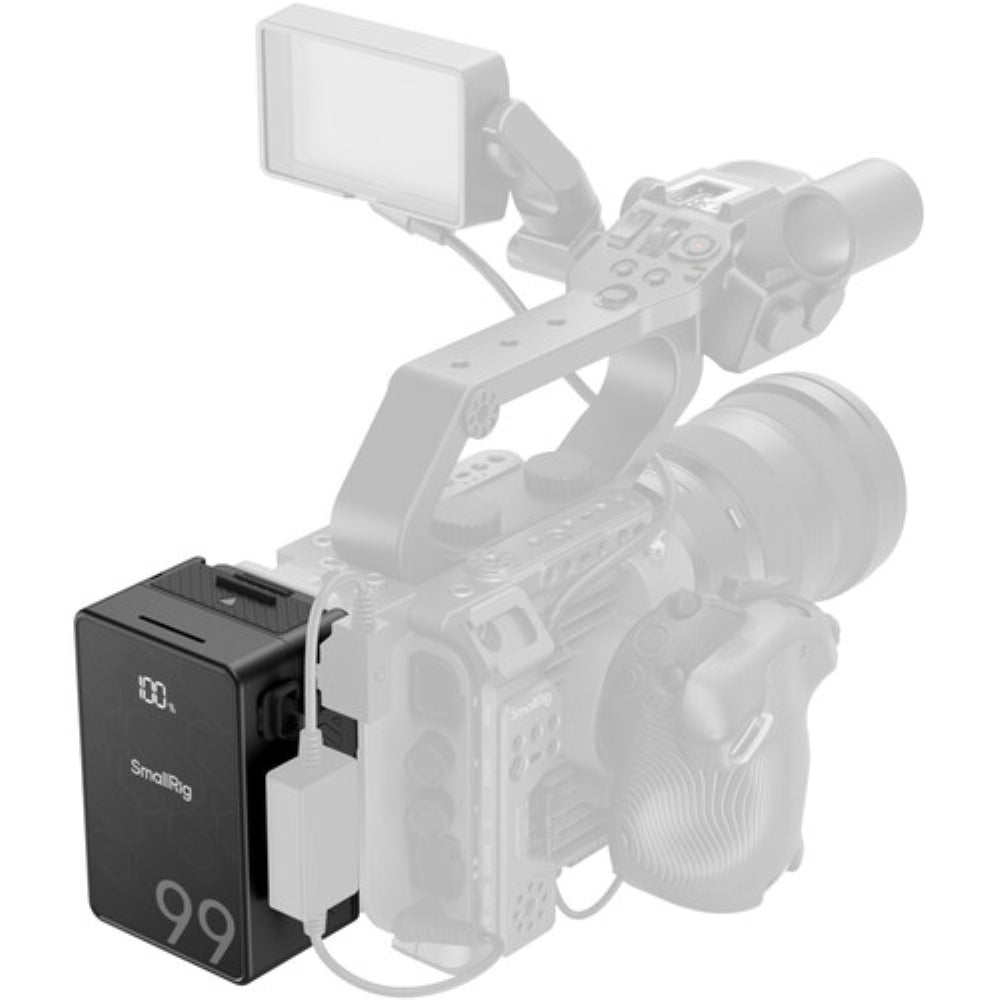

The SmallRig VB99 SE Mini V-Mount Battery is an ultracompact and lightweight 99Wh battery capable of supporting a draw of up to 10A at a nominal voltage of 14.8V. This compact and travel-friendly battery is ideal for powering handheld cameras, drones, and gimbals, featuring a fire-resistant casing. Additionally, it includes a built-in OLED display that indicates the remaining battery capacity and status.

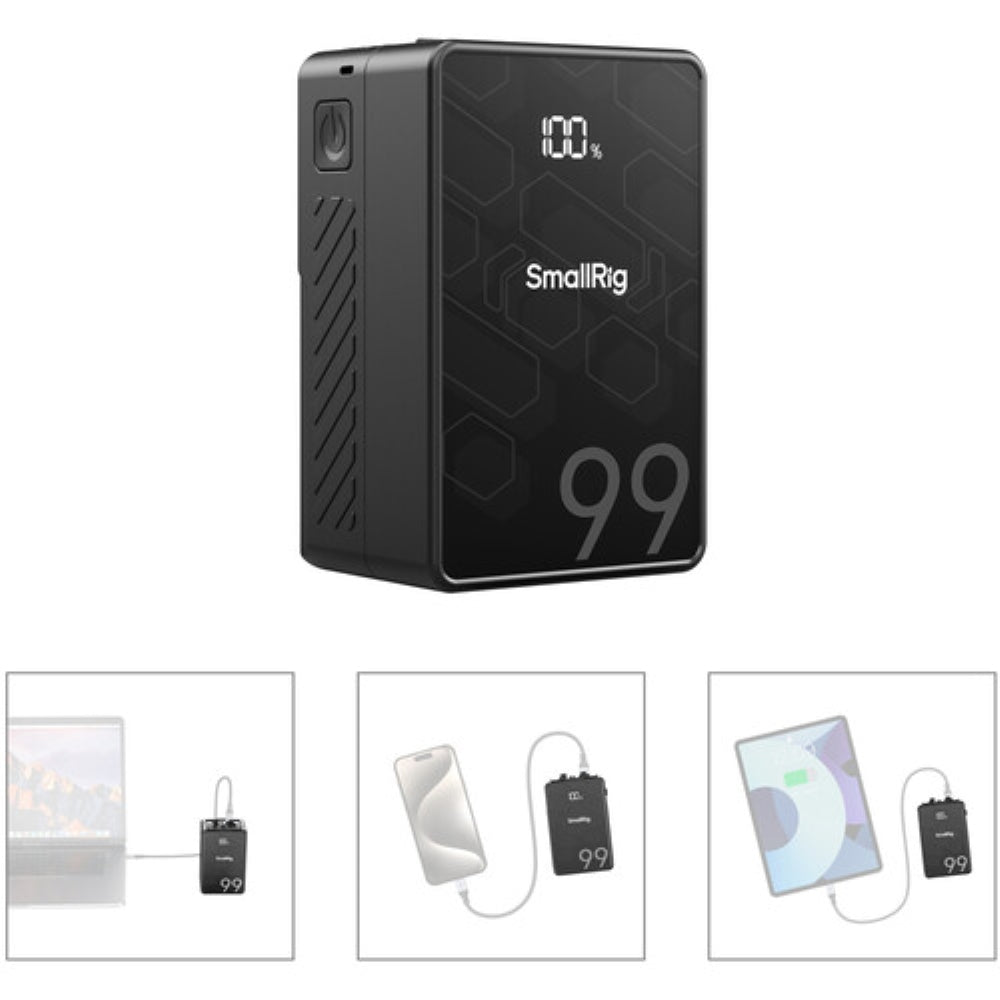

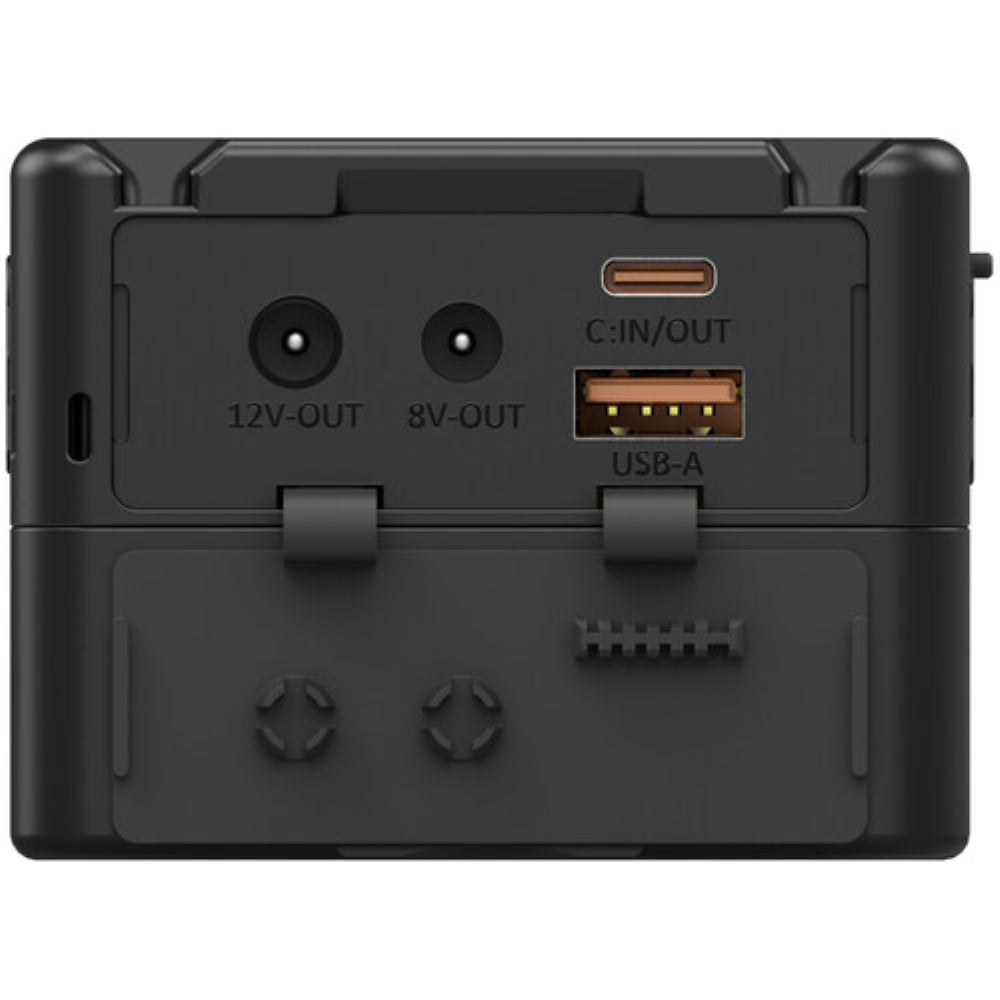

The VB99 is equipped with several accessory ports, which include one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output, enabling the powering of various accessories, cameras, or mobile devices. The battery can be charged through a standard V-mount charger, an optional D-Tap charger, or via the USB-C input/output using a 65W PD fast charger. The USB-C and USB-A ports operate on a separate circuit and can function simultaneously. Additionally, the button allows you to adjust display preferences and set the battery to discharge mode.
SmallRig VB99 SE |
|
|---|---|
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 6800 mAh / 98.87 Wh |
| Output Voltage | 14.54 VDC |
| Maximum Load | 100 W, 10 A (Peak) |
| Accessory I/O | 1x D-Tap / P-Tap Output 14.54 V, 10 A Regulated 1x USB-A Output 5 V, 3 A Regulated 1x D-Tap / P-Tap Input 8 A Regulated 1x USB-C Input/Output 65 W Regulated 1x Barrel 2.5 mm Output 12 V Regulated 1x Barrel 2.1 mm Output 8 V Regulated |
| USB Output | 5 V, 3 A 9 V, 3 A 12 V, 3 A 15 V, 3 A 20 V, 3.25 A |
| Charging Voltage | 16.8 VDC |
| Accessory Mounting Thread | No |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | CE, FCC, KC, PSE, RCM, RoHS |
| Environmental Resistance | No |

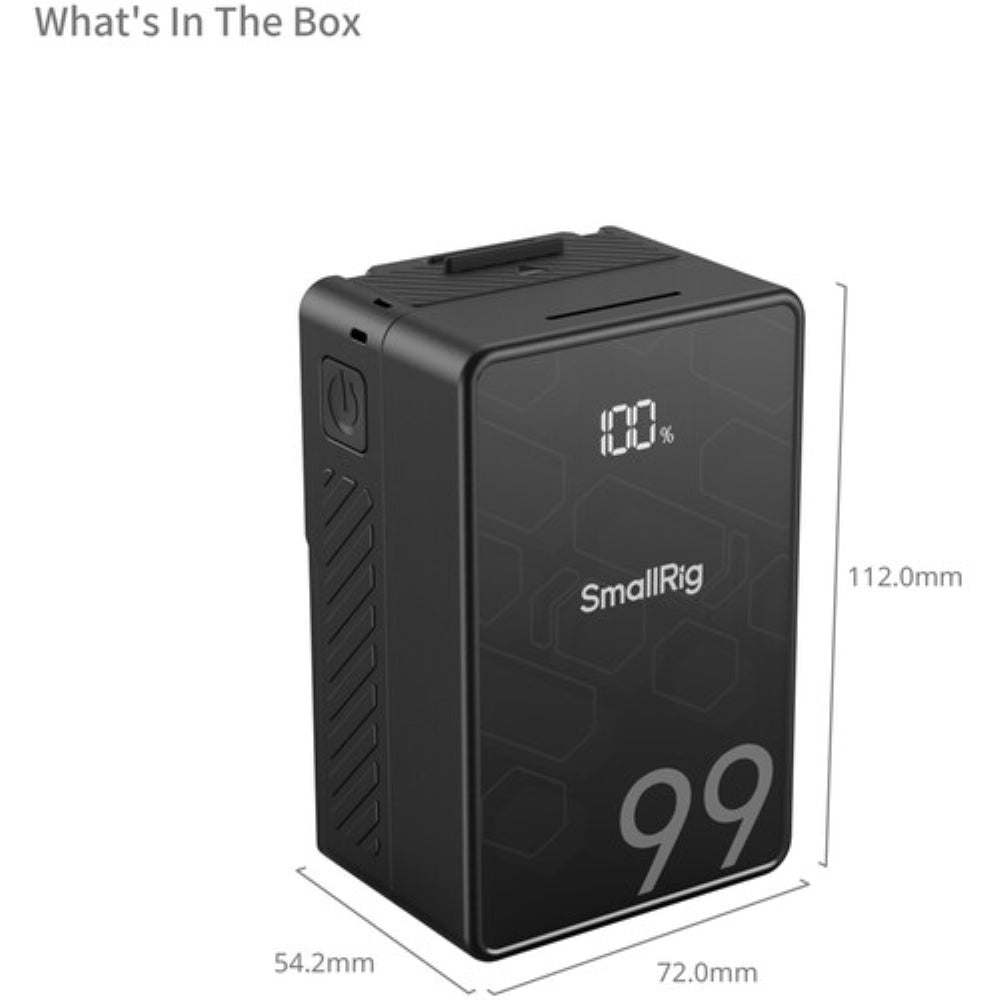

| Dimensions (W x H x D) | 4.4 x 2.8 x 2.1" / 112 x 72 x 53 mm |
| Weight | 21 oz / 595 g |
