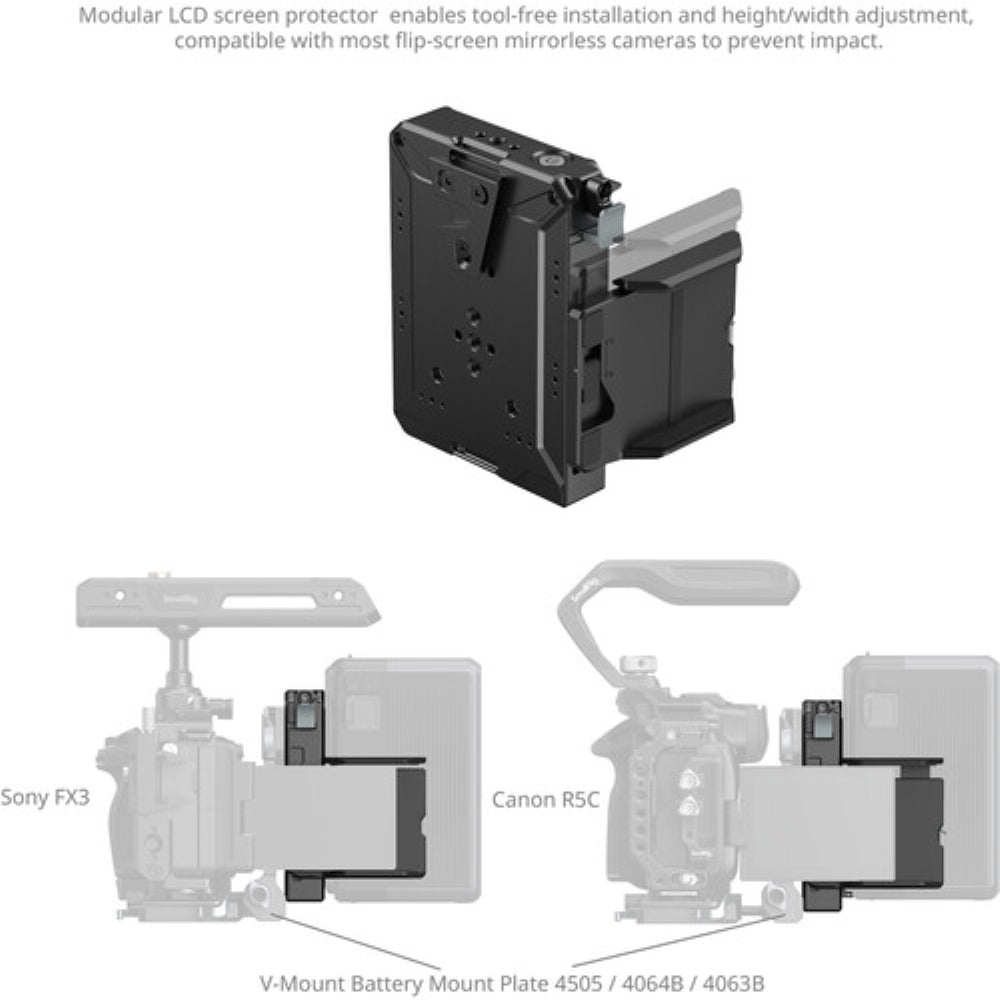

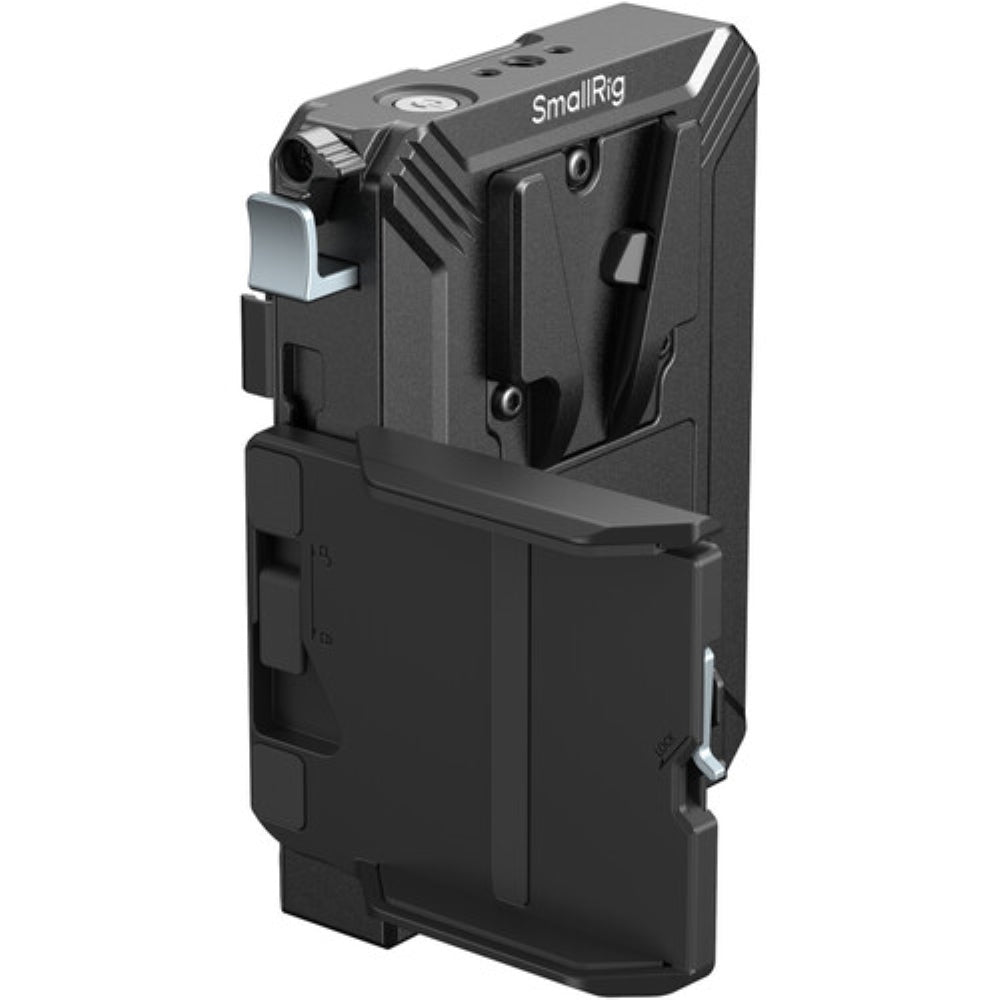

Connect a battery to the rods of your video rig using the V-Mount Battery Plate by SmallRig. Power your setup from the attached battery through a single D-Tap that delivers an output of 11.2 to 16.8V. The two USB-C ports can provide up to 20V at 3.25A and 65W. The modular LCD screen protector can be repositioned without the need for tools, ensuring the protection of your camera's flip-out screen. Utilize the provided cable clips and hook-and-loop straps to organize your cables and ensure a tidy, snag-free configuration.
Precautions

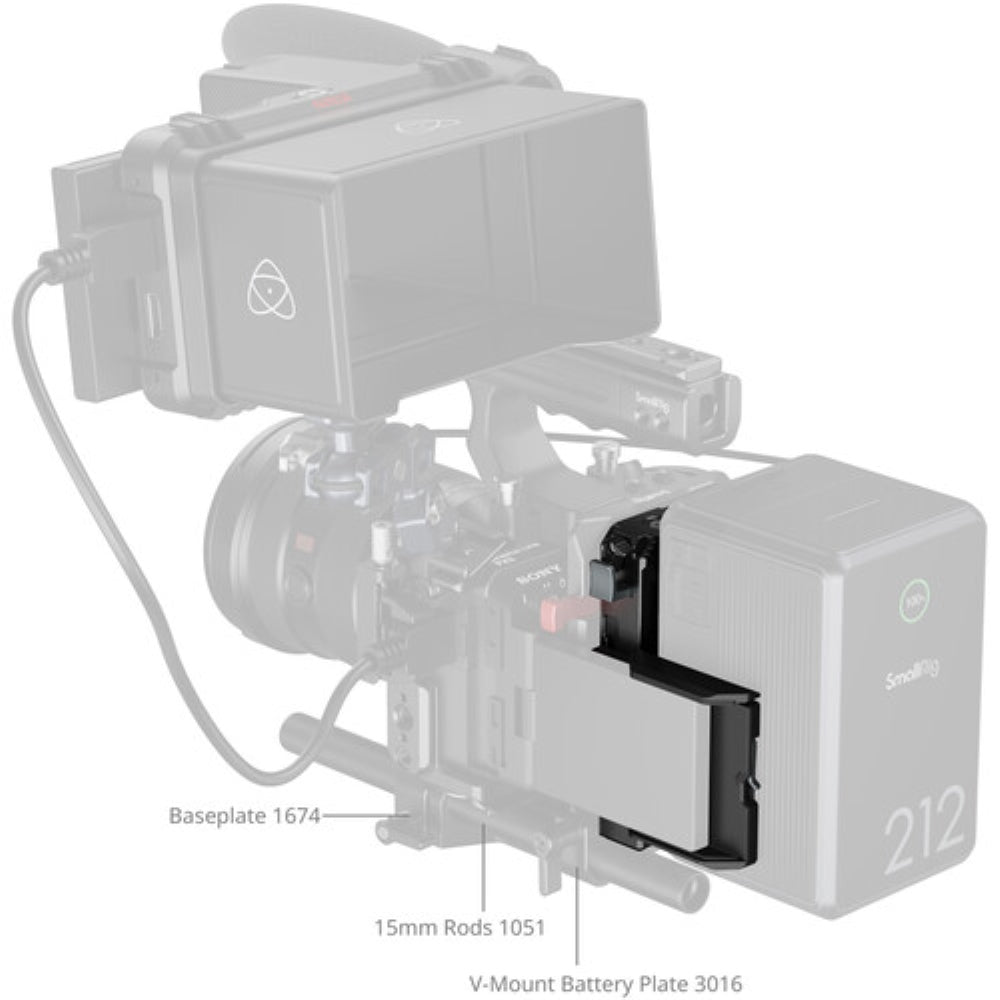

- When using the LCD screen protector, the battery plate accommodates V-mount batteries up to 3.1" in width. Compatible SmallRig V-mount batteries: 3579B, 4871, 4872, 3580B, 4929, 4930, 4292, 4974, 4608, 4984, 3581B, 4293. In addition, we recommend using it with a compact 15mm LWS baseplate (such as 1798, 1674, 3357, 1775, 4002, etc.).
- If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever.
- After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for three seconds to cut off the output function.
Battery Plate |
|
|---|---|
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | V-Mount Battery Plate |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female |
| Indicator | No |
| Inputs/Outputs | 1x D-Tap/P-Tap (11.2 to 16.8 VDC / 18 A) Output 2x USB-C (5 to 20 VDC / 3 to 3.25 A / 65 W) Output |
| Plate Material | Aluminum, Stainless Steel |

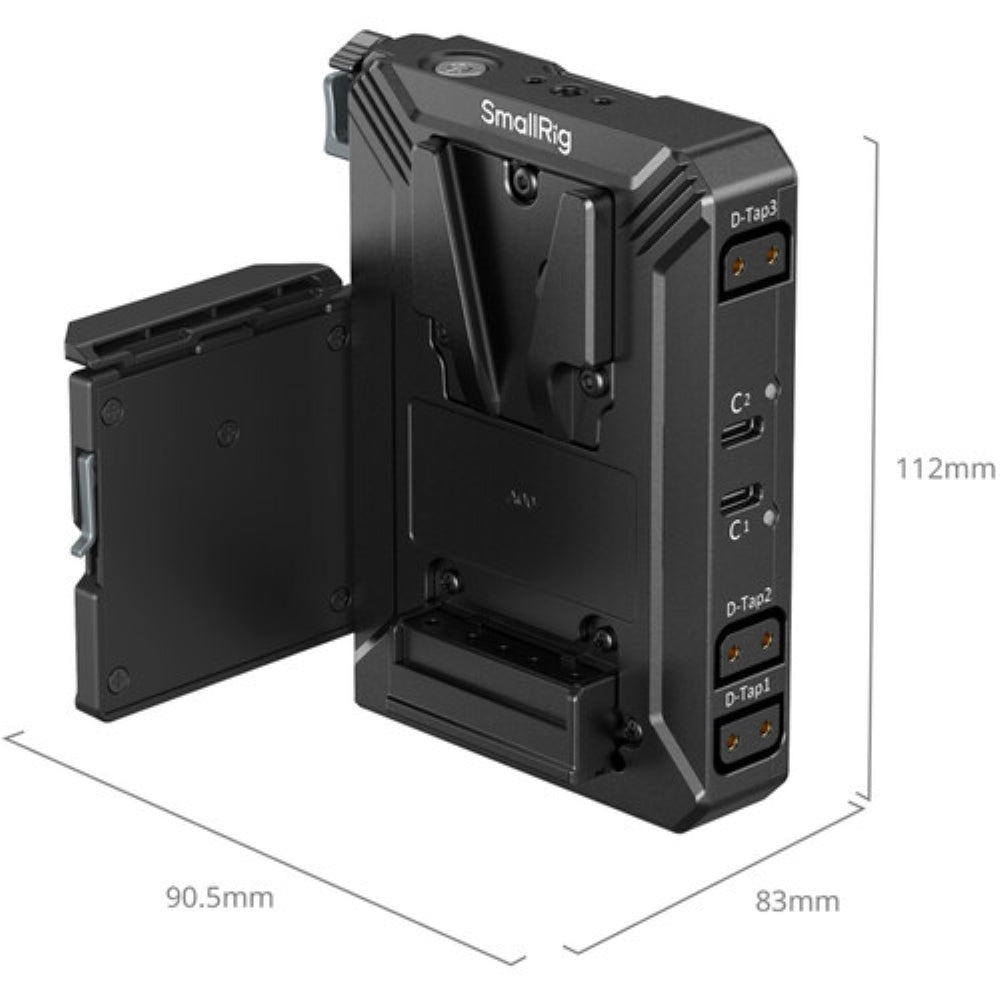

| Dimensions | 4.4 x 3.8 x 3.1" / 11.2 x 9.7 x 7.9 cm |
| Weight | 9.4 oz / 266 g |
