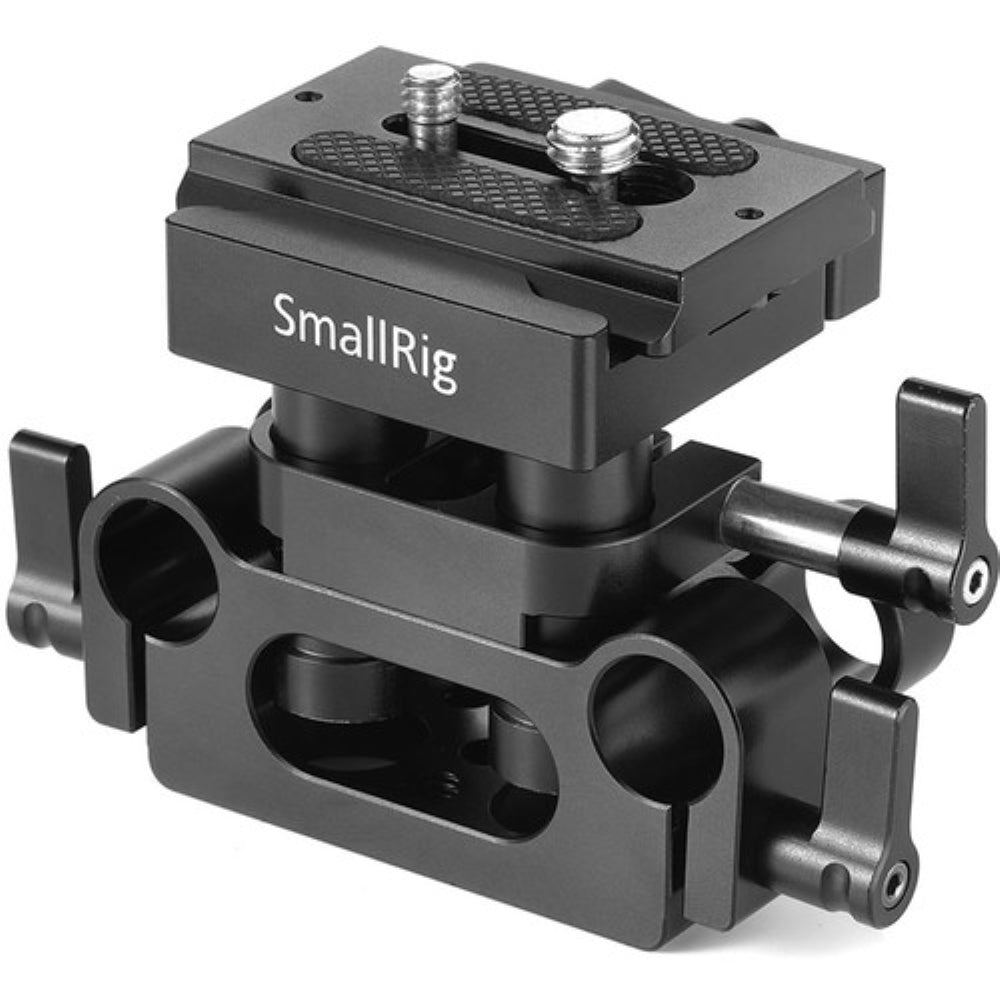

The Universal Baseplate with 15mm LWS Rod Clamp from SmallRig provides 15mm LWS rod-based accessory support for your mirrorless or DSLR camera. This baseplate features an Arca-type quick release camera plate with both 1/4"-20 and 3/8"-16 screws.

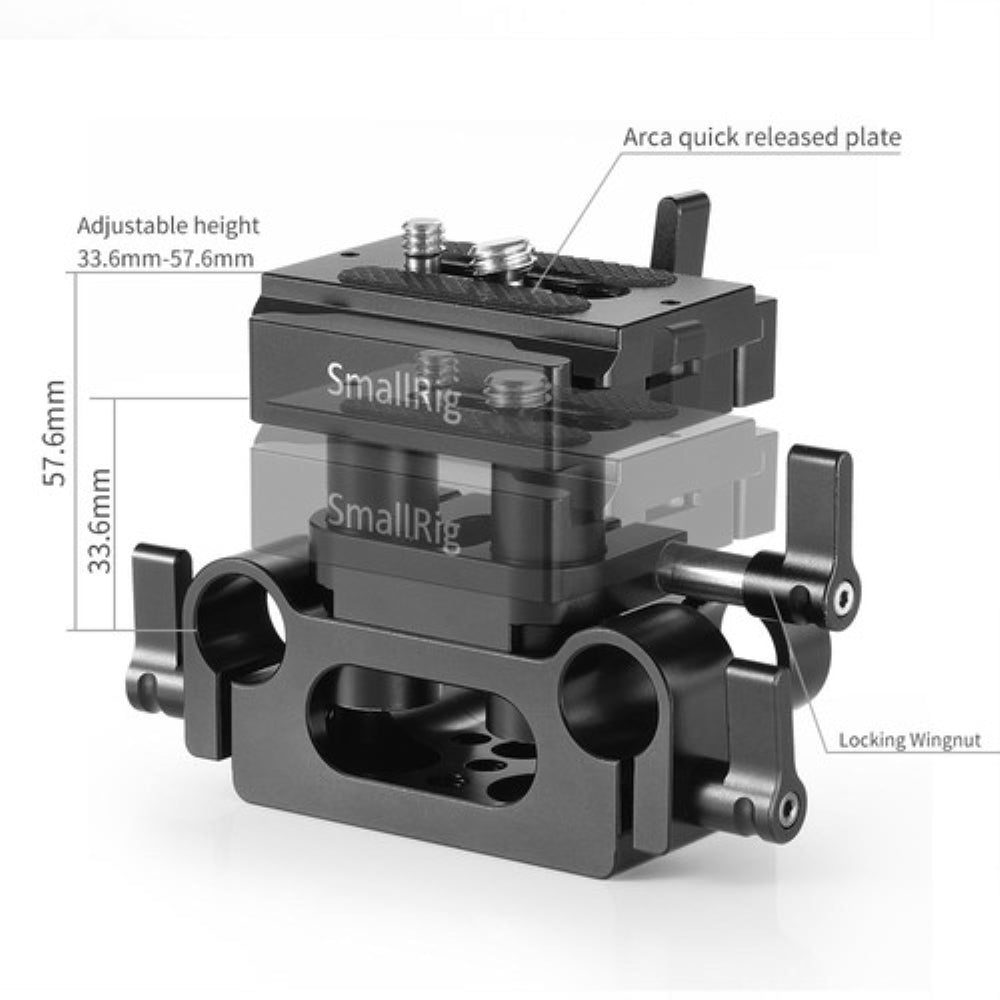

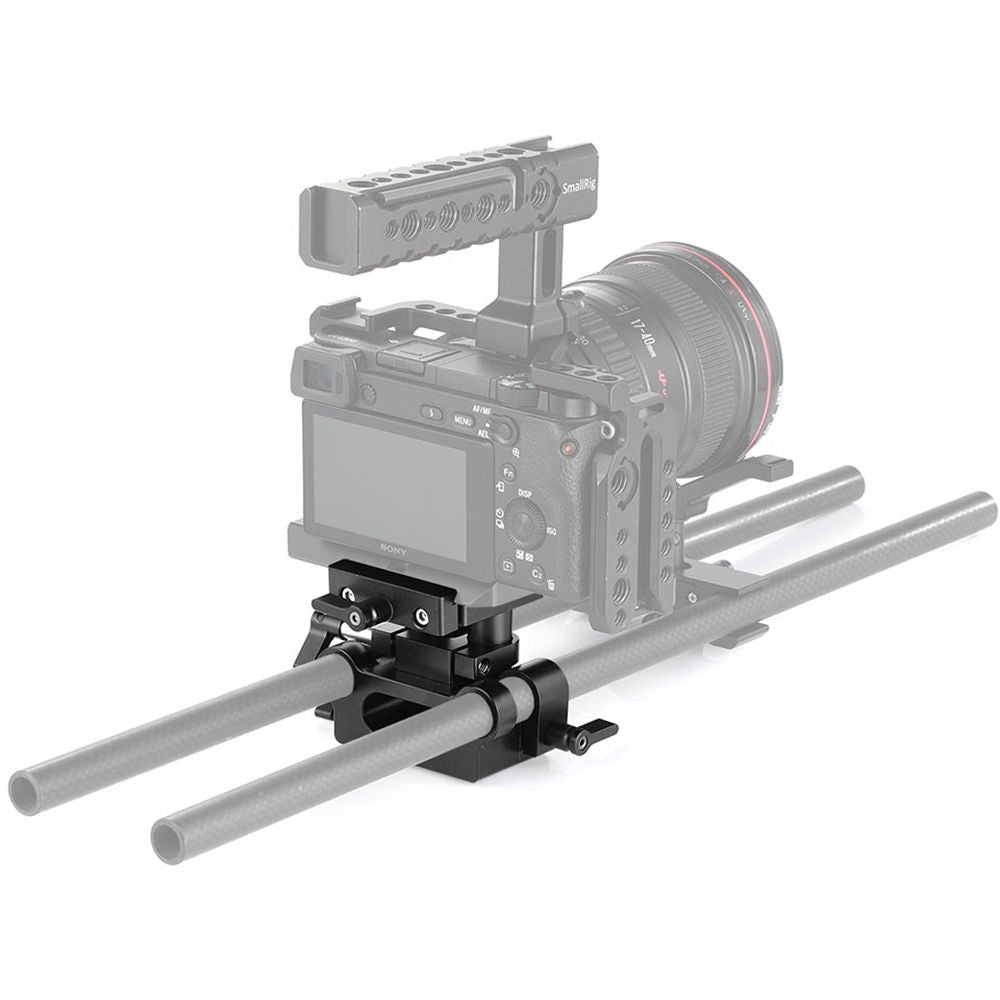

Two rods provide up to 0.94" of vertical adjustment, enabling optimal positioning of camera accessories such as a lens support, FIZ motor, follow focus, or matte box. The integrated 15mm rod bracket tightens using thumbscrew levers, and the baseplate can be mounted on a tripod plate or cage using the bottom 1/4"-20 and 3/8"-16 threads. See below for the list of cameras that are recommended by the manufacturer for use with this baseplate.
Compatibility
Including but not limited to:
- Canon 5D Mark IV, M50, M5, M3, M6, EOS R, EOS RP
- Fujifilm X-H1, X-T1, X-T2, X-T20
- Nikon Z7, Z6
- Olympus E-M1 Mark II
- Panasonic GH3, GH4, GH5, G80, GX85, G7, G85, G9
- Sony a6000, a6300, a6400, a6500, a7, a7 II, a7S II, a7s III, a7R II, a9, a7 III, a7R III
Features
- Adjusts up to 0.94" vertically for compatibility with various cameras
- Arca-type quick release camera plate with 1/4"-20 and 3/8"-16 screws
- Integrated 1/4"-20 and 3/8"-16 tripod threads
Baseplate |
|
|---|---|
| Support Type | Baseplate, Rod Support System |
| Grip Type | No |
| Camera Compatibility | Canon EOS 5D Mark IV, Canon EOS M3, Canon EOS M5, Canon EOS M6, Canon EOS M50, Canon EOS RP, FUJIFILM X-H1, FUJIFILM X-T20, Nikon Z6, Nikon Z7, Panasonic DC-G9, Panasonic DC-GH5, Panasonic DMC-G7, Panasonic DMC-G85, Panasonic DMC-GH3, Panasonic DMC-GH4, Panasonic DMC-GX85, Sony a7, Sony a7 II, Sony a7R, Sony a7R II, Sony a7R III, Sony a7S, Sony a7S II, Sony a6000, Sony a6300, Sony a6400, Sony a6500, Universal |
Mounting |
|
|---|---|
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | No |
| Accessory Mounting | No |
| Camera Mounting | Arca-Type Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting | Baseplate 1/4"-20 Female Thread Baseplate 3/8"-16 Female Thread |
| Rod Ports | Baseplate 2x 15 mm Rod Port |
| Shoe Mounting | No |
| Rosettes | No |
| Cable Clamp | No |
General |
|
|---|---|
| Materials | Aluminum |

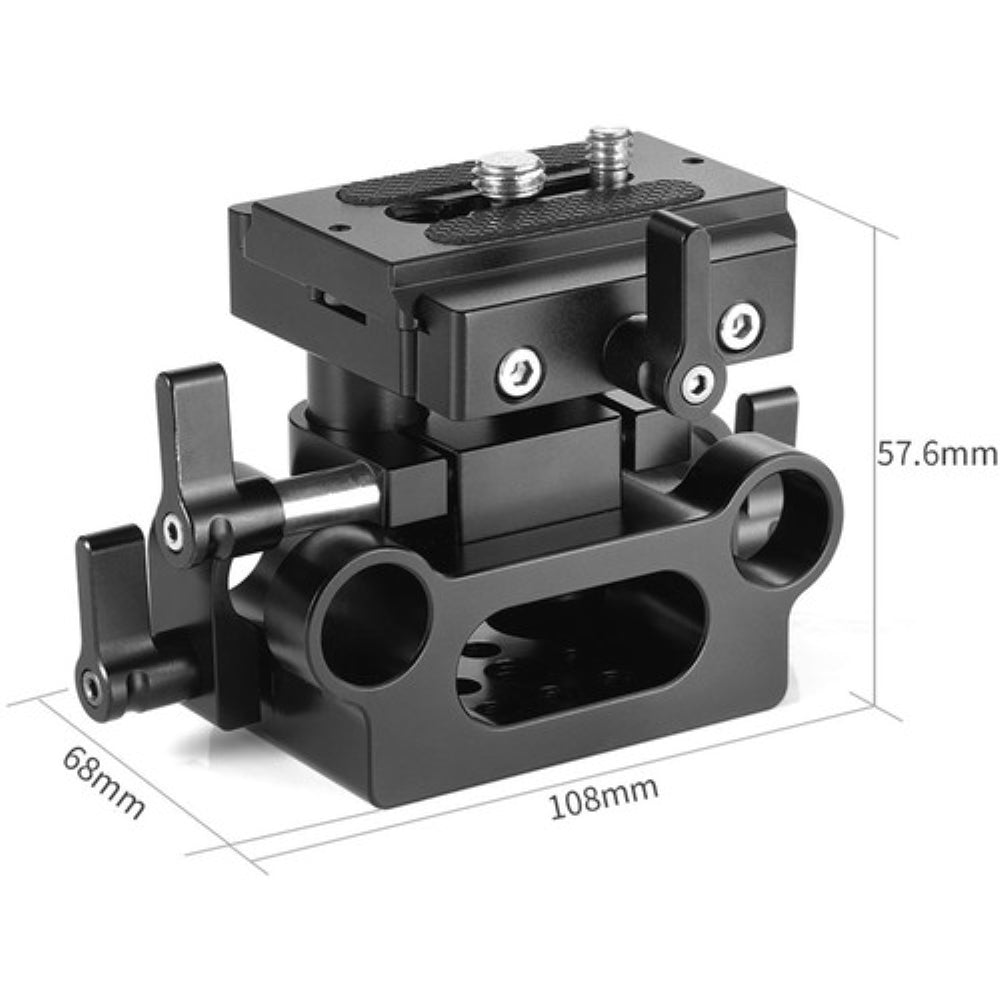

| Dimensions | 4.25 x 2.68 x 2.13" / 108 x 68 x 54 mm |
| Weight | 9.42 oz / 267 g |
