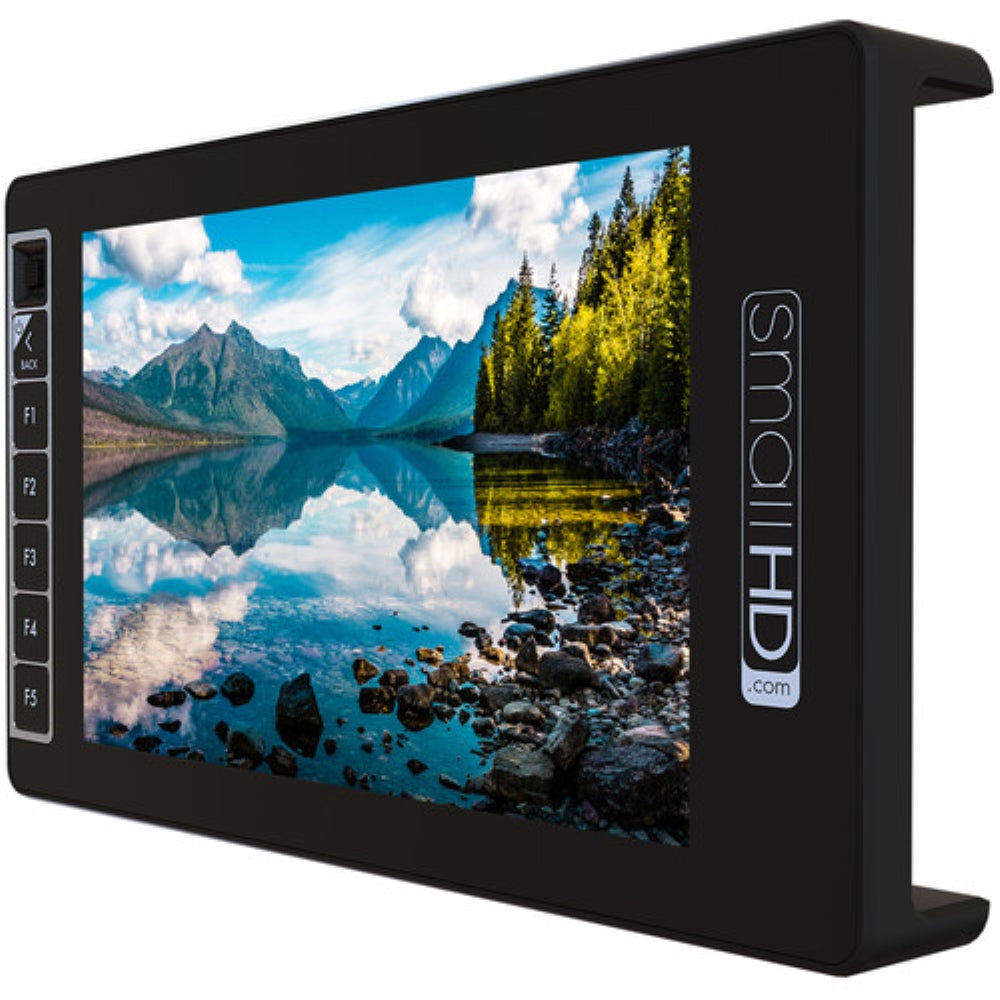

SmallHD 703 UltraBright Directors Kit | Gold Mount

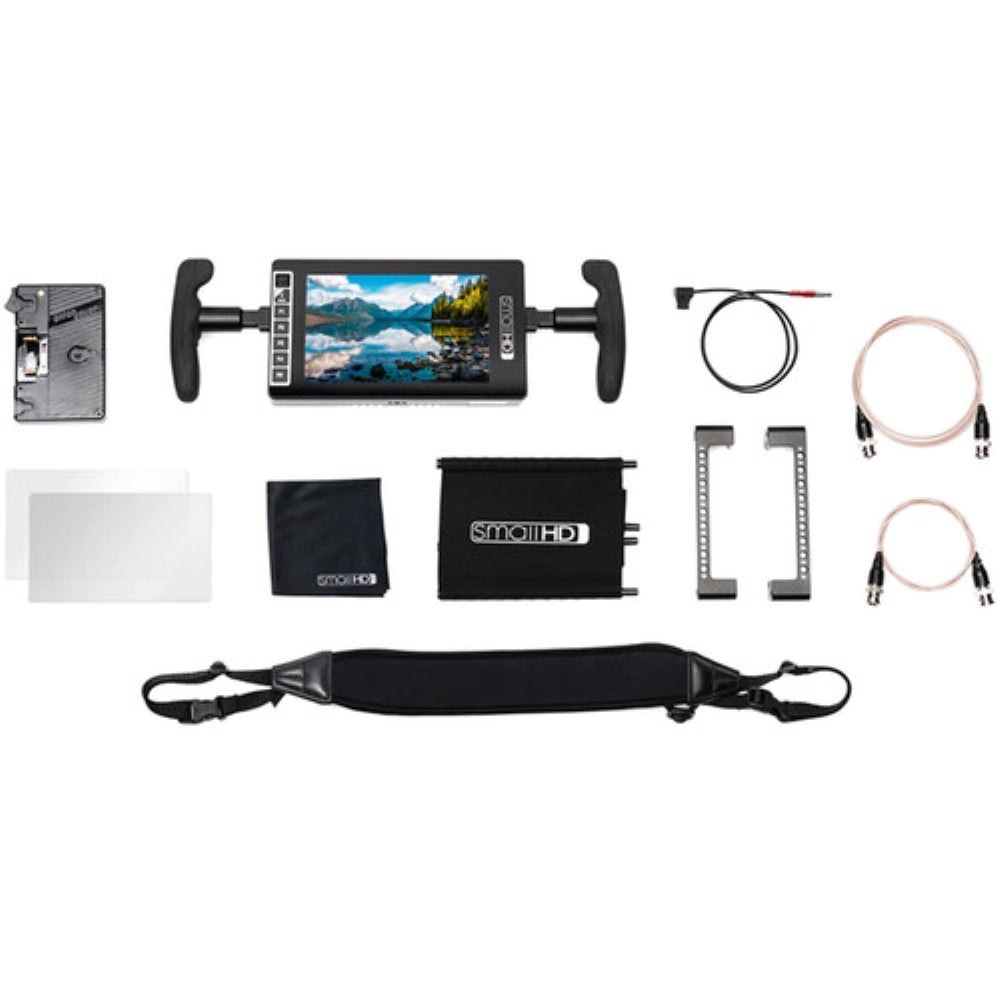

This SmallHD 703 UltraBright Directors Kit, featuring a Gold mount battery plate, offers a 7-inch monitor with an impressive brightness of 2200 cd/m². The kit includes a protective cage, sun hood, accessory handles, a neck strap, screen protectors, a BNC cable, a D-Tap to 2-pin LEMO power cable, and a cleaning cloth. It is designed to facilitate the director's ability to view the camera's perspective, whether indoors or outdoors. The provided handles enable easy gripping, positioning, or holding of the monitor, while the neck strap minimizes the risk of accidental drops by a distracted operator.

The UltraBright monitor ensures excellent visibility in outdoor settings, even under bright sunlight, and the included antireflection screen protector enhances clarity on gray, overcast days filled with glare. For those who do not require anti-glare features, a clear screen protector is also available. Both options safeguard the screen from everyday wear, although it is important to note that the screen protector does not offer protection against impact damage to the monitor or screen.

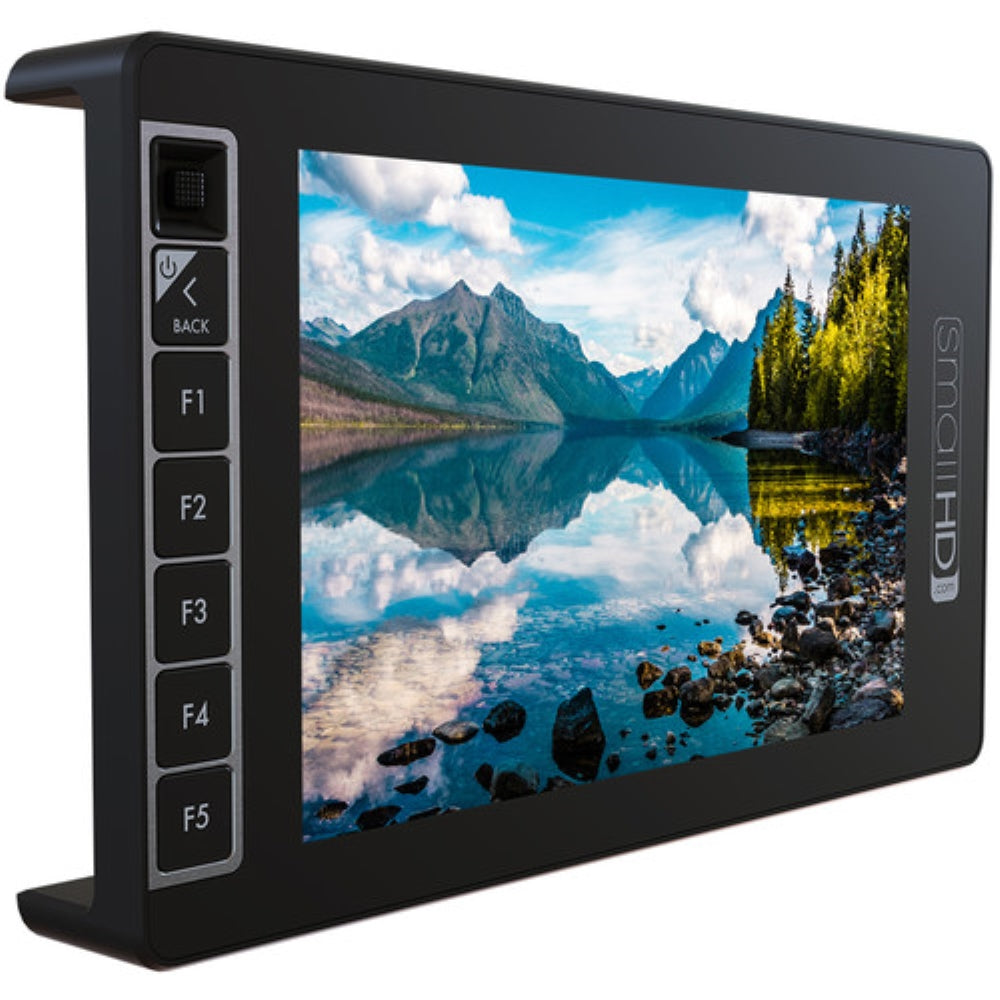

SmallHD 703 UltraBright On-Camera Monitor

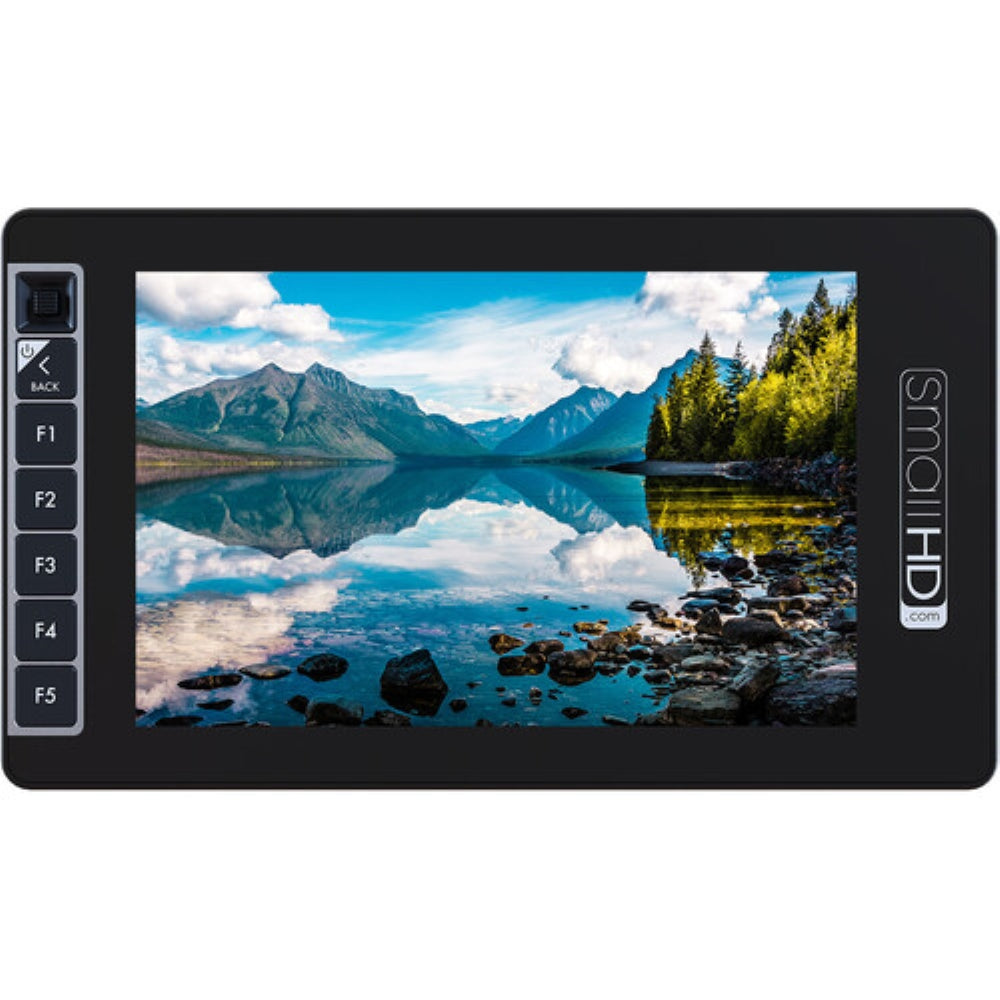

Monitoring HD video signals in outdoor environments can present challenges; however, the SmallHD 703 UltraBright On-Camera Monitor effectively addresses these issues with its impressive 2200 cd/m² backlight. The 7-inch LCD, featuring a resolution of 1920 x 1080, delivers a crisp image that is particularly beneficial for focus pulling and image analysis both on set and in the field. Additionally, the high-brightness panel enables the monitor to preview HDR content, enhancing the display's dynamic range and allowing for a broader spectrum of brightness in the visuals.

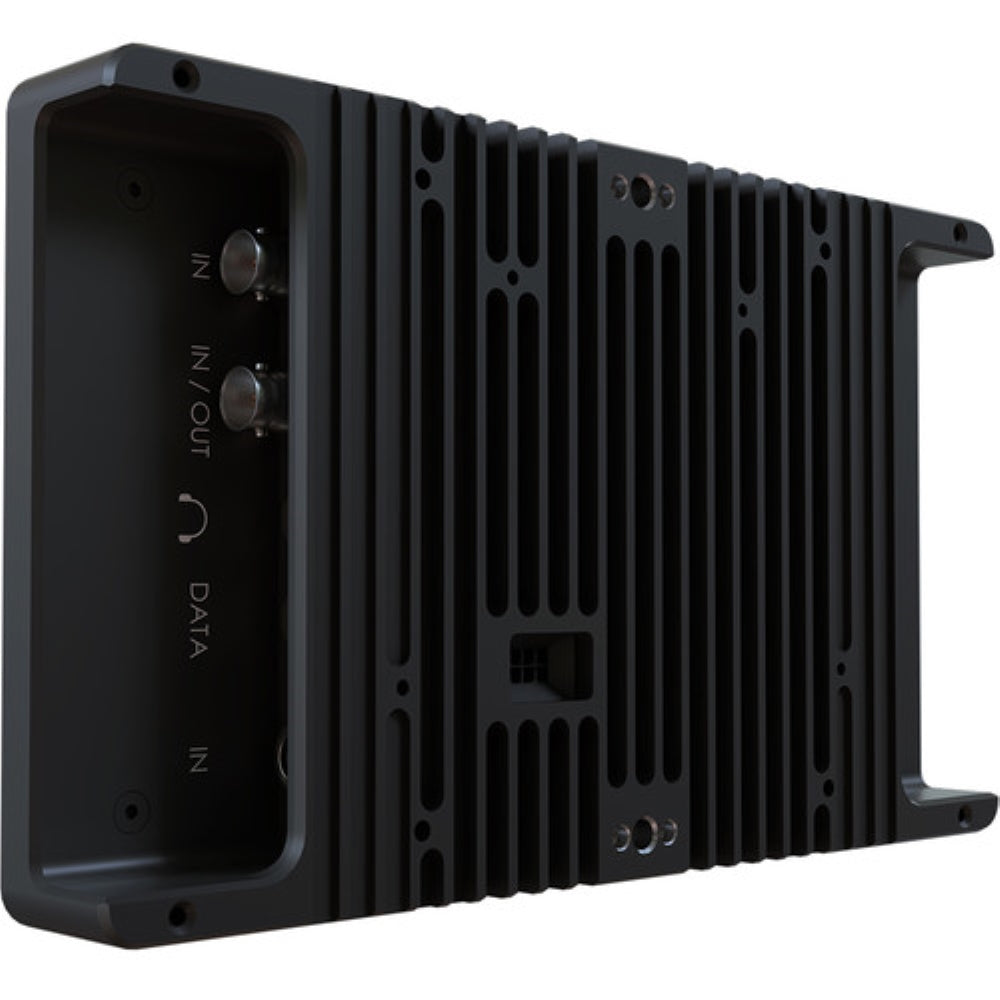

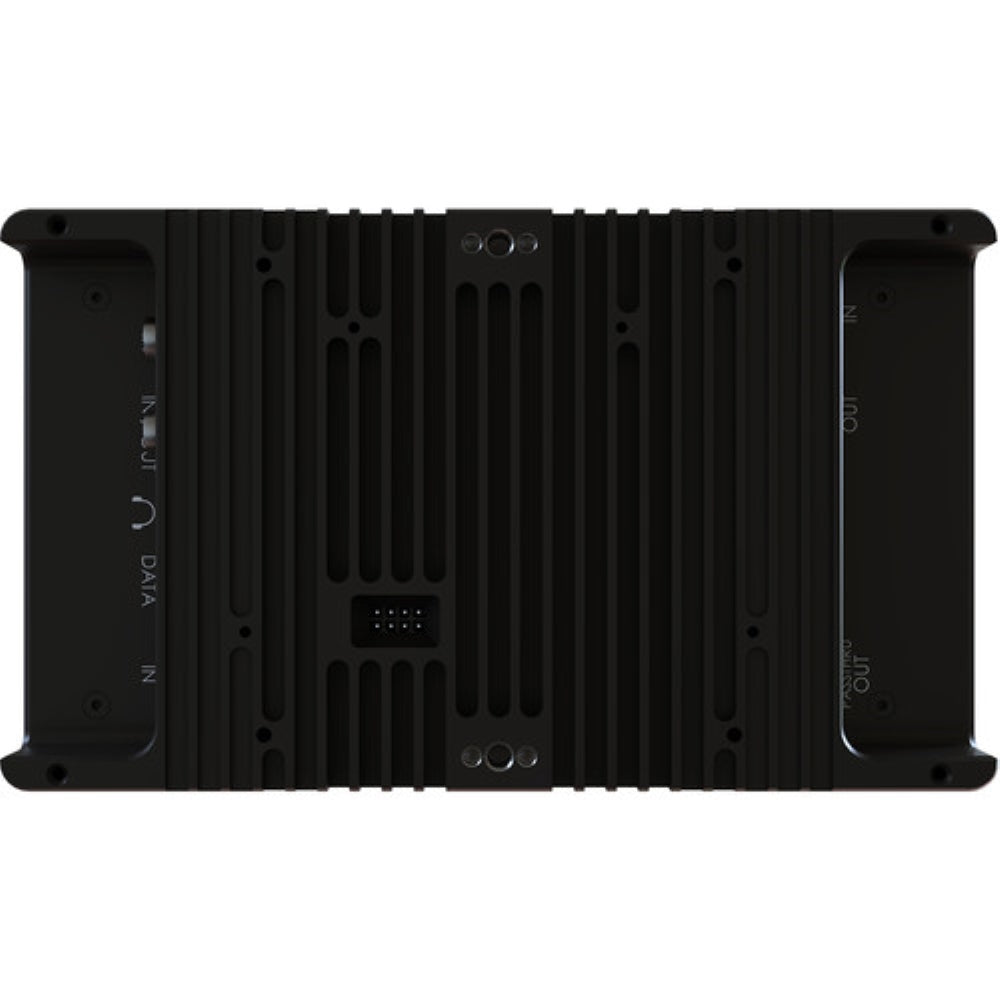

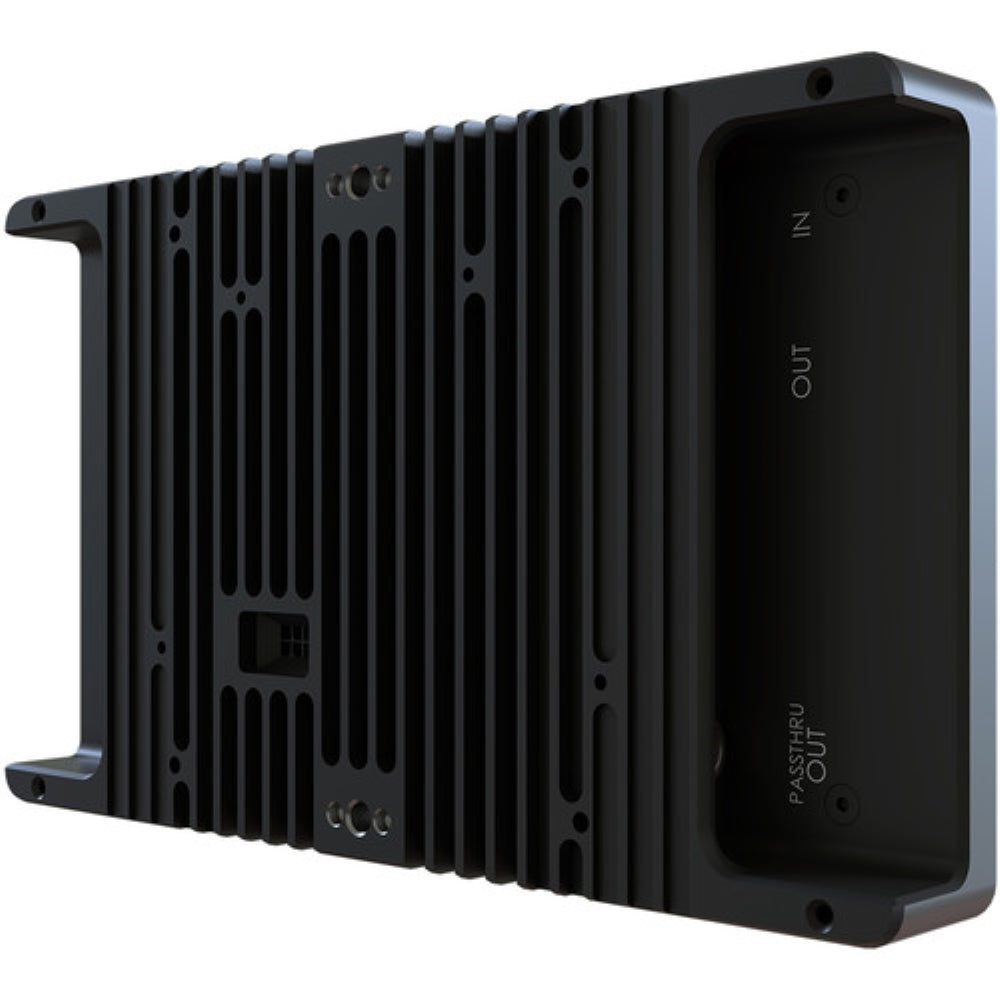

The monitor's unibody aluminum construction ensures durability while remaining lightweight, and it also functions as a heatsink for the internal components. The LCD panel is safeguarded by a layer of optically-bonded Gorilla Glass, recognized for its clarity and resilience. This optical bonding technique prevents blacks from appearing washed out and minimizes glare from reflections.

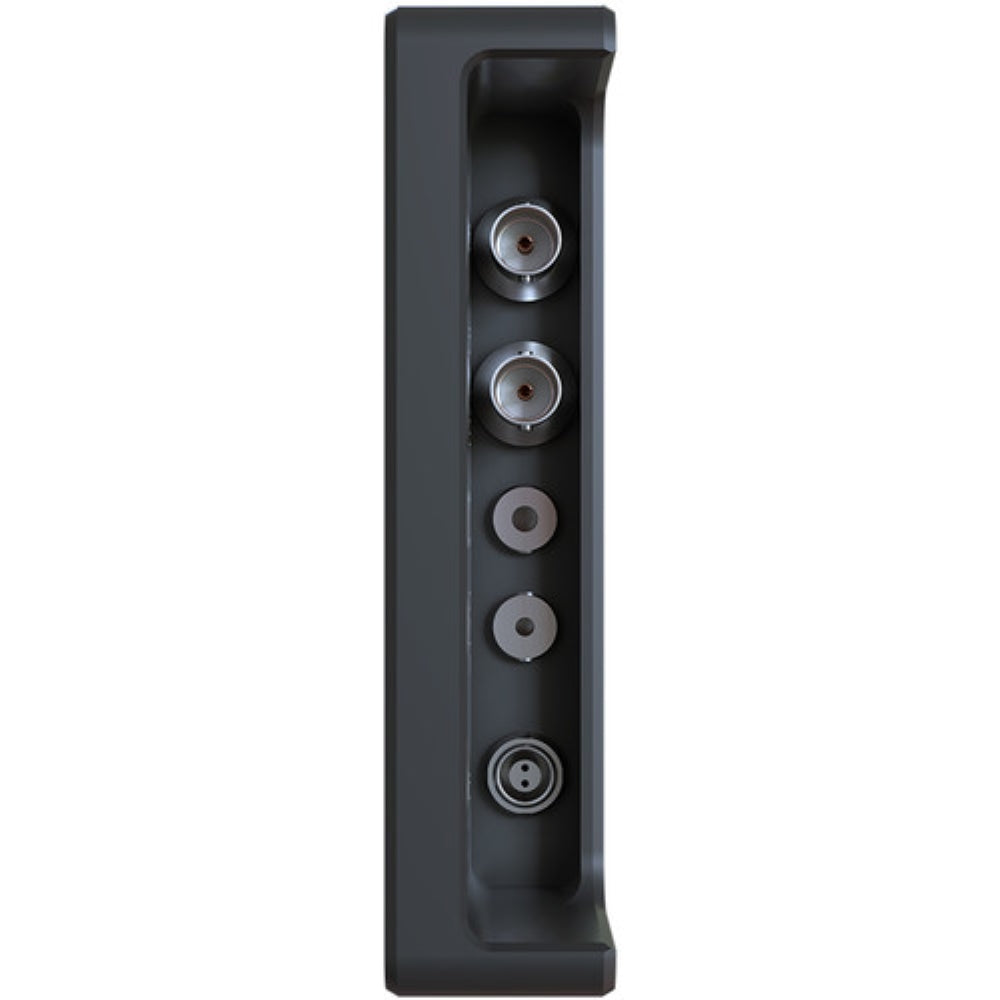

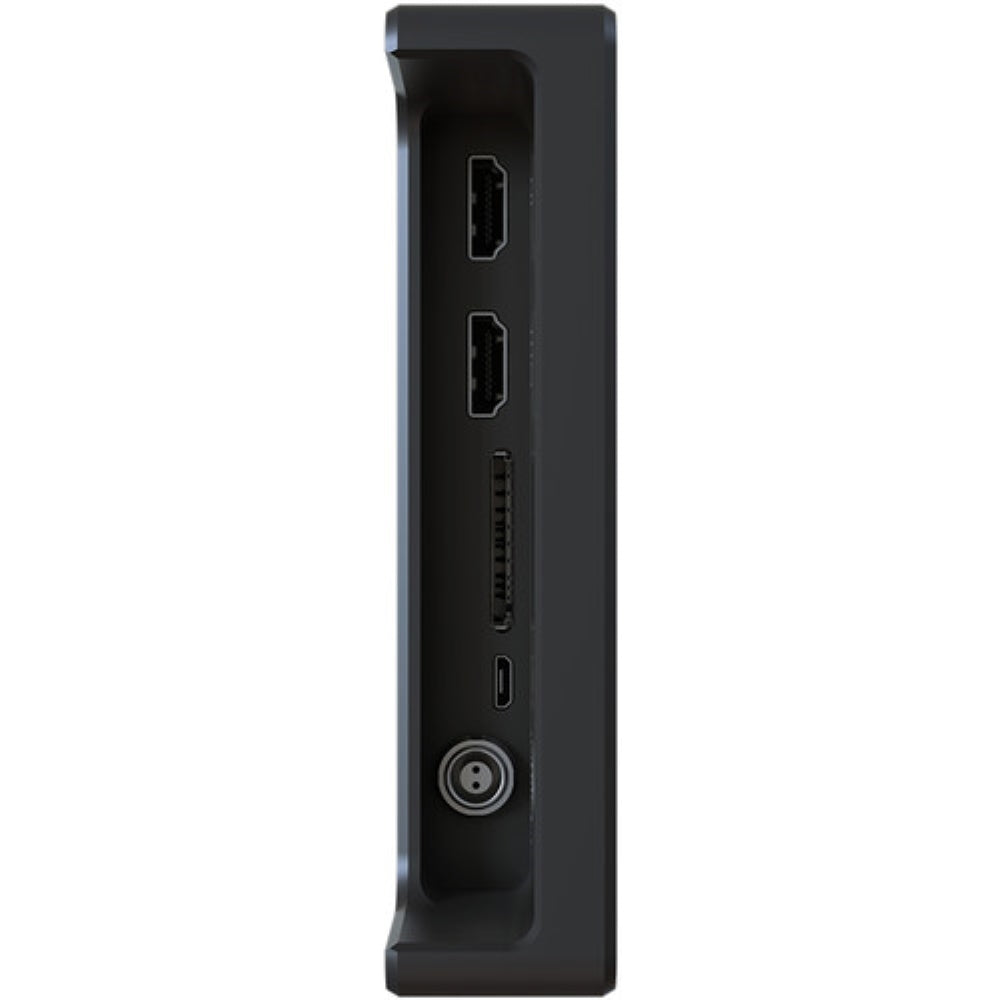

Located on the sides of the display are the SDI and HDMI input/output ports. The inclusion of dual SDI ports facilitates A/B viewing of two distinct SDI signals, with the secondary port also capable of being configured as an output to transmit an SDI signal to another monitor, switcher, or wireless device. The monitor's comprehensive functionality is accessible through the PageBuilder OS, which offers advanced features within a user-friendly graphical interface.

PageBuilder OS

PageBuilder OS offers a user-friendly graphical interface that provides immediate access to the comprehensive features of the 703 UltraBright. Instead of navigating through complex menus, this interface enables users to selectively utilize monitoring tools, including waveform, vectorscope, multiview, LUTs, and focusing aids, across various "pages." Users can effortlessly switch between these pages using the joystick, while the front panel buttons allow for the activation and deactivation of monitoring tools for each individual page.

ColorFlow 3D LUT Processing

To ensure consistency in your images from production to post-production, ColorFlow enables the importation of 3D LUTs and provides a side-by-side display of the processed image alongside the original. This feature allows for accurate exposure assessment while visualizing the camera's recording. The side-by-side preview can also be utilized in conjunction with the HDR preview function. Additionally, separate LUT-processed images can be transmitted downstream via SDI and HDMI, allowing the 703 UltraBright to display either a log image or a LUT-processed image, while directors or clients connected to the outputs can view images processed with an alternative LUT. Furthermore, an image capture function allows for the saving of a still frame from the incoming video stream onto an SD card, along with the recorded 3D LUT for reference in post-production.

On-Set Problem Solving

PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 703 UltraBright, you are not limited by that protocol; the 703 UltraBright cross-converts to ensure compatibility with downstream hardware.

HD Scopes

Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.

Exposure Tools

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Customizable Focus Assist and Peaking Tools

As recording resolutions advance, the significance of precise focusing also escalates. Focus Assist allows you to emphasize the areas that are in focus using a vivid color. These highlights are readily observable in real-time, facilitating swift focus verification. Additionally, Focus Peaking enhances the image sharpness, providing a more nuanced confirmation of focus without relying on bright outlines. The color and intensity of these features can be customized to suit your preferences.

Versatile Frame Guides

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).

Power Options

Separately available DV, V-Mount, or Gold Mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO pass-through connection.

SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor | Gold Mount

The Gold mount SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor is designed to work with and power either the SmallHD 503U or 703U on-camera monitor. The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting.

SmallHD Monitor Handles and Neck Strap

These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.

Compatibility

• SmallHD Smart 5 and 7 Series monitors with 1/4"-20 mounting threads


• SmallHD 503U and 703U Ultrabright monitors with separately available Ultrabright Mounting Cage



Features at a Glance

• Anti-slip rubber handles


• Woven nylon strap with neoprene padding


• Anti-spin handle connection


• Easy to install and hold



SmallHD Thin BNC Cable | 12"

At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.

SmallHD Thin BNC Cable | 48"

At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.

SmallHD D-Tap to 2-Pin Power Cable | 36"

Output power from your Cine 13 monitor to power or charge accessories with this D-Tap to 2-Pin Power Cable from SmallHD. The cable features a 2-pin LEMO-type connector on one end and a D-Tap connector on the other. The cable can plug into the output of the Cine 13 monitor to output power to other accessories.

SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors

This SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features a clear screen with no anti-reflection properties. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.

SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors

This SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features anti-reflection properties that minimize glare. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.

SmallHD Microfiber Cleaning Cloth

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
