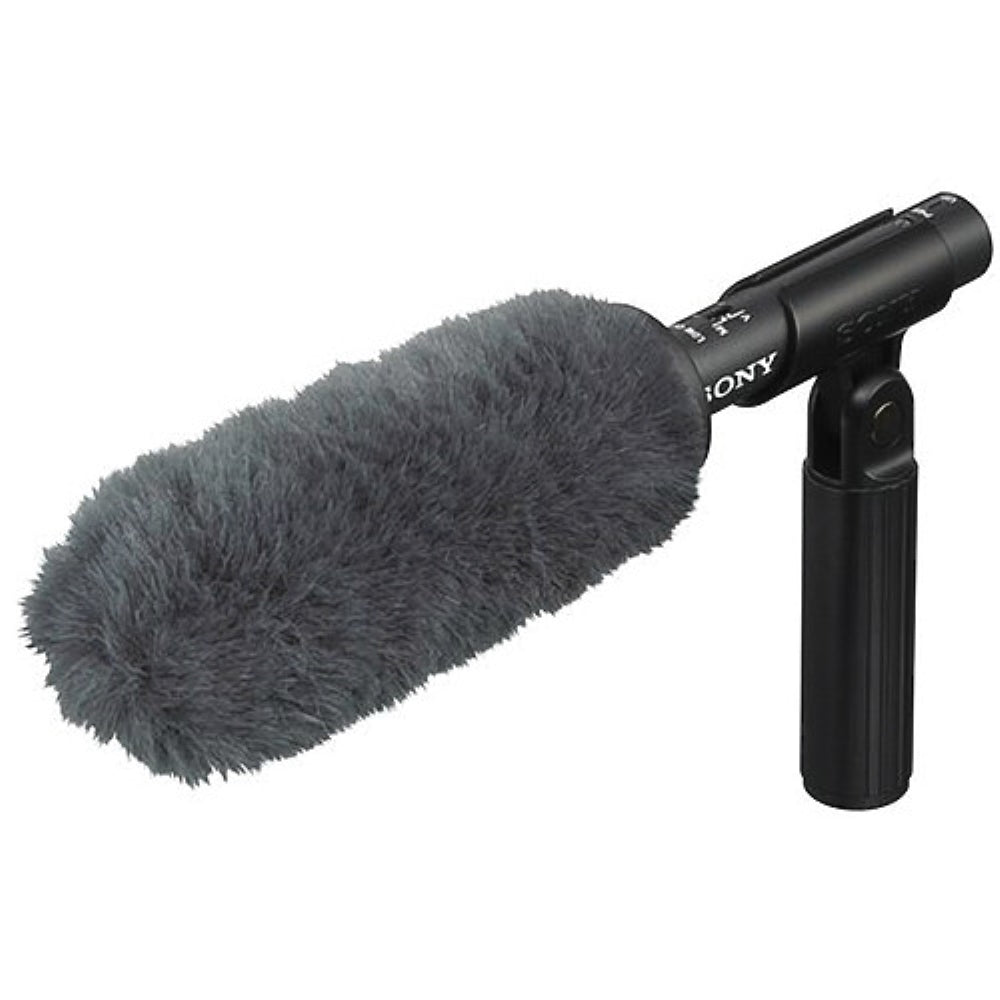

Sony ECM-VG1 Short Shotgun Microphone
Sony ECM-VG1 Short Shotgun Microphone
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
With an ultralightweight body and smooth tone, the Sony ECM-VG1 shotgun microphone offers strong, clean output signal for event video shoots, indie film production, TV and documentary shooting, court room depositions, and more. Plus, at a mere 2.3 ounces, it can be placed atop a camcorder or mounted on a boompole with virtually no impact on the weight of the rig. The ECM-VG1 features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule, resulting in intelligible voice pickup even in noisy environments. The microphone's wide, flat frequency response yields natural, accurate signal reproduction with crisp detail and minimal coloration. The ECM-VG1 runs on 40 to 52 VDC phantom power, making it compatible with a variety of professional camcorders, multitrack field recorders, and portable audio recorders. The supplied furry windshield delivers up to 20 dB of wind noise reduction for high-quality audio capture in outdoor environments. It also includes microphone spacers and a mic holder to accommodate camera-mount and stand-/boompole-mount configurations
Microphone |
|
---|---|
Sound Field | Mono |
Element Type | 1x Electret Condenser |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | No |
High-Pass Filter | Yes |
Performance |
|
---|---|
Frequency Range | 40 Hz to 20 kHz |
Maximum SPL | 127 dB SPL (1 kHz, 1% THD) |
Off-Axis Rejection | >3 dB at 60° >15 dB at 120° 20 dB at 180° |
Sensitivity | -33 dBV/Pa at 1 kHz |
Dynamic Range | 109 dB |
Equivalent Noise Level | 18 dB SPL |
Connectivity |
|
---|---|
Analog Output | 1x XLR 3-Pin Male |
Cable Length | 19.7' / 6.00456 m |
Power |
|
---|---|
Power Sources | Phantom Power |
Operating Voltage | 40 to 52 V (Phantom Power) |
Physical |
|
---|---|
Mounting Thread Size | 5/8"-27 Female |
Dimensions | ø: 0.79 x L: 8.27" / ø: 20 x L: 210 mm |
Weight | 2.33 oz / 66 g |
On-Mic Controls | Low Cut/HPF |
