Sony FX6 Digital Cinema Camera Kit with 24-105mm Lens

Designed to provide adaptable, cinematic imaging in a remarkably compact package, the FX6 Full-Frame Camera Kit from Sony combines the FX6 camera with the 24-105mm f/4 G OSS E-mount zoom lens. Capable of capturing over 15 stops of dynamic range, the camera features Sony's S-Cinetone gamma for achieving film-like skin tones and supports up to 10-bit, 4:2:2 XAVC-I recording. The FX6 is well-equipped to enhance your FX9 or VENICE workflows while also adeptly handling documentary, gimbal, and drone projects independently. This camera integrates a 4K full-frame Exmor R sensor with a BIONZ XR engine, enabling highly sensitive image capture across various environments, utilizing a base ISO of 800 and an ISO 12800 high-sensitivity mode for detailed low-light performance.

The Sony FX6 Full-Frame Camera has been designed to provide flexible, cinematic imaging within a remarkably compact package. It boasts the capability to capture over 15 stops of dynamic range, incorporates Sony's S-Cinetone gamma for achieving natural skin tones, and supports 10-bit, 4:2:2 XAVC-I recording. This makes the FX6 an excellent choice for enhancing your FX9 or VENICE setups, while also being adept at handling documentary, gimbal, and drone filming independently.

4K Full-Frame Exmor R Sensor

The FX6 camera integrates a 4K full-frame Exmor R sensor with a BIONZ XR engine, enabling highly sensitive image capture across various environments. It operates with a base ISO of 800 and includes a high-sensitivity mode at ISO 12800, ideal for capturing intricate details in low-light conditions. This 10.2 MP image sensor is designed with back-side illumination, ensuring superior performance in dim lighting. It boasts 627 focal plane points for rapid phase-detection autofocus and is compatible with full-frame lenses, delivering a rich and immersive visual experience. Additionally, the sensor's rapid scan speed reduces rolling shutter effects and facilitates high frame rates along with swift autofocus capabilities.

Compact, Single-Operator Design

The FX6 body weighs slightly less than 2 lb, making it a full 2 lb lighter than the FX9. With dimensions of 6 x 4.6", it incorporates a full-frame sensor within a body size similar to that of the S35-sensor Sony FS5. While the FX6 integrates effortlessly into a professional cinema on-set workflow, it also provides numerous features advantageous for single-operator use. These features include rapid and precise phase-detection autofocus, which encompasses both Face Detection and real-time Eye autofocus, as well as both automatic and manual ND filter settings for swift exposure adjustments. Additionally, the 3.5" LCD monitor offers time-efficient touchscreen access to essential menu settings and allows for flexible positioning to enhance user comfort. Furthermore, firmware update v1.10 enhances the camera's overall stability and introduces 100p and 120p options in the Slow and Quick Motion frame rate menu when the codec is configured to RAW or RAW and XAVC-I.

Multifunctional Enhancement to the Sony Cinema Series

As part of Sony's Cinema Line, the FX6 shares key imaging features with established cameras like the VENICE and FX9. Common core attributes include a full-frame sensor, filmlike color science, a compact, lightweight form, professional connector interfaces, and advanced autofocus choices.

Compared to the FX9, the FX6 differs in several specs; but many FX6 specs tick the same boxes and several improve upon the FX9:

• It matches the FX9's video capture up to DCI 4K60


• Has the same S-Cinetone, S-Log3, and HLG gamma choices


• Outputs 16-bit raw like the FX9


• Sony E lens mount


• Offers the same 1/4 to 1/128 ND options


• Also provides 2-channel XLR audio inputs



FX6 differences from the FX9:

• 4K capture vs 6K


• Has a single 12G/6G/3G-SDI BNC port, trimming the FX9's additional 3G-SDI port


• Incorporates a timecode port but lacks the FX9's genlock connector



Improved FX6 specs include:

• An ISO range of 320 to 409,600 vs the FX9's 320 to 102,400 range


• Top frame rates of 120p in 4K and up to 240p in HD vs the FX9's top 1080p in HD


• Dual card slots compatible with both durable, highly efficient CFexpress Type A or widely available SDXC cards, compared to the FX9's reliance on proprietary XQD cards and a single SD card option



15+ Stops of Dynamic Range

The FX6, with a base sensitivity of ISO 800, provides an ideal dynamic range for shooting in well-illuminated indoor environments and outdoor documentary settings. For more demanding low-light conditions, particularly during dawn and dusk, an improved ISO sensitivity of 12800 is available. This camera boasts an impressive dynamic range of over 15 stops, surpassing the capabilities of the human eye in numerous scenarios, thereby granting filmmakers remarkable creative flexibility in color grading and post-production processes.

Wide ISO Range

Select from a standard ISO of 800, a high-sensitivity ISO of 12,800 for capturing images in dim lighting, and a maximum ISO of 409,600 for optimal performance in extremely low-light conditions.

Electronically Variable ND Filters

Configure the FX6's built-in neutral density (ND) filter system to automatic mode to ensure accurate exposure in varying lighting conditions. You may also manually adjust the ND filter density in increments ranging from 1/4 to 1/128 while capturing images. Both methods will yield well-exposed photographs without altering your selected depth of field.

Advanced XAVC Codec Options

The FX6 represents the inaugural compact full-frame camera capable of UHD 4K 4:2:2 recording utilizing the high-quality and efficient XAVC-I codec. Additionally, it provides the option to select from various professional XAVC Intra and XAVC Long codecs, with bit rates varying from 35 to 600 Mb/s.

High Frame Rate Selections

For slow-motion and fast action looks, choose from full-frame rates ranging from:

• 1-60 fps in HD to DCI 4K resolutions


• 100 or 120 fps in HD through UHD 4K


• 150, 180, 200, or 240 fps in Full HD



Super35 choices include:

• 1-60, 100, and 120 fps in Full HD



Expressive Cinematic Look

Sony's S-Cinetone gamma curve provides a cinematic aesthetic characterized by film-like colors, gentle tones, and attractive skin tone reproduction. This cinematic appearance is not only accessible for in-camera monitoring but can also be recorded and outputted with little to no grading, thereby facilitating a more efficient post-production workflow. The options of S-Cinetone, S-Log3, S-Gamut3, and S-Gamut3.Cine further simplify the integration of FX6 footage with your VENICE or FX9 videos, while also offering extensive color grading possibilities.

Fast Hybrid/Phase Detection Autofocus

The FX6 supports over 50 native Sony E-mount lenses. Enhanced autofocus options feature Face Detection and Eye Autofocus modes. This allows for swift focusing with remarkable precision, even in dimly lit environments. The phase detection autofocus incorporates seven transition-speed levels and five subject-sensitivity settings.

The advanced features of real-time Eye AF and Face Detection provide reliable and precise focus acquisition during interviews, events, and any situation where accurate focus on individuals is crucial. The sophisticated real-time processing technology enables precise eye focus, even when subjects are gazing downward or upward at sharp angles, thereby allowing the operator to dedicate their attention entirely to framing the optimal shot.

Image Stabilization and More with Catalyst and Metadata

Combine the FX6 with Sony's Catalyst Prepare/Browse software to utilize metadata for stabilizing your images, automatically adjusting gimbal footage orientation, and incorporating flags for more efficient clip filtering during postproduction.

Touchscreen 3.5" LCD Control

The 3.5-inch LCD monitor of the FX6 provides high-resolution viewing capabilities along with the convenience of touchscreen control for the camera. The quick menu on the LCD allows for easy adjustments to essential settings such as Codec, Imager Scan Mode, Picture Size and Frequency, Base ISO/Sensitivity, Shooting Mode, and Audio Levels.

Reliable Design and Construction

The FX6 body is designed with a magnesium alloy chassis that is both lightweight and robust, ensuring optimal reliability while effectively dissipating heat to support prolonged recording sessions. The exterior seams, buttons, and interfaces have been enhanced with advanced sealing techniques, which significantly bolster the camera's resistance to dust and moisture.

4-Channel Audio Recording

The FX6 provides the capability for up to 4-channel audio recording by integrating inputs from its dual XLR connections, the 2-channel multi-interface shoe input, and the stereo microphone located in the camera's top handle. This functionality allows for the concurrent use of an external microphone to capture the primary audio source while utilizing the built-in microphone for ambient sound or operator voice memos.

Professional Input/Output Interface

The FX6 features input and output ports that offer a selectable 12G/6G/3G-SDI output, allowing for versatile monitoring options. It is equipped with an HDMI output and supports 12-bit raw output through SDI. Additionally, it includes timecode input and output capabilities to facilitate synchronization among multiple cameras. Furthermore, the device is integrated with a built-in Wi-Fi module.

CFexpress Media Slots and Multiple Recording Modes

The FX6 is equipped with dual media slots that accommodate both durable, high-performance CFexpress Type A cards and the more commonly accessible UHS-II/UHS-1 SDXC cards. It is important to note that CFexpress Type A cards are necessary for capturing UHD 4K at 100/120 fps and for high-speed HD capture at 150/180/200/240 fps.

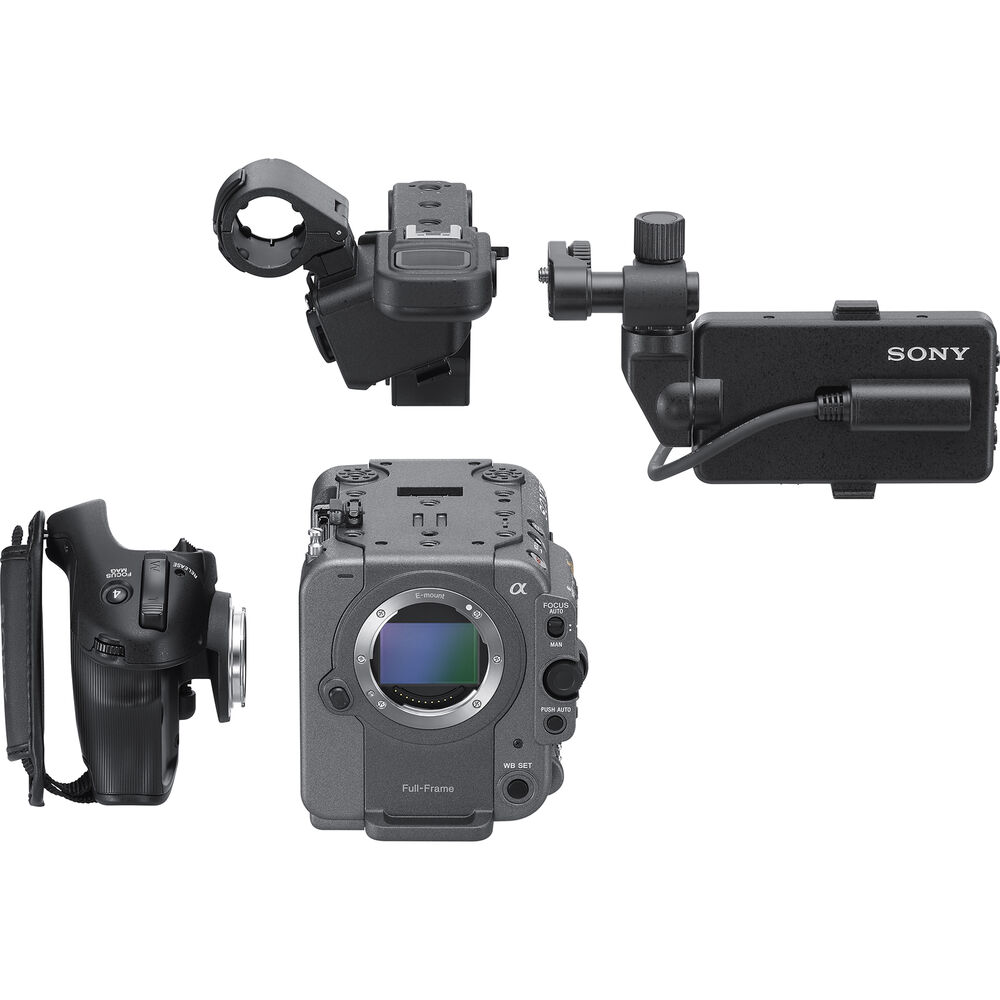

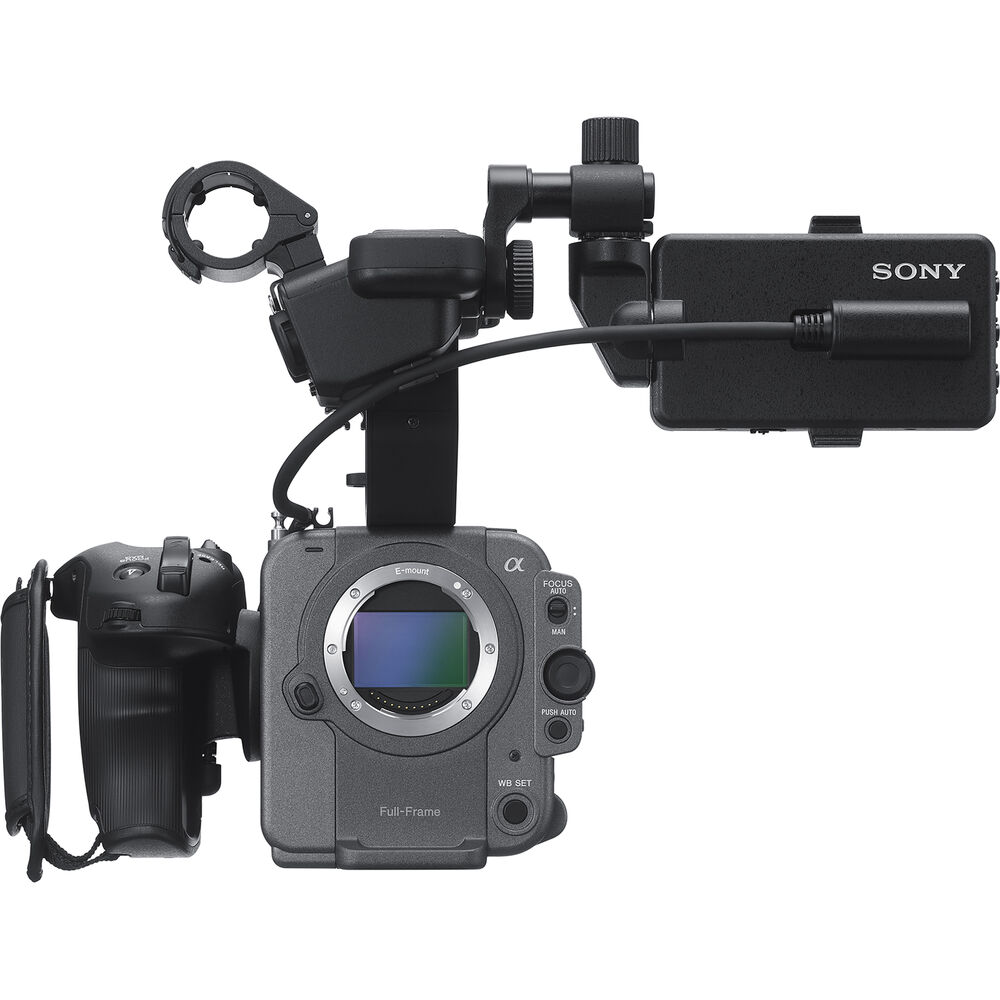

Modular, Grab-and-Go Design

The FX6 features a modular design that allows for a reduction to its compact form, making it suitable for use with gimbals or drones. Additionally, it can be equipped with optional accessories, including a smart grip and smart handle, which facilitate fingertip control during handheld shooting. The camera is also designed with a 3.5" LCD screen that can be easily positioned at various locations, ensuring comfortable and ergonomic viewing.

Content Browser Mobile Compatibility

Utilize the independently available Content Browser Mobile application in conjunction with a compatible smartphone or remote control. The FX6's Wi-Fi capability allows for remote monitoring as well as control over focus, iris, and zoom functions.

Sony FE 24-105mm f/4 G OSS Lens

The Sony FE 24-105mm f/4 G OSS Lens is engineered for adaptability, serving as a wide-angle to short-telephoto zoom that presents an optimal single-lens solution for daily photography needs. Its versatile focal length range, combined with a consistent maximum aperture, exceptional optical performance, and user-friendly handling, makes it an excellent choice for casual shooting, street photography, travel, and event coverage.

The optical design incorporates four aspherical elements, which include two Advanced Aspherical elements, effectively diminishing spherical aberrations and distortion across the entire zoom range, thereby enhancing sharpness and clarity. Additionally, three extra-low dispersion elements are utilized to reduce color fringing and chromatic aberrations, resulting in improved color accuracy. Furthermore, a Nano AR Coating has been applied to minimize surface reflections, flare, and ghosting, leading to enhanced contrast and color rendering in challenging lighting conditions.

The constant f/4 maximum aperture ensures uniform performance across the entire zoom range, providing enhanced control over focus positioning for techniques that require a shallow depth of field. The rounded nine-blade diaphragm enhances the aesthetic quality of bokeh when utilizing selective focus methods. With a lightweight design of approximately 1.5 lb, this lens is an adaptable option for daily photography needs.
