teenage engineering TX-6 Ultraportable Pro Mixer, Audio Interface, and Recorder

If you are looking for a highly portable, battery-operated mixer, multichannel audio interface, and recorder, consider the teenage engineering TX-6. This compact device is a remarkable achievement, incorporating a wide array of features within its CNC-machined aluminum casing, complete with bespoke encoders and faders. It functions as a versatile 32-bit / 48 kHz audio interface, offering various effects such as reverb, chorus, delay, freeze, tape, filter, distortion, and additional options.

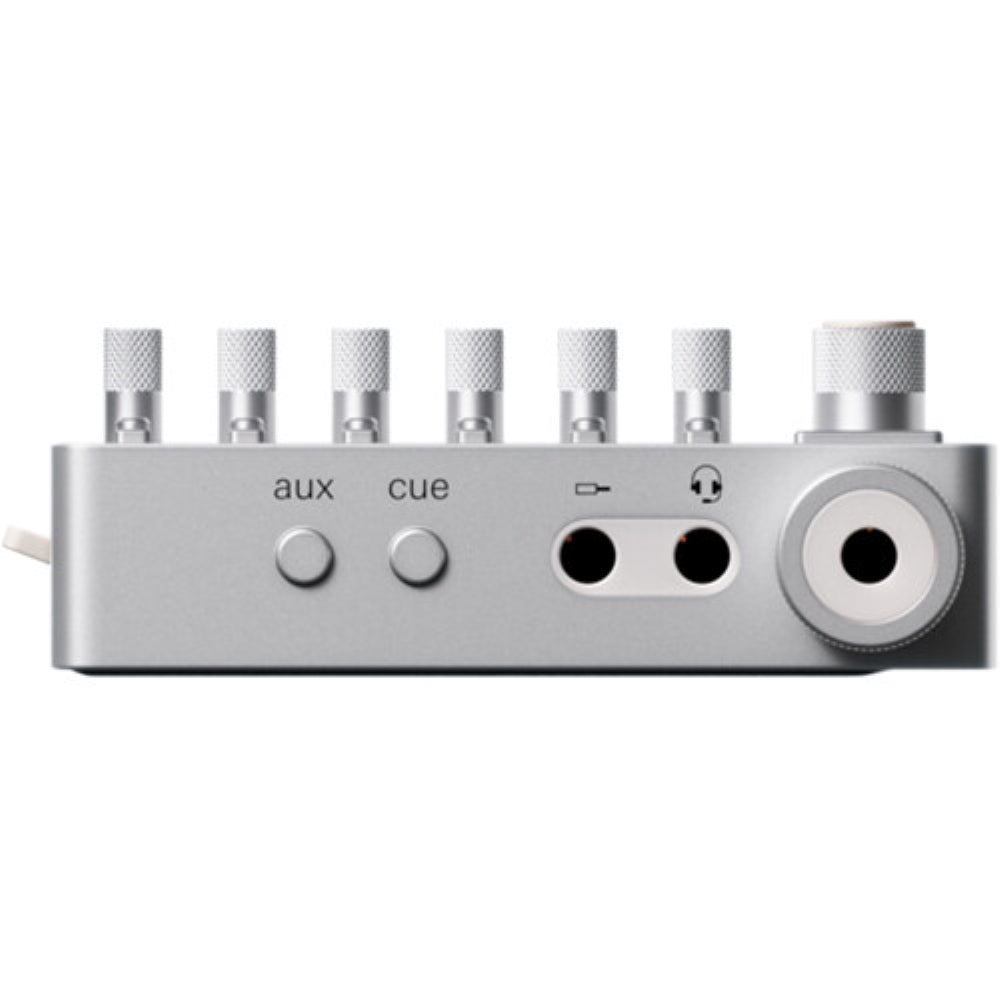

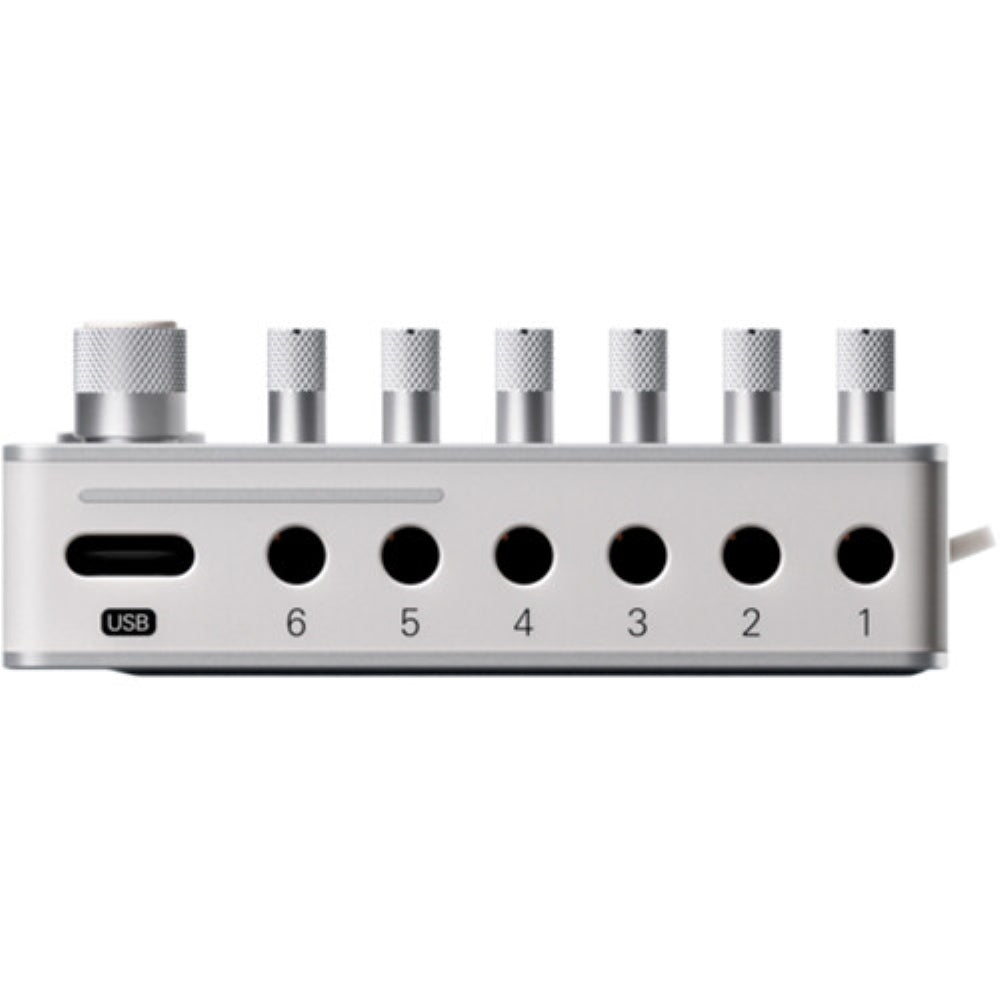

The TX-6 is equipped with six 3.5mm TRS inputs, a 3.5mm auxiliary output, a 3.5mm cue (headphone) output, and a 1/4" main output, accompanied by a 3.5mm adapter. Each channel is fitted with three fully customizable encoders, allowing users to utilize them as a 3-band equalizer or assign specific functions to each knob according to their preferences. The TX-6 offers exceptional versatility, featuring tempo synchronization, an integrated synthesizer, drum machine, and sequencer. Additionally, it includes an onboard tuner and the capability to connect to both a computer and an iOS device (MFi compatible). A USB-C cable is provided.

TX-6 Firmware Updates

Firmware Update 1.2.5

• Added beat tracking of audio input signals.


• Improved tap-tempo control.


• Added one decimal for finer BPM adjustment.


• Added tempo sync to Pong Tape FX.


• Improved DC-blocking filter on inputs.


• Added MIDI CC control of track gain setting.


• Added MIDI CC control of sequencer pattern.


• Use range 0-127 for all MIDI CCs.


• Made quick access selection persistent.


• Fixed issue when device was started with USB disk inserted.


• File corruption is prevented when powering off during recording.



Firmware Update 1.1.4

• USB mass storage disk record/playback for 24-bit 48 kHz stereo WAV files, including armed recording with automatic start on audio detect.


• PO-sync output on aux and cue, with selectable 8th note for PO-sync and 16th note for modular systems.


• External MIDI control of all TX–6 parameters, for complete remote control over MIDI.


• Extended MIDI support for synth mode to play the synth chromatically using MIDI notes from an external keyboard.


• Added Scenes to save and load all settings.


• USB audio multiple sample rate support: 48 kHz and additionally 44.1 kHz, for compatibility with MPC live etc.


• BLE MIDI clock in/out support with clock routing settings.


• BLE host mode to connect peripherals like BLE MIDI keyboards.


• Switchable aux and cue outputs, to be able to utilize the higher output level of the aux jack if needed for high impedance headphones.


• Added balanced mono input mode in addition to the stereo / mono / split modes.


• Parameters keep their values until a knob is moved, making it easier to switch knob config without undesired behavior.


• No snap back of the freeze FX parameter. Click to reset instead.


• Smoother change of FX I send.


• Stability bug fix for USB MIDI host mode.


• USB audio mode set on menu exit, instead of directly.



Battery Powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and LED strength is completely adjustable.

Synthesizer and Sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

Built-In Effects

Explore send effects like reverb, chorus, and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a 3-band EQ and adjustable compressor.

Quality Engineering

TX-6 is a sturdy little machine. encased in CNC aluminum with 2k molding, custom-made encoders and faders, and custom PCB—engineered for portability.

Wireless Connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super Slimline Cables

High-quality slimline cables custom-made for TX-6 (available separately). The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

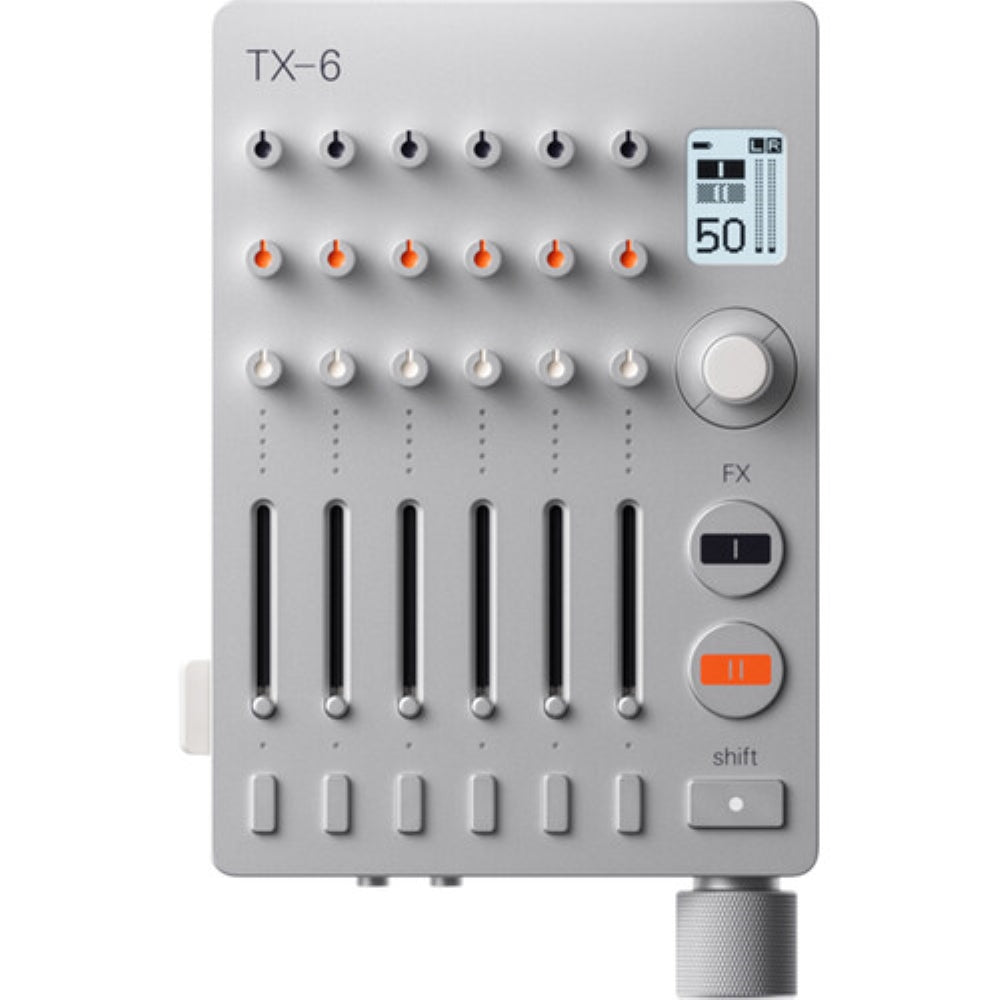

Customizable Interface

When you're ready for the studio, use TX-6 as a 12-channel audio interface and connect to any DAW over USB-C. MFi also allows you to connect to iOS devices.

DJ Mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between channels 5 and 6, so you can fade or cut between the two.

1/4" and 3.5mm Outputs

Connect your audio output through 3.5mm mini jack or use the included and removable 1/4" jack to 3.5 mm mini jack adapter.

Field Bags

Designed to fit TX-6 field mixer and constructed in heavy-duty fabric and hardware, the separately sold field bags are designed for durability, ready to be used out in the field.
