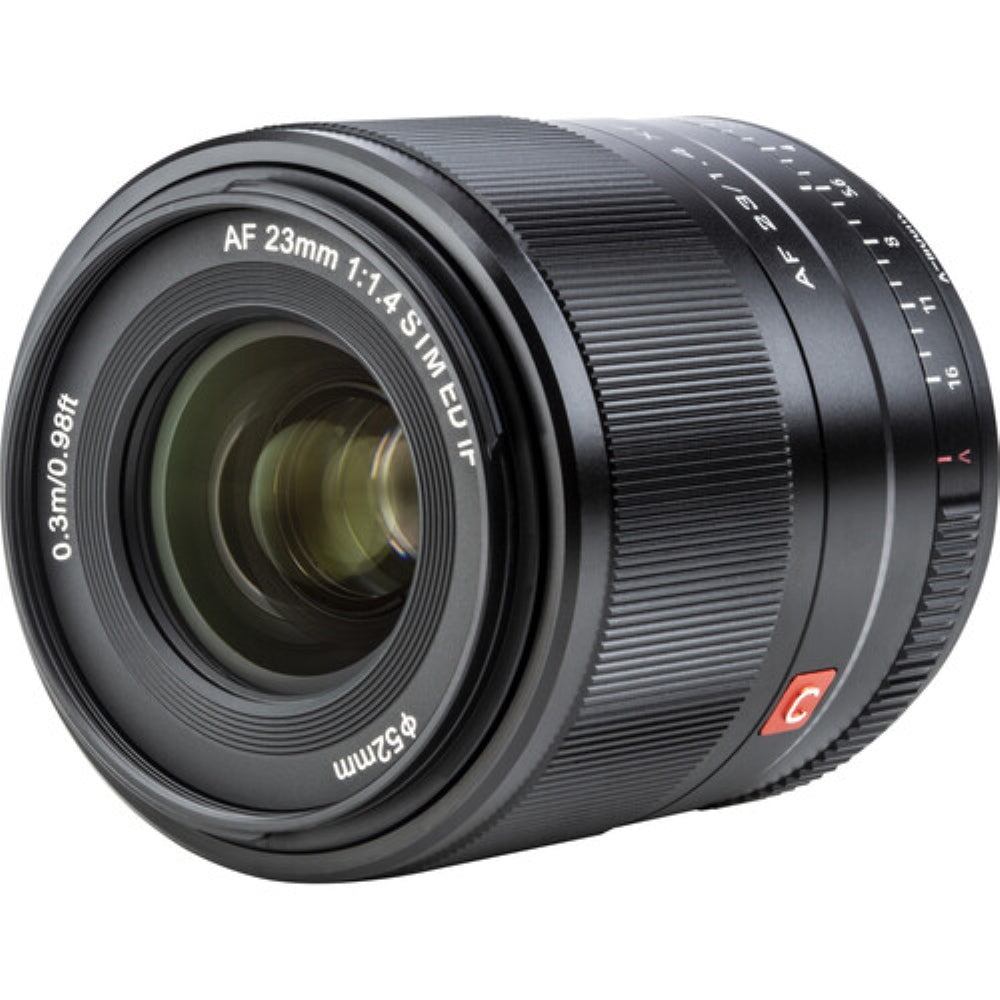

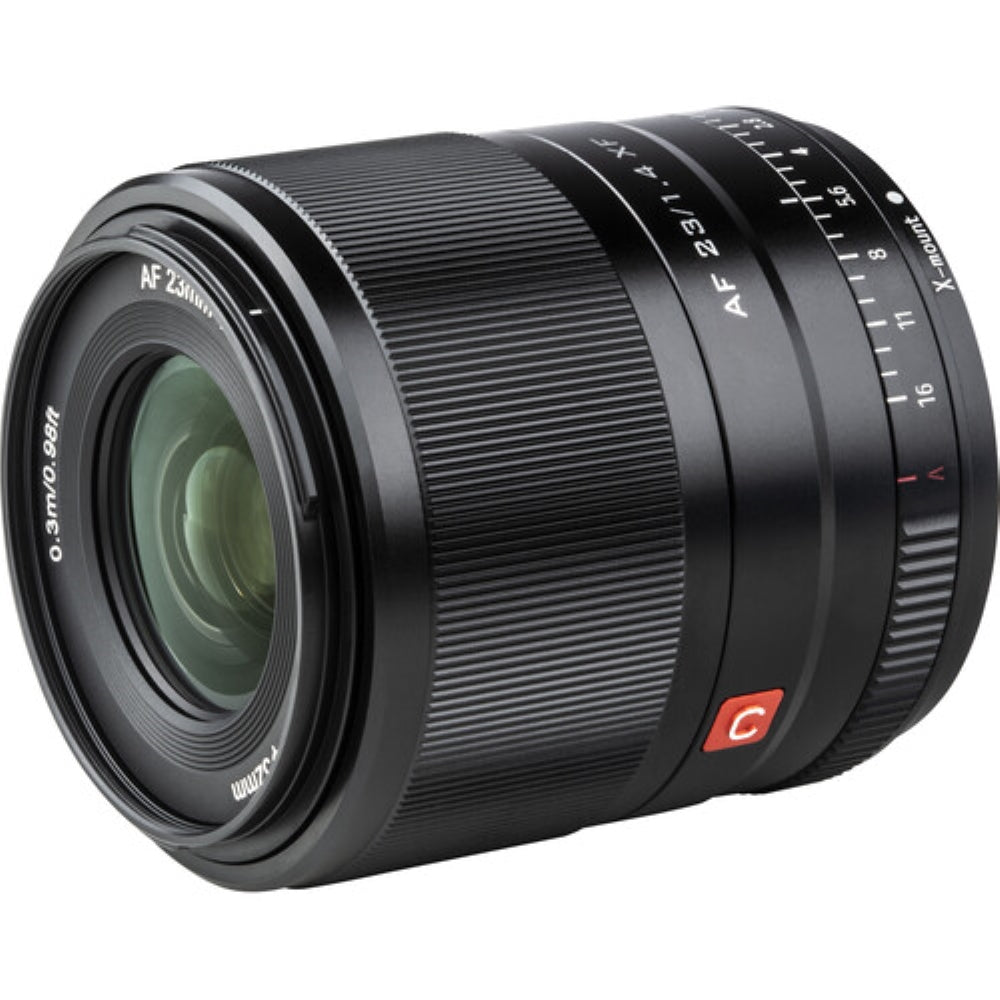

Viltrox AF 23mm f/1.4 XF Lens V2 for FUJIFILM X-Mount
Distinguished by its elegant and adaptable design, the Viltrox AF 23mm f/1.4 XF V2 serves as a 35mm-equivalent wide-angle prime lens tailored for APS-C-format FUJIFILM X-mount mirrorless cameras. The versatile wide-angle focal length, combined with the bright f/1.4 maximum aperture, is ideal for various lighting situations and allows for improved depth of field control, facilitating the isolation of subjects through selective focus techniques. The optical configuration includes two extra-low dispersion elements and two high refractive index elements, which work together to minimize various aberrations while delivering exceptional sharpness, clarity, and color fidelity. Furthermore, an HD Nano multi-layer coating has been applied to mitigate flare and ghosting, enhancing contrast in bright and backlit environments.
Regarding usability, the compact lens features an STM stepping motor that ensures rapid, nearly silent, and precise autofocus performance, along with full-time manual focus override. The internal focusing mechanism also aids in achieving swift performance. Moreover, the lens is equipped with a built-in micro-USB port, allowing for future firmware updates to be applied to the lens.
- Prime wide-angle lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 35mm equivalent focal length.
- Bright f/1.4 maximum aperture suits working in low-light conditions and also affords greater control over depth of field.
- Two extra-low dispersion elements reduce color fringing and chromatic aberrations in order to achieve a high degree of clarity and color accuracy.
- Two high refractive index elements help to control spherical aberrations and reduce distortion in order to realize high sharpness and accurate rendering.
- HD Nano multi-layer coating has been applied to individual elements to suppress flare and ghosting for greater contrast and color fidelity when working in strong lighting conditions.
- STM stepping motor enables quick, quiet, and precise autofocus performance along with full-time manual focus override. Additionally, an internal focusing design maintains the overall lens length during use for improved handling and quicker response.
- Integrated manual aperture ring for tactile exposure control; this ring also features an 'A' position for automated, camera-based aperture selection.
- Nine-blade diaphragm contributes to a pleasing bokeh quality.
- Integrated micro-USB port can be used to update the lens's firmware.
Lens |
|
|---|---|
| Focal Length | 23mm (35mm Equivalent: 35mm) |
| Aperture | Maximum: f/1.4 Minimum: f/16 |
| Lens Mount | FUJIFILM X |
| Lens Format Coverage | APS-C |
| Angle of View | 63.4° |
| Minimum Focus Distance | 11.81" / 30 cm |
| Magnification | 1:10 Macro Reproduction Ratio 0.1x Magnification |
| Optical Design | 11 Elements in 10 Groups |
| Aperture/Iris Blades | 9 |
| Focus Type | Autofocus |
| Image Stabilization | No |
| Filter Size | 52 mm (Front) |
| Dimensions | ø: 2.56 x L: 2.83" / ø: 65 x L: 72 mm |
| Weight | 9.17 oz / 260 g |
