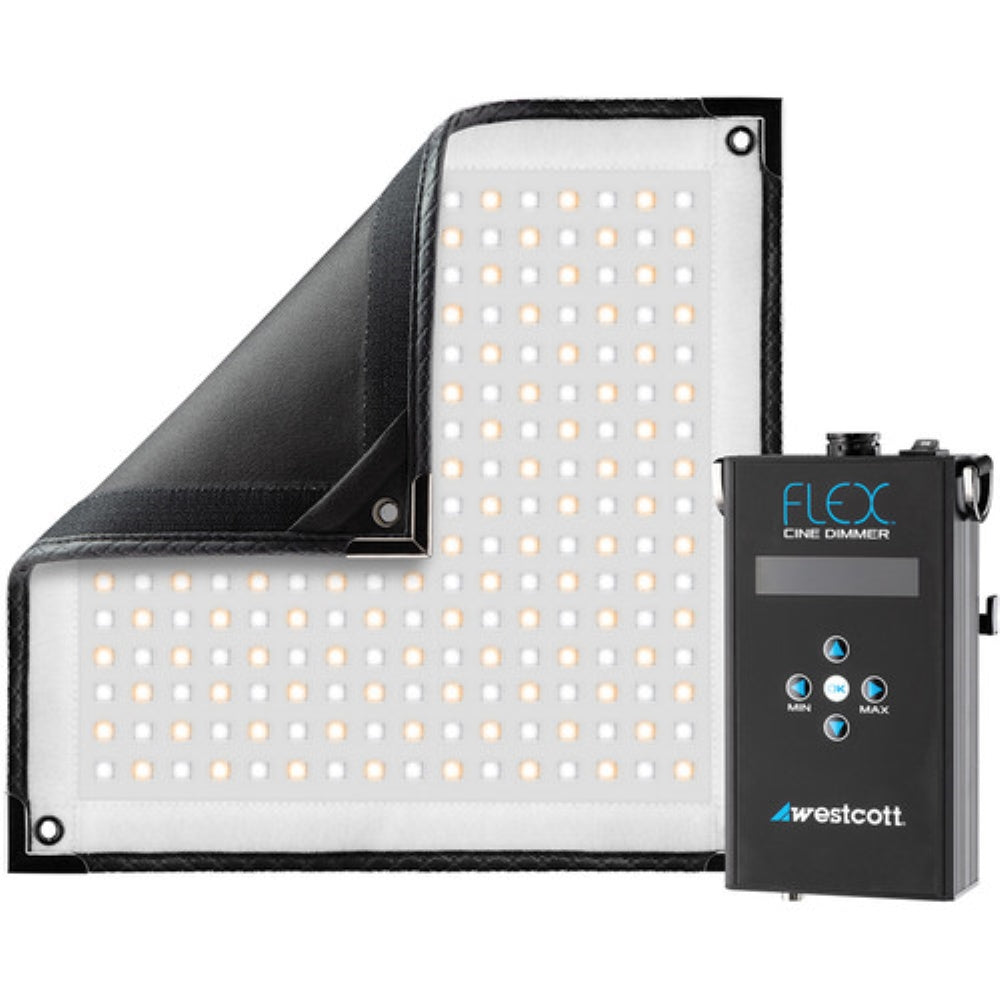

Westcott has assembled the 1 x 1' Flex Cine Bi-Color Mat 1-Light Kit to provide image creators with a distinctive, ultra-slim lighting solution featuring adjustable color temperature and power settings. This kit comprises a flexible, IP64-rated water-resistant mat capable of variable color temperatures ranging from 2800 to 6000K, a dimmer that allows for 0 to 100% brightness control, a shoulder strap compatible with V-mount batteries, and a power adapter complete with a cord.
Westcott Flex Cine Bi-Color Mat | 1 x 1'

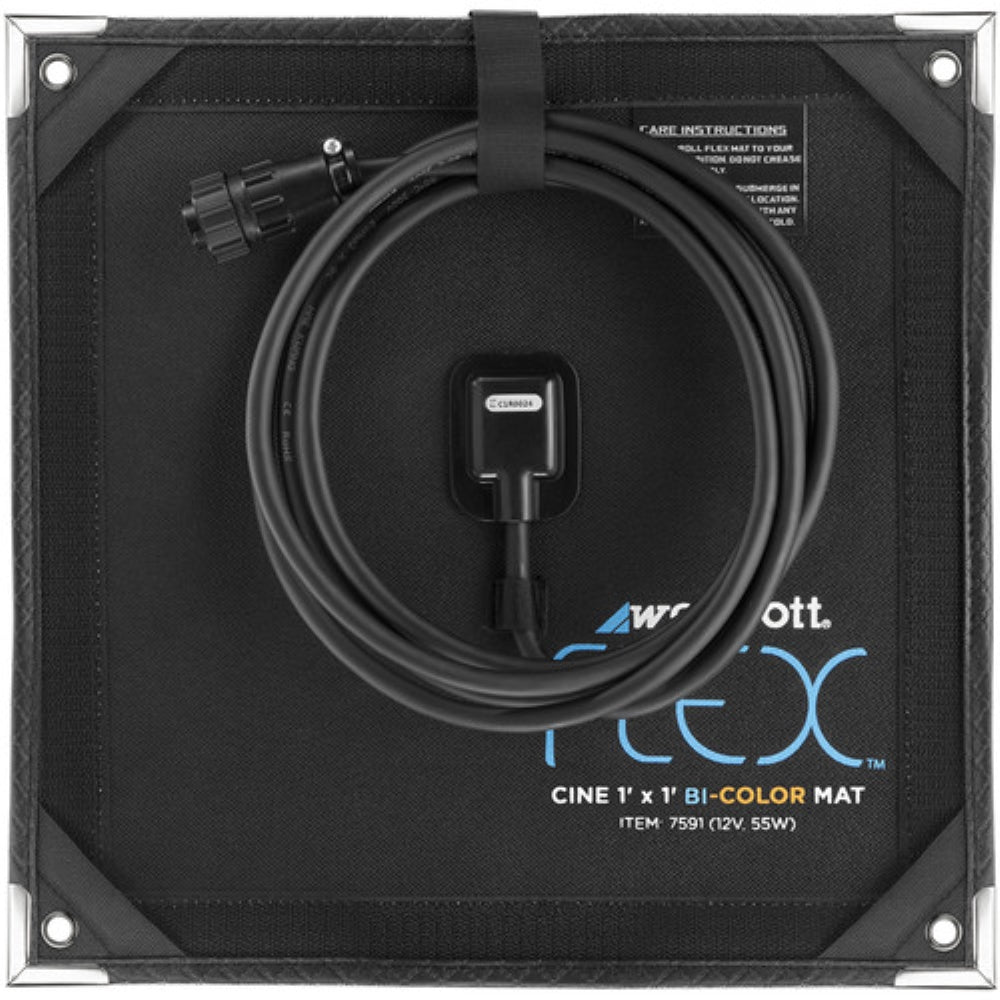

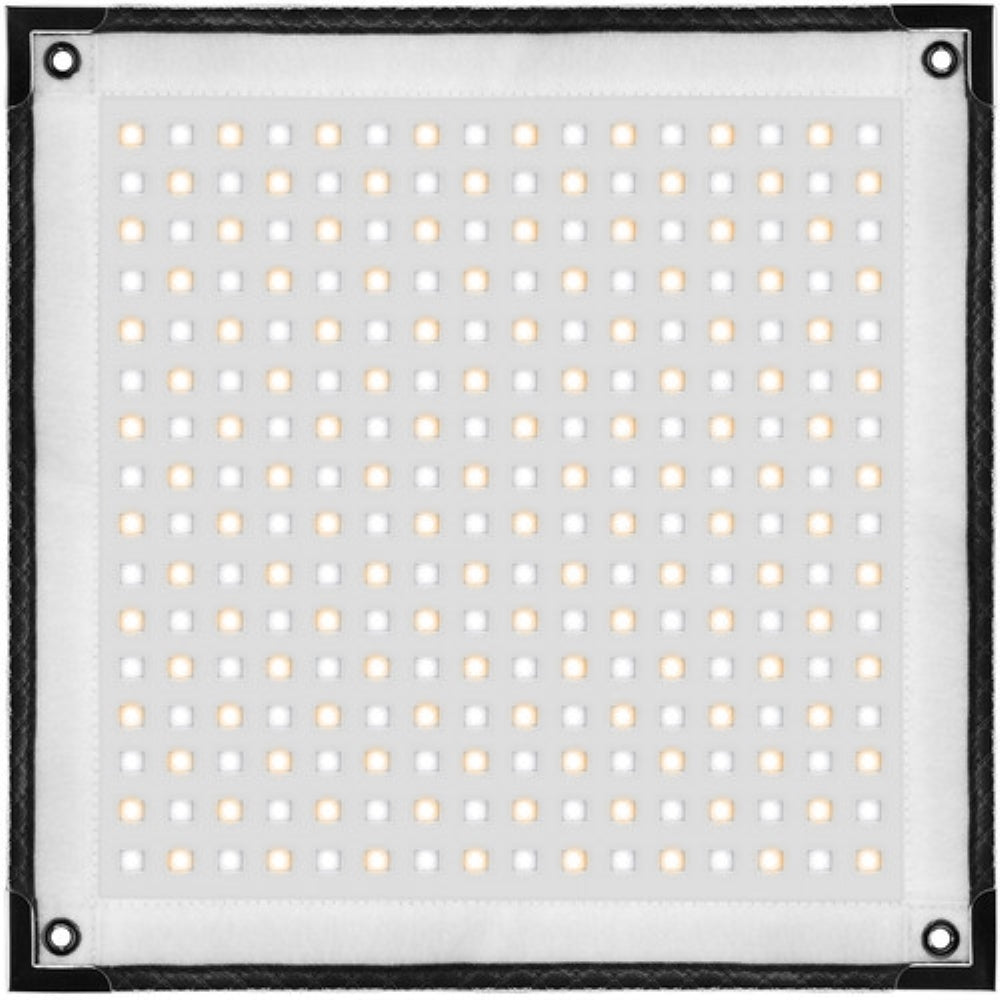

This 1 x 1' Westcott Flex Cine Bi-Color Mat generates 2200 lux of daylight-balanced illumination with a nominal beam angle of 140°. The mat is designed with hook-and-loop fabric edging and grommets for mounting, and it features magnetic metal-capped corners, allowing for easy attachment to nearly any metallic surface. Its flexible construction permits the mat to be shaped, producing a beam angle that ranges from 360° when rolled into a cylinder to 140° when laid flat.
The light output's color temperature is adjustable between 2800 and 6000K, making it suitable for outdoor shooting, while the high CRI and TLCI ensure superior color accuracy. The mat can deliver flicker-free output at brightness levels from 1 to 100% when connected to a Flex Cine Wireless Dimmer (not included). To operate the mat, it must be connected to a Flex Cine Wireless Dimmer and powered by a 14.8V V-mount battery or power supply.
- The Flex Cine Mat features hook-and-loop fabric, grommets, and metal-capped corners that are magnetic, which can all be used for mounting (Optionally a yoke and flex mount are available separately)
- Reinforced mounting points and a reinforced cable mount compared to previous Westcott flexible LED mats extend the life of the Flex Cine Mat
- This flexible mat can be shapped to fit into tight spaces
- It features an IP64 rating
- 2200 lux at just over 3'

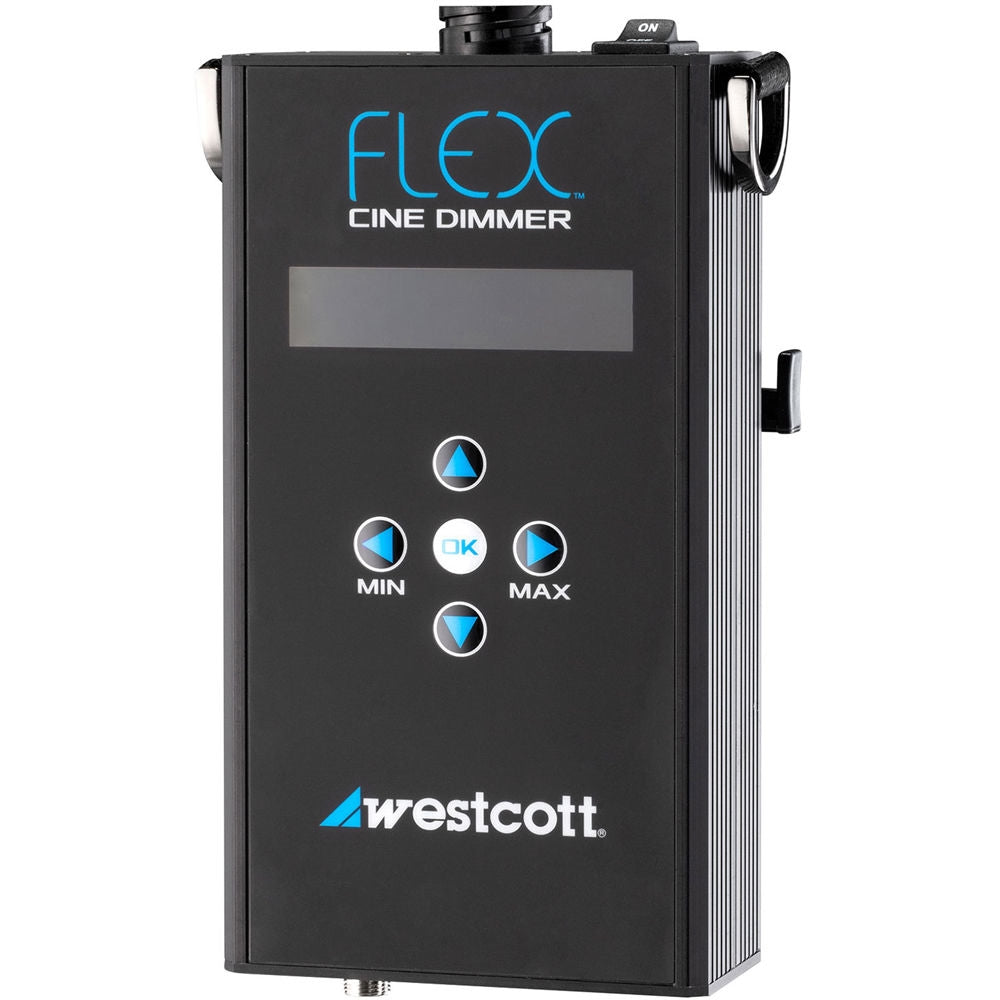

Westcott Flex Cine Dimmer

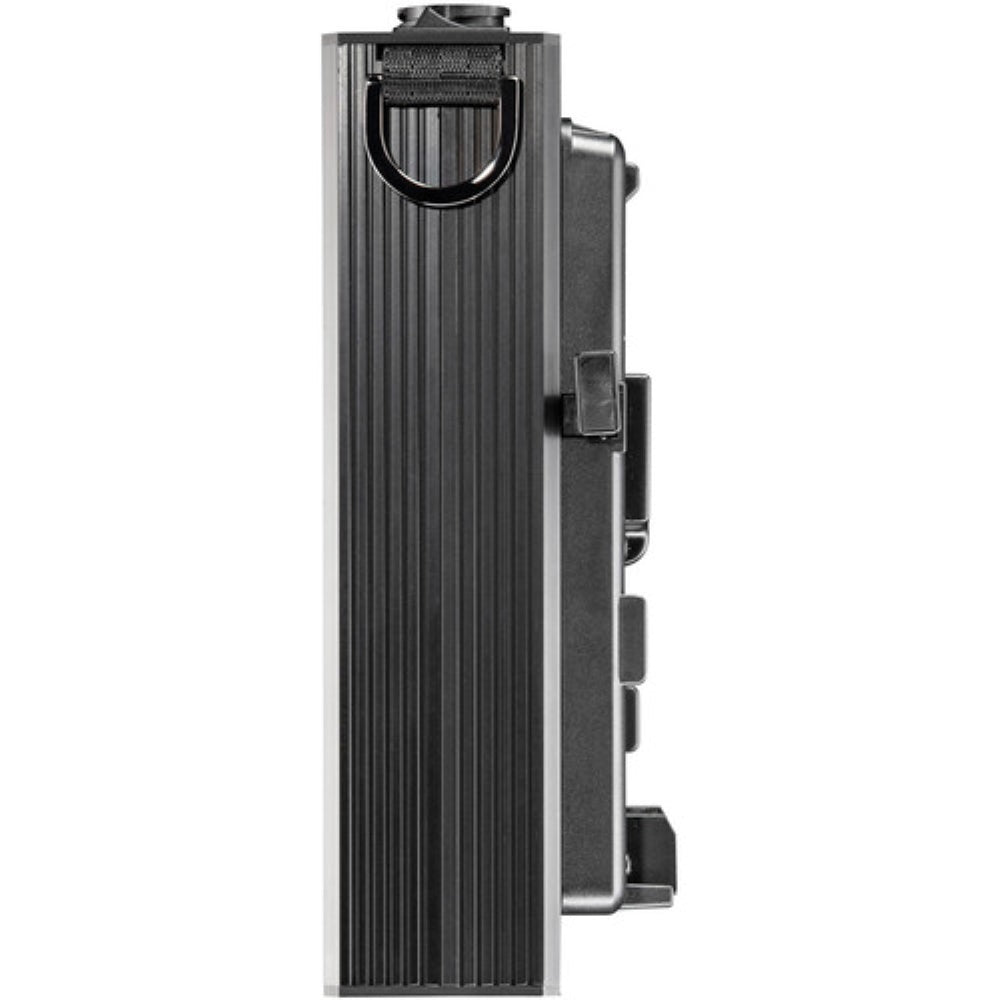

The Flex Cine Dimmer from Westcott is designed to be compatible with any Flex Cine Bi-Color or Daylight LED mat measuring up to 1x2 feet. It also supports backward compatibility with Flex 1x1 and 1x2 mats when used with an optional legacy TE-9 pin adapter. This dimmer not only adjusts light intensity from 1% to 100%, but it also functions as a controller, allowing for color variation on bi-color mats within the range of 2800 to 6000K. Users can make local adjustments directly on the unit. The dimmer can operate using wall current through the included AC adapter, or it can be powered by 14.4 to 26V batteries, thanks to its integrated V-mount battery plate. Additionally, the dimmer features 1/4"-20 female threads for mounting and comes with a removable shoulder strap for convenient hanging on a light stand.
Light Fixture |
|
---|---|
Item Type | 1x LED Flexible Light |
Included Storage Case | No |
Photometrics | 5600K: 207 fc / 2234 Lux at 3.3' / 1 m 19 fc / 208 Lux at 9.8' / 3 m 23 fc / 253 Lux at 0.2' / 5 cm 3200K: 191 fc / 2062 Lux at 3.3' / 1 m 17 fc / 191 Lux at 9.8' / 3 m 21 fc / 232 Lux at 16.4' / 5 m |
Color Temperature | 2800 to 6000K |
Color Modes | Daylight, Tungsten |
Color Accuracy Standard | CRI 97 TLCI 98 |
Dimming | Controller Not Included (Continuous) • 1 to 100% |
Cooling System | Passive |
Expected Lamp Life | 50,000 Hours |
Beam Angle | 140 to 360° |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Connectivity |
|
---|---|
Mobile App Compatible | No |
Power & I/O |
|
---|---|
Power Source | AC to DC Adapter (Not Included) *Requires Power Supply/Controller (Not Included) Battery (Not Included) *Requires Power Supply/Controller (Not Included) |
Inputs/Outputs | 1x Built-In Cable with Proprietary 9-Pin Power Input |
Battery Plate Type | 1x V-Mount (Not Included) |
Battery | 1x Rechargeable (Not Included) |
Input Power | 14.8 VDC |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 55 W |
Mounting |
|
---|---|
Fixture Mounting | 4x Unthreaded Hole Magnetic |
General |
|
---|---|
Display | No |
Environmental Resistance | Dust/Water-Resistant (IP64) |
Operating Conditions | Up to 140°F / 60.0°C |
Materials | Fabric |
Dimensions | 12 x 12 x 0.5" / 0.3 x 0.3 x 0 m (Fixture) |
Weight | 1.26 lb / 0.57 kg |
