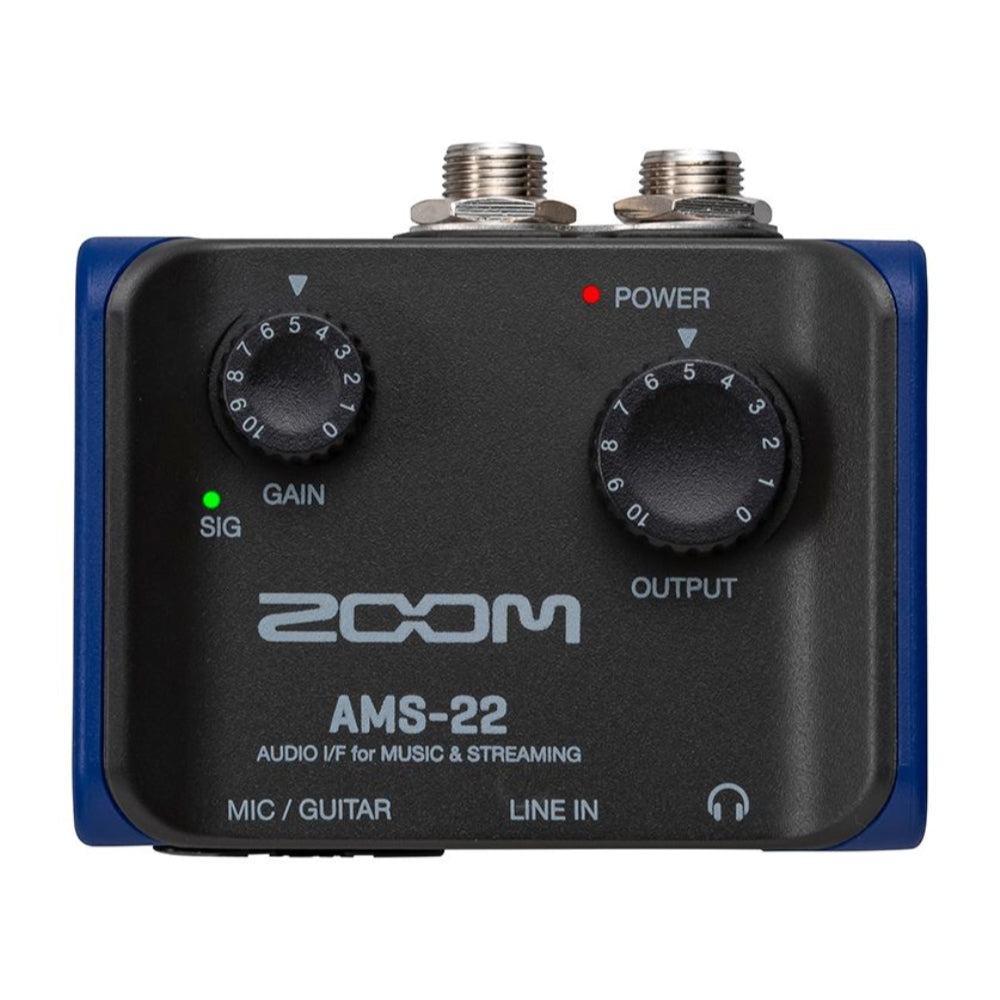

Zoom AMS-22 Audio Interface

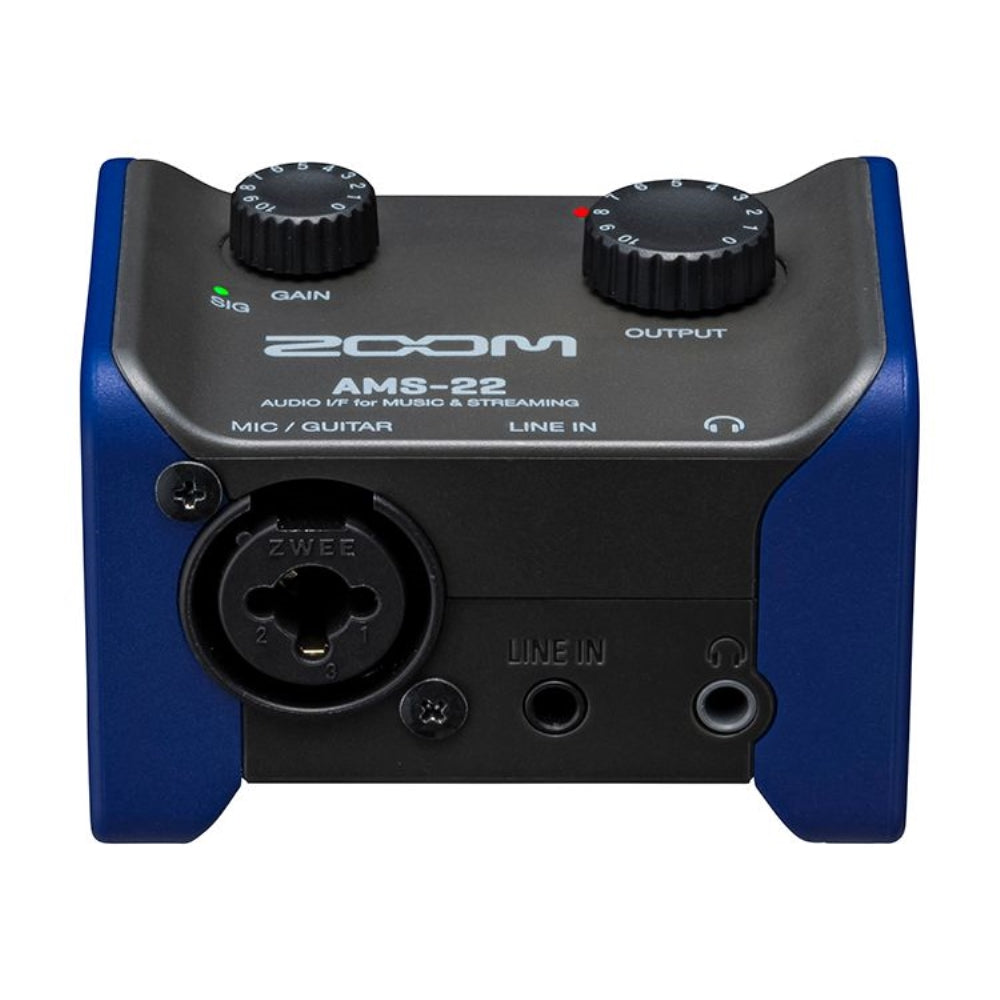

Solo musicians who require a portable audio interface will find the Zoom AMS-22 to be an efficient and user-friendly option. This ultraportable device is designed for recording and streaming to Mac or Windows computers, as well as iOS and Android mobile devices. It features a TRS/XLR input, two TRS outputs, a 3.5mm headphone jack, and a USB-C connector.

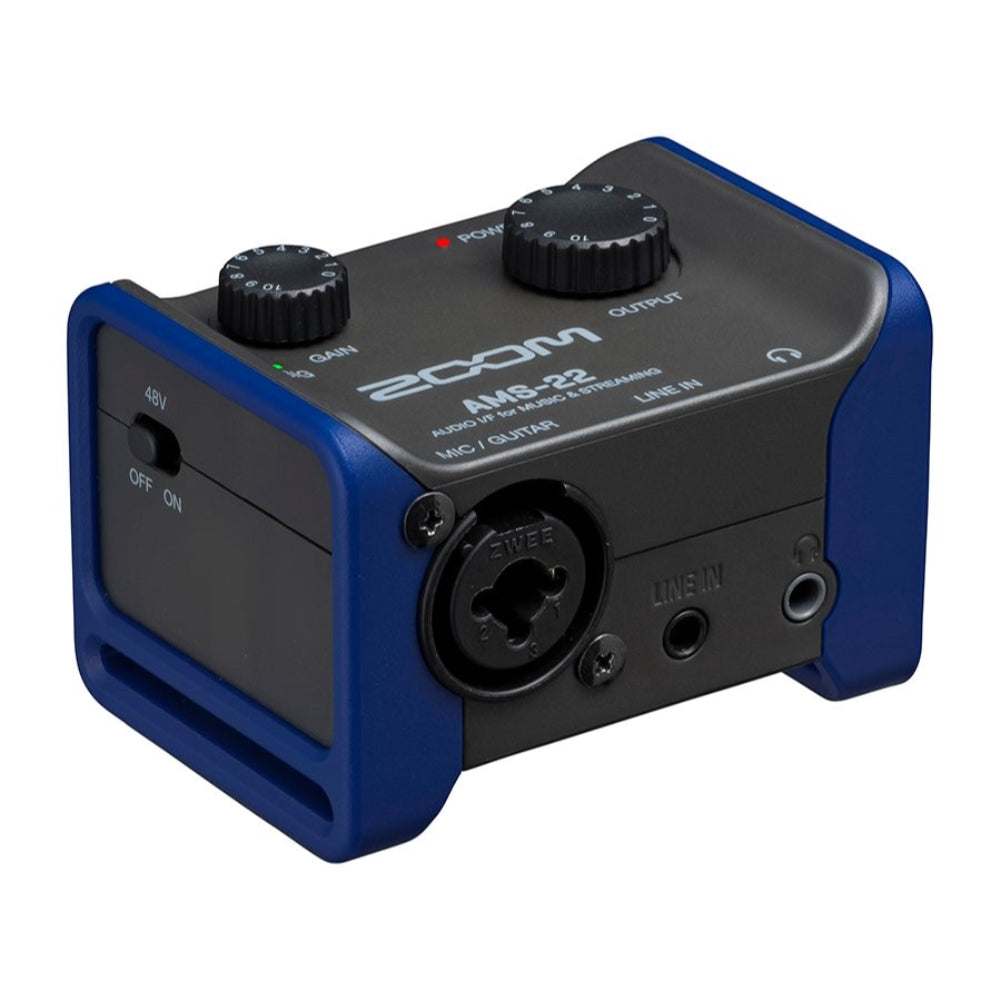

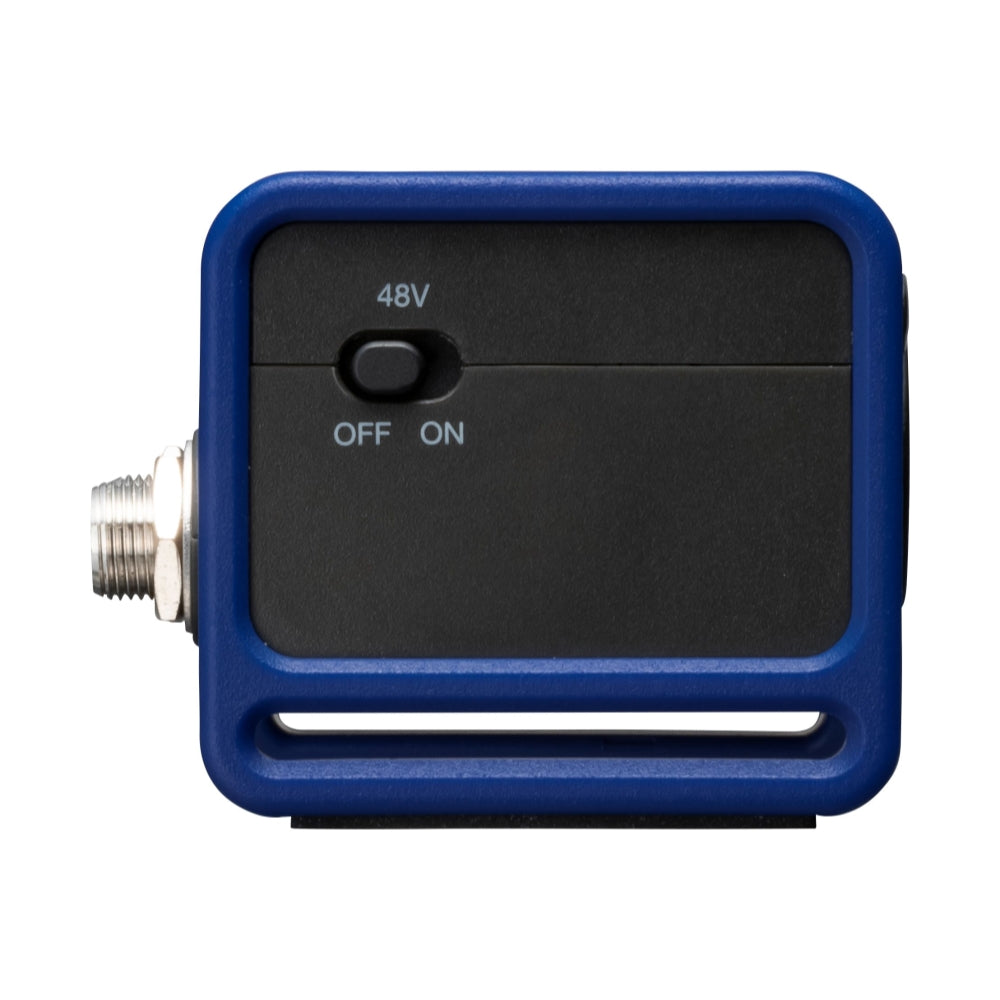

Connect your guitar or microphone to the TRS/XLR input, and activate the 48V phantom power switch to supply power to condenser microphones. For stereo music sources, utilize the 3.5mm input jack and monitor audio through the 3.5mm headphone jack, or link monitor speakers to the stereo TRS output. The AMS-22 is capable of 24-bit resolution recordings with a sampling rate of up to 96 kHz. This interface draws power from your computer's bus, but can also be powered by an AC adapter (sold separately) when used with a smartphone or tablet. The direct monitoring and loopback features facilitate straightforward overdubbing and the integration of music into your streams.

Two Inputs and Two Outputs

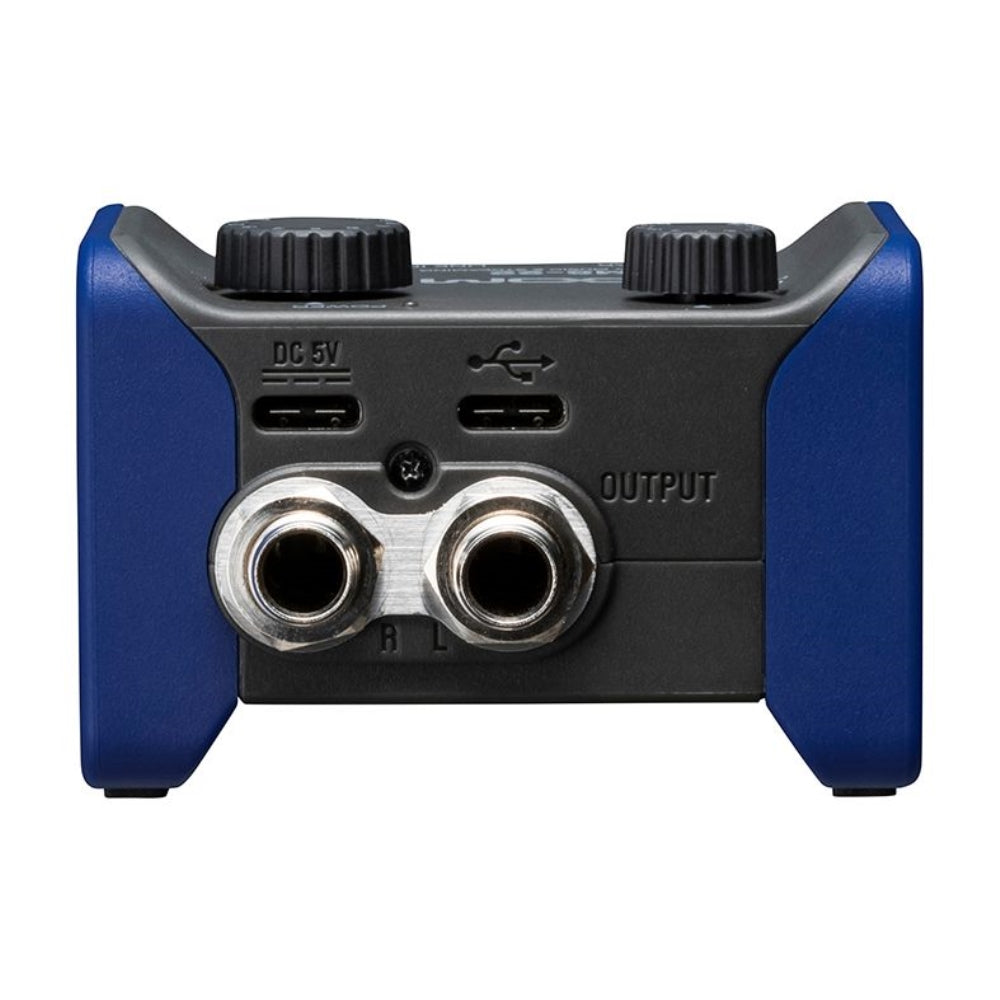

Perfect for mobile recording or streaming, the AMS-22 includes one XLR/TRS combo input, plus a stereo 3.5mm line in. It also includes one 3.5mm headphone output and two TRS outputs for external monitors.

Use for Recording and Streaming

The AMS Series is compatible with a variety of devices, including Mac and PC, as well as iOS and Android platforms, allowing for versatile usage. It integrates effortlessly with widely utilized software, applications, and platforms. In Streaming mode, engage with your audience by broadcasting to well-known platforms such as YouTube, Facebook, Twitch, Instagram, and Patreon. In Music mode, you can record using software such as Adobe Audition, Pro Tools, Cubase, and GarageBand.

Quick Control

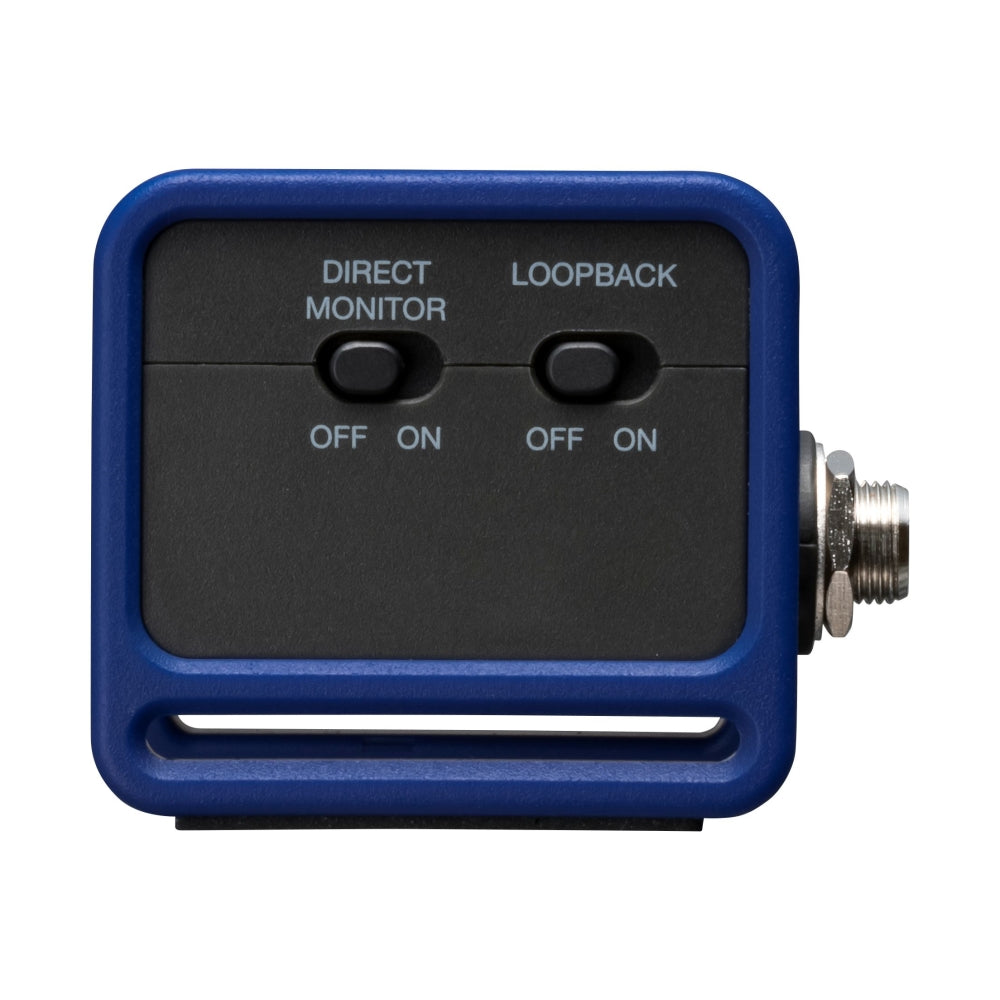

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

Onboard Monitoring

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loopback

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
