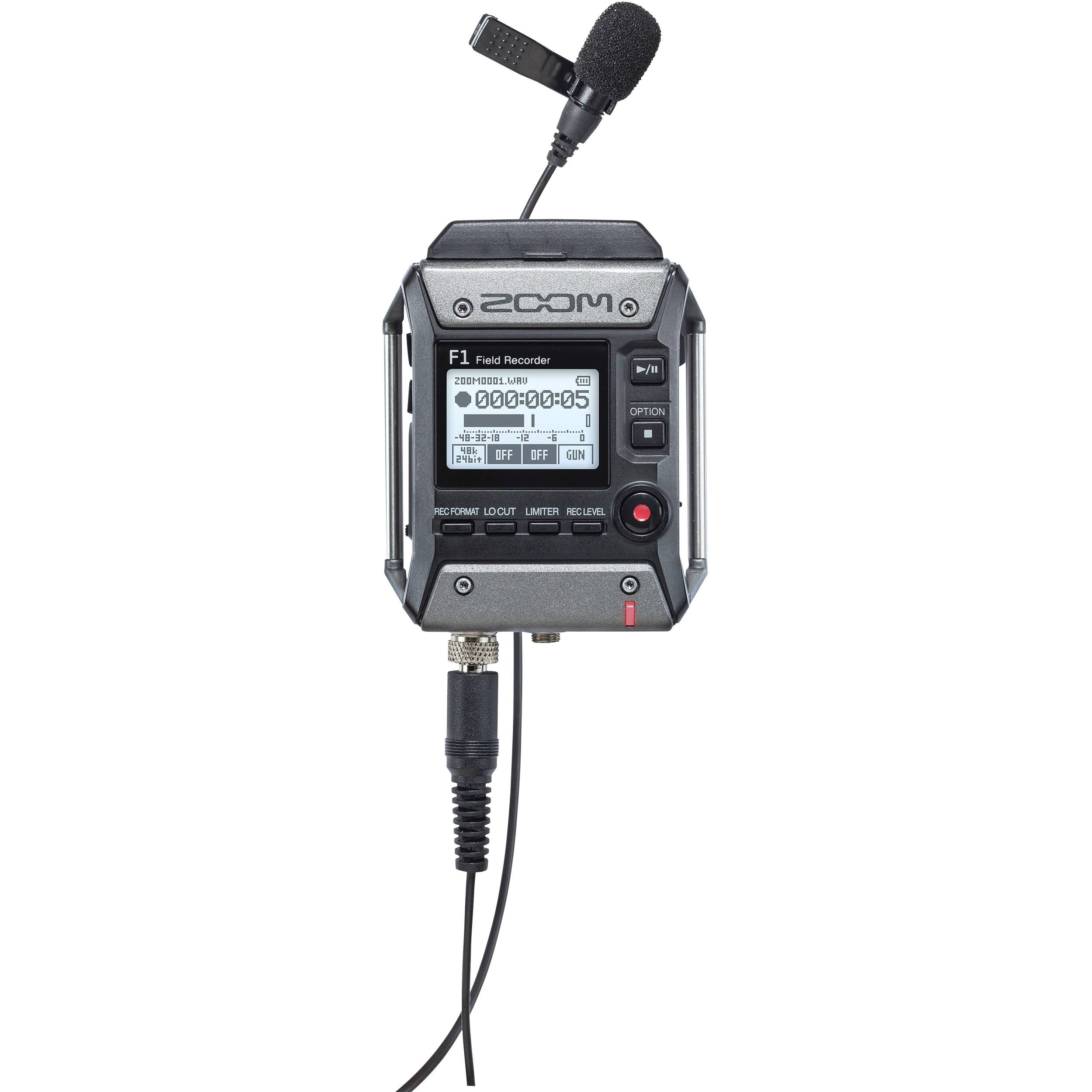

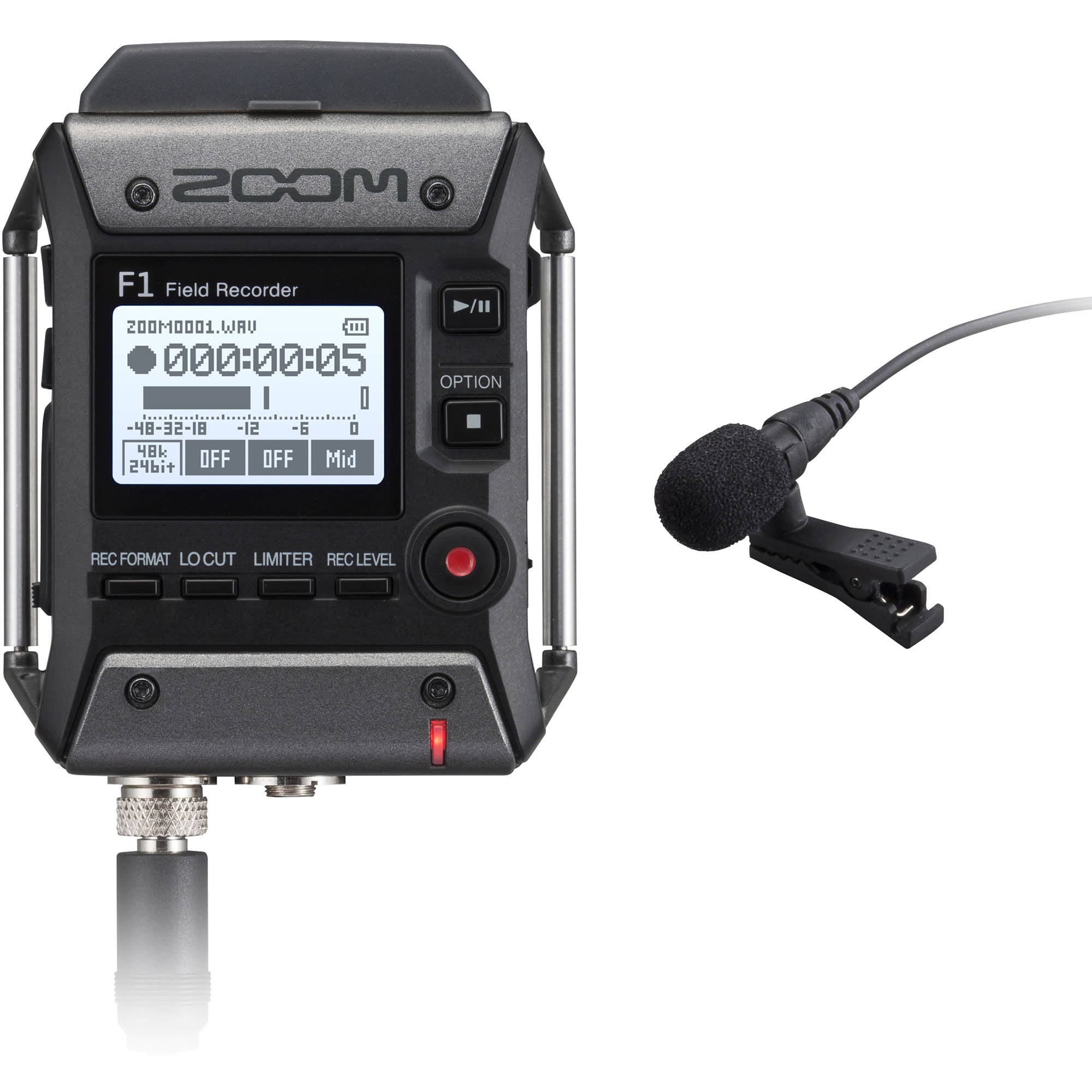

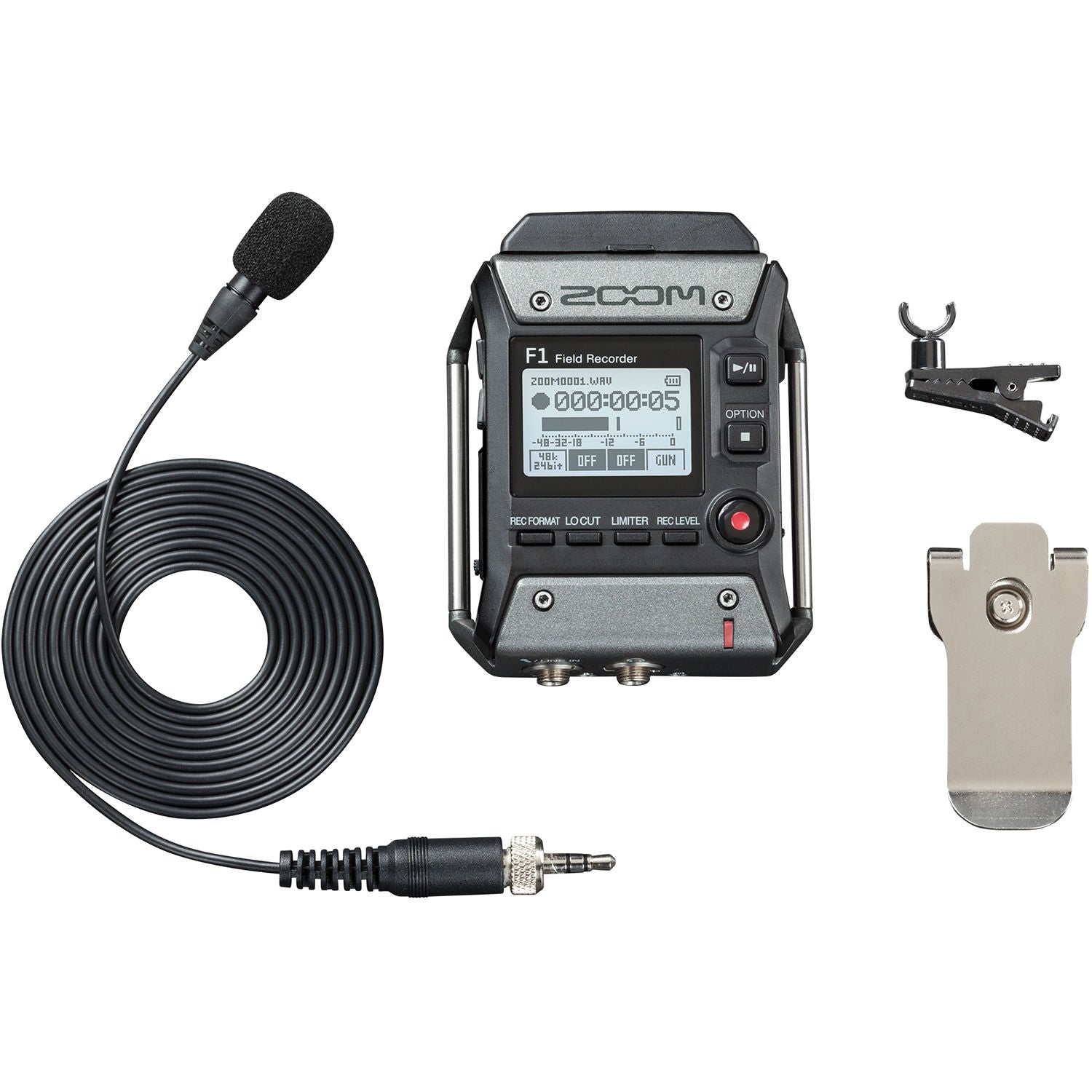

Zoom F1-LP Field Recorder with Lavalier Microphone Package

Capture high-quality, clear dialogue swiftly for your upcoming video production, interview, or vlog with the Zoom F1-LP. This 2-track portable field recorder features an integrated limiter and auto-level control, ensuring distortion-free 24-bit audio. It comes with a clip-on lavalier microphone for straightforward setup. Unlike other F-Series models such as the F4, F6, and F8n, which are designed for sound bag configurations, the F1-LP is specifically optimized for belt-mounting and pocket-friendly use.

Equipped with an easy-to-read backlit display and intuitive one-touch controls, the F1-LP boasts a long battery life, making it a dependable choice for users of all audio expertise levels. Whether you require extended recording for a lecture, professional audio for an interview, or a compact setup for trade shows and special events, the F1-LP is prepared to meet your essential audio needs. Its user-friendly design ensures that the F1-LP will seamlessly integrate into your workflow, whether it is straightforward, intricate, or constantly evolving. You can confidently utilize it as your primary recorder, a USB audio interface for your computer or iPad setup, or as a backup unit for additional security.

Omnidirectional Lavalier Microphone

Affix the provided lavalier microphone to your subject using the included mic clip, and subsequently connect the cable, which is equipped with a 3.5mm plug, to the input of the F1-LP. The locking mechanism ensures that accidental disconnections are prevented. The microphone features an omnidirectional polar pattern, which allows for uniform audio capture from all angles, ensuring reliable voice recording even when the subject turns their head or the microphone is repositioned.

Onboard Limiter and Auto-Level Prevent Clipping

The F1-LP utilizes an onboard limiter and automatic level control to provide protection against overloading the A/D converters. Record with confidence knowing that sudden volume spikes won't distort or clip your files.

Configurable Recording Settings

The F1-LP boasts a slew of recording resolutions to choose from—48 to 320 kb/s in MP3 format, or up to 24-bit / 96 kHz in uncompressed WAV format. Also, a pre-record function allows you to capture approximately two seconds of audio before you press the record button, and a low-cut filter attenuates rumble for cleaner voice recordings.

Record Direct to microSD Cards

Maximize portability by recording directly to a microSD/microSDHC card (available separately) for up to 32 GB of storage space. Select MP3 format if you really need extended time and minimal file size, or use the BWF-compliant WAV format for uncompressed audio quality and industry-standard file compatibility.

Audio Interface Functionality

Alternatively, use the F1-LP as an 2-in/2-out USB 2.0 audio interface at up to 16-bit / 48 kHz. Connect it to your computer or iPad, launch your preferred audio recording program, then enjoy the combination of the F1-LP's sonically solid front end, plus the familiarity and features of your favorite software.

Mic/Line Input with Plug-In Power

The F1-LP can accommodate mic- or line-level signals via its locking 3.5mm stereo mini-jack input. Since it supplies 2.5V plug-in power, you're free to use common condenser mics such as lavaliers, headsets, and earsets.

Zoom Mic Capsule Input

A proprietary 10-pin Zoom mic capsule input on the F1-LP accommodates Zoom's line of interchangeable capsules (available separately) in place of the standard mic/line input. With mid-side, X/Y, and shotgun mic capsules to choose from, you can be ready to record music, dialog, or sound effects without carting an external microphone setup. There's even the EXH-6 input capsule (available separately) if you need dual XLR-1/4" combo inputs.

Headphone/Line Output with Volume Control

A locking 3.5mm stereo output jack with a dedicated volume control enables straightforward routing to your camera, DSLR, secondary recorder, or headphones.

Power for Hours

To keep up with the pace of on-location production, the F1 can be powered via two AAA batteries or a Zoom AD-17 power adapter (available separately). Even at 24-bit / 48 kHz, you get plenty of recording time—up to 17.5 hours with lithium batteries or up to 10 hours with alkaline batteries. All-day shoots are no problem for the F1-LP.

Multifunction Micro-USB Port

A micro-USB port on the F1-LP serves several functions. Connect it to a computer for convenient data exchange, or hook it up to an iOS device (or computer) to use the F1-LP as a miniature audio interface.

Highly Visible Display

Day or night, view vital information such as audio levels, recording time, battery status, and more on the 1.25" monochrome backlit LCD. Intuitive one-touch buttons provide fast, hassle-free operations.

Low Profile and Lightweight

With its minimal profile, the lightweight F1 attaches neatly on belts and waistbands, or can be slipped into a pocket so the recorder can be easily concealed.

Built-In Tone Generator

The F1-LP has a built-in tone generator for calibrating audio levels between the F1-LP and a DSLR or video camera without the need for an attenuator cable.

Sound Markers for Simple File Alignment

A sound marker function allows you to record reference tones that simplify audio and video file alignment between unsynchronized devices.

Auto Lock Inhibits Accidental Interruptions

The record hold function or hold switch can be used to prevent interruptions to the recording caused by accidental button presses.
