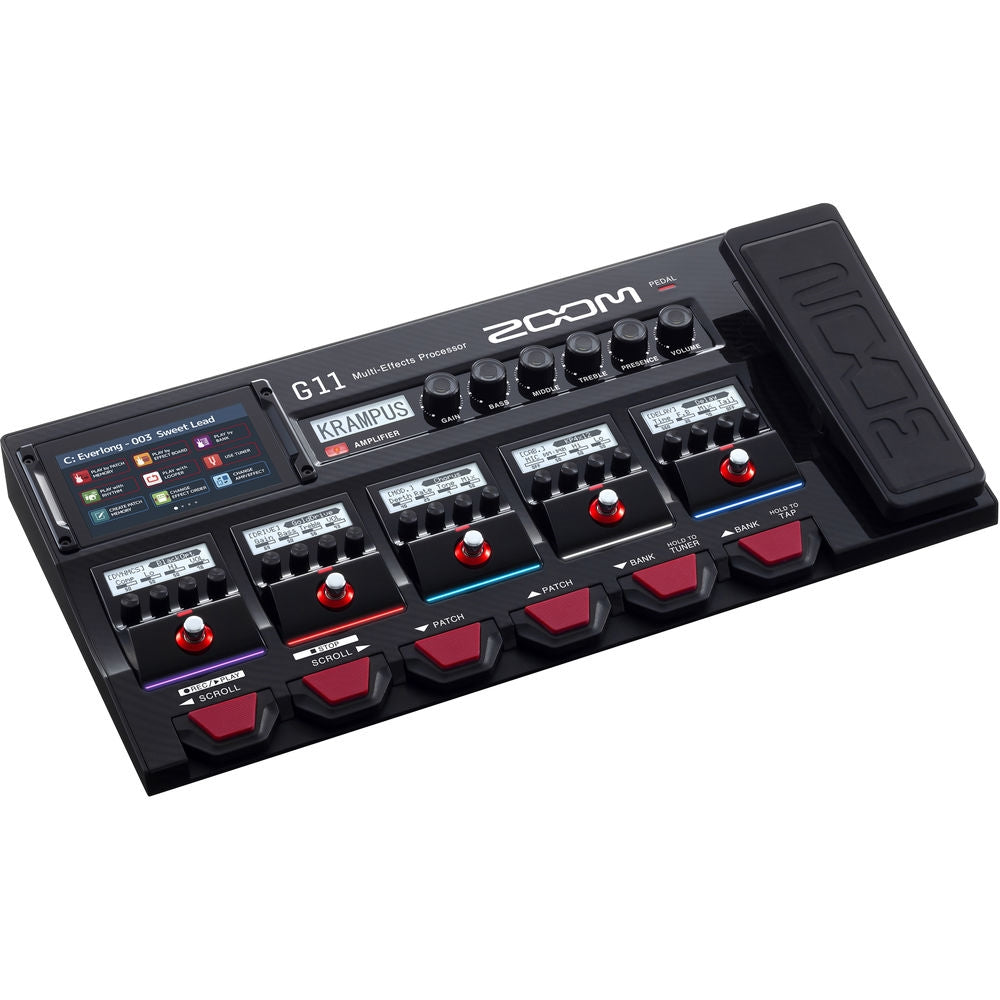

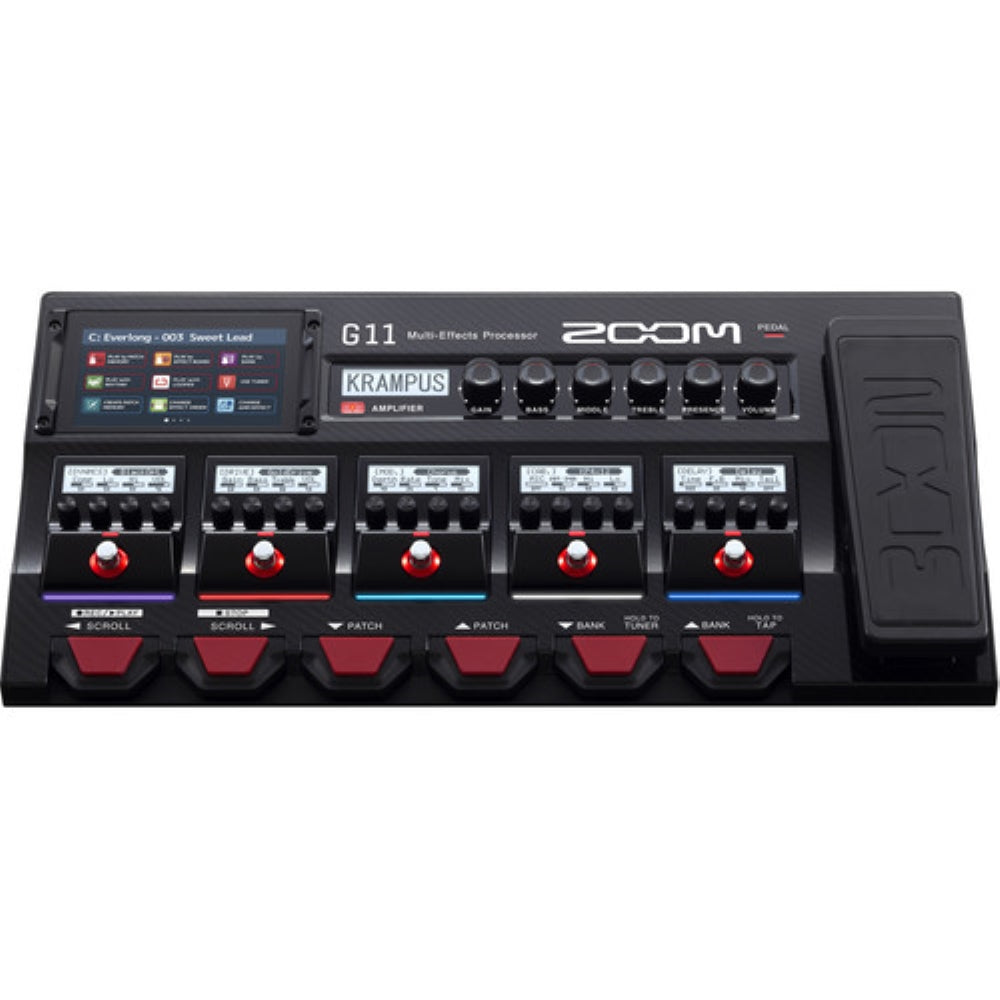

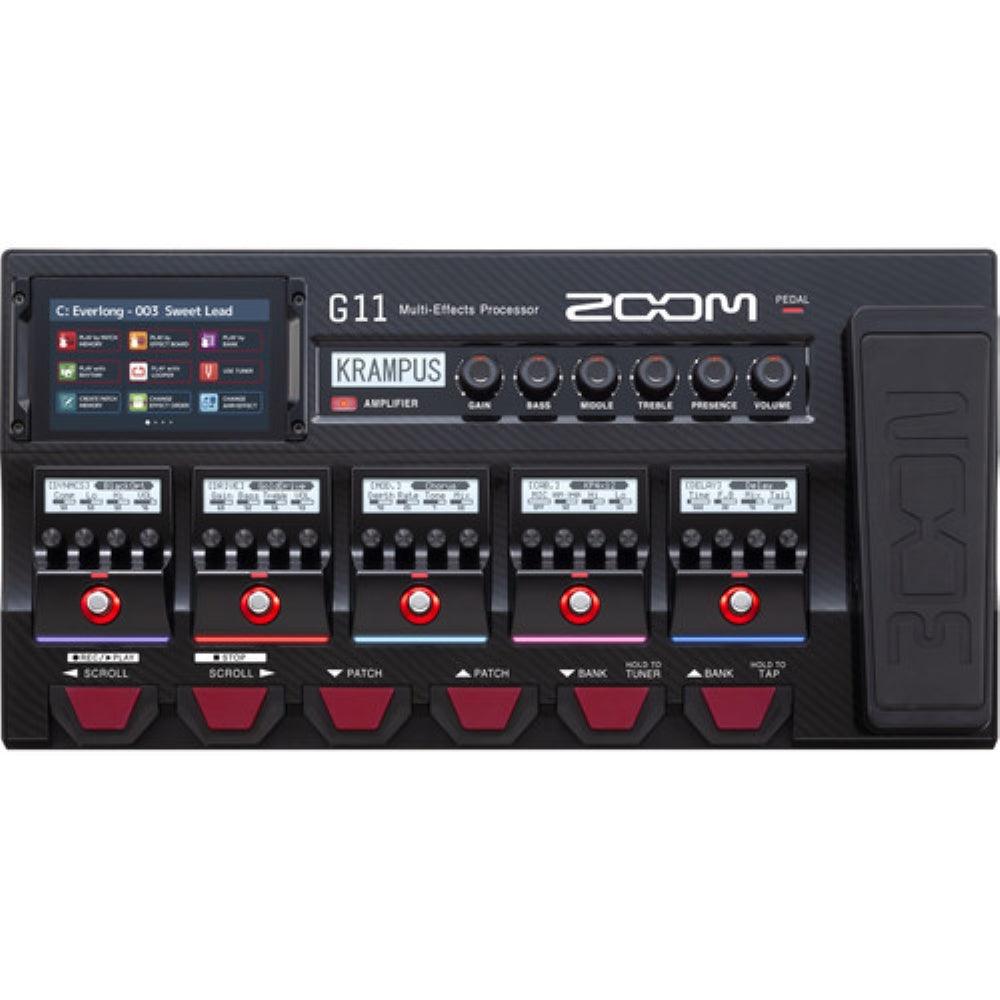

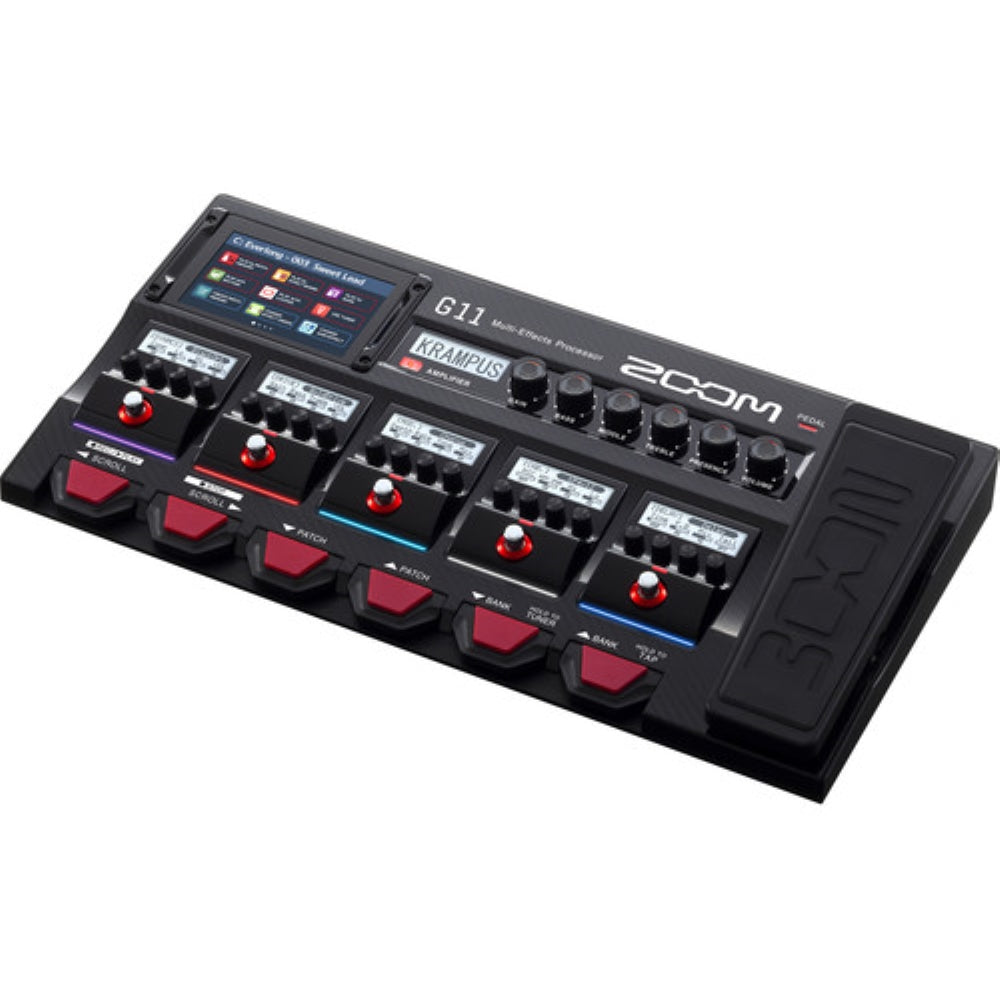

Zoom G11 Multi-Effects Processor for Electric Guitar
Achieve a concert-quality sound in a compact format with the Zoom G11 Multi-Effects Processor, a pedalboard equipped with all the essentials for an exceptional performance. This device features a specialized amp-modeling panel, five stompbox switches, and a foot pedal for both expression and volume adjustments. The touchscreen interface simplifies the process of fine-tuning your guitar tone, allowing you to effortlessly navigate through your options with a simple drag and swipe for optimal sound.
This pedal features a wide array of integrated effects, allowing for the simultaneous use of any nine. It supports modulation, distortion, compression, and time-based effects in conjunction with a dedicated amplifier simulation. The device includes 50 cabinet impulse responses, and users can also upload third-party IRs into one of the 50 available user slots. Additionally, it offers 240 presets that can be saved and accessed at any moment.

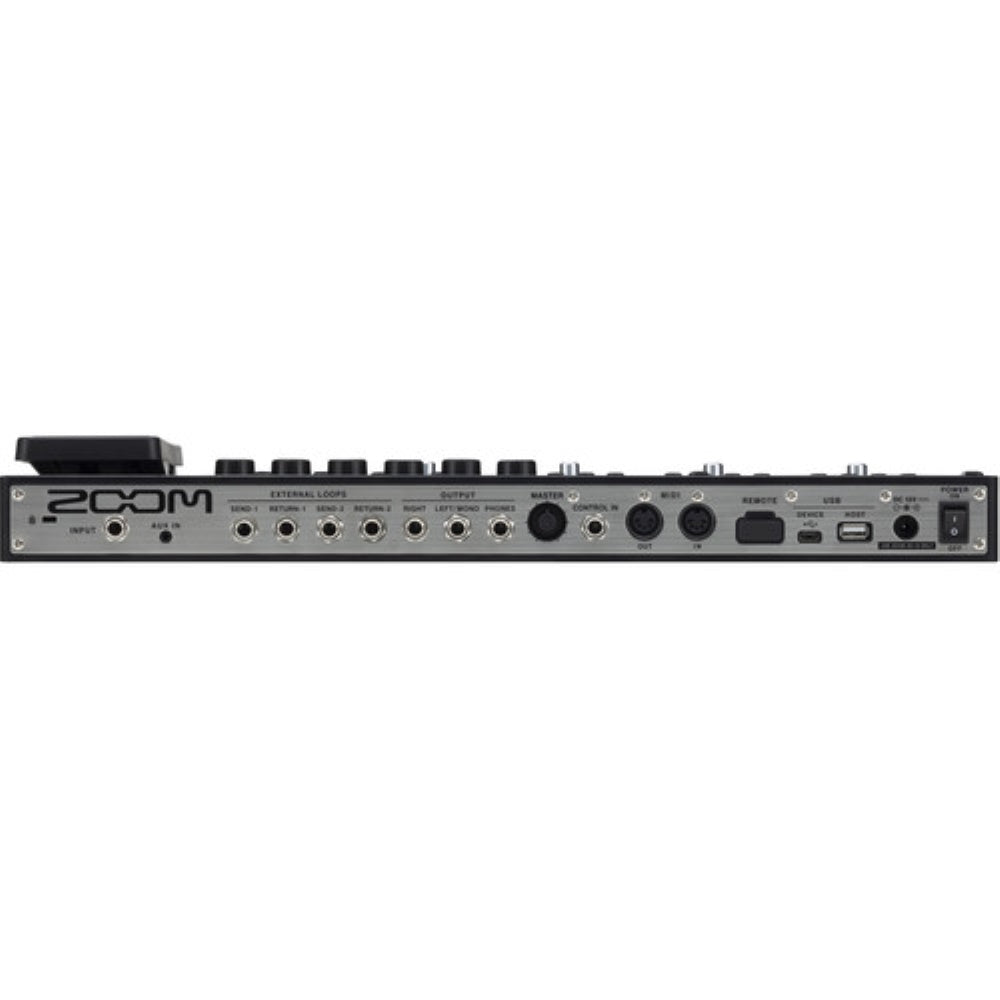

The unit employs 32-bit digital processing with 24-bit AD/DA conversion at 44.1 kHz, achieving over 128x oversampling for authentic sound quality. User-friendly controls are facilitated by footswitches and a built-in expression pedal. Enhanced control options are available on the back panel, which includes MIDI I/O, a 1/4" control input, and a slot for an optional Bluetooth adapter. It also features two 1/4" FX loops, stereo outputs, a headphone output, and an auxiliary input.
The device is equipped with both USB Type-C and USB Type-A ports; one serves as an interface for direct guitar recording to computers, while the other is for connecting USB thumb drives. With the optional Bluetooth adapter, users can explore additional amp, cabinet, and effect combinations via the Zoom Guitar Lab. A 5-minute looper is included for layering sounds, catering to various performance styles. A power adapter is provided with the unit.
Additional Features
- Integrated pedalboard with dedicated amp modeling panel, five Stomp switches, and expression/volume controller
- Touchscreen interface on color LCD with drag and swipe functions for easy and fast navigation
- Chain up to nine effects plus an amplifier emulation
- Original amp modeling combinations
- Original distortion and modulation effects
- 50 built-in IR emulations plus 50 available slots for user uploaded IRs
- 2 effects loops
- MIDI I/O
- 5-minute stereo looper
- 68 built-in rhythm patterns
- USB audio interface for direct recording to your DAW
- Remote iOS connection for using Guitar Lab Mobile via Bluetooth Adapter (BTA-1)
- Compatible with Zoom Guitar Lab to download additional effects
Pedal |
|
---|---|
Simultaneous Effects | Amplifier + 9 Effects |
User Presets | 240 |
Sampling Frequency | 44.1 kHz |
AD/DA Conversion | 24-Bit with 128 Oversampling |
Signal Processing | 32-Bit |
Frequency Characteristics | 20 Hz to 20 kHz (+1 / -2 dB), 10-Kilohm Load |
Display | 5" TFT color LCD (800 × 480) 6 x Dot-Matrix LCDs (128 × 32) |
I/O | 1 x 1/4" Instrument Input 1 x 1/4" Control Input 2 x 1/4" Return Inputs 1 x 3.5 mm Auxiliary Input 2 x 1/4" Send Outputs 2 x 1/4" Outputs 1 x 1/4" Phones Output 1 x 5-Pin DIN MIDI Input 1 x 5-Pin DIN MIDI Output 1 x USB Type-C Port 1 x USB Type-A Port |
Input Level | Input: -20 dBu Return: -20 dBu Auxiliary Input: -10 dBu |
Input Impedance | Input: 500 Kilohms, Line Return: 1 Megohm Auxiliary Input: 10 Kilohms, Line |
Maximum Output Levels | Left/Right, Instrument: +11.4 dBu (with Output Impedance >10 Kilohms) Left/Right, Line: 19 dBu (with Output Impedance >10 Kilohms) Phones, Line: +11.4 dBu (with Output Impedance >10 Kilohms) Headphones: 24 mW + 24 mW (at 32-Ohm Load) Send, Line: +11.4 dBu (with Output Impedance >10 Kilohms) |
Signal to Noise Ratio | 123 dB |
Noise Floor | Left/Right, Instrument: −99.5 dBu Left/Right, Line: −92.5 dBu Send: 99.0 dBu |
Control Input | For FP02M |
USB Device Interface | GuitarLab: USB 1.1 Full Speed Audio Interface: USB 2.0 High Speed 44.1 kHz / 32-Bit 4-In / 4-Out USB Bus Power Not Supported |
USB Host | Connector: USB 2.0 Type-A Standard: USB 2.0 High Speed Use a USB Thumb Drive |
Remote | ZOOM BTA-1 or Other Dedicated Wireless Adapter |
Power | AC Adapter: 12 VDC, Center Plus, 2000 mA (Zoom AD-19) |
Dimensions | 10.0 x 19.5 x 2.5" / 25.3 x 49.5 x 6.4 cm |
Weight | 6.2 lb / 2.8 kg |
