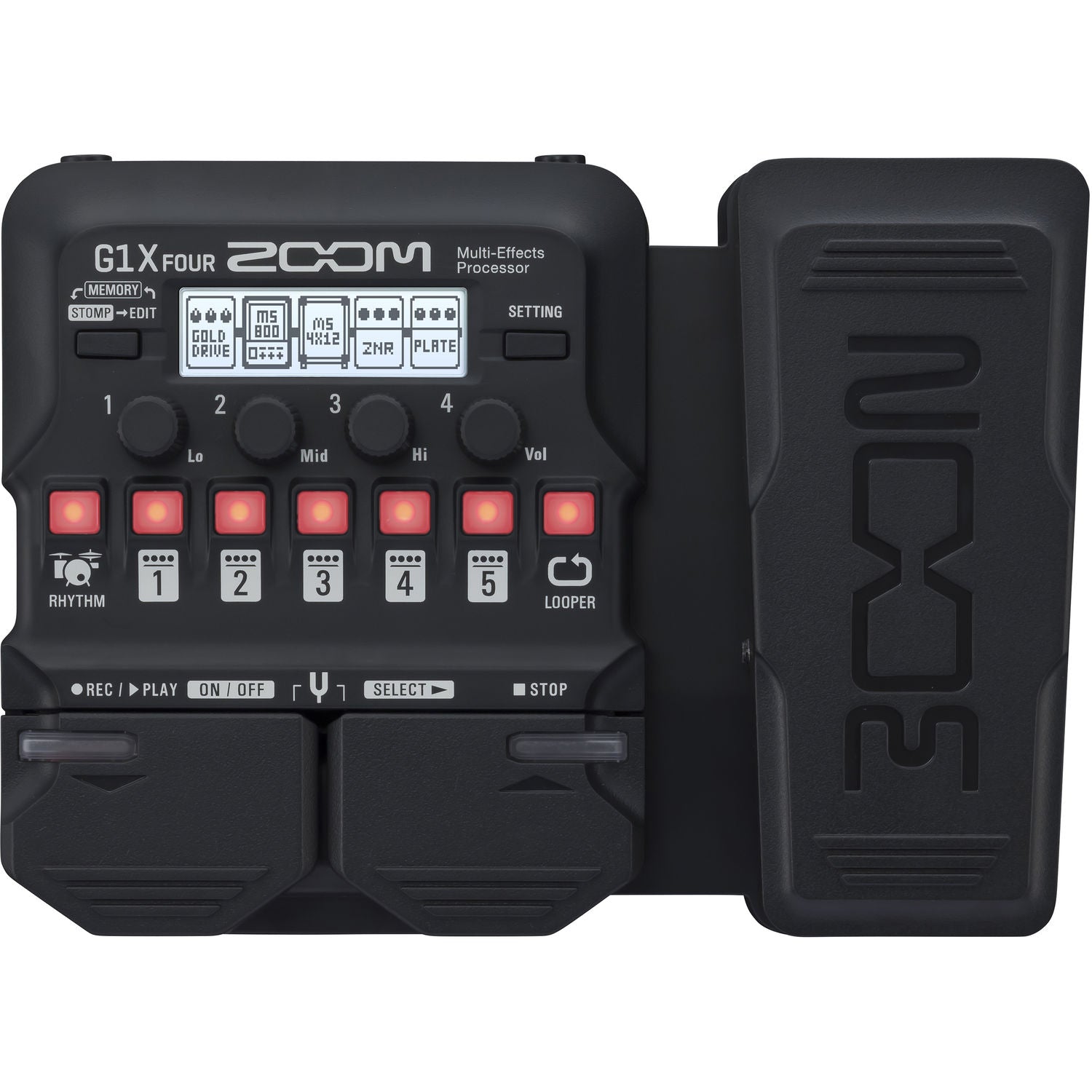

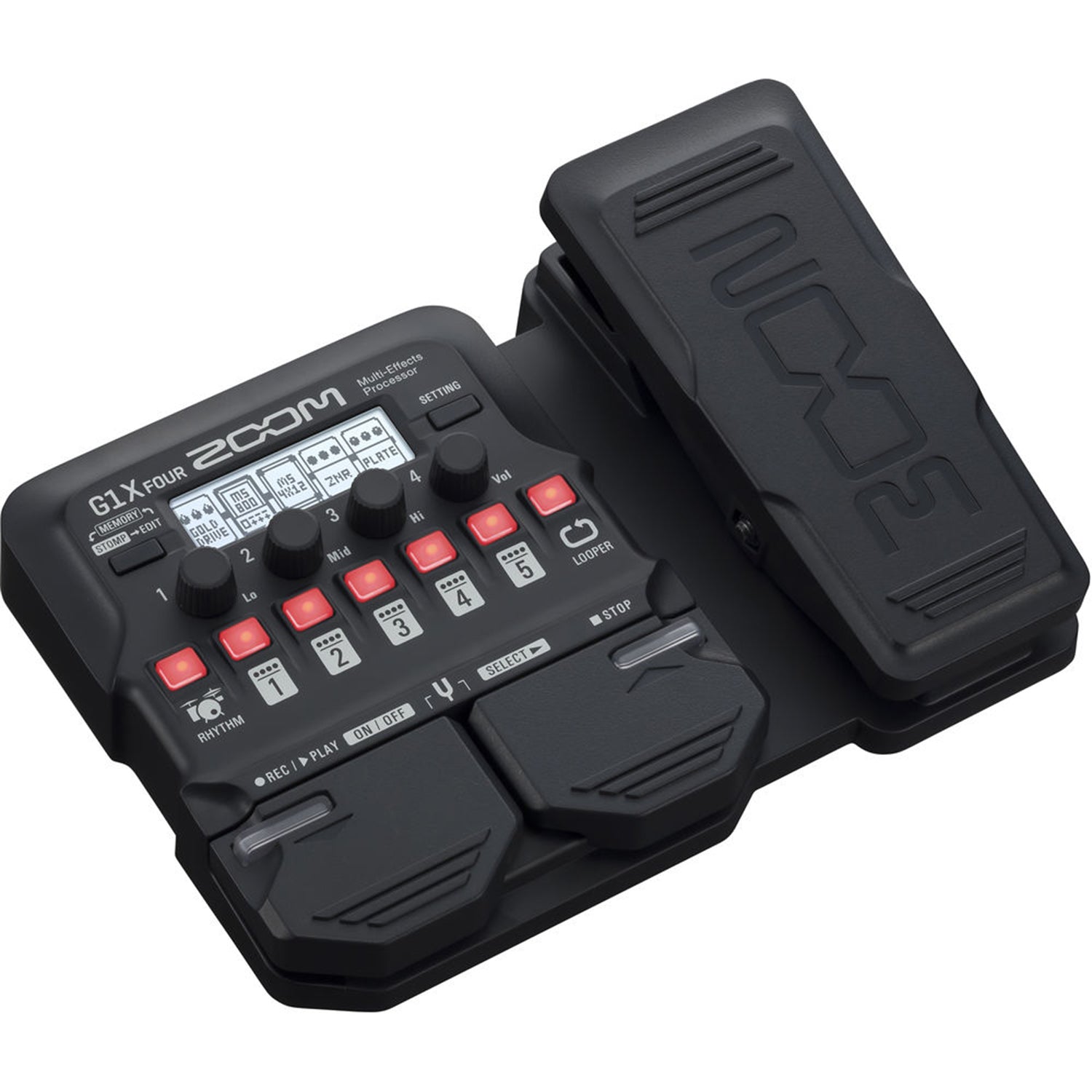

The Zoom G1X Four is a versatile multi-effects processor tailored for electric guitars, featuring an integrated expression pedal that allows for continuous control over specific effects. Designed in a user-friendly stompbox format, the G1X Four includes a broad array of effects, amplifier simulations, and additional functionalities, such as a 30-second looper and a chromatic tuner. With 68 pre-installed rhythm patterns, it enables the incorporation of drum loops, which can be particularly beneficial during looping.
The device offers a variety of effects including distortion, chorus, and reverb, along with 13 amplifier models that replicate iconic combinations. Certain effects can be enhanced with an expression pedal, allowing for a smooth and gradual adjustment of the effect's intensity. Users can modify the pedal's functionality digitally via the G1X Four's display or manually by using a 5mm hex wrench to adjust the pedal's torque.
It is possible to chain five effects in any sequence at any time. These effects can be stored in one of the 50 user-defined presets. You can swiftly switch between patches (or banks of patches) with a simple tap, allowing for effortless modifications to your live or studio sound. Additionally, you can adjust global parameters to maintain a cohesive sound across patches. The three-knob tone stack and the overall output level knob remain unchanged as you navigate through your sounds.
The pedal features more than 70 distinct effects, and users can also modify or incorporate additional effects via their computer. By connecting the pedal to a Mac or Windows device using a USB cable, one can enhance the effects through Zoom's Guitar Lab software.

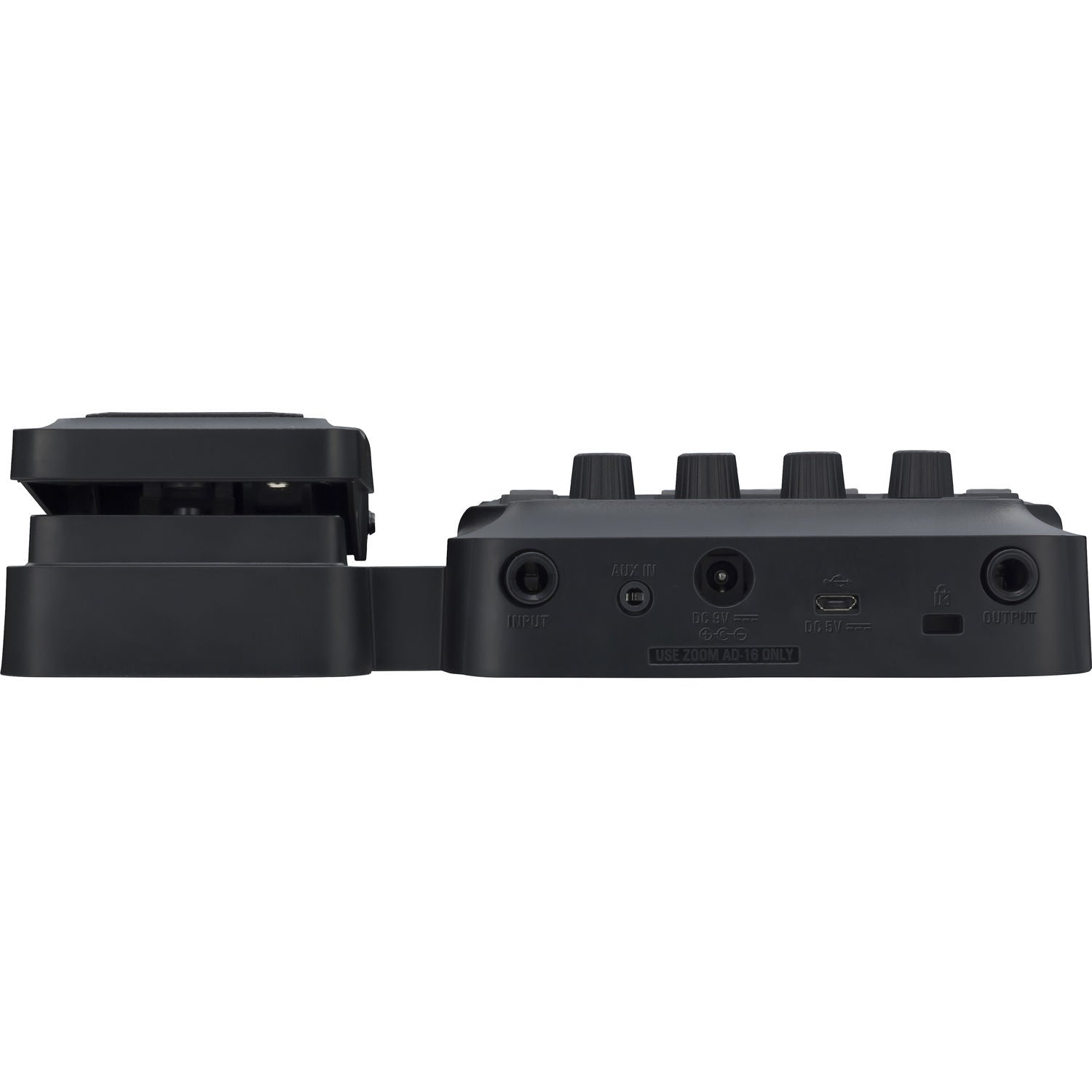

The G1X Four features a single 1/4" instrument input, a 3.5mm input for mobile devices and media players, as well as a combined amplifier and headphone output. It operates on four AA batteries, providing up to 18 hours of usage. Additionally, the device can be powered using a dedicated ZOOM AD-16 AC adapter or via USB.
Additional Features
- Over 70 built-in effects
- 13 amp models for simulating classic rigs
- Up to 5 effects can be used simultaneously
- Chain effects together in any order
- Built-in expression pedal
- Change sensitivity of expression pedal via the menu and display
- Tweak physical response of expression pedal with a 5mm hex key (available separately)
- Looper records up to 30 seconds depending on BPM (64 beats of CD-quality audio with seamless start and end times)
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns, which can be used in conjunction with the Looper
- 50 memory locations for storing user-created patches
- Auto save function for automatic saving of all patch parameters
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Input jack accepts standard mono guitar cable
- Both active and passive instruments supported)
- Auxiliary input jack for connection of personal music players
- Output jack for connection to amp or headphones
- Runs on 4 AA batteries
- Alkaline battery life of up to 18 hours
- USB port for firmware updates, power, and connection to ZOOM Guitar Lab
Pedal |
|
---|---|
Simultaneous Effects | 5 Maximum |
Patches | 50 User Patches |
Sampling Frequency | 44.1 kHz |
AD/DA Conversion | 24-Bit, 128x Oversampling |
Signal Processing | 32-Bit, Internal |
Display | 128 x 32 Dot Matrix LCD |
Input | 1 x 1/4" TS Input, Phone Type 1 x 3.5 mm Auxiliary Input, Stereo, Phone Type |
Input Level | 1/4" Instrument: -20 dBu 3.5 mm Auxiliary: -10 dBu |
Input Impedance | 1/4" Instrument: 470 kOhms 3.5 mm Auxiliary: 1 kOhm |
Output | 1 x 1/4" TRS Output (Combined Line and Headphone Jack) |
Maximum Output Level | Line: +2 dBu Headphones: 17 mW + 17 mW |
Output Impedance | Line: ≥10 kOhms Headphones: 32 Ohms Load |
Signal to Noise Rate | 120 dB |
Noise Floor | -97 dBu |
AC Adapter | 9 VDC, 500 mA, Center Negative (ZOOM AD-16) |
Battery Power | 4 x AA Batteries |
Battery Life | About 18 Hours, Continuous Operation with Using Alkaline Batteries |
USB | MIDI: USB Micro Type-B When Using a Cable Designed only for Power, other USB Functions Cannot be Used |
Dimensions | 6.1 x 8.5 x 2.0" / 156.0 x 216.0 x 52.0 mm |
Weight | 21.5 oz / 610.0 g |
