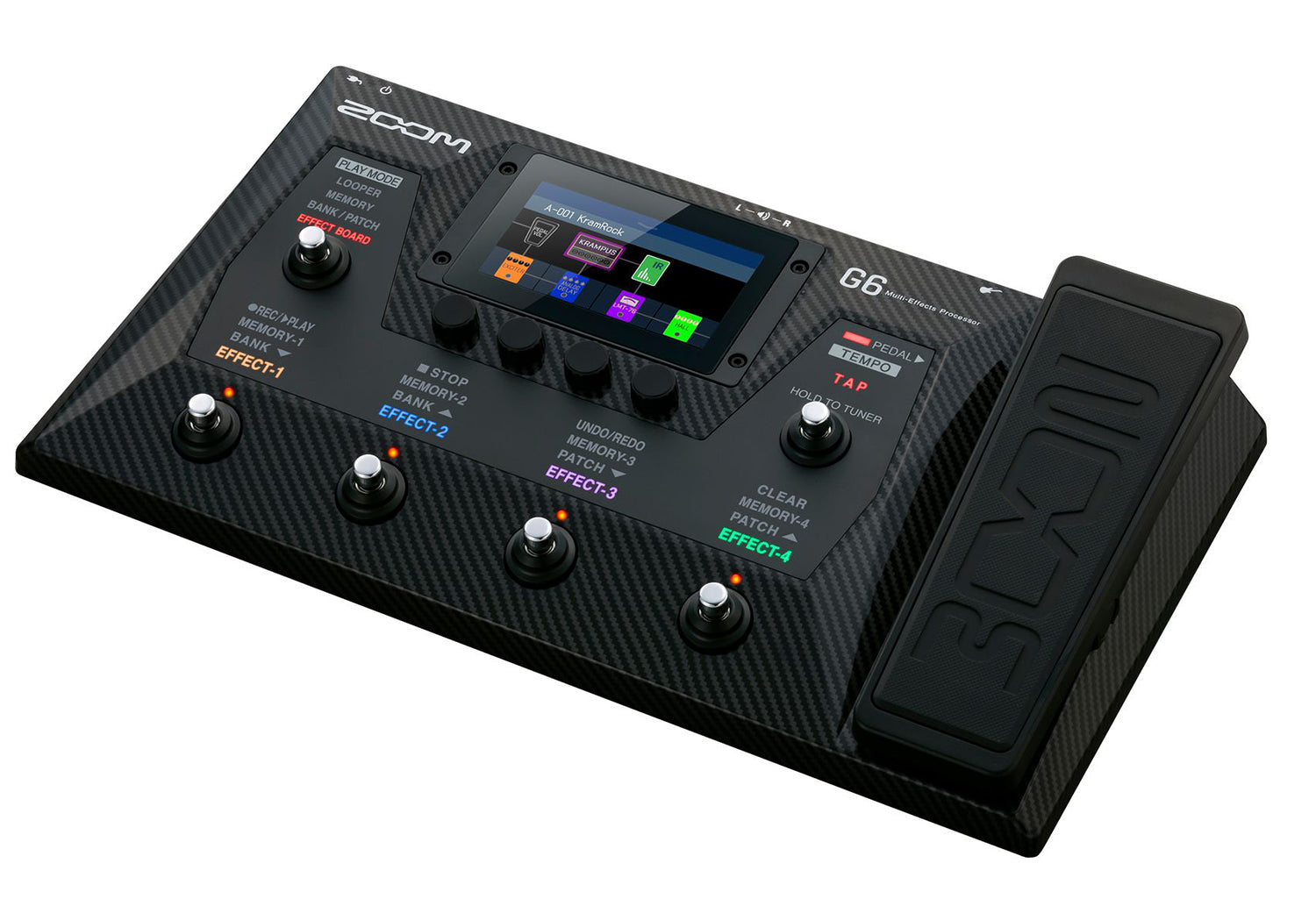

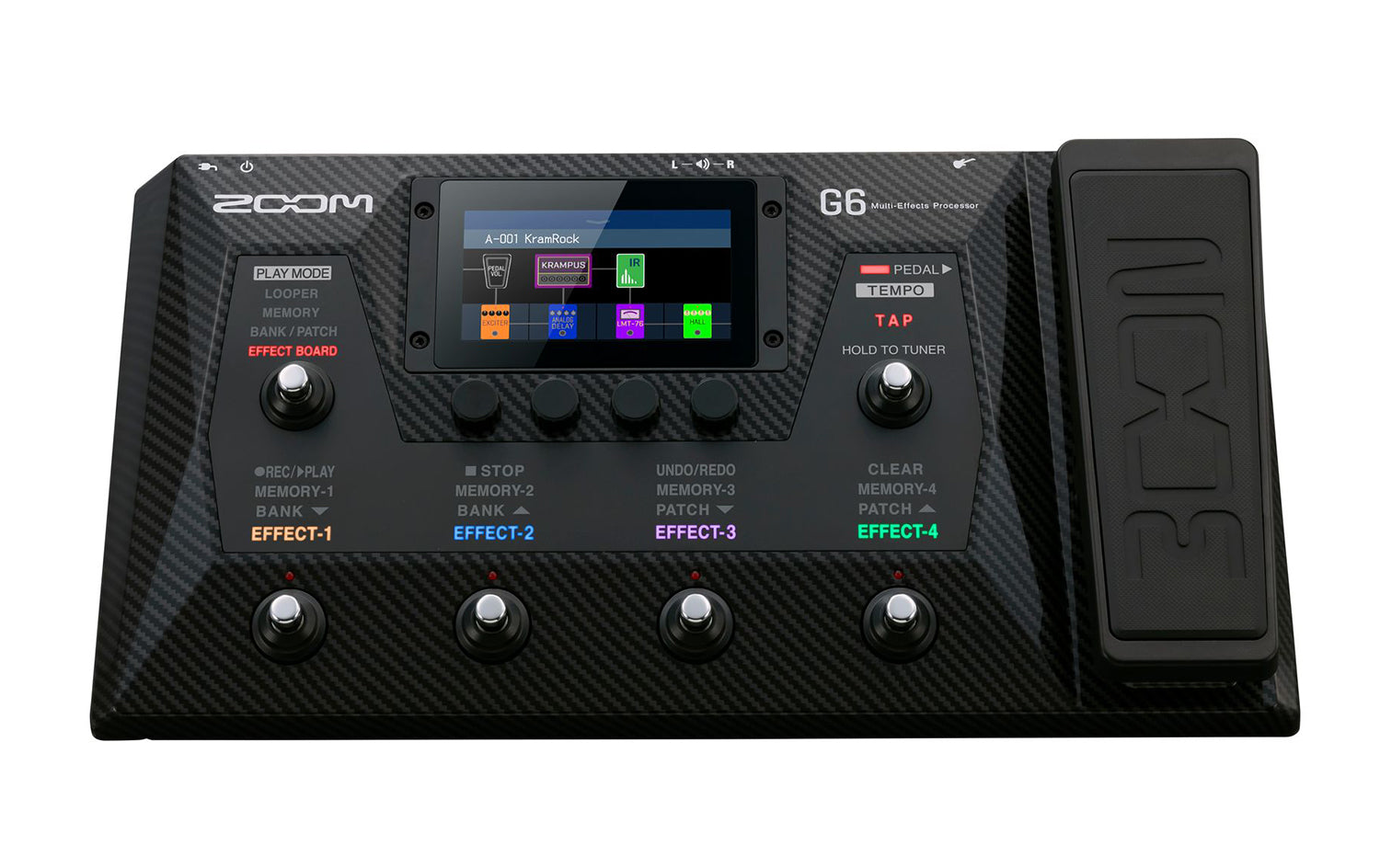

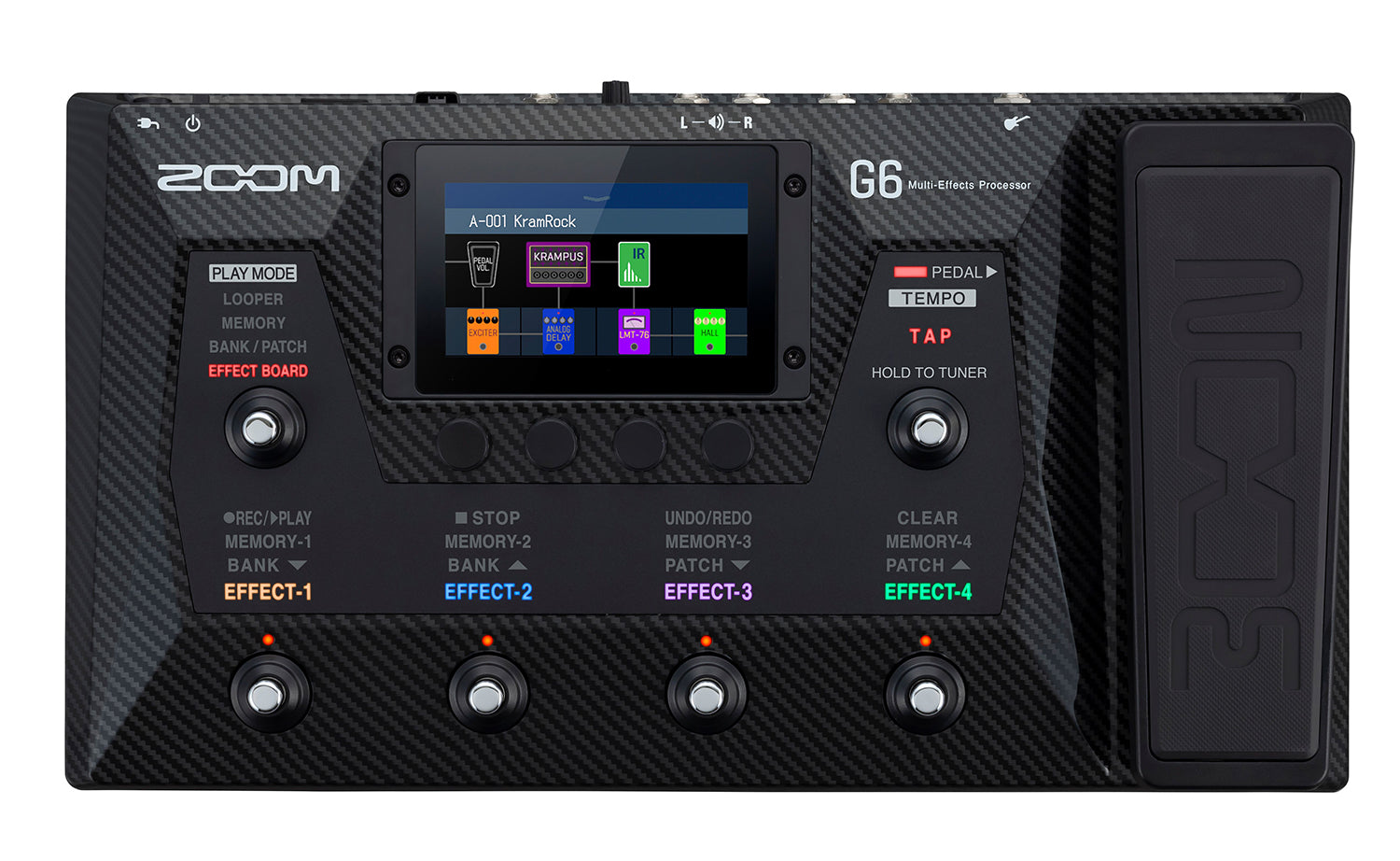

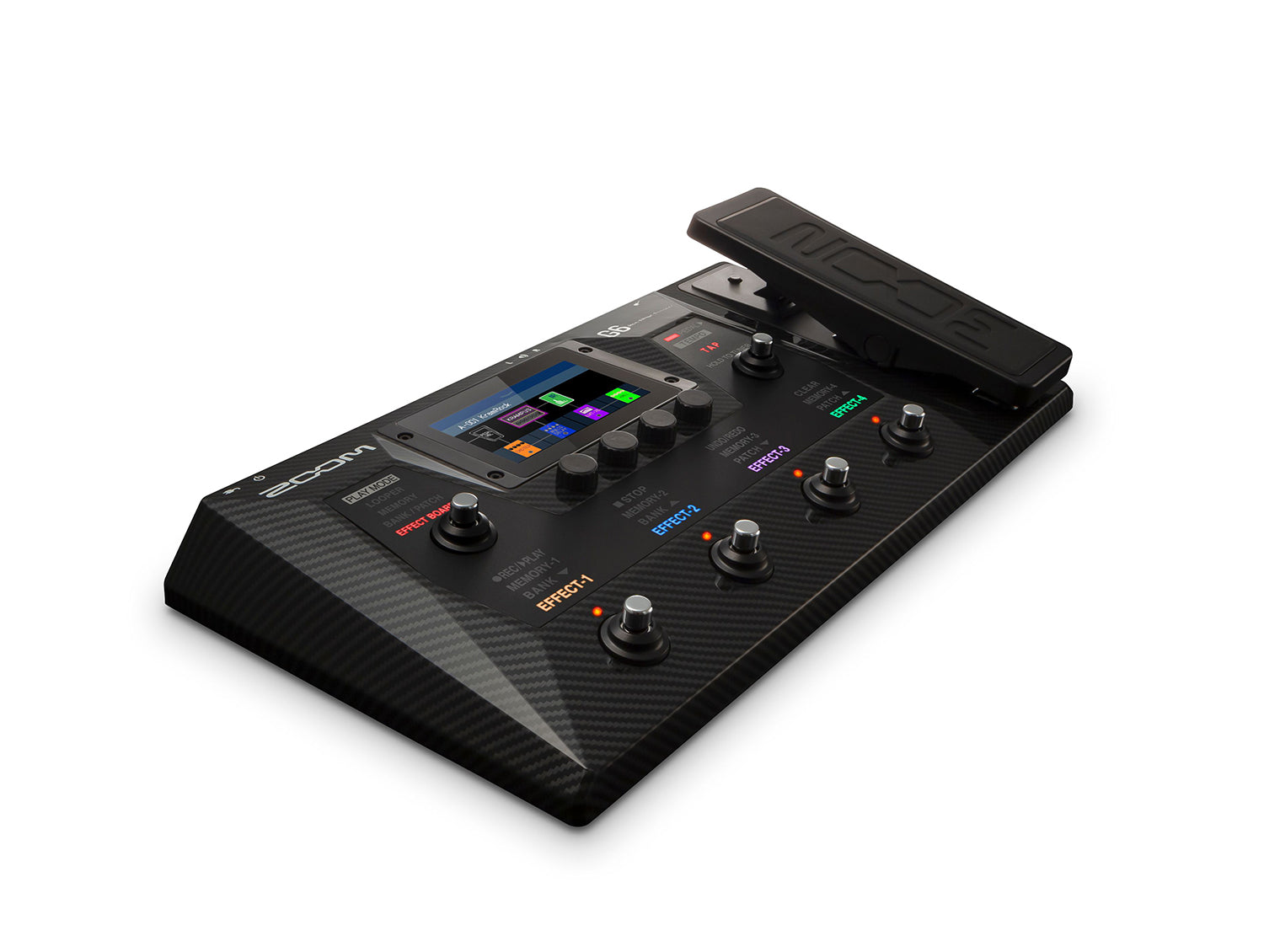

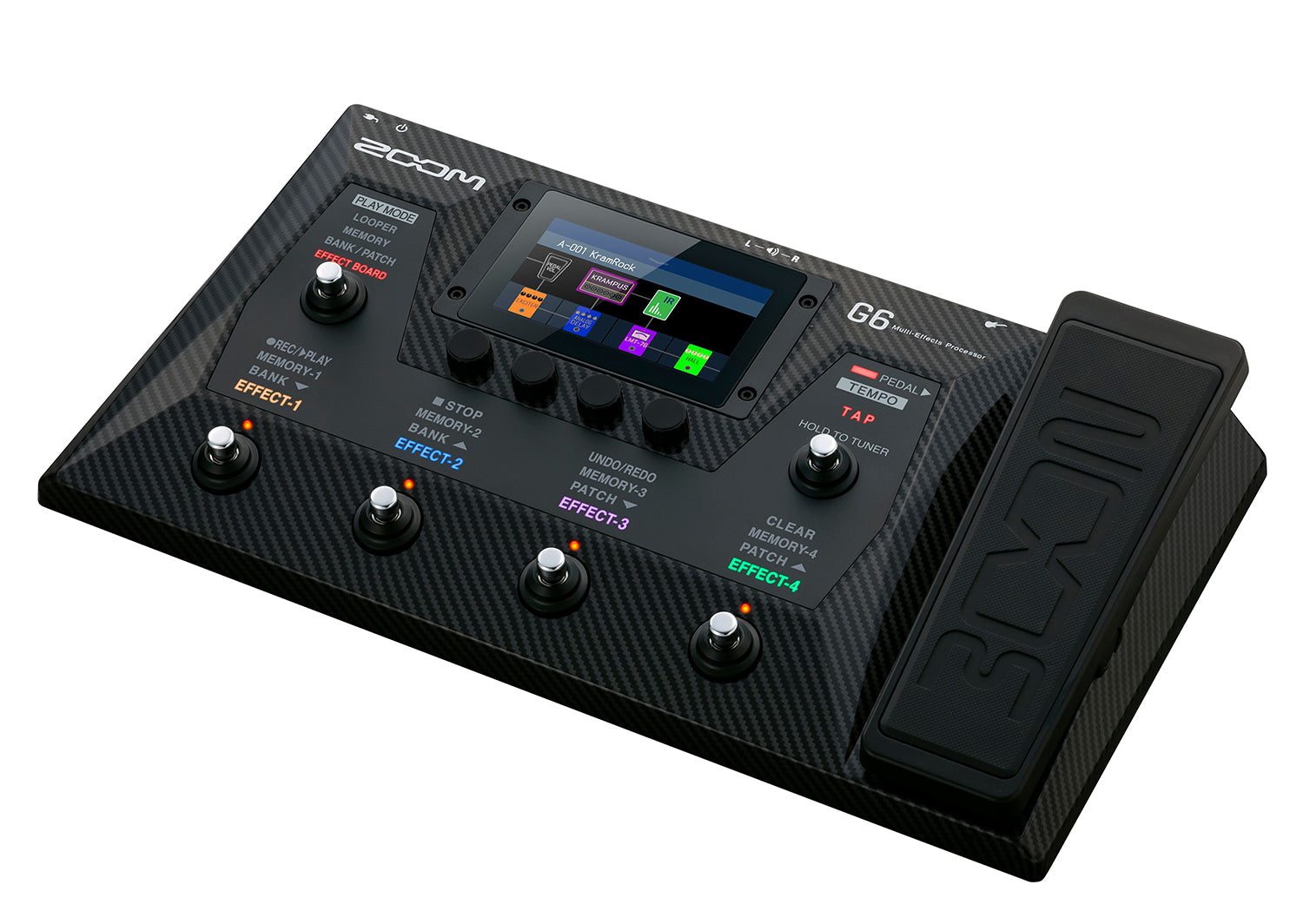

Zoom G6 Multi-Effects Processor for Guitarists
Zoom G6 Multi-Effects Processor for Guitarists
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
Achieve the precise sound you desire on stage with the G6 Guitar Multi-Effects Processor from Zoom, a digital pedalboard featuring a wide array of effects, 22 amplifier emulations, 70 cabinet impulse responses, and the capacity to store 100 of your preferred impulse responses. Additionally, with a 2-in / 2-out audio interface included, this board is versatile enough to accommodate live performances through an amplifier, connect to the house PA system, or facilitate recording to a digital audio workstation.
Equipped with six pedal switches and an integrated expression pedal, the G6 allows for seamless navigation of effects akin to an analog setup. It features 68 built-in rhythm patterns suitable for solo performances, and with an SD card inserted, users can loop over two hours of material. Furthermore, the sound palette can be enhanced using Zoom's complimentary Guitar Lab software available for both Mac and Windows, or through the Handy iOS application. Users have the ability to download new effects, amplifier and cabinet emulators, along with exclusive patches from a wide and expanding roster of professional guitarists.
Additional Features
- The G6 has room for 240 patches including 100 presets, so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to nine effects or seven effects plus emulation.
- With 6 stomp switches and an expression/volume pedal, you'll be able to change effects on the fly as you would with an analog pedalboard.
- The 4.3" color LCD touchscreen interface makes sound selection a breeze.
- 68 rhythm patterns and a built-in 2-hour looper (with SD card) let you create interesting textures all by yourself.
- You can use the G6 as a 2-in / 2-out interface, so you can record killer tones right to your favorite DAW.
- The pedal is compatible with Zoom Guitar Lab, as well as the Handy Guitar Lab iOS app. Get access to a host of killer tones, deep parameter editing, and more. Wireless control is possible via a separately available BTA-1 Bluetooth adapter.
- The G6 delivers the ultimate collection of Zoom's legendary guitar effects and tones, including brand new Distortion and Modulation effects. New distortion effects include Wave Shaper and Razor Drive. Polyshift is on hand for two-octave modulation, as is a doubling effect called Geminos. Chain up to 9 effects, or 7 effects with amp emulation.
- The G6 provides a total of 22 cabinet emulations of all modeling amps. Plenty of classic amplifier sounds are included, and you can use them with or without included IR cab responses.
- The G6 provides 70 preloaded, full-spectrum impulse responses of cabinets, which is quite useful if you're routing your sound directly into a house PA. These impulse responses were captured by placing the microphone in three different positions. Each cabinet has a recording where the mic was placed 1" away, 12" away, and deeper out into the room.
- Chain up to 9 effects or 7 effects + amp emulation
4 Play Modes
- Looper
- Use the Looper to add layers to your sound. Create loops up to 2 hours using an SD/SDXC card.
- Use the Looper to add layers to your sound. Create loops up to 2 hours using an SD/SDXC card.
- Memory
- Ideal for organizing your patches for performances, the Memory Mode allows the foot switches to activate one of the 4 patches in each bank.
- Ideal for organizing your patches for performances, the Memory Mode allows the foot switches to activate one of the 4 patches in each bank.
- Bank/Patch
- This mode lets you scroll up and down through your banks and patches by clicking the corresponding foot switch.
- This mode lets you scroll up and down through your banks and patches by clicking the corresponding foot switch.
- Effect Board
- This mode provides a visual representation of your pedal chain. By clicking the assigned foot switch, you can turn on or turn off an effect in your patch.
Pedal |
|
---|---|
Simultaneous Effects | 9 |
Patch Memory | 240 User Patches |
Sampling Frequency | 44.1 kHz |
A/D Conversion | 24-Bit with 128x Oversampling |
D/A Conversion | 24-Bit with 128x Oversampling |
Signal Processing | 32-Bit |
Frequency Response | 20 Hz to 20 kHz (±0.5 dB, 10-Kilohm Load) |
Display | 4.3" TFT Color LCD (480 × 272) |

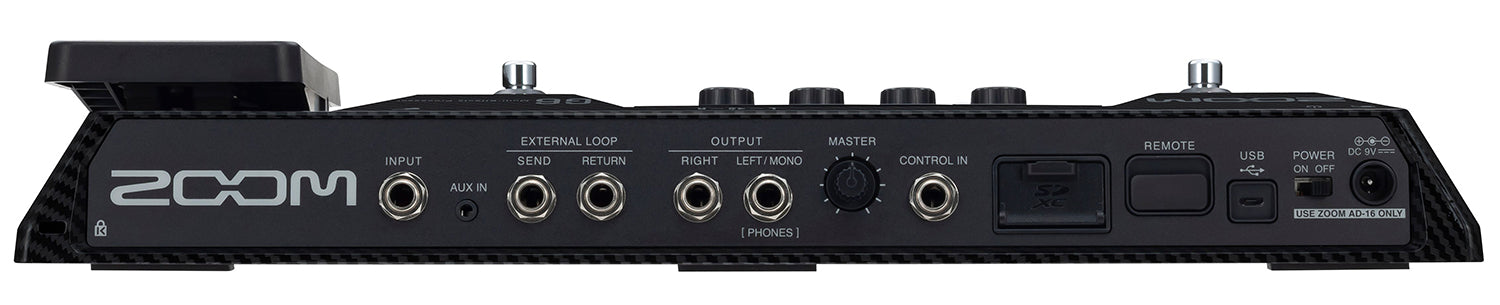

Input | 1/4" Phone Jack Rated Input Level: -20 dBu Input Impedance: 550 Kilohms |
Return | 1/4" Phone Jack Rated Input Level: -20 dBu Input Impedance: 1 Megohm |
Aux Input | Stereo Mini Jack: 3.5 mm Rated Input Level: -10 dBu Input Impedance (Line): 10 Kilohms |
Output | Output R Standard 1/4" Phone Jack Maximum Output Level: +11.4 dBu (Output Impedance 10 Kilohms or Higher) Output L/Mono (Phones) Standard 1/4" Phone Jack Maximum Output Level: +11.4 dBu (Output Impedance 10 Kilohms or Higher) |
Send | Standard Stereo Phone Jack Maximum Output Level: +11.4 dBu (when Output Impedance 10 Kilohms or Higher) |
Headphone | 24 mW + 24 mW (at 32-Ohm Load) |
S/N Ratio | 123 dB |
Noise Floor | Left and Right: -99.3 dBu Send: -99.0 dBu |
Control Input | FP02M Expression Pedal Input |
Power Adapter | AC Adapter: 9 VDC (Center Minus Plug), 500 mA (ZOOM AD-16) |
USB | Port: USB 2.0 Micro-B Guitar Lab: USB 1.1 Full Speed Audio Interface: USB 2.0 Full Speed, 44.1 kHz / 32-Bit, 2-In, 2-Out |
SD Card | Standards: Cards Supporting SD/SDHC/SDXC Specifications (Class 10 or Higher) Looper: 44.1 kHz / 16-Bit Stereo WAV IR: 44.1 to 192 kHz, 16- / 24- / 32-Bit WAV |
Dimensions | 9 x 16.5 x 2.6" / 22.8 x 41.8 x 6.5 cm |
Weight | 4.3 lb / 1.9 kg |
