The ZOOM GCE-3 is a compact, bus-powered interface specifically designed for guitarists who wish to record while on the move. This portable device offers a variety of guitar tones that can be easily accessed and modified directly from the unit. Equipped with a 32-bit DSP, the GCE-3 manages all tone manipulation, alleviating the need for your computer to rely on plug-ins for amp simulations, equalization, compression, and effects processing. Additionally, users will appreciate the ability to record to their computer with minimal latency when using the GCE-3.
This interface establishes a connection to your computer via USB-C. Included in the package is a USB-C to USB-A cable, enabling the GCE-3 to function with standard USB ports. The AUX input allows you to send backing tracks to your headphones while simultaneously recording only the guitar part on your computer. You can adjust the monitoring volume directly from the device, thanks to its dedicated volume control.
When the GCE-3 is paired with the ZOOM Guitar Lab app, users gain access to the same tones available in all ZOOM G-series pedals. Additionally, the app provides the capability to download regularly updated patches through its NEWS section. It is compatible with both Mac and Windows operating systems. A nonslip pad is included, along with a license for Cubase LE, which facilitates recording and editing of your guitar performances.
Additional Features
- Distortion, overdrive, EQ, compression, delay, reverb, flanger, phaser, and chorus
- Free download of ZOOM Guitar Lab Mac/Windows software for creating, editing, and managing patches

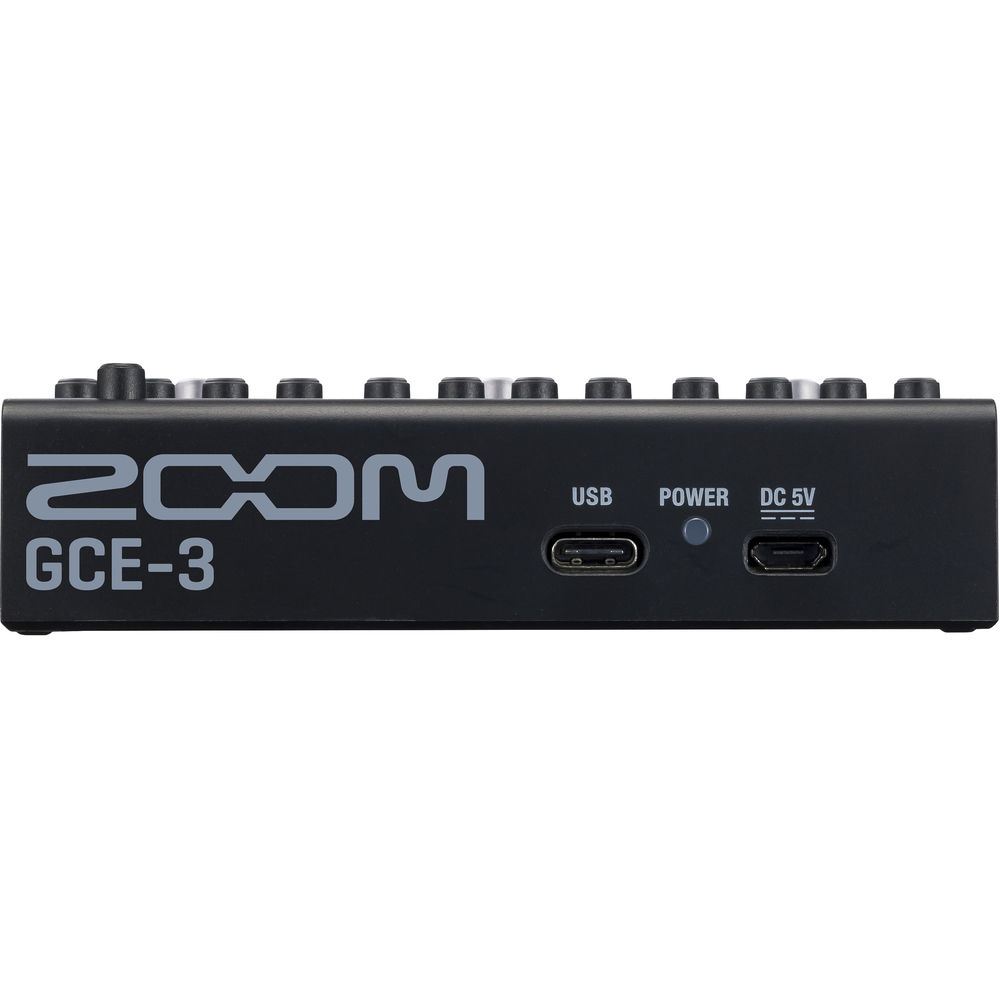

- USB-C port for connection to computer
- Built-In DSP processing for circuit emulation of G5n, G3n, G3Xn, B3n, G1 FOUR, G1X FOUR, B1 FOUR, B1X FOUR
- Input jack accepts standard guitar cable

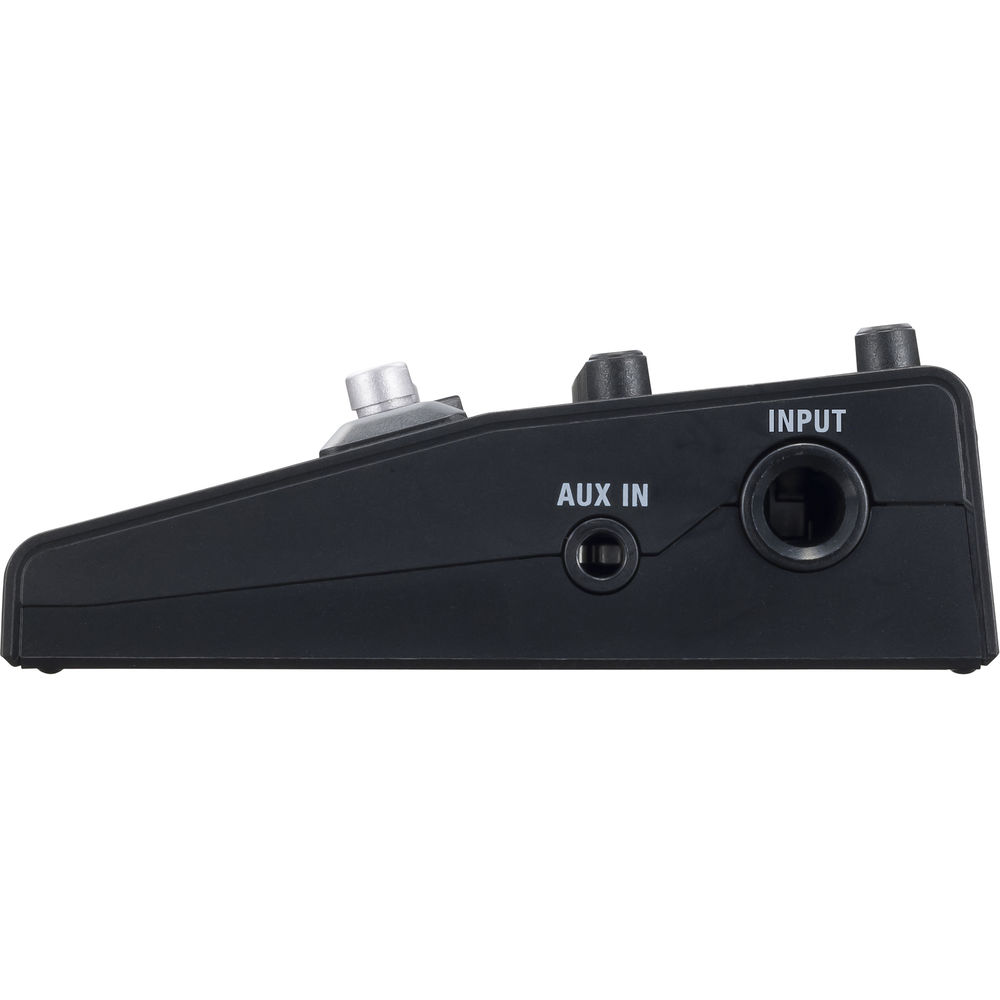

- Auxiliary stereo input jack for connection of smartphones and music players

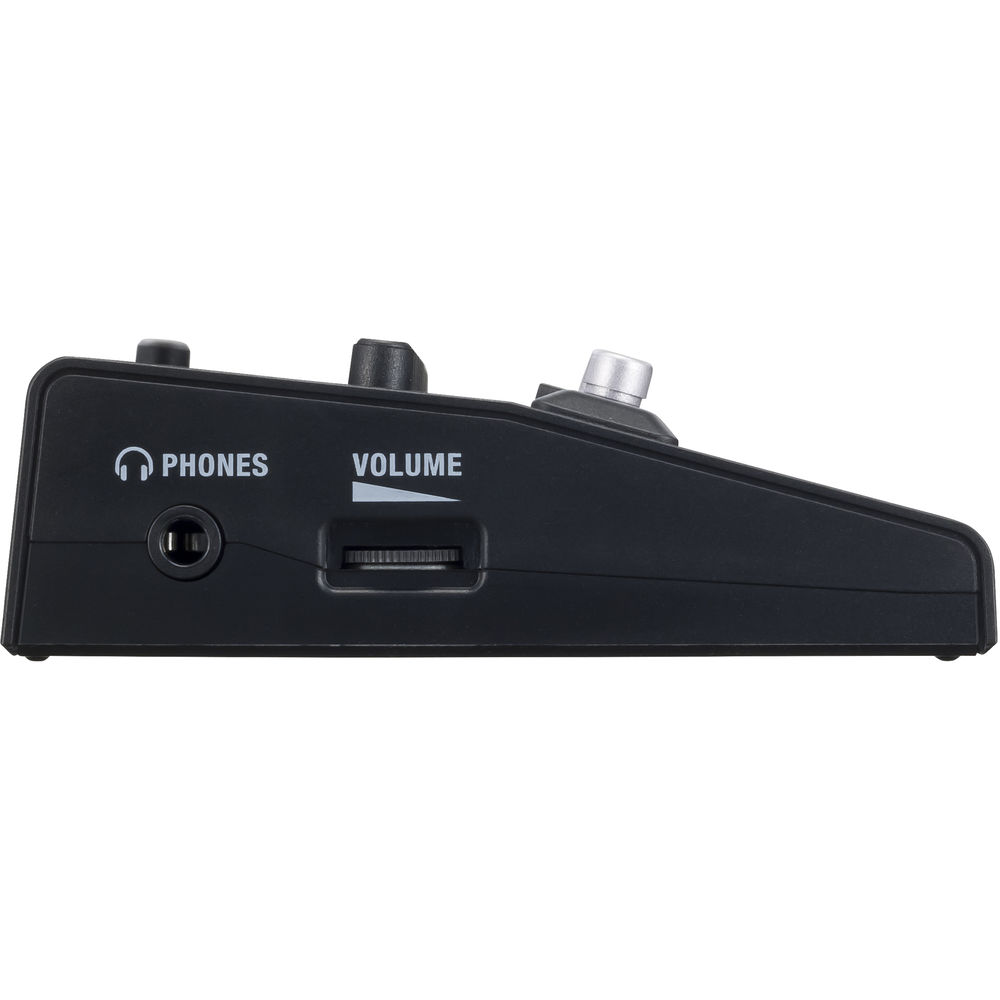

- Stereo headphone output with volume control
Effect Pedal |
|
---|---|
Sampling Frequency | 44.1 kHz |
A/D and D/A Conversion | 24-Bit, 128x Oversampling |
Signal Processing | 32-Bit |
Input | 1 x 1/4" TS Input, Phone Type 1 x 3.5 mm Input, Stereo |
Rated Input | Instrument: -20 dBu Auxiliary: -10 dBu |
Input Impedance | Instrument: 470 kOhms Auxiliary: 1 kOhm |
Signal to Noise | Input: 120 dB (Typ) |
Headphone Output | 1 x 3.5 mm, Stereo |
Headphone Output Power | 15 mW + 15 mW (Typical 32-Ohm Load) |
Noise Floor | -96 dBu (Typical), Residual Noise |
USB | Bus Power: USB Type-C 5V DC Power Supply (USB Micro-B / Separately Available AD-17 AC adapter) |
System Requirements (Mac) | Intel Core i3 or Faster OS X 10.11 and Later USB Type-C / USB 2.0 |
Windows | Intel Core i3 or Faster Windows 7 SP1 or Later, 8.1, 10 (32-/64-Bit) USB: USB 3.0 / USB 2.0 |
Dimensions | 3.1 x 4.2 x 1.1" / 80 x 106 x 29 mm |
Weight | 3.2 oz / 90 g |
