Zoom H6studio 6-Track Handy Recorder with 32-Bit Float Recording
The Zoom H6studio delivers studio-quality sound in any setting. Equipped with large-diaphragm XY microphones, four exceptionally clean F-Series preamps, and 32-bit float recording along with dedicated gain knobs, it stands as the most sophisticated Handy Recorder ever produced by Zoom. Utilizing F-Series technology, the H6studio guarantees that every recording is flawless, whether you are capturing music, film audio, podcasts, or field recordings.
- With an impressive -127 dBu EIN, the H6studio's F-Series preamps deliver ultraclean, transparent audio. Dual A/D converters and 32-bit float recording offer 132 dB of dynamic range, so every subtle detail is captured without distortion.
- The 19.4mm X/Y microphones provide a flat, natural frequency response and handle up to 140 dB SPL-enough to record everything from quiet acoustic performances to roaring jet engines. Their stacked 90º X/Y arrangement minimizes phase cancellation for a clear, focused stereo image.
- Easily toggle between 32-bit float for no-clipping headroom and 16/24-bit for instant, ready-to-use files. With dedicated gain knobs and a format switch, you can adapt to any workflow without missing a beat.
- Record up to 8 tracks simultaneously—6 individual inputs plus a stereo mix—at sampling rates from 44.1 to 192 kHz (up to 8 tracks at 96 kHz, 6 tracks at 192 kHz). RF shielding prevents smartphone and Wi-Fi interference, while shockmounted capsules reduce handling noise.
- Lookahead limiters prevent distortion in 16-/24-bit mode and ensure smooth, peak-free recordings in 32-bit float. Four locking XLR/TRS inputs offer +48V phantom power and +4 dBu line-level support, plus a stereo mini jack for plug-in powered mics.
- The Capsule System 3.0 supports 32-bit float and a range of interchangeable mics and inputs, including the WLM-1 dual-channel wireless system.
- Monitor both peak levels and waveforms in real time. Output via the powerful headphone jack, stereo line out, or onboard speaker.
- Use the H6studio as a 6-in / 2-out USB audio interface for Mac, Windows, iOS, and Android. The optional TCA-1 adapter provides ultra-accurate timecode generation or wireless sync with ATOMOS UltraSync BLUE.
- Includes mono mode, low-cut filter, file normalization, variable speed playback, A-B repeat, and a start tone for syncing audio to video. Records to microSDHC/microSDXC cards up to 2TB.

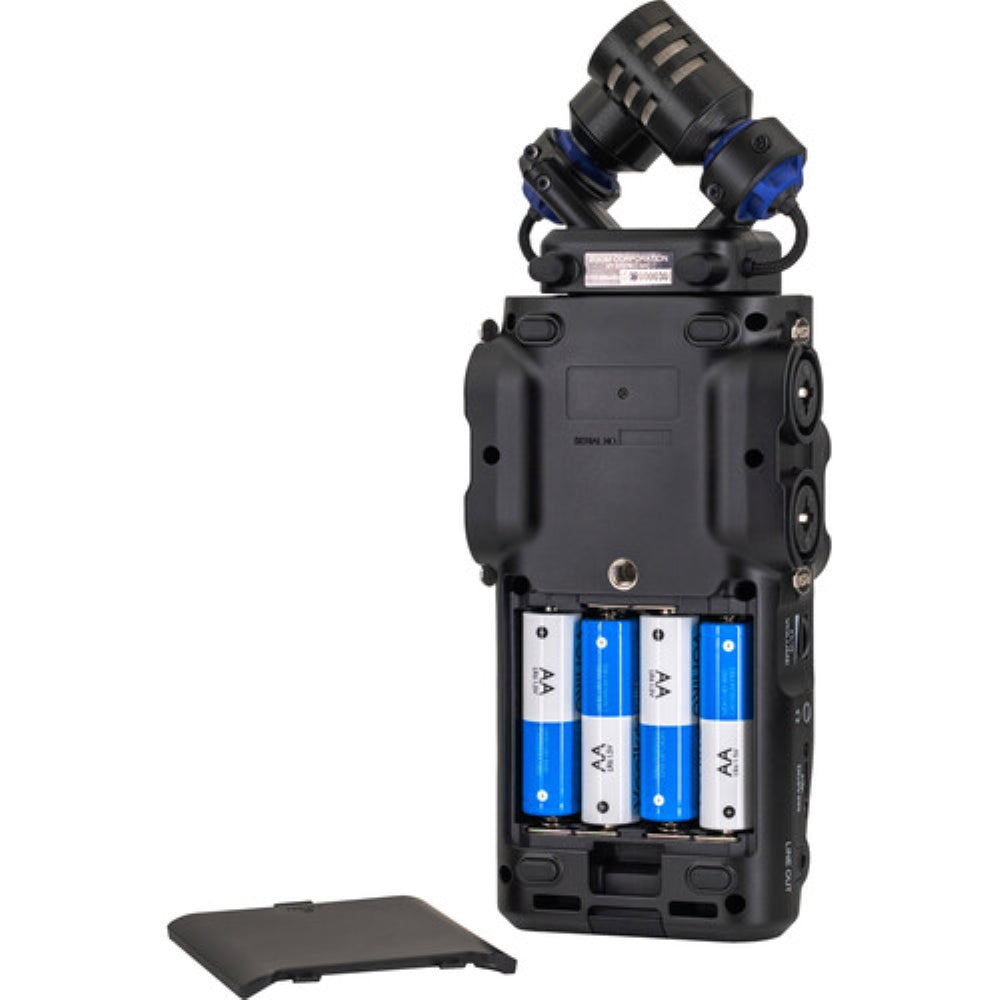

- Record for up to 15 hours on 4 AA batteries or power via USB/AC adapter. Built-in accessibility features provide audible menu navigation in multiple languages for visually impaired users.
Portable Recorder |
|
---|---|
Form Factor | Handheld Recorder |
Number of Tracks | 8 (6 Inputs + Stereo Mix) |
Number of Input Channels | 6 (6 x Mono) |
Maximum Sampling Rate | 192 kHz / 32-Bit Float |
Microphone | Built-In Cardioid Stereo Pair, A/B Configuration |
Number of Microphone Inputs | 6 |
Built-In Speaker | Yes: 250 mW |
Display | 2" / Color LCD |
Memory Card Support | microSDHC, microSDXC (2 TB) |
Internal Storage | No |
Special Features | No |
Recording |
|
---|---|
Audio File Formats | BWF, iXML, WAV |
Sample Rates | 44.1 / 48 / 96 / 192 kHz |
Bit Depth | 16 / 24-Bit 32-Bit (Floating Point) |
Signal Processing & FX | Limiter |
Timecode Support | Yes |
Recording Time | WAV 48 kHz/32-Bit: 15 Hrs (Stereo) WAV 192 kHz/32-Bit: 2 Hrs (All Channels) |
Included Software | No |
Connectivity |
|
---|---|
Analog I/O | 4x Combo XLR-1/4" 3-Pin Input 1x 1/8" / 3.5 mm TRS Input |
Digital I/O | No |
Phantom Power | +48 V |
System Connection | USB-C |
Audio Interface Capability | Multi-Track |
Wireless | Bluetooth *Via Optional Adapter |
Mobile App Compatible | Yes: Android & iOS |
Performance |
|
---|---|
Gain/Trim Range | +60 dB |
Max Input Level | Mic Inputs: 140 dB |
Max Output Level | +1 dBu |
Headphone Output Power | 20 mW per Channel into 32 Ohms |
Dynamic Range | Mic Inputs: 123 dB |
Impedance | Mic Inputs: ≥3 Kilohms Line Inputs: ≥3 Kilohms |
Microphone Sensitivity | -41 dB/Pa |
Microphone Max SPL | 140 dB SPL |
Power |
|
---|---|
Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
Battery Type | 4x AA |
Approximate Battery Life | 15 Hours (Alkaline, 2 Channels) |
AC/DC Power Adapter | 5 VDC (Not Included) |
Input Power | 5 VDC |
Physical |
|
---|---|
Included Accessories | Microphone |
Dimensions | 3.3 x 2.1 x 8.7" / 83 x 54.5 x 221 mm |
Weight | 16.8 oz / 477 g (with Batteries) |
