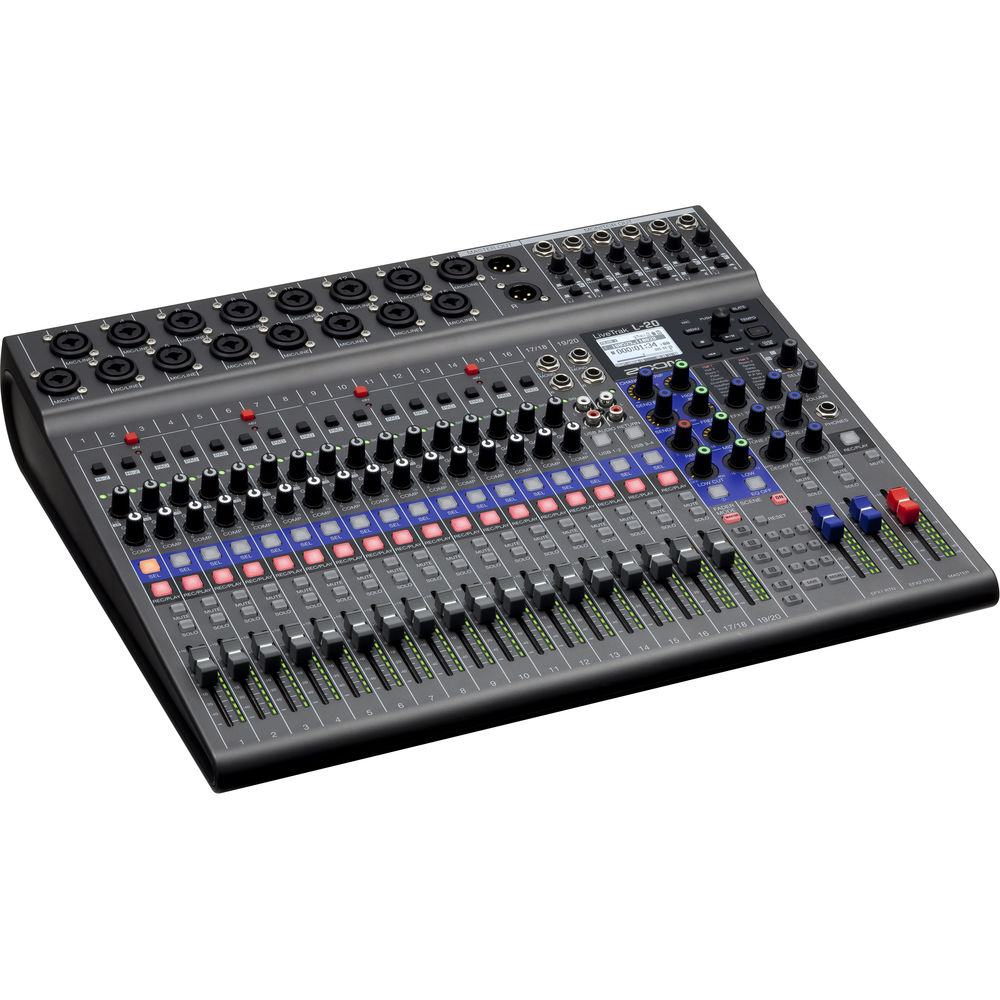

Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder

The Zoom LiveTrak L-20 is a highly versatile digital mixer and multi-track recorder featuring 20 inputs, making it ideal for various applications such as live performances, studio recordings, band rehearsals, and podcasts. This mixer is equipped with 16 mono channels, each incorporating combo mic/line XLR-1/4" inputs that boast high-gain, low-noise microphone preamps, +48V phantom power, and a single compression knob. Additionally, it includes two stereo inputs with dual 1/4" and RCA connections. Channels 1 and 2 are specifically designed with Hi-Z inputs for direct connection of guitars and basses. All channels utilize the integrated channel strip, which offers a low-cut filter, a 3-band equalizer, pan control, and two send effects for routing signals to the 20 built-in high-quality effects processors, complemented by two dedicated EFX Return channels.

The LiveTrak L-20 is equipped with balanced XLR main outputs, while its six monitor outputs utilize balanced TRS 1/4" connectors, each allowing for the creation of customized mixes. Users can easily connect headphones or stage monitors and adjust the levels according to their preferences. The device includes nine snapshot presets, enabling quick recall of various setups and sessions.

Additionally, the integrated SD recorder can capture every channel along with the master fader stereo signal output, totaling 22 tracks at resolutions of up to 24-bit/96 kHz. Files can be conveniently transferred to a computer for use in a digital audio workstation (DAW). The unit also supports overdubbing and punching in/out, functioning effectively as a multi-track recorder. Furthermore, the L-20 operates as a 22-in/4-out USB audio interface, facilitating direct recording to preferred software DAWs or iOS devices. Other significant features comprise 12-segment LED meters for all channels, a built-in metronome, and a slate microphone for identifying takes. The Zoom LiveTrak L-20 is supplied with a power cord and a USB cable.

• 20 discrete channels (16 mono plus 2 stereo) with XLR or 1/4-inch connectivity


• 22-track simultaneous recording, 20-track playback


• 22-in/4-out USB audio interface connectivity


• Records up to 24-bit/96 kHz audio to SD card


• 48V phantom power


• Hi-Z connectivity (channels 1-2)


• 26 dB pad (channels 3-16)


• Built-in compression control (channels 1-16)


• Solo buttons for individual channels


• Variable frequency low-cut control


• Main outputs plus six customizable monitor outputs


• Dedicated headphone output for sound engineer


• Scene saving function, up to 9 scenes saved at a time


• 20 built-in chorus, delay and reverb effects with adjustable parameters


• Two effect busses


• Built-in slate mic


• Class-compliant mode (for iOS compatibility)


• Compatible with Remote Mixer app for iPad


• Automatic recording starting/stopping capability


• Pre-record function


• Import/export projects with USB 2.0 host port


• Compatible functions for Zoom FS01 footswitch


• Automatic power-save function
