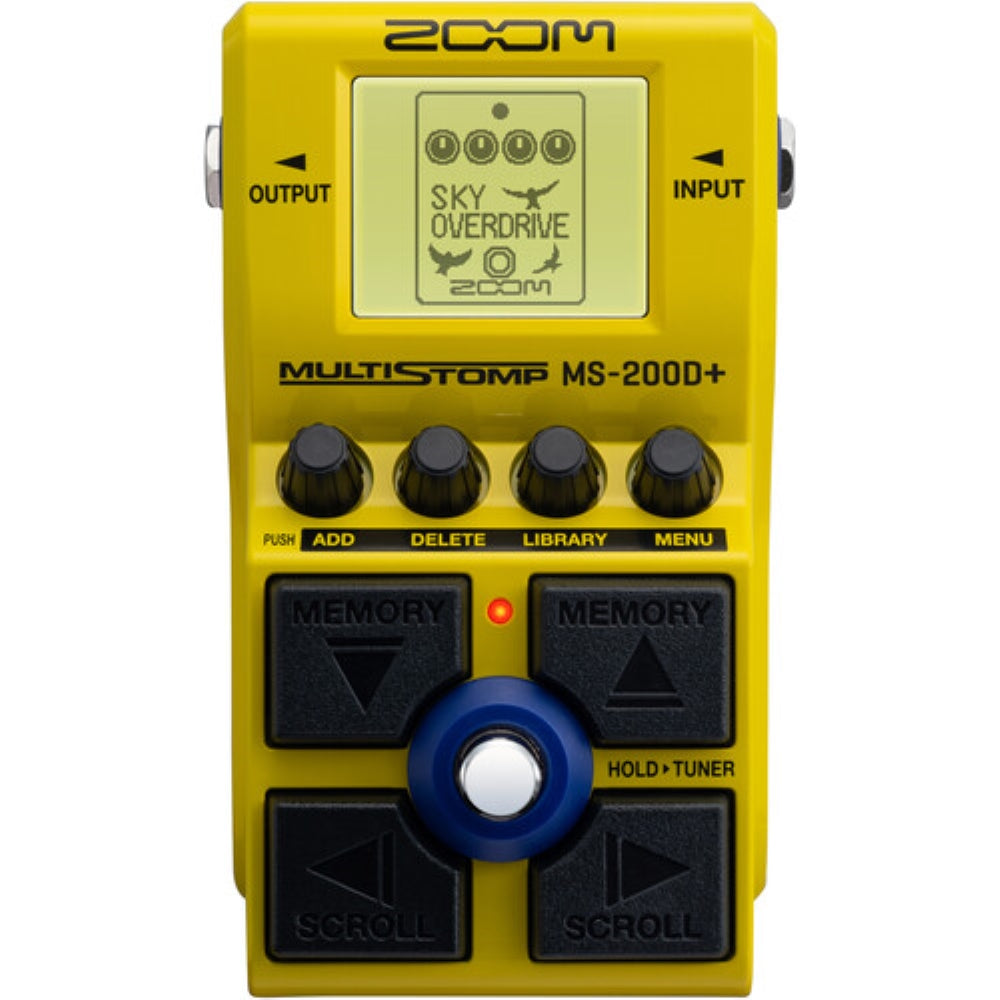

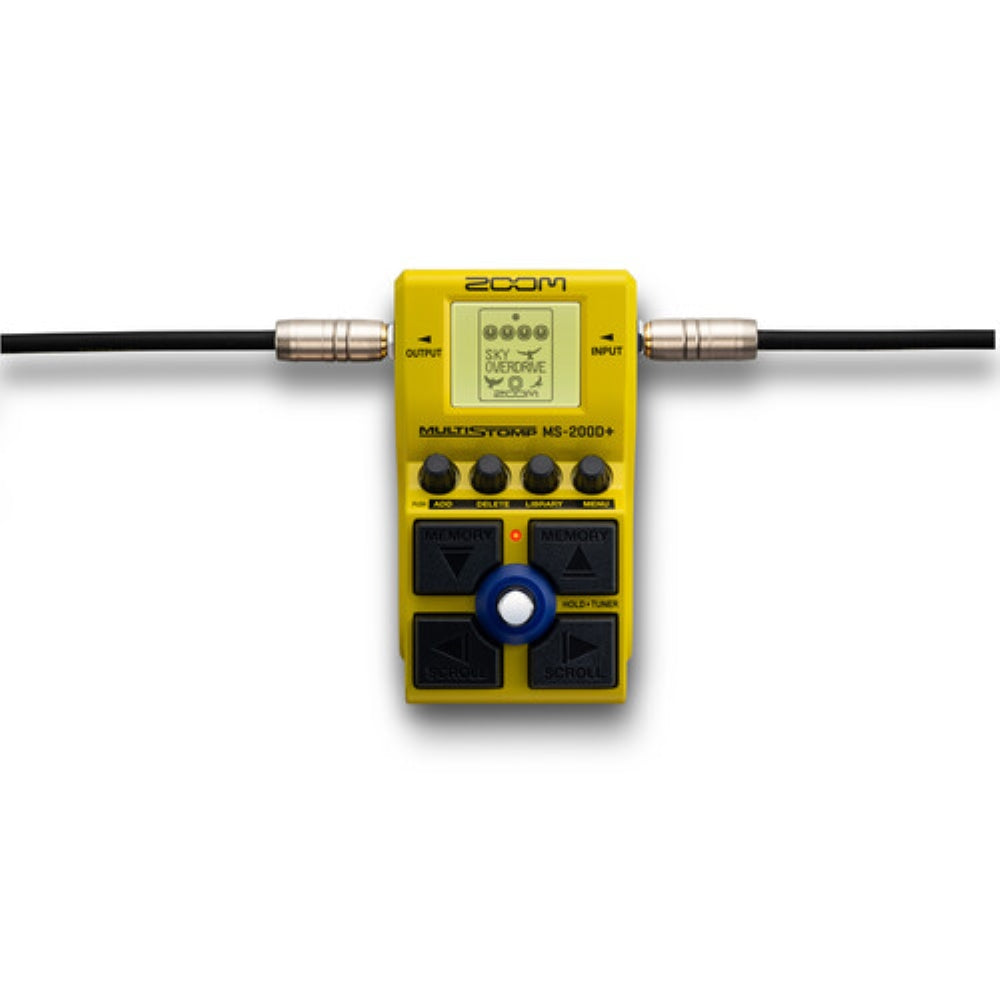

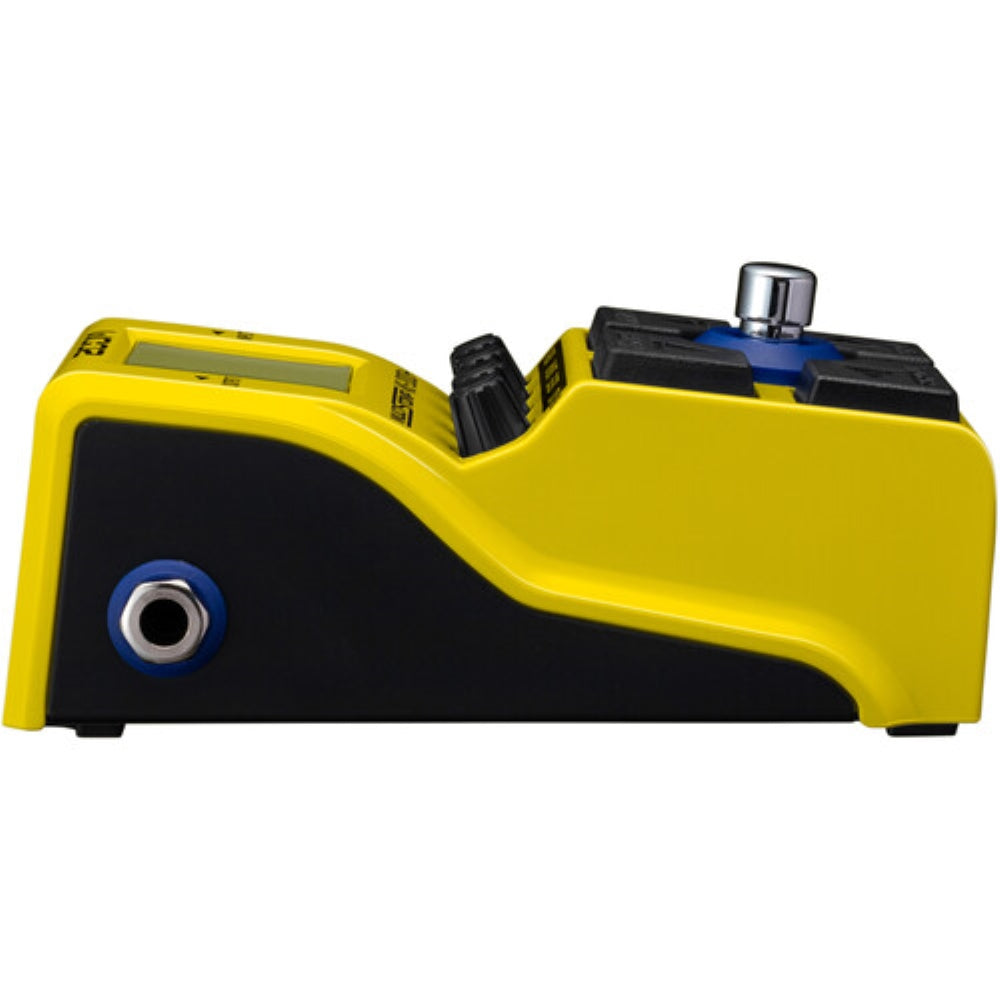

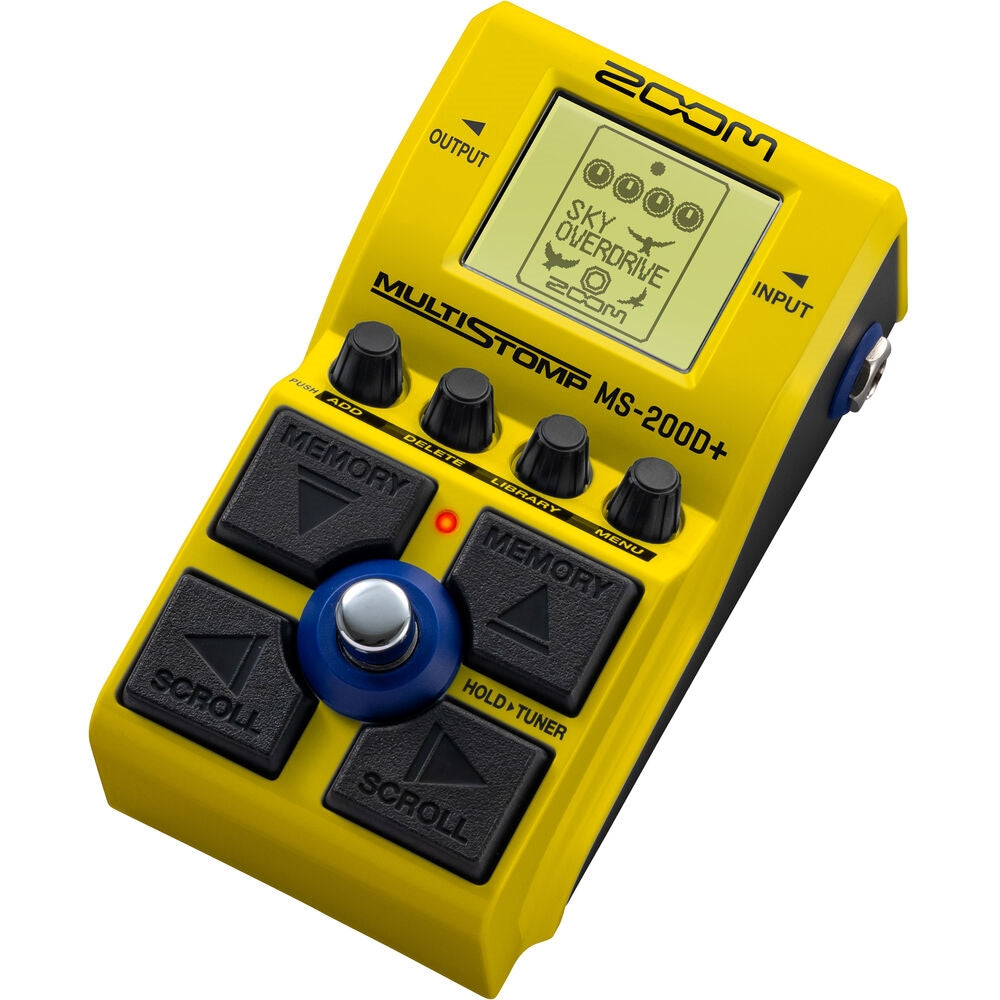

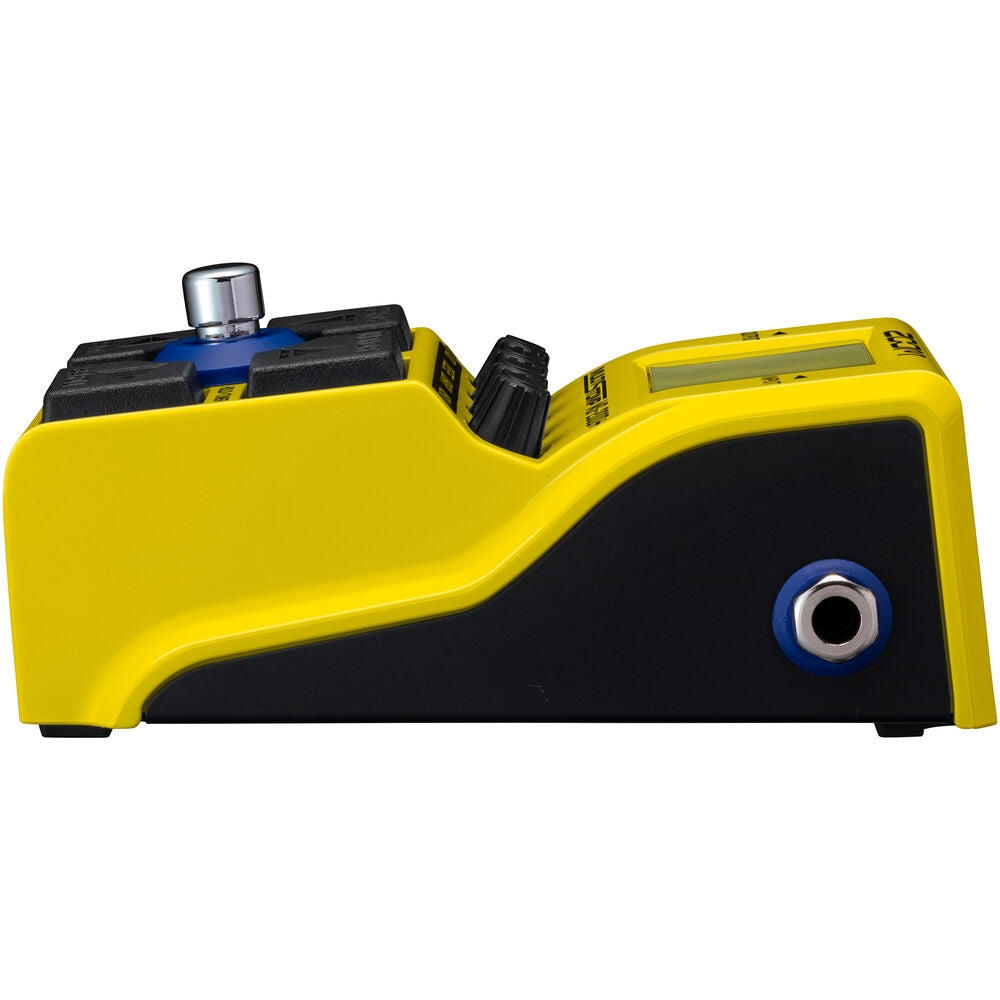

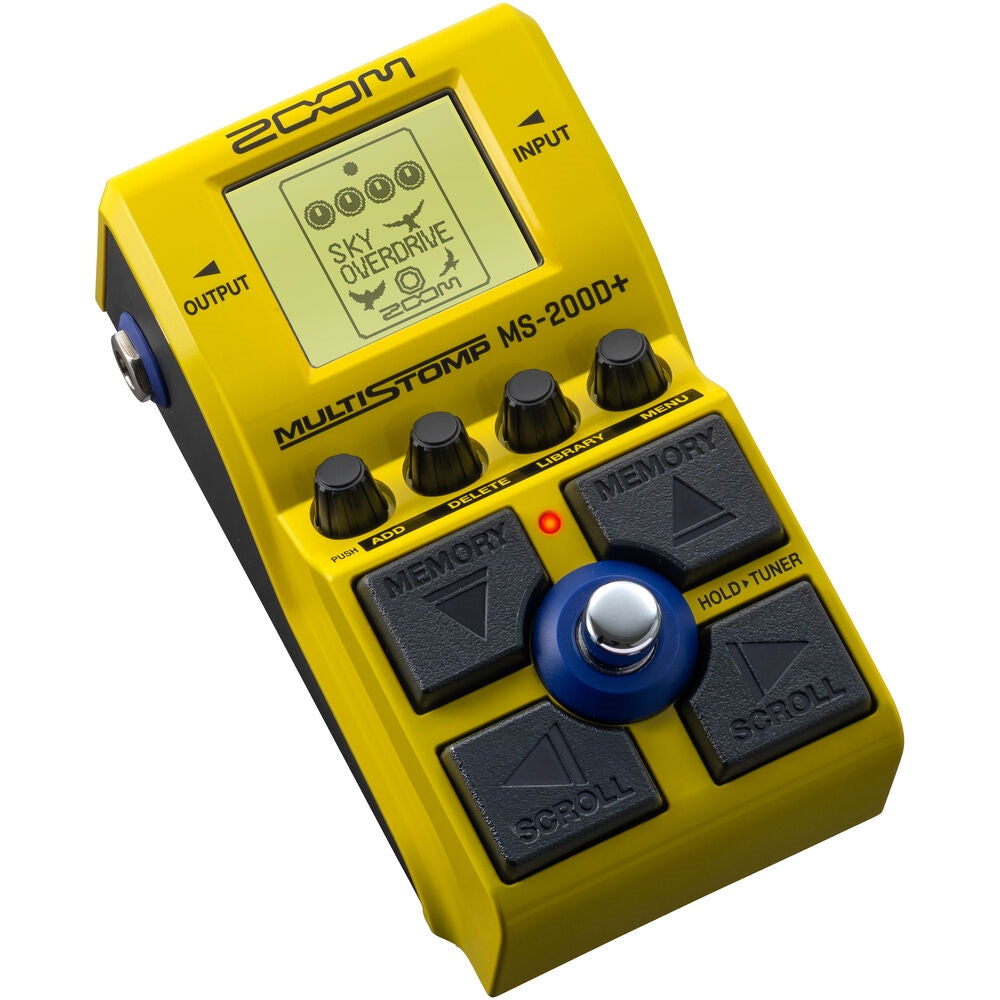

Zoom MS-200D+ Distortion Pedal
Zoom MS-200D+ Distortion Pedal
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The MS-200D+ from Zoom offers an unprecedented 200 drives and distortions at your fingertips, making it the ultimate stompbox for guitar shredders. Featuring 150 innovative original effects alongside 36 emulations of classic overdrives, distortions, boosts, fuzz, and more, it enables you to attain nearly any high-gain tone you desire.
The MS-200D+ allows users to store and retrieve more than 200 personalized patches, and it enables the combination of two distinct effects, such as overdrive and boost, to create unique distortion sounds. It features user-friendly controls with four straightforward encoder knobs and foot-operated cross switches for hands-free use. Additionally, an integrated chromatic tuner ensures your guitar remains in tune, removing the necessity for an external tuner. Furthermore, it offers compatibility with the Handy Guitar Lab iOS application through USB-C, granting access to an expanding collection of patches, drives, and distortions.
- The LCD screen changes color, making it easier to distinguish each drive and distortion type while scrolling.
- The MS-200D+ is built with a metal frame designed to withstand the rigors of the road. This pedal will deftly survive long tours or studio abuse.
- The onboard chromatic tuner uses color backlighting to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open and drop tunings.

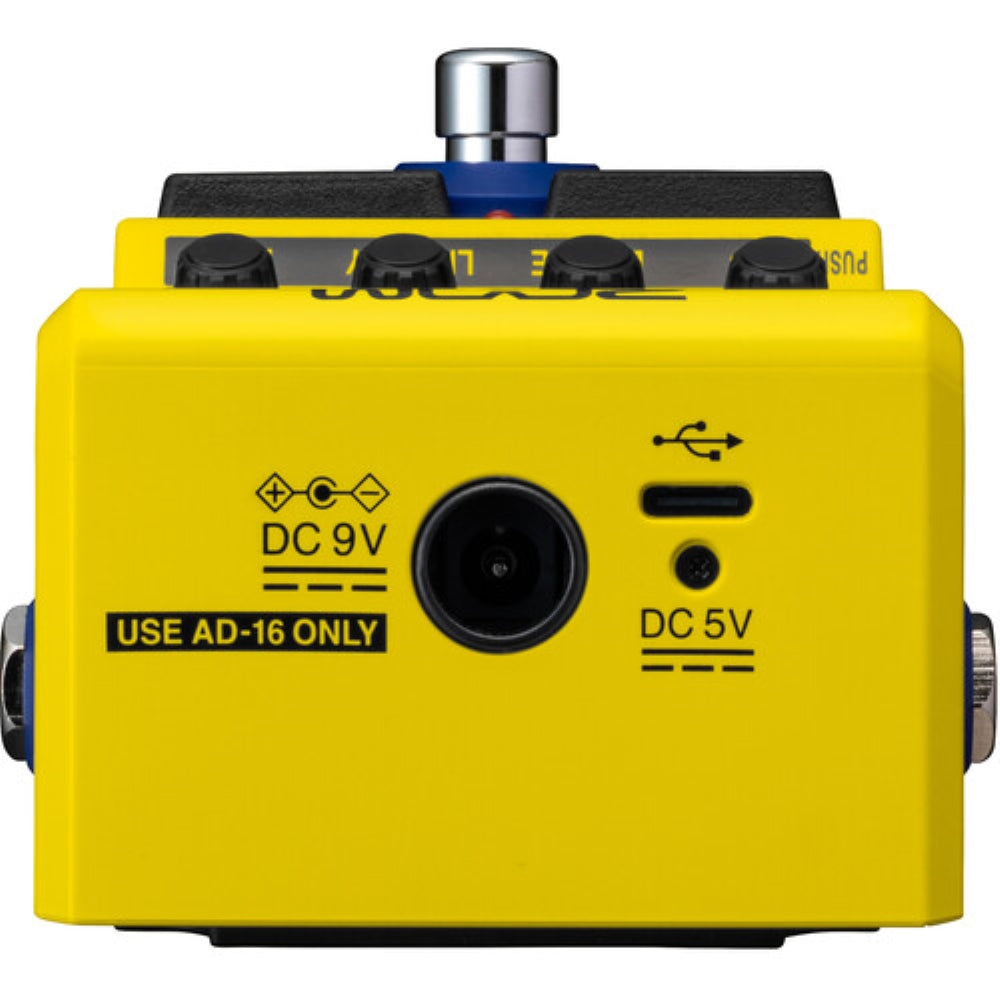

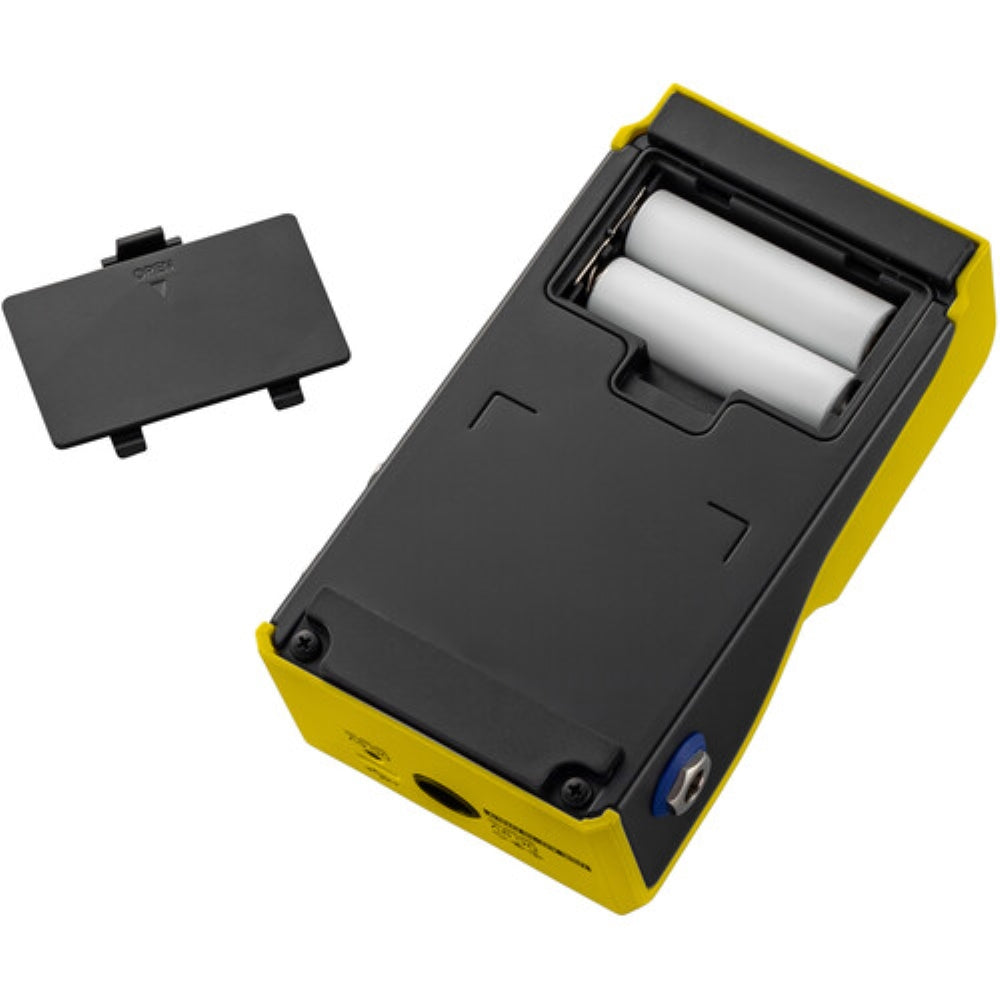

- The MS-200D+ can run on two AA batteries, via USB-C, or with a 9 VDC power adapter. This ensures you'll never be without power for your distortion pedal, whether you're in reach of outlets or not.
General |
|
---|---|
Presets | 250 User Patch Memories |
Sampling Rate | 24-Bit / 44.1 kHz (128x Oversampling) |
DSP | 32-Bit |
Frequency Response | 20 Hz to 20 kHz (±0.5 dB) |
Input Level | -20 dBu |
Input Impedance | Line: 470 Kilohms |
Maximum Output Level | +7.2 dBu |
Signal-to-Noise Ratio | 122 dB |
Noise Floor | -100 dBu |
Display |
|
---|---|
Panel Type | LCD |
Native Resolution | 160 x 128 |
Touchscreen | No |
Inputs/Outputs |
|
---|---|
USB I/O | 1 x USB-C Female Input/Output |
Audio I/O | 1x 1/4" TS Hi-Z/Instrument Input 1x 1/4" TS Hi-Z/Instrument Output |
Power |
|
---|---|
Power Source | AC Adapter with Power Brick, Battery |
Battery Type | 2x AA |
DC Input Power | 9 VDC at 500 mA |
Operating Current | 500 mA (Typical) |
Physical |
|
---|---|
Color | Yellow |
Material of Construction | Metal |
Environmental Resistance | No |
Dimensions | 5.2 x 3.1 x 2.4" / 13.3 x 7.9 x 6.1 cm (D x W x H) |
Weight | 12.2 oz / 346 g (Without Batteries) 13.9 oz / 393 g (With Batteries) |
