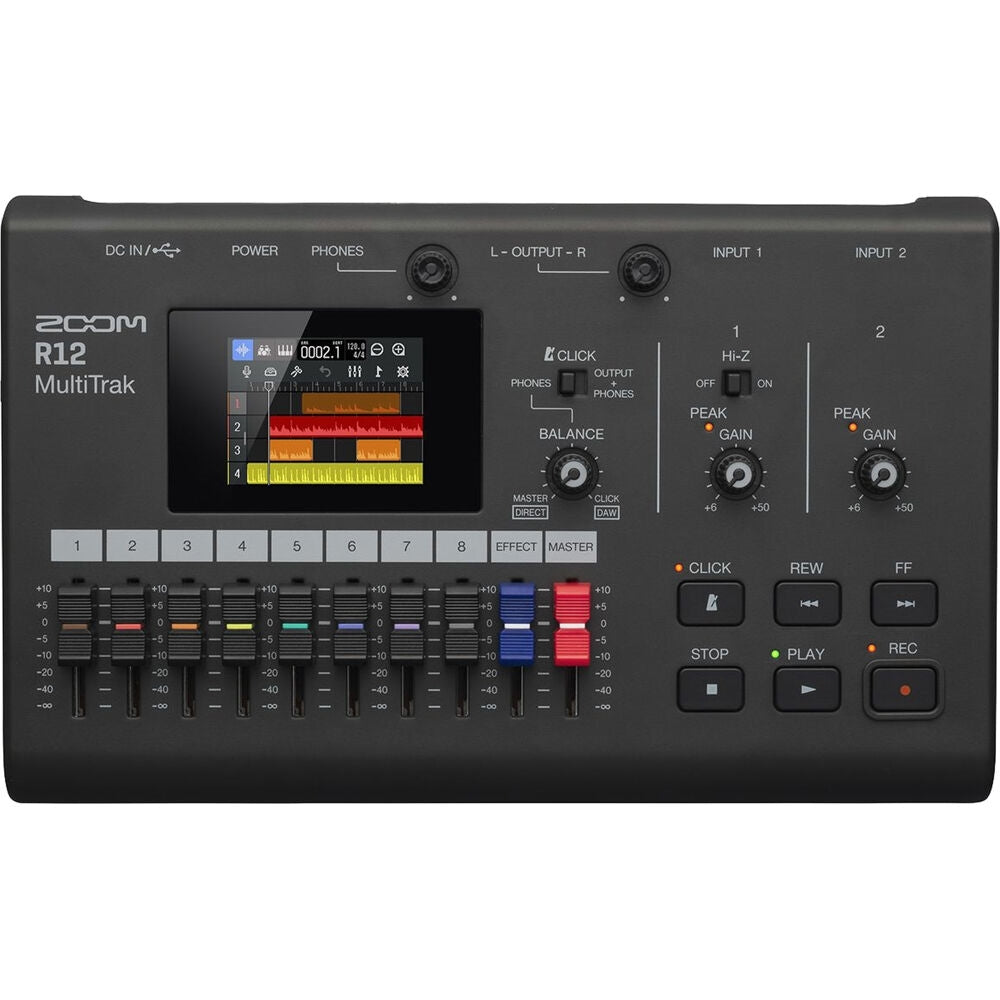

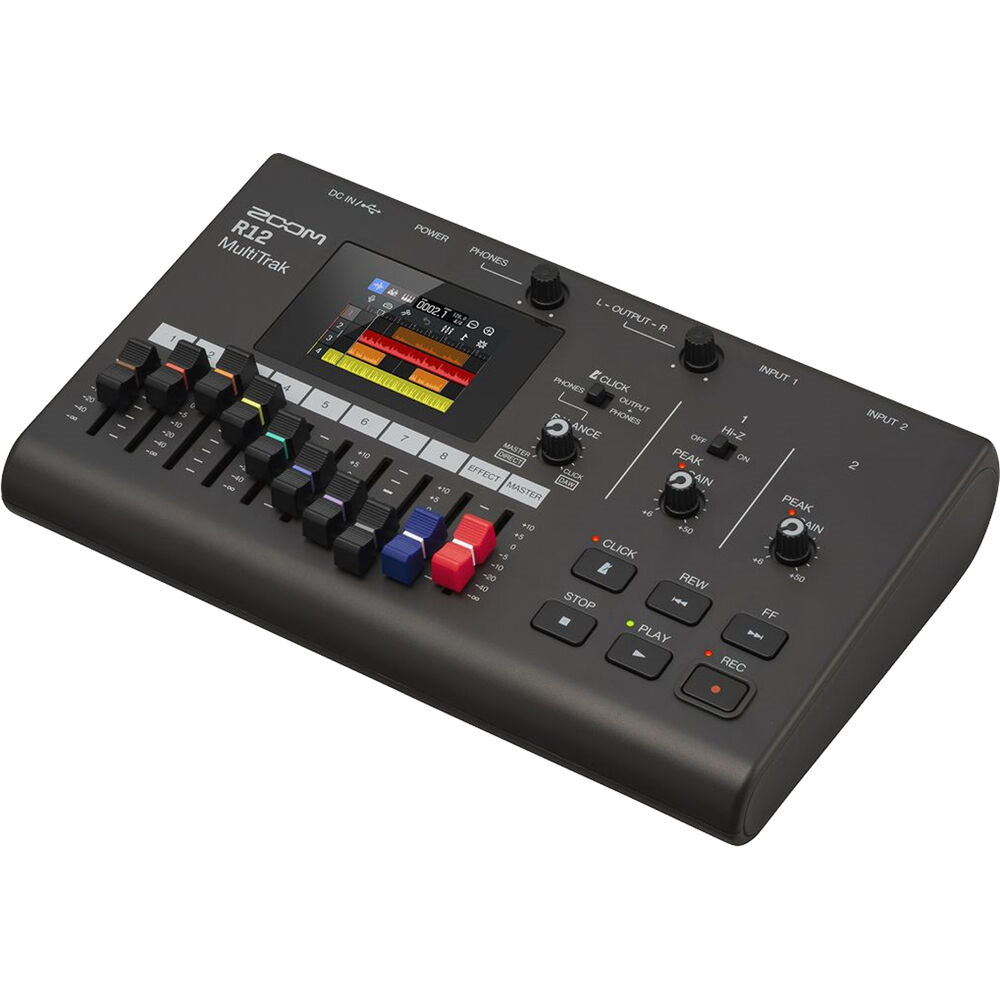

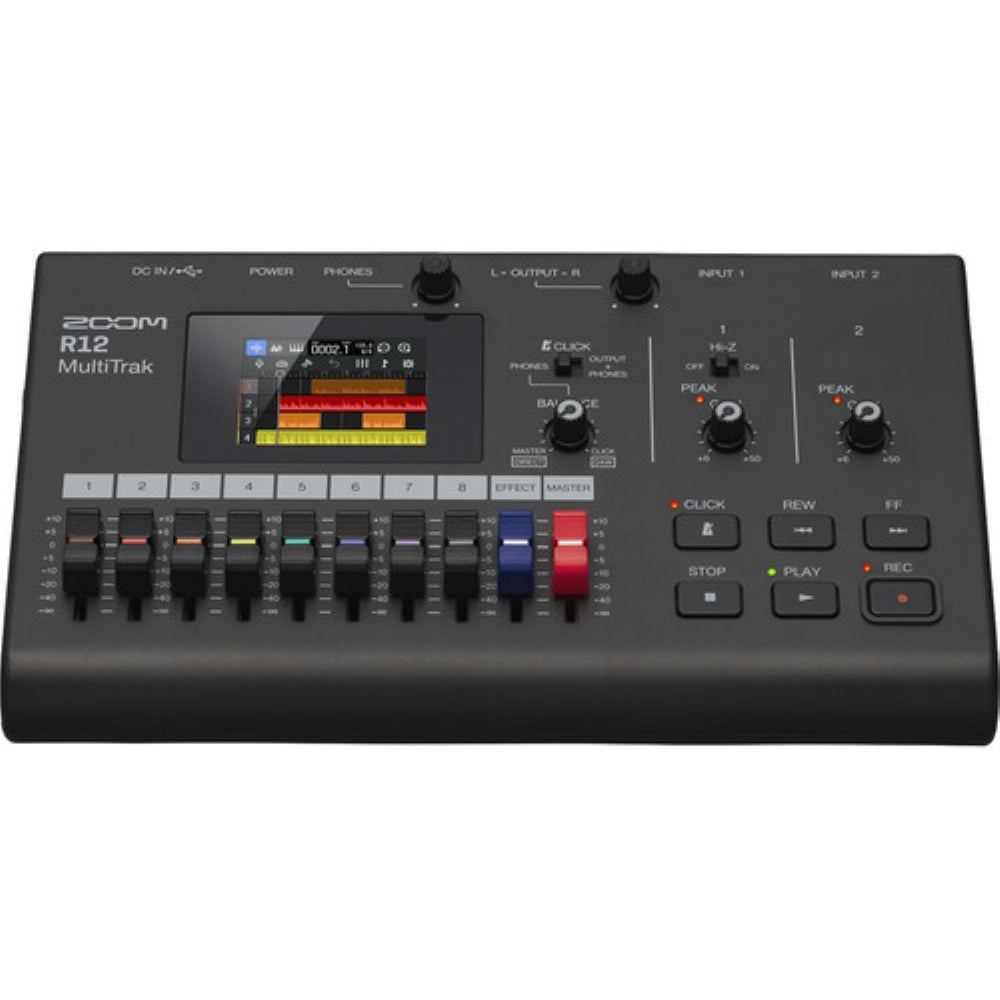

Zoom R12 MultiTrak Portable Recorder and Control Surface
Designed for musicians dedicated to their craft, the R12 MultiTrak by Zoom serves as a versatile and highly portable all-in-one production platform. It incorporates an 8-track, 24-bit / 44.1 kHz digital recorder along with 2x4 audio interface capabilities, all housed in a battery-operated unit, enabling music creation in any location. The R12 fulfills various roles for contemporary musicians, offering control surface functionality, 150 preloaded drum loops, a customizable metronome, a dedicated effects channel with four selectable options, compression on inputs 1 and 2, as well as pan and 3-band EQ control for each track. Additionally, it includes a tuner and a sophisticated FM synthesizer, facilitating the recording of albums, live performances, or the production of high-quality streaming content, enhanced by features such as sequence play for backing tracks.

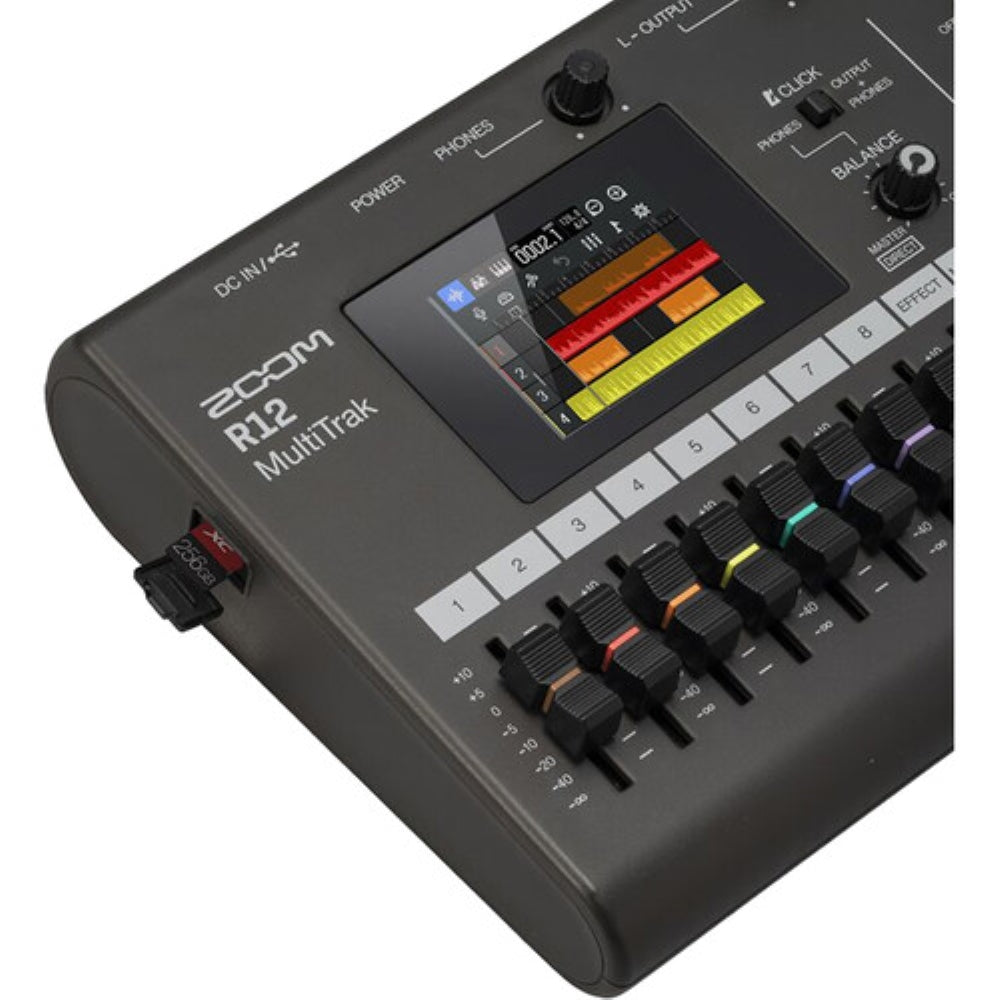

The R12 features a sizable and vibrant 2.4" LCD touchscreen that offers user-friendly control options, including swipe editing. It is equipped with two XLR-1/4" TRS combo inputs, with input 1 supporting Hi-Z and both inputs allowing for selectable phantom power. Additionally, it includes balanced 1/4" monitor outputs, a 3.5mm output compatible with high-powered headphones, and a USB-C port for audio interface and bus power functions (cable provided). Powering the R12 is straightforward, requiring just four AA batteries for up to 5 hours of uninterrupted operation. Alternatively, the device can be powered using the included AD-17 AC adapter, offering three different power options for your recorder.
Amazing Sound
The R12 features exceptionally clear preamps that will appeal to musicians. Equipped with two XLR-1/4" inputs and eight audio tracks, the R12 is ideal for capturing a wide range of recordings, from demos to fully polished songs. Its compact and portable design allows for recording and mixing directly on the device, eliminating the need for a computer. The full-color LCD touchscreen facilitates effortless cutting, copying, looping, and editing of your tracks.
Fully Loaded
The R12 features a dedicated send effects channel that provides reverb, chorus, and delay, accompanied by a specific effects return fader. For more sophisticated sound options, users can access presets and effects available through Zoom's Guitar Lab. Additionally, the R12 is equipped with panning capabilities and a three-channel equalizer for each track, as well as a compressor for inputs 1 and 2.
Take It Everywhere

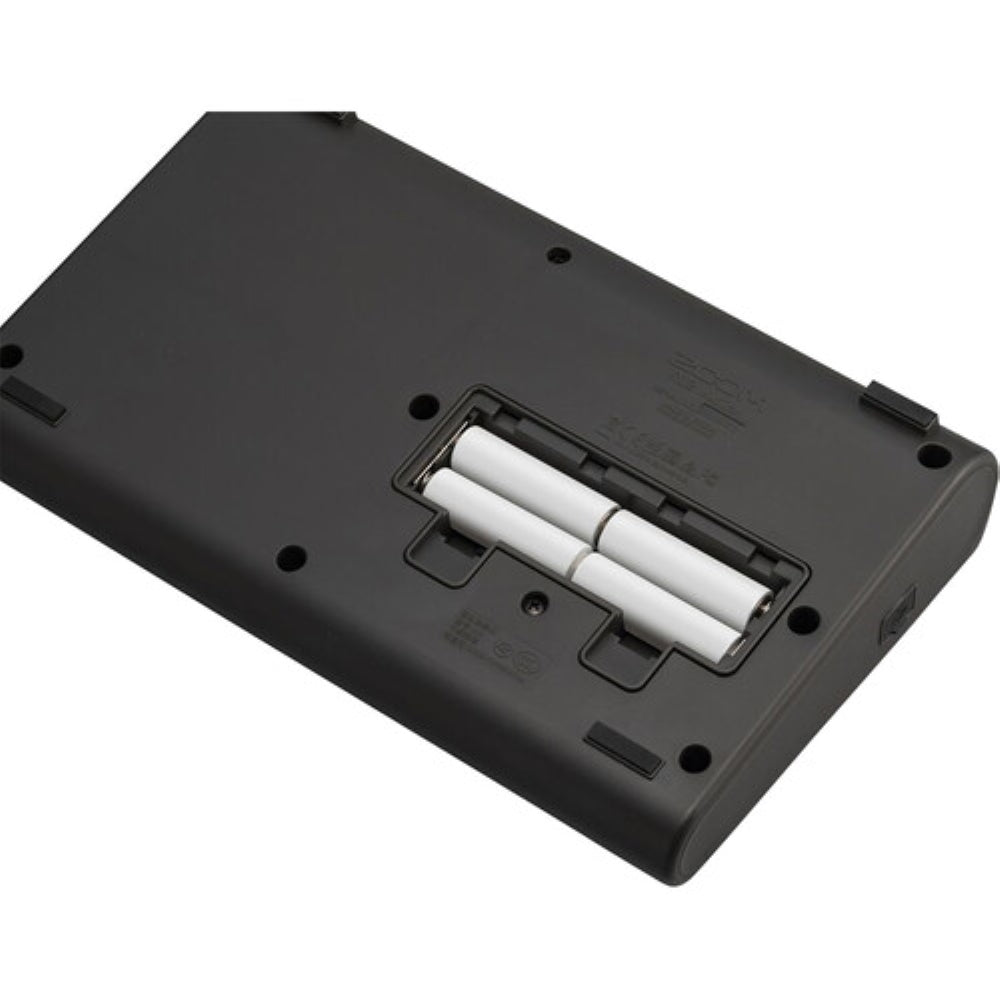

The R12 offers a runtime of up to 5 hours when powered by four AA batteries, enabling you to take your production to any location. Furthermore, the R12 can also be operated using the supplied AD-17 power adapter or a USB battery.
Playback or Play Along
Utilize Sequence Play to assemble a playlist of your projects, which can then serve as backing tracks for live performances or rehearsal sessions. The R12 features 150 preloaded drum loops across diverse patterns and genres, offering a flexible rhythm section suitable for any endeavor. Furthermore, you have the option to enhance your audio collection by importing files into your R12 using a microSD card or USB thumb drive.
Interface, Control Surface, and Time Keeper
Utilize the R12 as a stereo audio interface with your preferred digital audio workstation or streaming service through USB-C connectivity. As a control surface, the transport controls and faders facilitate seamless adjustments and management of your software during the production process. Engage the fully customizable click track with a single button press. The click balance feature integrates the metronome with your playback audio, directing it to your headphones and/or the main outputs.
Add Some Synth for Good Measure
The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C, or programmed using the touchscreen.
General |
|
---|---|
Form Factor | Desktop |
Number of Tracks | WAV: 8 (2 Inputs + Stereo Mix) |
Maximum Simultaneous Tracks | 2x Recording / 8x Playback (at 44.1 kHz) |
Display | 1x 2.4" Color LCD Touchscreen (Backlit) |
Maximum Sampling Rate | 44.1 kHz / 24-Bit |
Number of Microphone Inputs | 2 |
Built-In Microphone | No |
Input Level Adjustment | 2x Knob |
Sample Pads | No |
Signal Processing |
|
---|---|
Gain/Trim Range | +6 dB to +50 dB |
EQ | Input Channels: 3-Band Shelving (Mono Channels) |
EQ Parameters | High: ±12 dB at 10 kHz Mid: ±12 dB at 2.5 kHz Low: ±12 dB at 100 Hz |
Dynamic Processing | Input Channels: Compressor, Limiter, Gate |
Solo/Mute | Solo, Mute per Input Channel |
Built-In Effects | 10x Effect (Type Unspecified) |
Connectivity |
|
---|---|

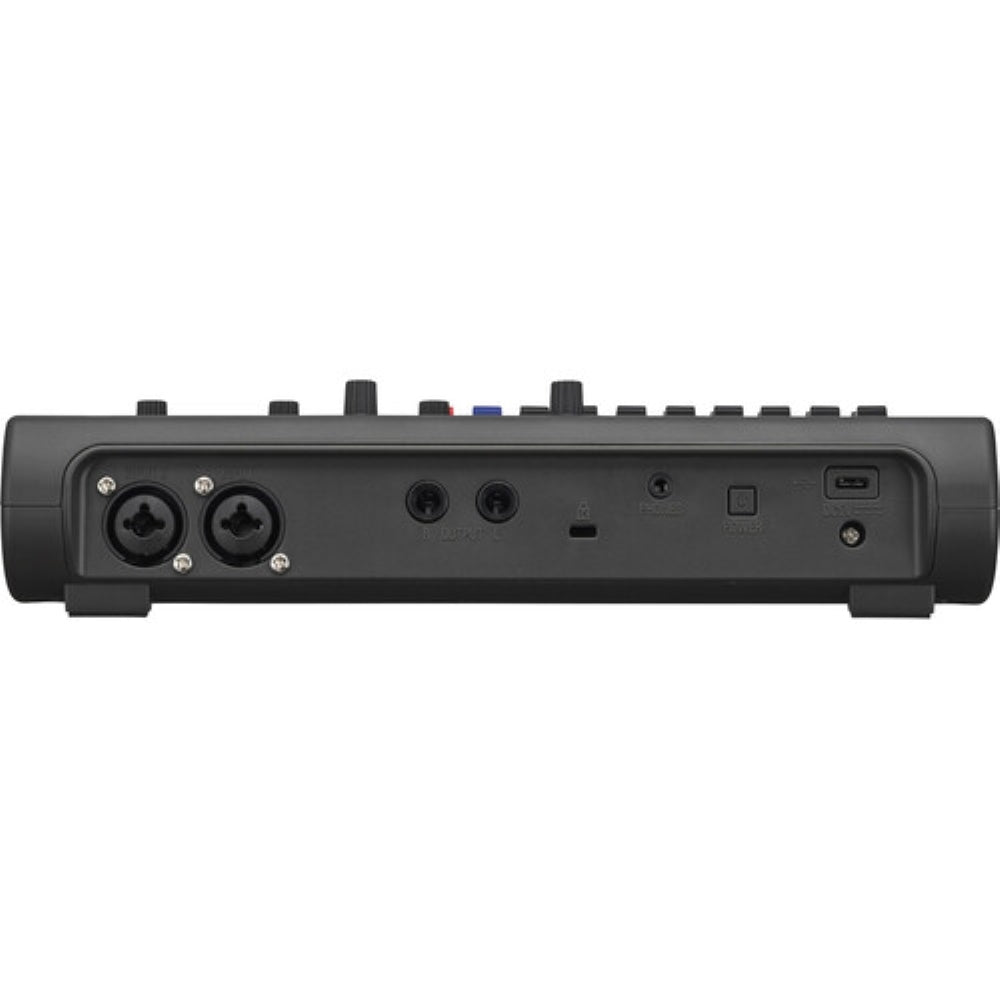

Analog Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2x 1/4" TRS Balanced Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
Digital Audio I/O | No |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | No |
Sync I/O | No |
Network I/O | No |
MIDI I/O | No |
Performance |
|
---|---|
Frequency Response | 20 Hz to 20 kHz +0.5/-1 dB |
Maximum Output Level | +1 dBu |
Headphone Output Power | 1/8" / 3.5 mm: 45 mW per Channel into 32 Ohms |
Impedance | Combo XLR-1/4" Mic/Line Inputs: 3.9 Kilohms 1/4" Hi-Z Inputs: 1 Megohm |
Metronome | Tempo Range: 40.0 to 250.0 BPM Time Signatures: 3/4, 4/4, 6/8 |
Rhythm | Number of Loops: 150 Sound Force Format: PCM |
Synth Section | Sound Source Format : FM Polyphone: 8 Number of Sound Types: 18 (Plus PCM Drum Kit) |
Tuner | Chromatic Guitar Bass Open A Open D Open E Open G DADGAD |
Digital Audio |
|
---|---|
Audio File Formats | Recording: WAV |
Sample Rates | 44.1 kHz (Recording to SD Card) |
Bit Depths | 16 / 24-Bit |
Audio Storage & Playback |
|
---|---|
Supported Media | microSDXC Card |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
Supported Media Capacity | 1 TB Maximum |
Compatibility |
|
---|---|
OS Compatibility | macOS / Windows |
Power |
|
---|---|
Power Requirements | Battery, USB Bus Power |
DC Input Power | 5 VDC at 1A (USB Bus Power) |
AC/DC Power Adapter | 5 VDC at 1 A |
Battery Type | 4x AA |
Approximate Battery Life | 5 Hours (AA Alkaline) 5 Hours (AA NiMH) 11 Hours (AA Lithium) |
Physical |
|
---|---|
Dimensions | 10.1 x 6.2 x 2.4" / 256 x 158 x 61 mm |
Weight | 29.2 oz / 827.0 g (with Batteries) |
