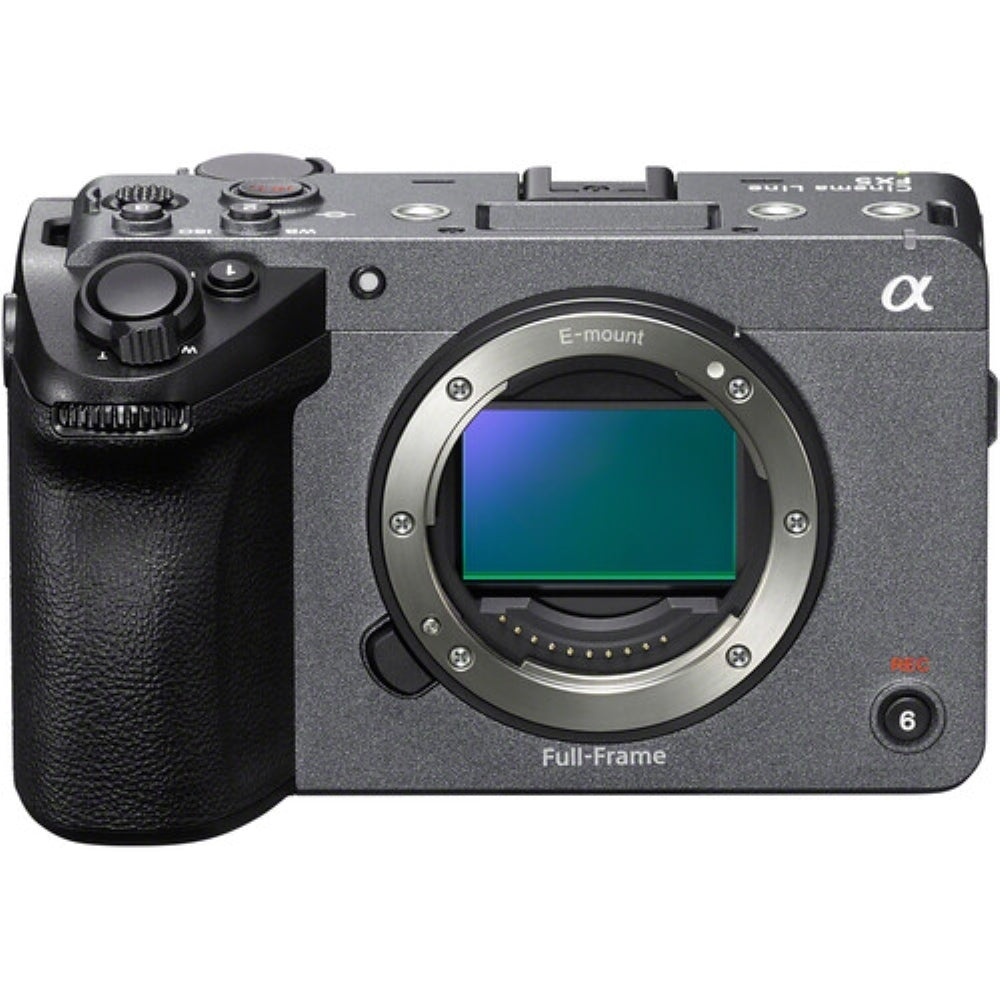

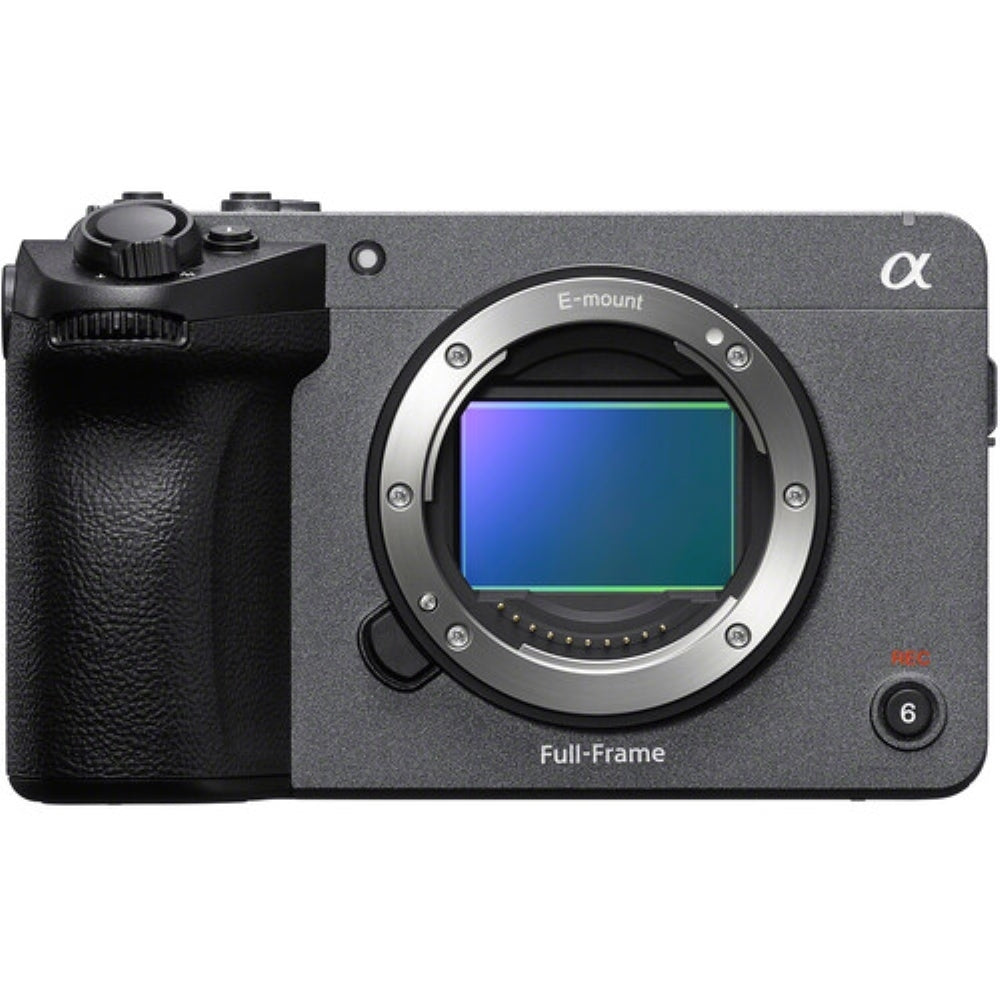

Sony FX5 Cinema Camera with XLR Handle Unit

The Sony FX5 Cinema Camera integrates the most recent advancements from Sony's Cinema Line into a compact system designed for modern hybrid productions. It features a newly developed 16.6MP full-frame stacked Exmor RS CMOS sensor, the next-generation BIONZ XR2 image processor with an integrated AI processing unit, and professional recording options including Open Gate capture and internal X-OCN. The FX5 offers remarkable speed, image quality, and production flexibility. Whether you are producing documentary films, commercial work, branded content, or independent cinema, the FX5 is intended for creators who seek the performance of a dedicated cinema camera without compromising on mobility or efficiency.

A New Place in the Cinema Line

The FX5 represents a completely new addition to Sony's continually growing Cinema Line. It is positioned between the compact FX3, which shares a similar form factor, and the more advanced FX6. Each model offers distinct features and tools tailored to various video production needs. A significant upgrade in the FX5 is its adoption of next-generation sensor technology, featuring a 16.6MP 5K fully stacked CMOS sensor, in contrast to the 12MP BSI CMOS sensors found in both the FX3 and FX6. Below is a detailed comparison of how the FX3 and FX6 relate to the FX5.

Upon its initial release, the FX3 was hailed as the premier handheld compact cinema camera from Sony, and it continues to deliver exceptional performance, ranking among the best in the industry. The primary distinction between the FX3 and the FX5 lies in the FX3's incorporation of elements from the Alpha series; its menu and controls are designed to be user-friendly for those familiar with mirrorless cameras, such as the a7R VI. Additionally, the FX3 features a physical shutter and supports proper still image capture, including raw formats, making it suitable for dual-purpose applications.

In comparison to the FX3, the FX5 shares a greater similarity with the FX6 in terms of menu structure, features, and operational functionality. Nevertheless, the FX6 upholds numerous characteristics typical of a conventional production cinema camera, such as professional-grade connections (for instance, SDI), an increased number of physical controls, an integrated electronic ND filter (as opposed to the stabilization feature found in the FX5), and the ability to utilize Sony's larger BP-U series battery packs.

Crucial Information—Key Points to Understand

Positioned between the FX3 and FX6, and utilizing technology from the esteemed CineAlta system, the FX5 boasts numerous innovative and adapted features that set it apart.

• Newly developed 16.6MP (5K) full-frame fully stacked Exmor RS CMOS sensor


• BIONZ XR2 with integrated AI processing unit for improved AI-based subject recognition autofocus and AI-based auto white balance


• Internal recording up to 5K Open Gate (3:2) at 60 fps in X-OCN (LT/C1/C2)


• Three Base ISO (800/4000/12800) and Dual Gain option for 16+ stops of dynamic range


• Revamped user interface and BIG 6 menu with optimized control scheme and multifunction dial


• Large 3.5" widescreen (16:9) 4-axis multi-angle touchscreen LCD and optional dedicated electronic viewfinder


• Additional monitoring tools: false color, waveform, vectorscope, focus map, and built-in anamorphic de-squeeze options

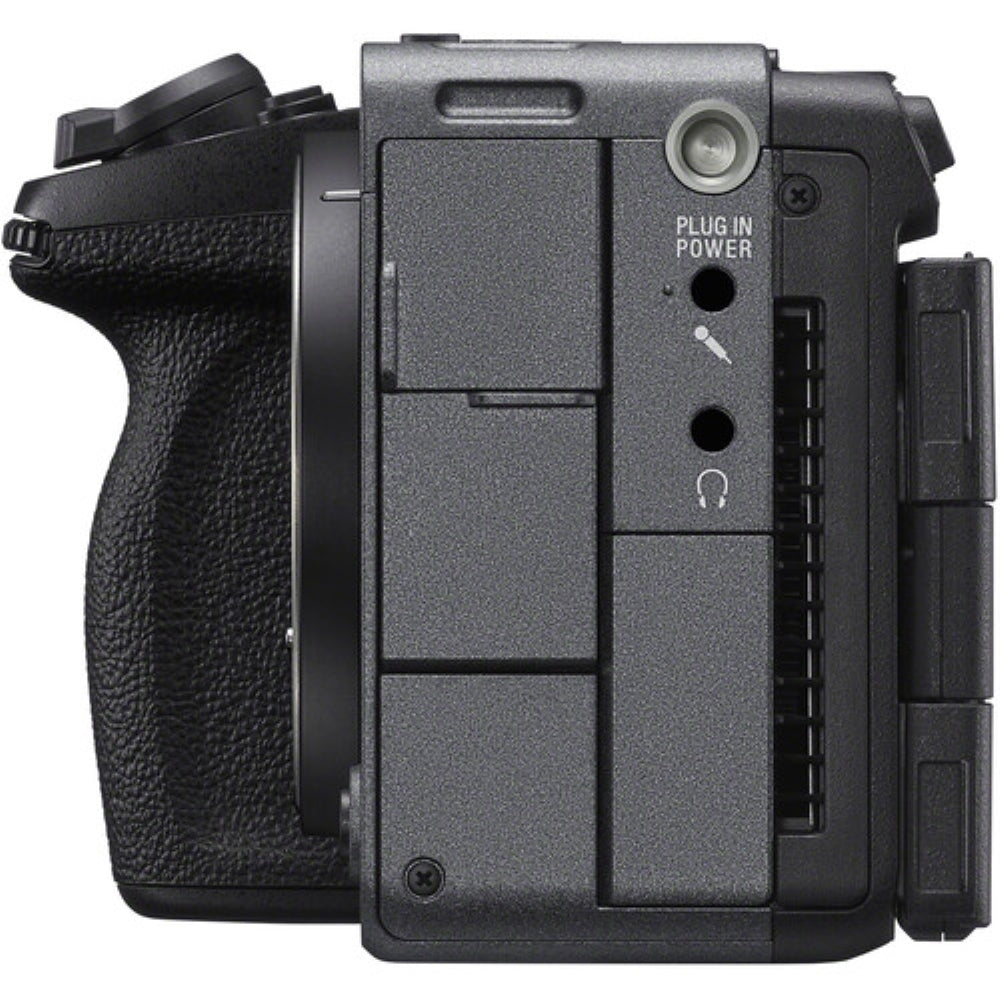

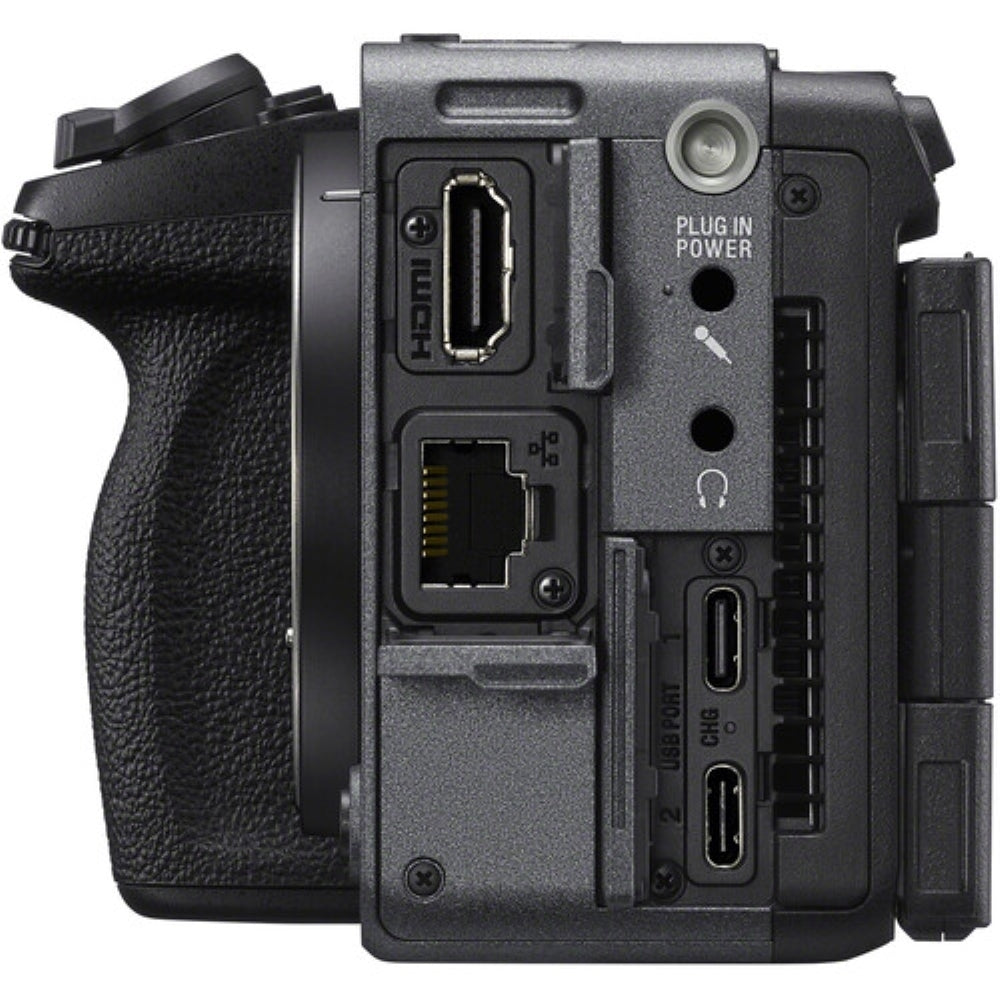

• Enhanced connectivity with two USB-C ports, Ethernet, full-size HDMI, and headphone and mic jacks


• Dual CFexpress Type A/SD memory card slots


• High-capacity NP-SA100 battery pack with over two hours of recording time



AI Processing and Autofocus

Equipped with the cutting-edge BIONZ XR2 processor and a built-in AI processing unit, the FX5 brings Sony's newest intelligent autofocus innovations to the Cinema Line. Its advanced subject recognition capability can detect individuals, birds, and animals, ensuring precise focus is sustained even as scenes evolve. Enhanced low-light autofocus functionality enables the system to stay agile in difficult lighting situations, providing filmmakers with assurance when conditions become uncertain.

Sensor and Image Quality

At the core of the FX5 lies a newly engineered 16.6MP full-frame stacked Exmor RS CMOS sensor, which is crafted to enhance readout speed, dynamic range, and performance in low-light conditions. This stacked design facilitates quicker data processing and minimizes rolling shutter effects, making it ideal for capturing fast-moving subjects and for handheld filming. When paired with Sony's sophisticated color science, the sensor delivers smooth tonal transitions, improved highlight retention, and cinematic color reproduction that is appropriate for both immediate use and comprehensive post-production processes.

Open Gate and X-OCN Workflow

By utilizing internal Open Gate recording in a 3:2 aspect ratio, the FX5 enhances creative flexibility, enabling creators to fully utilize the sensor area. This feature also offers greater adaptability for reframing, delivering multiple aspect ratios, and executing visual effects work. Additionally, the internal X-OCN recording significantly improves professional workflows by maintaining tonal information and color accuracy in a raw-based format. Collectively, these recording capabilities deliver the necessary latitude for rigorous commercial, cinematic, and post-production settings.

Multiple flavors of X-OCN are available across Sony's CineAlta lineup, including the maximum quality X-OCN XT (Extreme) and balanced X-OCN ST (Standard). The FX5, owing to its more compact and more accessible design, is equipped with a handful of more compressed variants of X-OCN, including a pair of newly developed options:

• X-OCN LT (Light): Indie features, TV, commercials, documentaries, and live events-preserves editing flexibility and 16-bit linear encoding. (5K24 OG: 712 Mb/s)


• X-OCN C1: Content creation, online distribution, live events, documentaries-additional compression for longer runtimes and less discerning productions. (5K24 OG: 536 Mb/s)


• X-OCN C2: Prioritizes media storage and long runtimes. (5K24 OG: 429 Mb/s)



Connectivity and Professional Workflow

The FX5 effortlessly integrates into professional production settings by offering enhanced connectivity options and specialized accessories. With dual USB-C ports, a full-size HDMI output, and compatibility with Sony's XLR Handle Unit, it facilitates efficient audio, monitoring, and data management workflows. The inclusion of timecode compatibility ensures precise synchronization in multicamera setups, while optional accessories—such as a dedicated electronic viewfinder and professional audio solutions—enable filmmakers to tailor the camera for a range of applications, from lightweight solo projects to intricate cinema workflows.

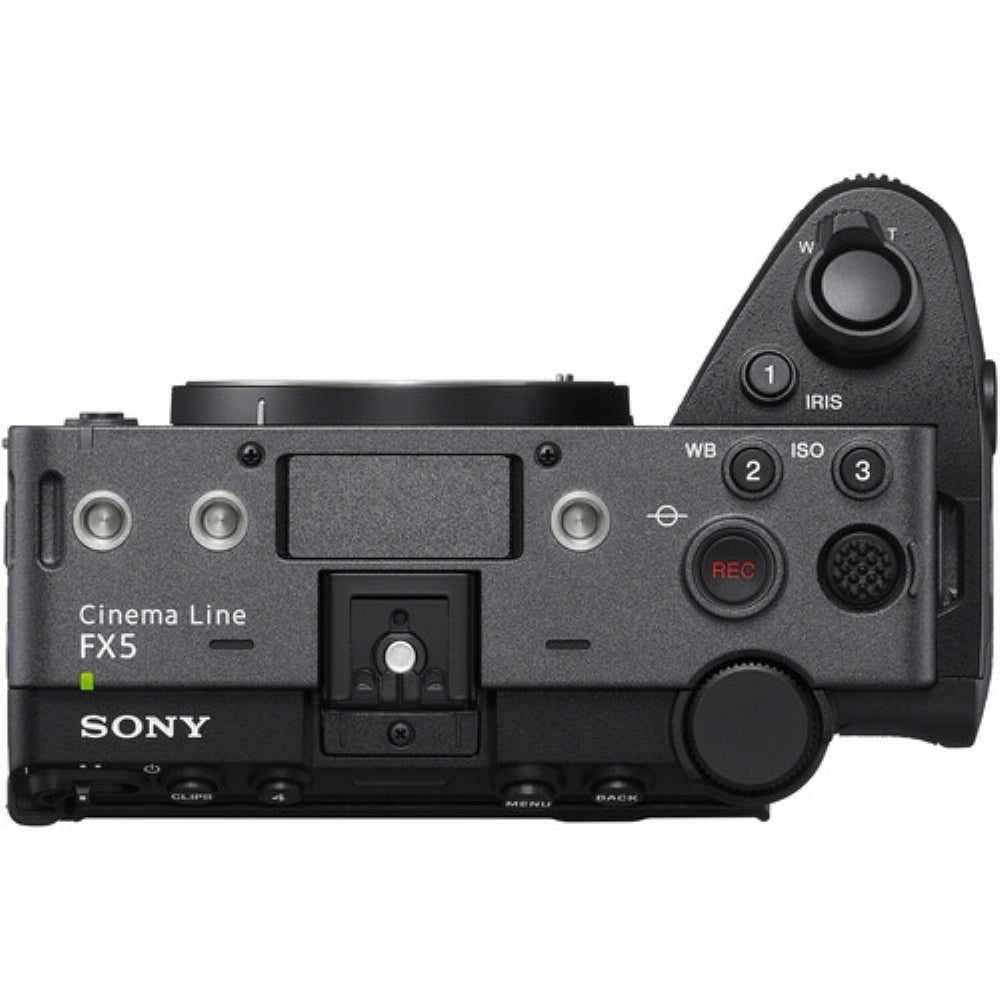

Ergonomics and Control

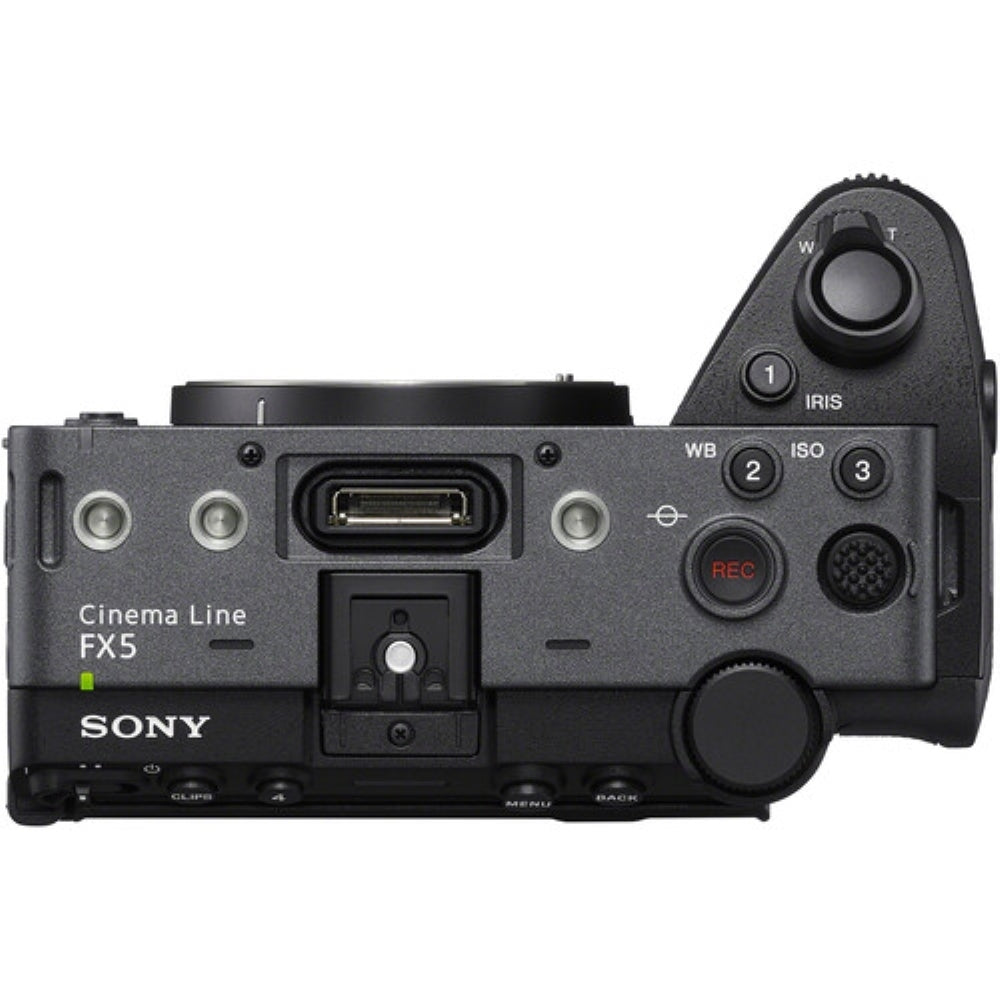

The physical design of the FX5 has been meticulously refined to enhance production efficiency. The newly designed button layout, along with six customizable buttons and a multifunction control dial, ensures that frequently used settings are easily accessible, enabling operators to make adjustments seamlessly without disrupting their creative workflow. The improved menu navigation and strategically placed controls provide a shooting experience that is intuitive for current Cinema Line users, while also being welcoming for filmmakers making the switch from Sony Alpha cameras.

Stabilization and Handheld Shooting

The FX5 is designed for productions that require mobility while maintaining image stability. Its advanced in-body image stabilization system delivers enhanced roll correction, and the dynamic active mode offers further electronic stabilization during handheld shooting. Whether capturing weddings, travel videos, or dynamic content, these features collaborate to create smoother footage, minimizing the need for external stabilization tools.

Comprehensive Monitoring Solutions

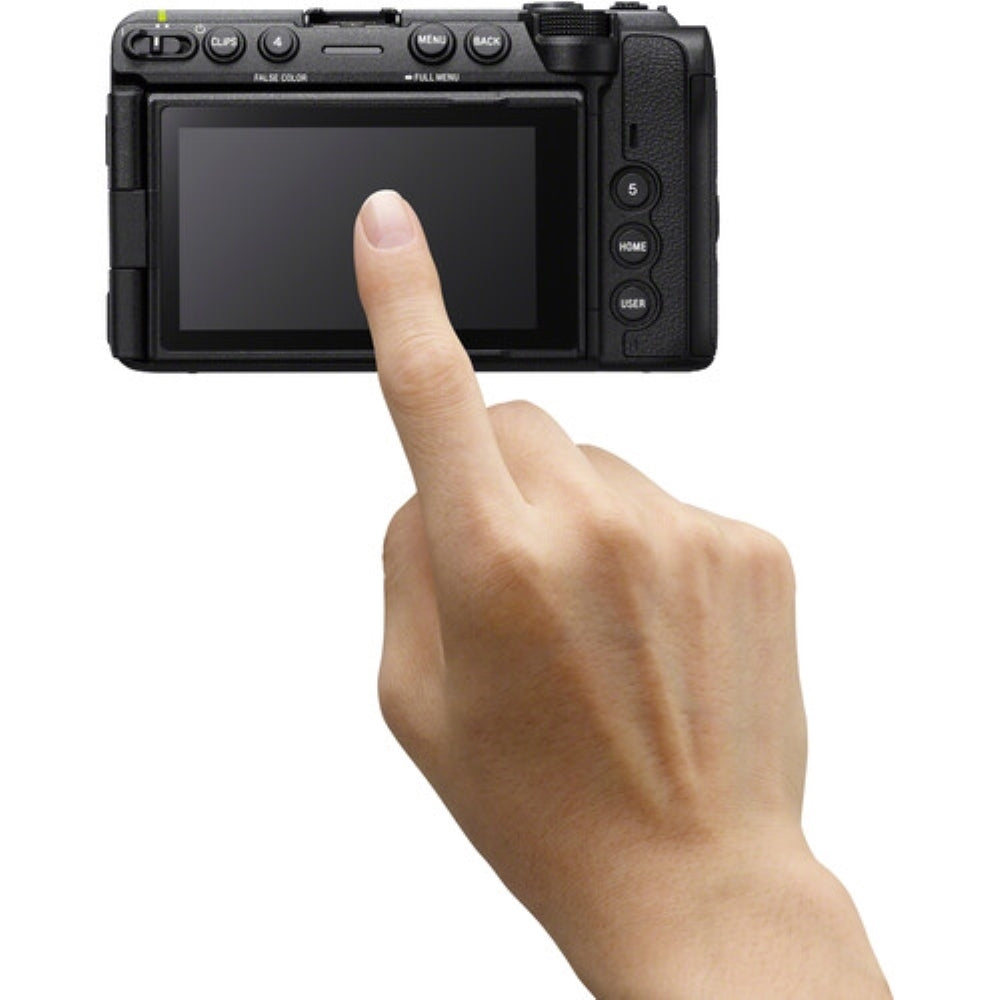

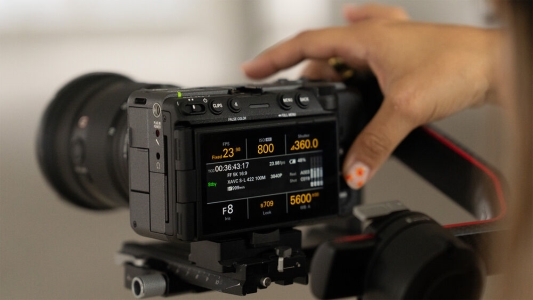

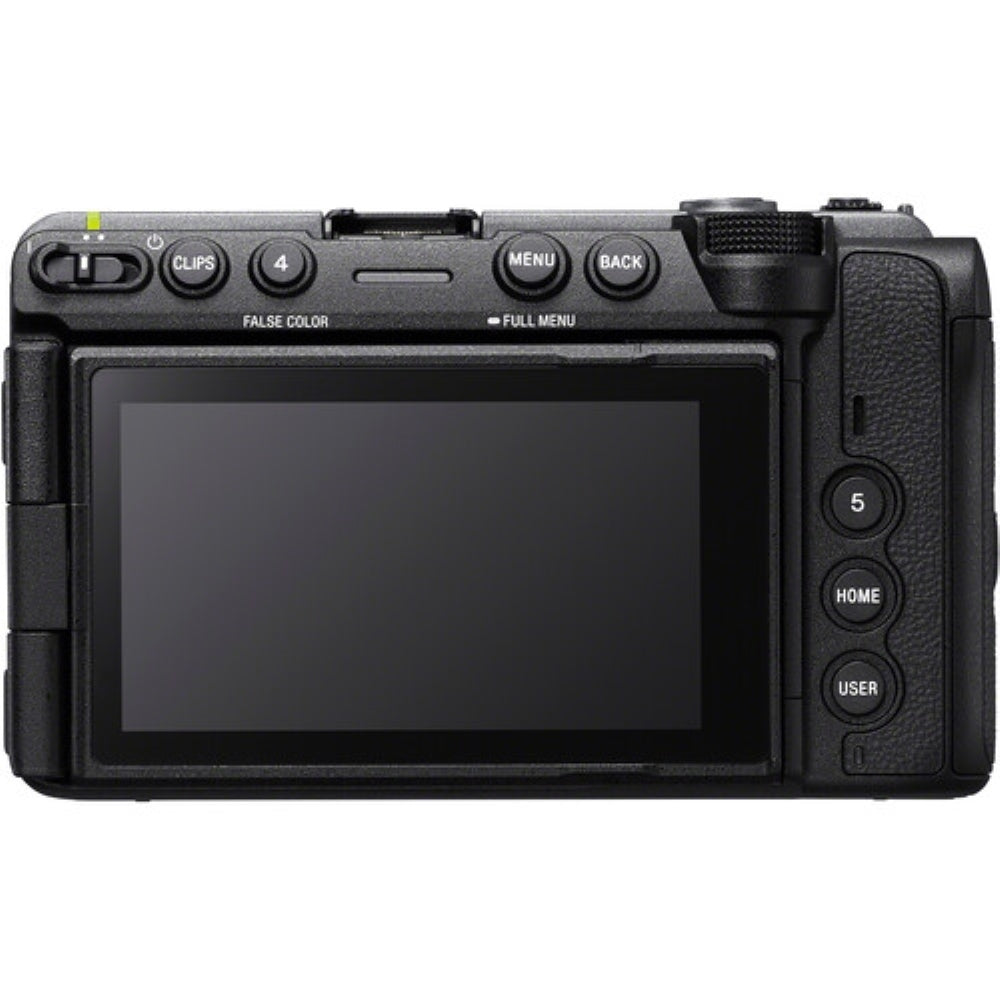

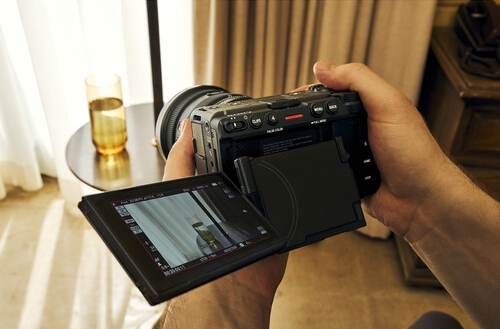

The newly designed 3.5" 4-axis multi-angle touchscreen enhances flexibility for composing shots from various heights, low angles, or unique shooting positions. The expansive 16:9 display is tailored for an improved viewing experience that aligns with contemporary cinema formats, while Sony's revamped cinema-centric BIG 6 user interface facilitates quick access to essential camera settings. Integrated professional monitoring tools such as waveform, vector scope, false color, histogram, zebra, peaking, and focus map are embedded within the camera, allowing filmmakers to achieve accurate exposure and focus control without the need for external monitoring equipment. Additionally, users of anamorphic lenses will find in-camera anamorphic de-squeeze advantageous for real-time monitoring of their images directly on the camera's display.

• Built-in 3.5" widescreen (16:9) 4-axis multi-angle touchscreen—wider than the FX3


• Full-size HDMI output


• In a first for the series, there is the optional dedicated DVF-EL1 Electronic Viewfinder



Dynamic Range and Three Base ISO

Engineered to operate effectively in various lighting scenarios, the FX5 features a dual-gain architecture that offers over 16 stops of dynamic range, ensuring the retention of highlight details while keeping shadow information clear. The introduction of three Base ISO settings adds an extra native sensitivity option, including a new ISO 4000 setting that enhances low-light performance without raising image noise levels. This advancement results in improved versatility when shooting in unpredictable environments, all while preserving image quality across the entire exposure range.

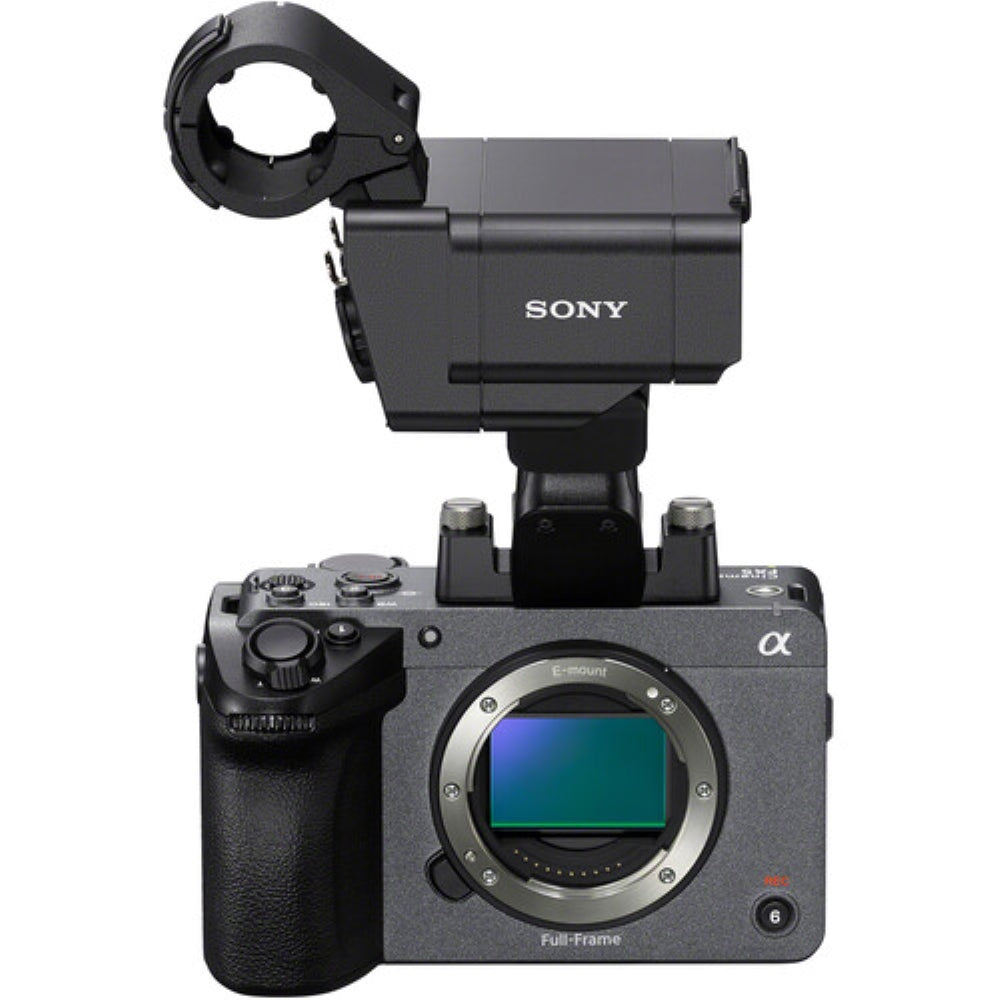

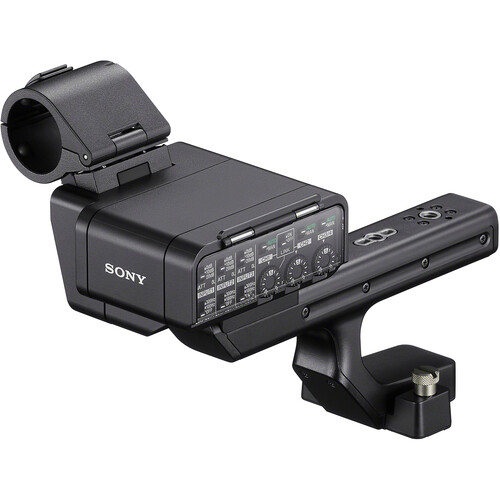

Sony XLR-H2 XLR Handle Unit

Enhance your audio quality with the addition of two XLR inputs on your Sony FX5 by utilizing the XLR-H2 XLR Handle Unit. This adapter is capable of recording at a sampling rate of 96 kHz and supports 32-bit float, allowing for the generation of separate WAV files that are stored directly in the camera, thereby streamlining the editing process. It connects to the camera through its Multi-Interface Shoe, providing a cable-free digital audio interface, and features dual ADCs along with a four-channel input.

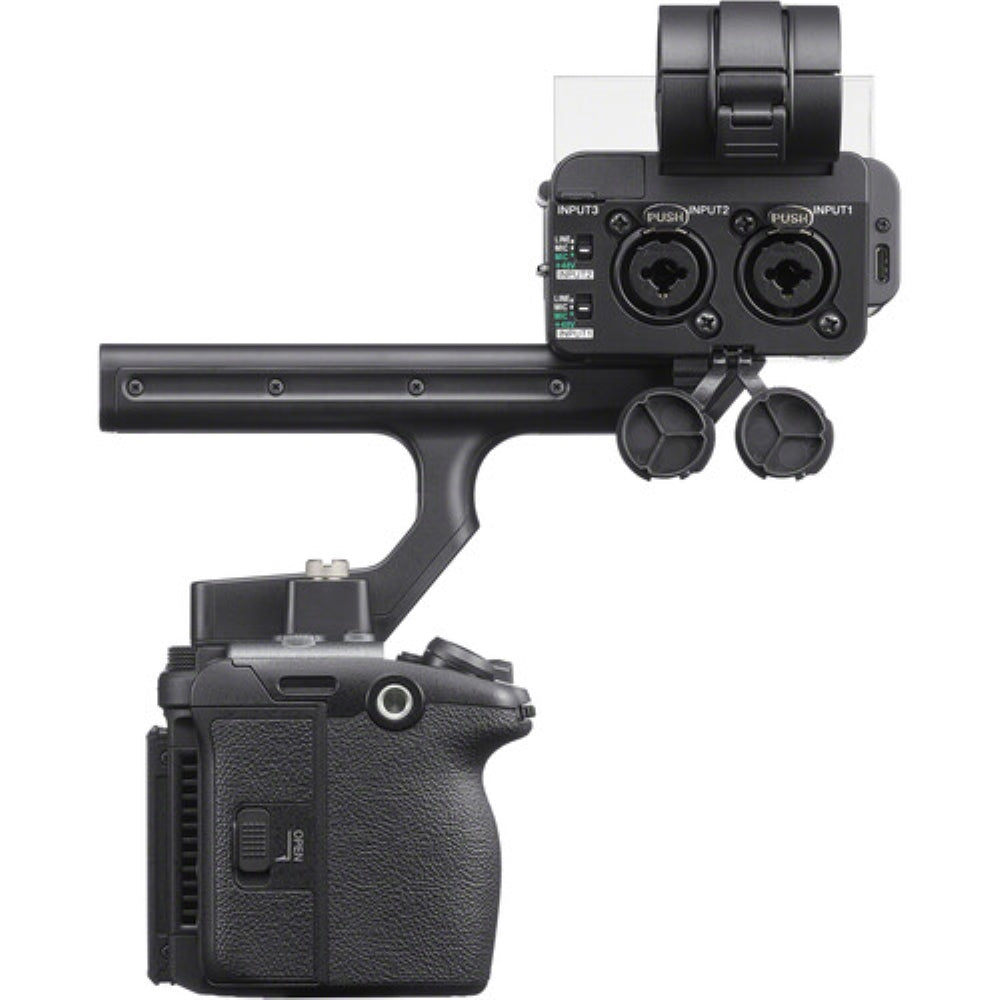

The unit is equipped with two combo XLR-1/4" inputs and a 3.5mm microphone input. To facilitate easier operation, it includes physical controls and dials positioned on the side, complete with covers to prevent accidental adjustments during recording. The handle enhances the ease of camera operation and is designed with four 1/4"-20 accessory threads for attaching additional equipment. Furthermore, it also includes an integrated microphone holder.
