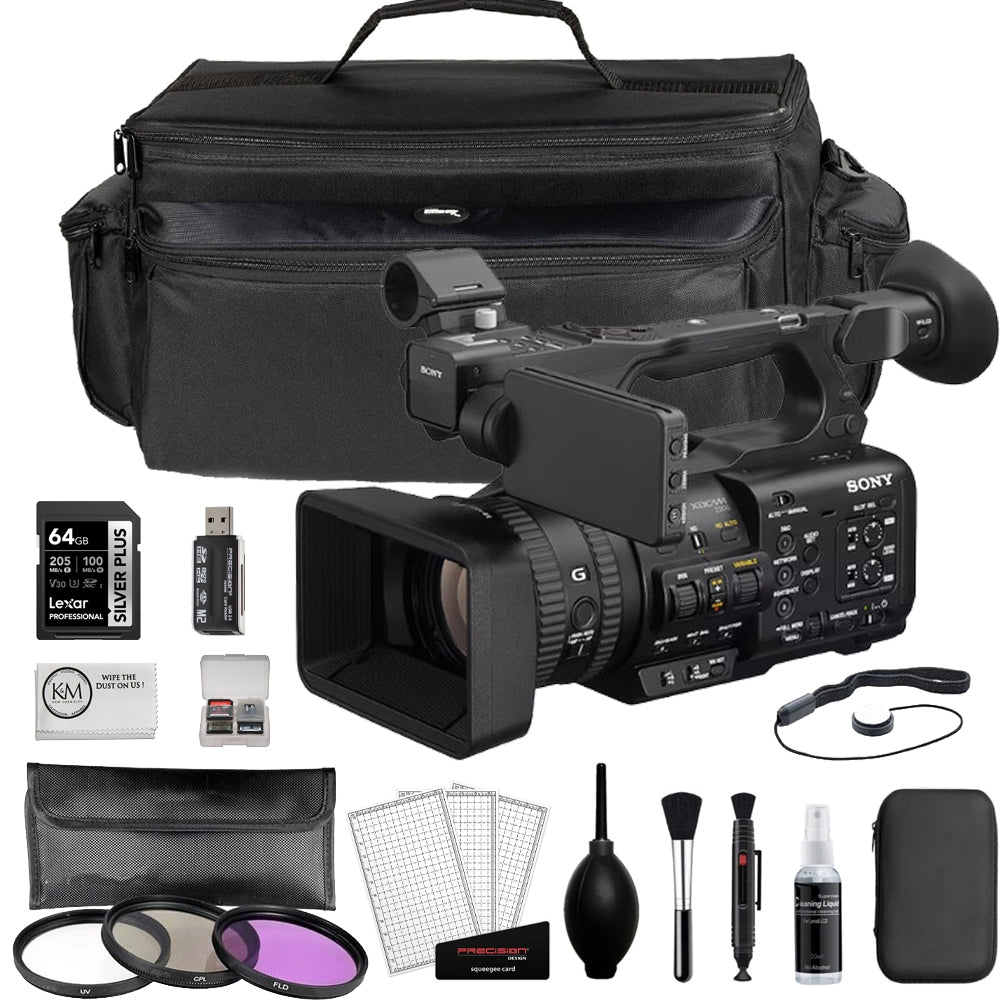

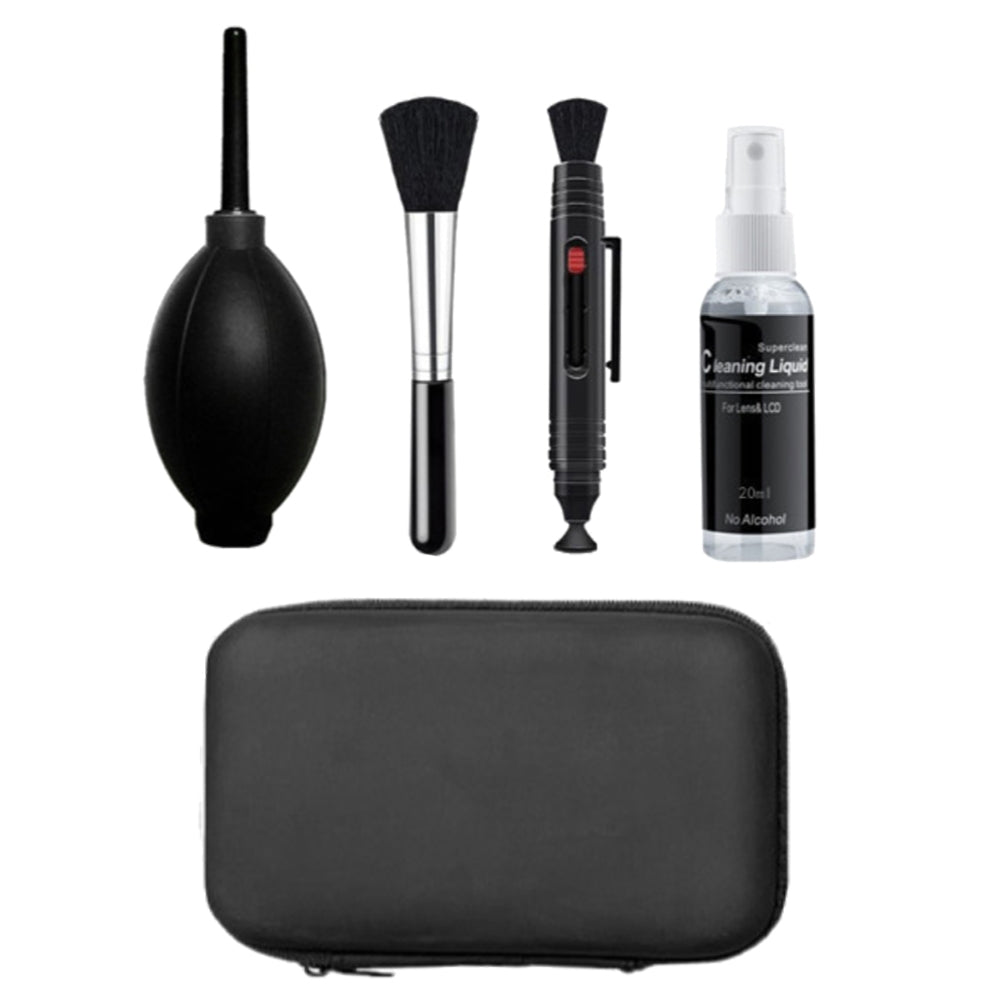

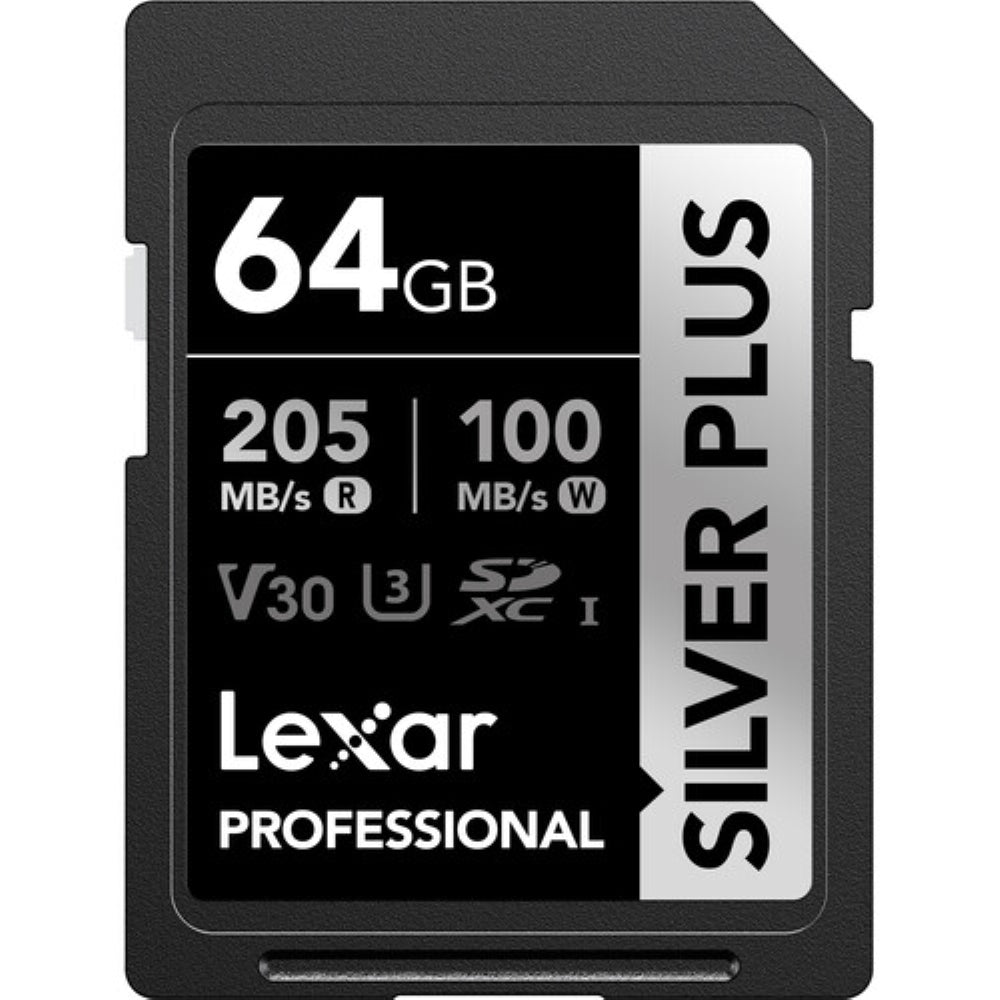

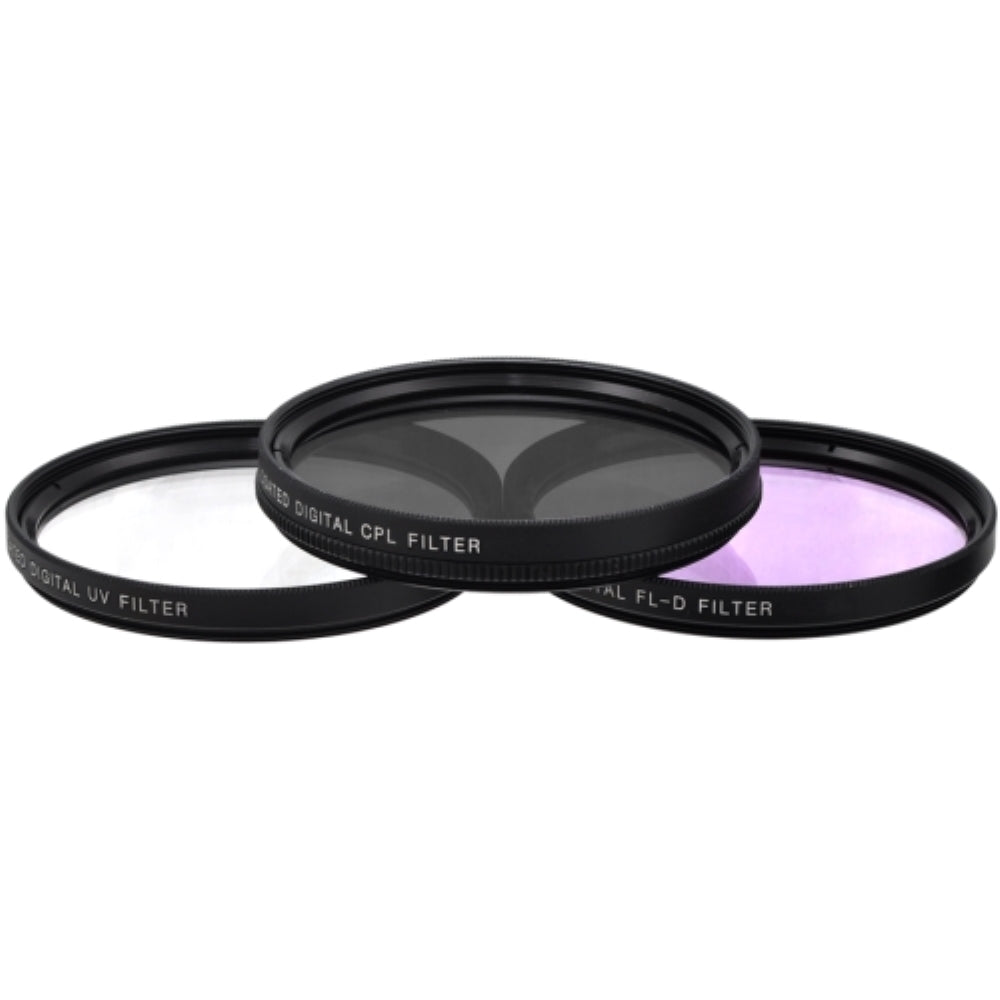

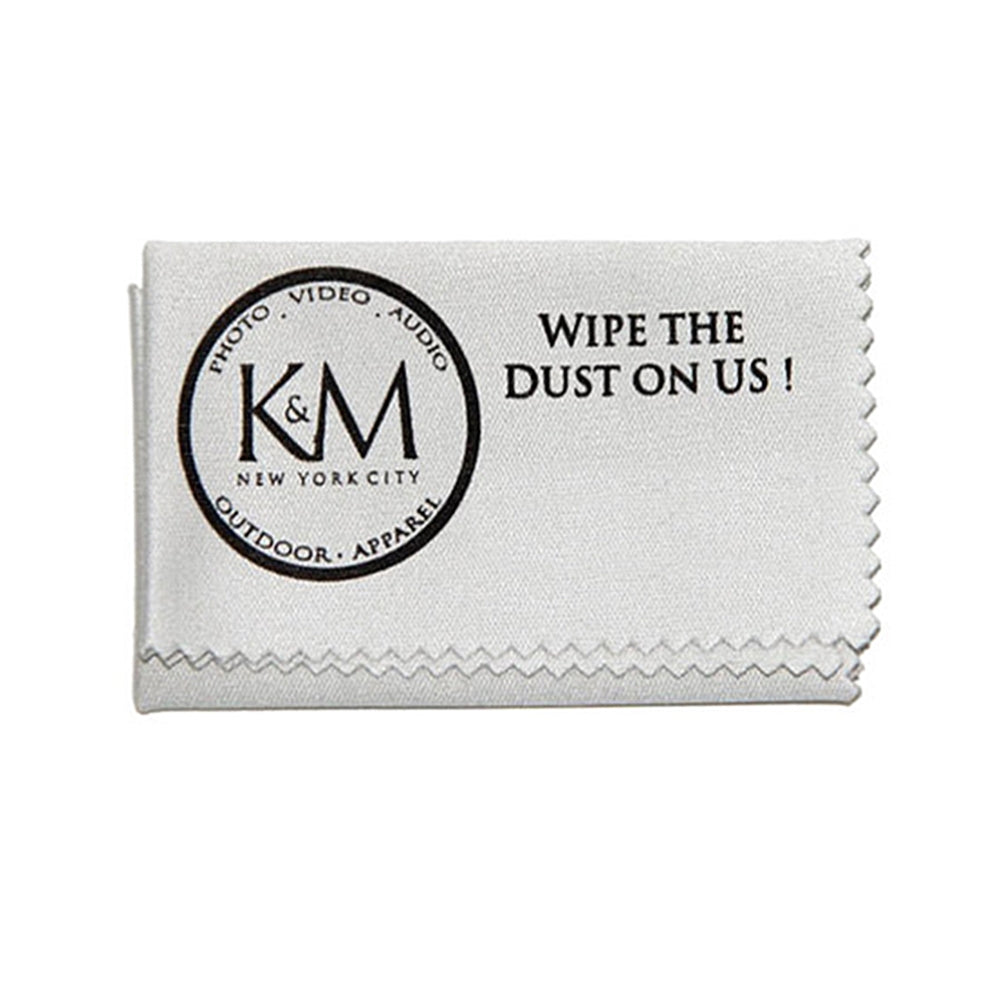

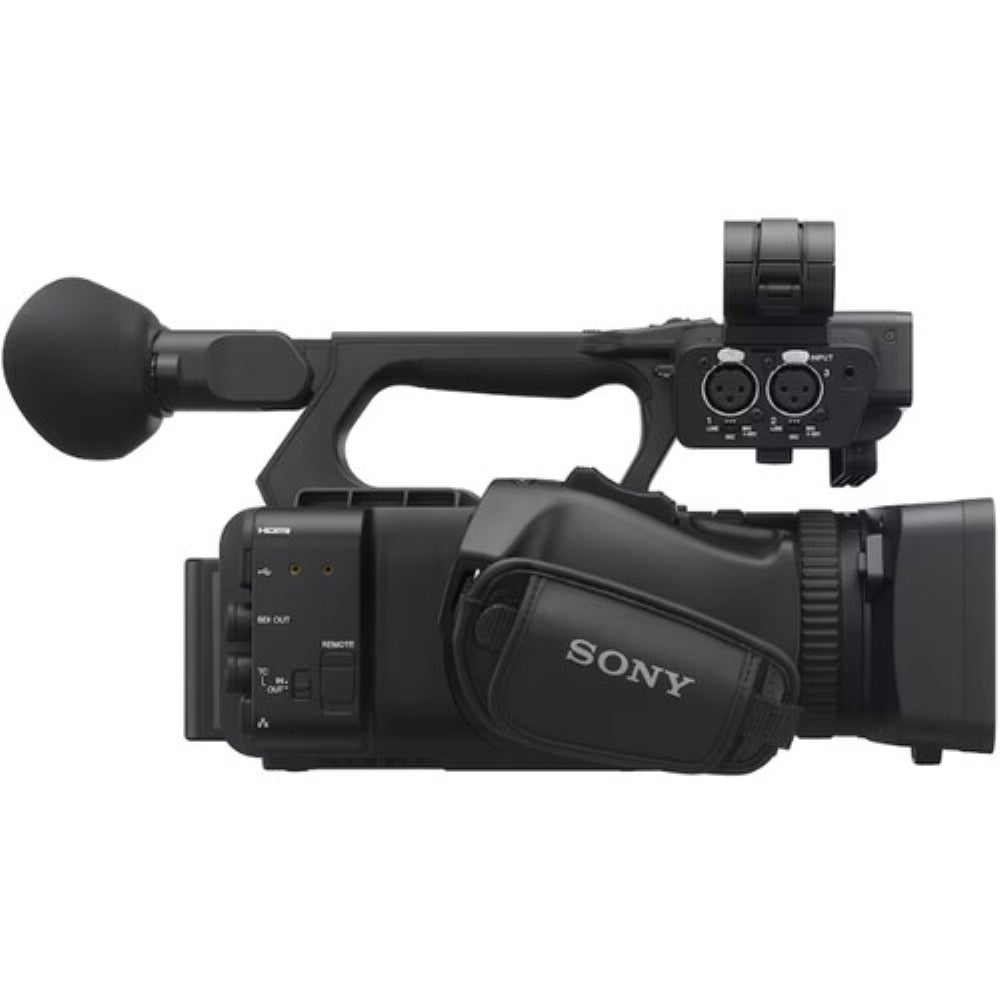

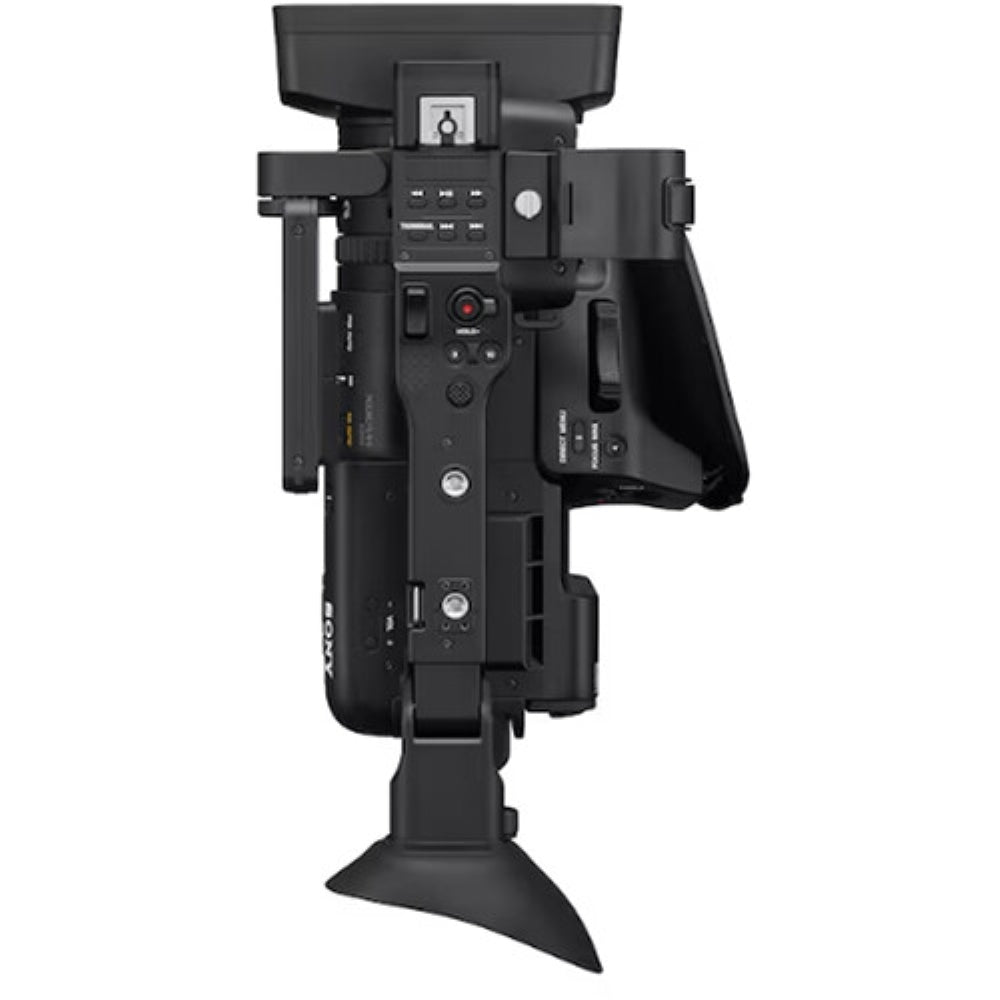

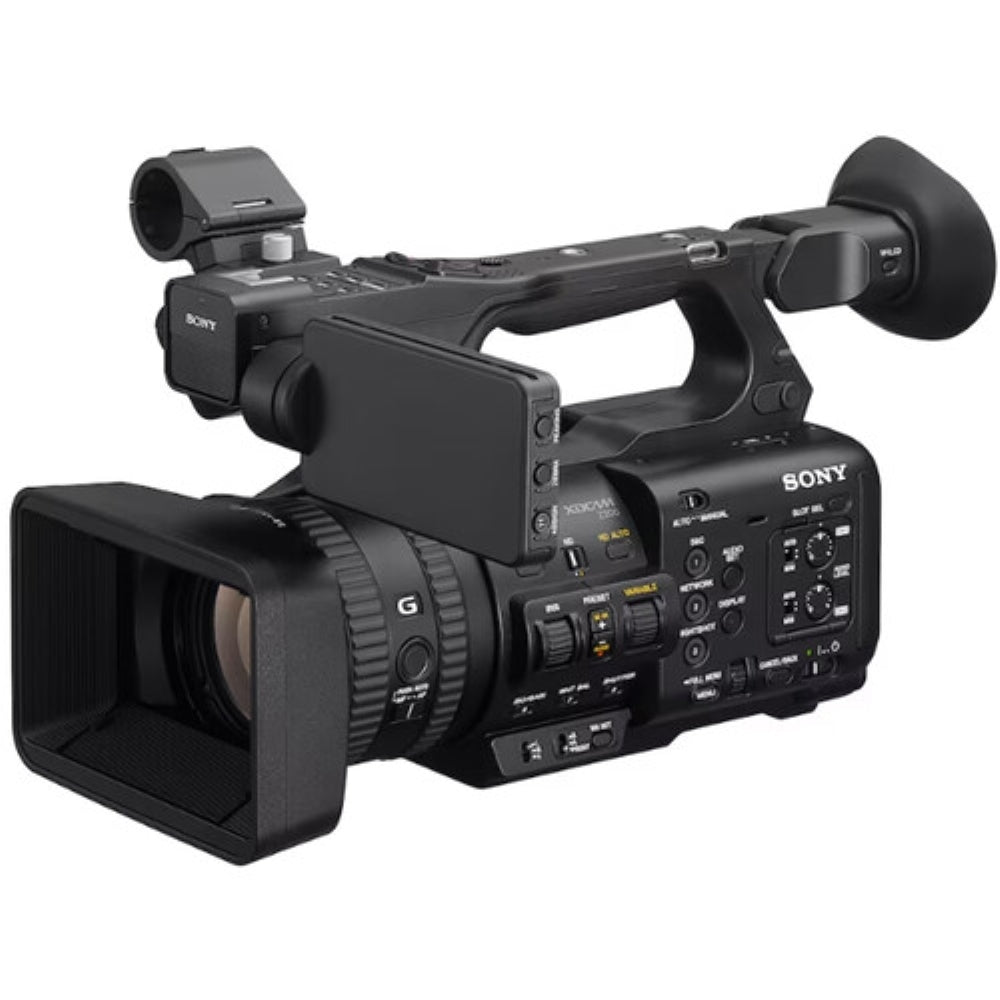

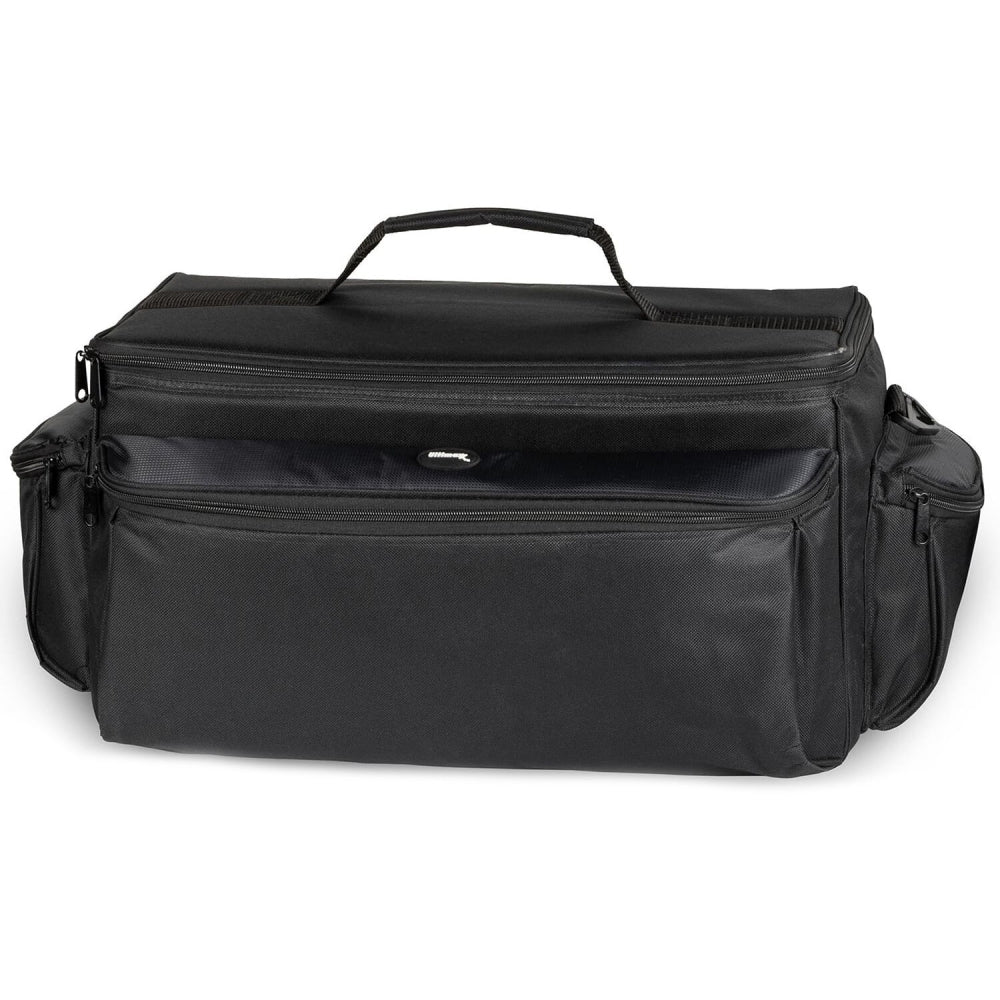

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder Bundle with 64GB SDXC Memory Card + Camera Bag + 3-Piece Filter Set + Photo Starter Kit + Cleaning Cloth (6 Items)

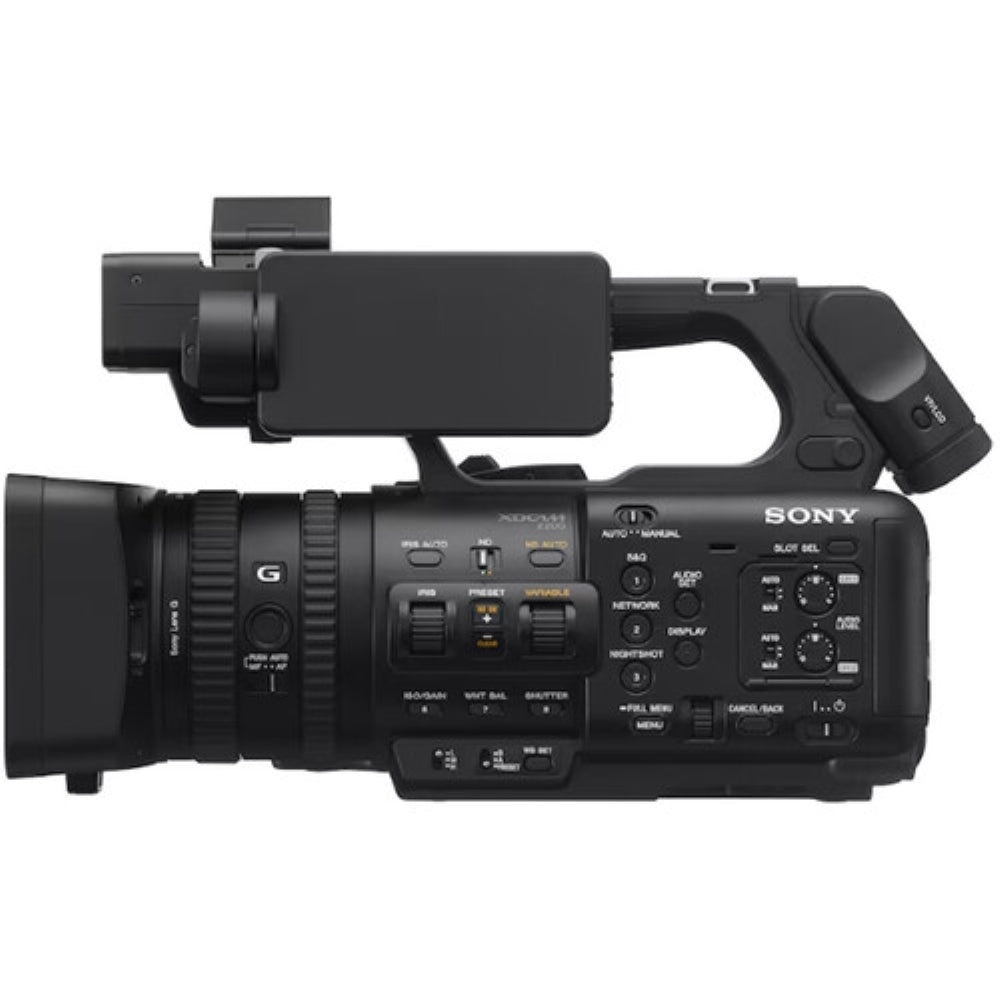

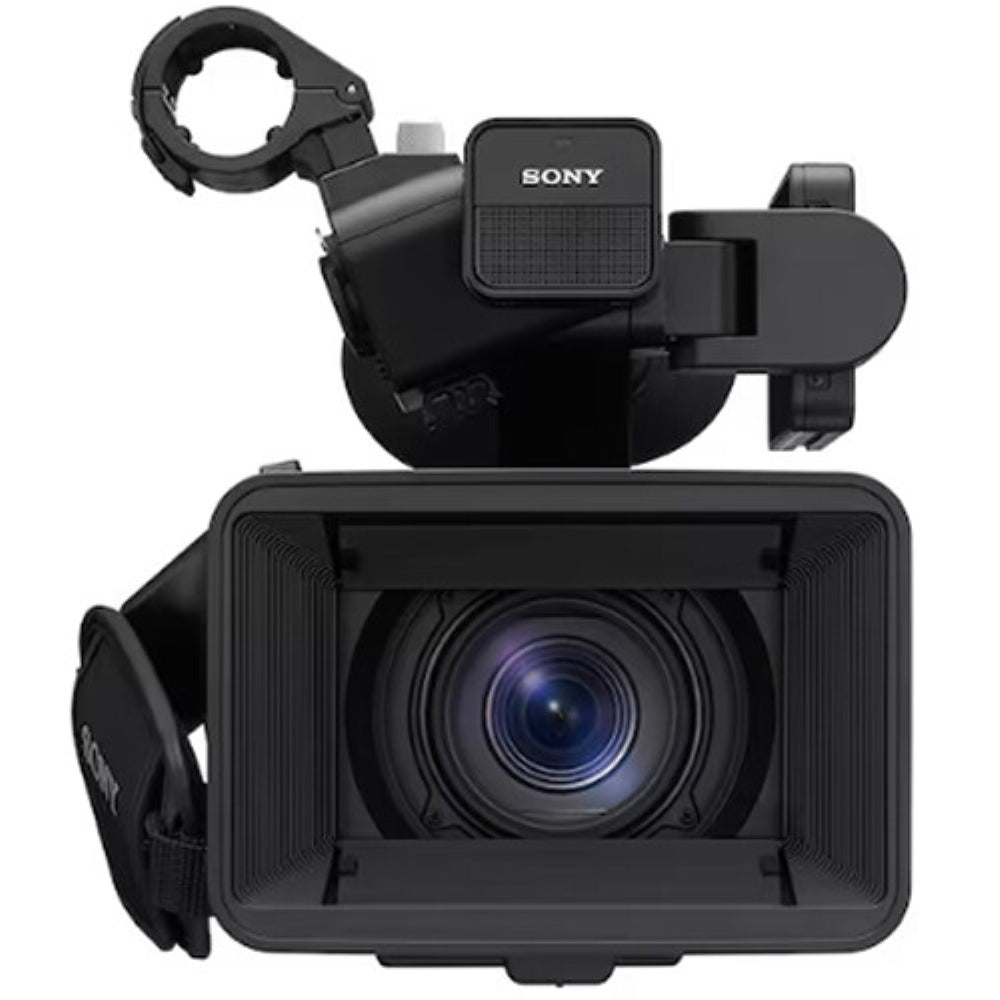

Creators who require swift autofocusing, auto-framing, and efficient content sharing while on the move can consider the Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder. Designed for enhanced portability, this model is the successor to the PXW-Z190 and is equipped with a 1"-type Exmor RS CMOS sensor that supports up to UHD 4K resolution. It features AI-assisted autofocus and auto-framing capabilities, a variable electronic ND filter, BIONZ XR processing, and color matching with Sony Cinema Line cameras. Additionally, it offers an extended 20x optical zoom and includes built-in dual-band 2.4/5 GHz Wi-Fi along with Ethernet connectivity for direct streaming via RTMP/RTMPS, SRT protocols, and FTP options. The Sony Monitor & Control app allows users to monitor their recordings using a smartphone or tablet. A firmware update planned for the summer of 2025 will introduce broadcast-friendly MXF wrapping.



1" Exmor RS CMOS Sensor

The 1.0"-type Exmor RS CMOS sensor of the PXW-Z200 employs a stacked architecture to deliver superior image quality, enhanced readout speeds, and remarkable performance in low-light conditions. This sensor generates exceptional 4K visuals through 5K oversampling with complete pixel readout.

Longer 20x Optical Zoom

Achieve a variety of perspectives, from detailed close-ups to expansive wide angles, within confined spaces by utilizing the 20x G-series zoom, which corresponds to a 35mm full-frame range of 24-480mm. Activate the Clear Image Zoom feature to extend the zoom capabilities to 30x in 4K resolution and 40x in HD.

BIONZ XR Processing

The newest BIONZ XR TM image processor facilitates enhanced frame rates, accelerated autofocus, refined ATW control, and superior noise reduction. By maximizing the capabilities of the high-resolution image sensor, it allows for the capture of intricate textures and minute details. The 5K oversampling with full-pixel readout compresses a wealth of image data into breathtaking UHD 4K60 video.

Advanced AI-Assisted Autofocus

The PXW-Z200 employs AI-driven deep learning technology to achieve accurate recognition of human subjects. Its Fast Hybrid autofocus system, featuring an impressive 81% coverage, enhances the effectiveness of both Subject Recognition AF and Real-Time Tracking. A dedicated AI Processing Unit collaborates with BIONZ XR, utilizing deep learning techniques informed by human form and posture data to identify human subjects with remarkable accuracy. The extensive 81% coverage of the Fast Hybrid AF system significantly improves its capabilities in Subject Recognition AF and Real-Time Tracking, allowing the Z200 to seamlessly track and maintain focus on subjects throughout the frame.

Auto Framing

Effectively monitor your subjects with the Auto Framing feature, which automatically identifies human figures and adjusts the frame to ensure your subject remains centered. This function is particularly beneficial for solo videographers, as it simulates manual capturing while allowing you to focus on your subject. When Auto Framing is activated, the camera will autonomously track a recognized human subject and modify the framing to keep the subject prominently displayed. The resulting footage can appear as if a human operator was manually adjusting the framing throughout the shoot, despite the camera remaining stationary. This allows solo operators to concentrate on engaging with their interviewees without the need to frequently adjust the camera's position.

Flexible Frame Rates

Capture video in stunning UHD 4K resolution at 60 frames per second, with the capability to record high frame rates of up to UHD 4K at 120 fps and 1080p HD at 240 fps. The slow-motion options allow for 4x at 4K30 and 5x at 4K24p, complemented by advanced high-speed autofocus to maintain clarity on your subject. The Exmor RS sensor's rapid readout speed facilitates 4K high frame rate (HFR) recording at 120 fps and full HD at 240 fps. Experience 4x slow motion at 30p in 4K or 5x slow motion at 24p. Regardless of your creative direction, the high-speed autofocus ensures your subject remains sharply in focus. The Slow & Quick Motion feature supports recording at up to 4K 120 fps and FHD 240 fps.

Pro Broadcast and Film Looks

The presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild, and HLG Natural can be refined through adjustments to black levels, matrix settings, and additional parameters. Furthermore, the content produced by the PXW-Z200 can be color-matched with footage captured from other Sony broadcast and Cinema Line cameras.

Easy File Transfers

The PXW-Z200 enables users to upload both proxy and original clips directly from a memory card to a cloud or FTP server. Files can be transferred automatically upon the cessation of each recording, provided the destination server has been registered within the camera. Additionally, it is possible to record proxy clips in segments and transfer them in sequence while recording. The optional Creator's Cloud for Enterprise C3 Portal application, available for purchase, facilitates cloud transfers, ensuring faster access to video files for editing and sharing.

Advanced Image Stabilization

The integrated image stabilization significantly reduces camera shake, ensuring the smoothest possible footage. The Active Mode stabilization combines both optical and electronic components, allowing your handheld recordings to appear as if they were captured with a gimbal. Reduce the impact of camera shake through the built-in image stabilization. Achieve fluid and stable footage in Active Mode, where optical and electronic stabilization collaborate to create seamless handheld shots.

Recording Options

The availability of various recording options allows you to select the most suitable solution for each project you undertake. For the highest quality and post-production flexibility, opt for XAVC S-I, which offers 10-bit 4:2:2 4K (QFHD) recording utilizing Intra-Frame H.264. Alternatively, XAVC HS-L (H.265) and XAVC S-L (H.264) present options for 4:2:2 or 4:2:0 with Long GOP recording, facilitating longer recording durations and enhanced file efficiency. XAVC HS also permits the creation of smaller proxy files (up to 16 Mb/s) for easier previewing and editing. A firmware update scheduled for the summer of 2025 will introduce broadcast-friendly MXF wrapping.

4-Channel Audio

Integrate the MI (multi-interface) shoe with XLR connectors to facilitate the recording of up to four audio channels. The audio dials enable swift adjustments of levels for two channels, eliminating the need to navigate through a menu tree.

Body Design and Connectivity

• This camcorder's interface includes up to 12G-SDI input and output, timecode input and output, genlock, USB-A, USB-C, LAN, REMOTE, and additional connectors.


• The PXW-Z200 incorporates a variable ND filter function.


• Provides a wide 1/4 to 1/128 ND range.


• Use the variable ND to seamlessly adjust your exposure with the twist of a dial.


• Stream directly from the camera using Wi-Fi or via a wired Ethernet connection.


• You can stream to compatible platforms using RTMP/RTMPS and SRT protocols.

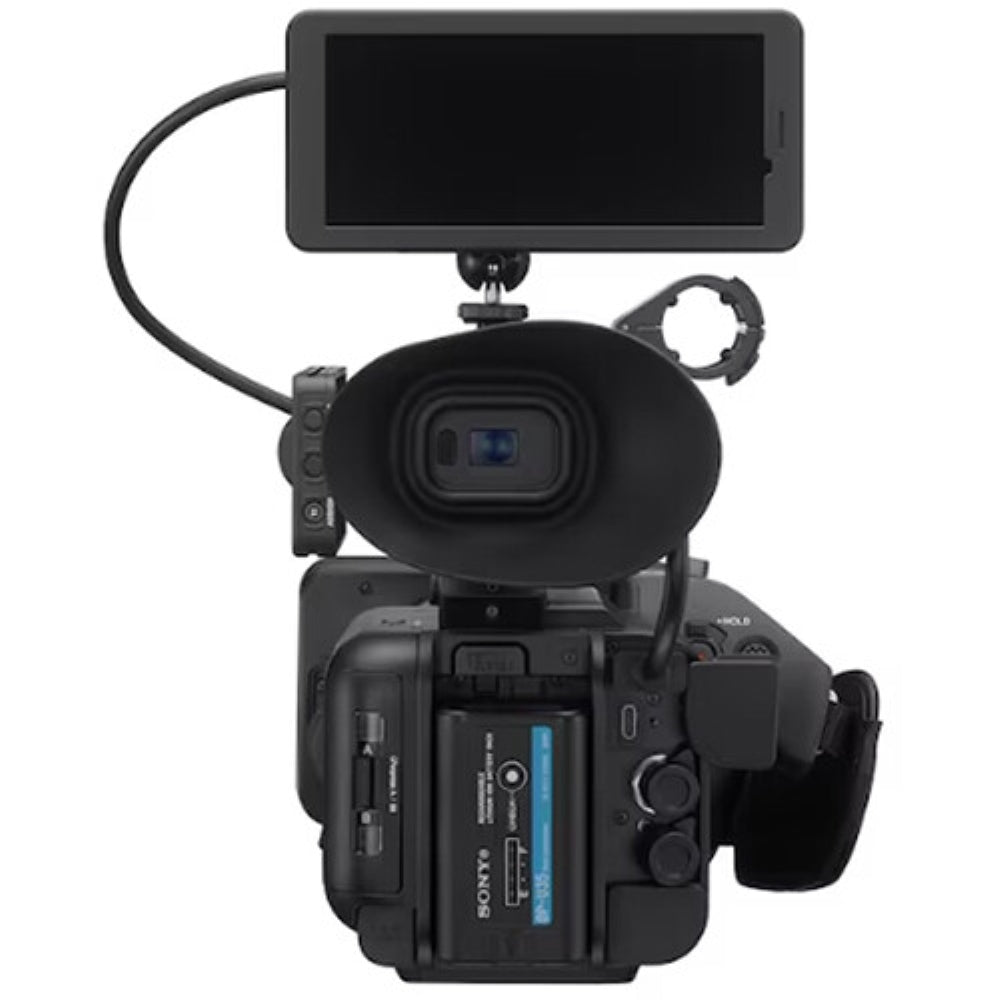

• The PXW-Z200 offers an OLED viewfinder and a 3.5" articulated LCD for monitoring your capture.


• The high-contrast OLED EVF provides a clear 2.36MP view while blocking ambient light.


• The LCD can be positioned for the best view, and it comes with a sun hood.


• The PXW-Z200 provides two memory card slots compatible with both CFexpress Type A and SD cards.


• Use the built-in Wi-Fi connectivity with the Monitor & Control app.


• Check your framing and monitor, and adjust camera controls.


• Like many other Sony cameras, the PXW-Z200 camcorder uses BP-U35, BP-U70, or BP-U100 packs, enabling you to use your existing supply of batteries.

Sensor Resolution Actual: 20.9 Megapixel

Effective: 14 Megapixel

Image Sensor 13.2 x 8.8 mm (1"-Type) CMOS Image Stabilization Optical in Integrated Lens

Digital

Built-In ND Filter 2 to 7 Stop Electronic ND Filter Capture Type Video Only Shutter Type Electronic Rolling Shutter  Shutter Speed 1/8000 to 64 Seconds ISO Sensitivity Range 250 to 16,000 Gain -3 to 36 dB Shutter Angle 5.6 to 360° Minimum Illumination 1.2 Lux White Balance 2000 to 15,000K

Presets: ATW, Auto

Focal Length 7.71 to 154.21mm (35mm Equivalent: 24 to 480mm) Optical Zoom Ratio 20x Max Digital Zoom 1.5x ( in UHD 4K)

2x ( in 1080p)

Maximum Aperture f/2.8 to 4.5 Minimum Focus Distance 0.4" / 1.0 cm Filter Size 72 mm Focus Control Autofocus

Manual Focus

Internal Recording ModesXAVC HS-L

3840 x 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s]

XAVC S-L

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps

XAVC S-I

3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps

External Recording ModesSDI/BNC

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 50/59.94/100/120 fps

1920 x 1080PsF at 23.98/25/29.97 fps

HDMI

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 25/29.97/50/59.94/100/120 fps

Fast-/Slow-Motion Support Yes Gamma Curve HDR-HLG, Rec709, S Cinetone, Sony S-Log 3 Broadcast Output NTSC/PAL Built-In Microphone Stereo Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio IP StreamingH.264, H.265, RTMP, RTMPS, SRT

3840 x 2160 at 50p, 59.94p (38.00 Mb/s)

3840 x 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s)

1920 x 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s)

1920 x 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s)

1280 x 720 at 50p, 59.94p (2.3 to 13.5 Mb/s)

1280 x 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s)

Media/Memory Card Slot Dual Slot: CFexpress Type A / SD (UHS-II) Video I/O 1x BNC (12G-SDI) Output

1x HDMI (Unspecified Signal) Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Input

2x XLR 3-Pin Input

1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output

Power I/O 1x USB-C Other I/O 1x BNC (Timecode) Input/Output

1x 2.5 mm Sub-Mini (Remote) Control

1x RJ45 (LAN) Control

1x USB-C (USB 3.2 / 3.1 Gen 1)

Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Mobile App Compatible Yes: Android & iOS Global Positioning (GPS, GLONASS, etc.) No Display Type Articulating Touchscreen LCD Display Size 3.5" Type Built-In Electronic Size 0.39" Diopter Adjustment -4 to +3 Focus Type Auto and Manual Focus Autofocus Points Phase Detection: 475 Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Battery Type Sony BP-U Series Power Consumption 20 W

Shoe Mount 1x Intelligent Hot Shoe Dimensions (W x H x D) 6.9 x 7.9 x 14.63" / 175.6 x 201.3 x 371.6 mm Weight 4.32 lb / 1.96 kg (Body Only)
